LED Magnetic Lighting Unit, 48 V DC with Switch
Prices only visible for logged in users
Set of LED Lighting Unit + Connection Kit 48 V DC with Switch
Item number:
698026.2
EAN no.:
4049759135355
Product information for Set of LED Lighting Unit + Connection Kit 48 V DC with Switch

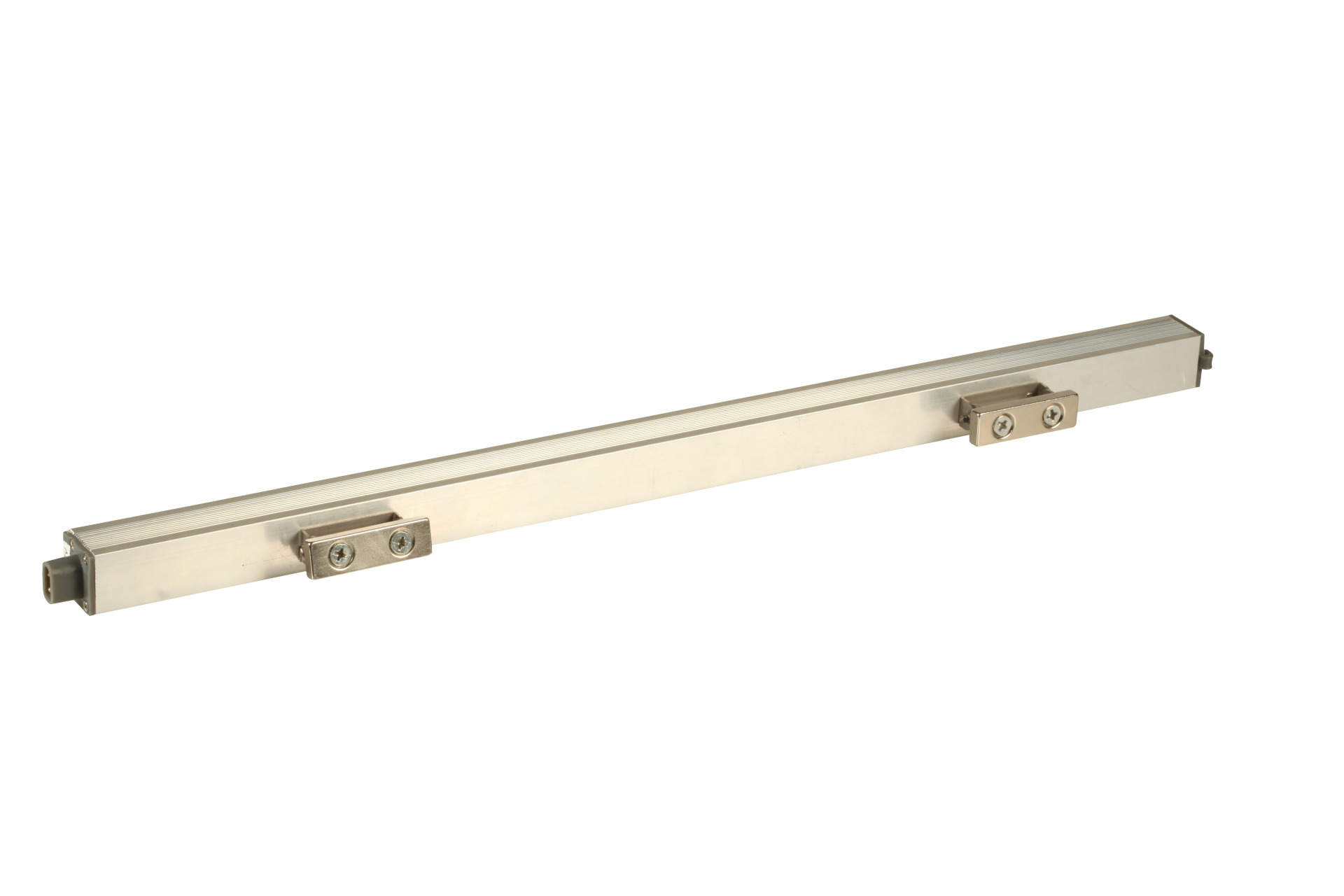

LED lighting unit in high-quality aluminium profile for magnetic mounting at any position in cabinet
Selective lighting due to turnable magnetic holder (turning angle ca. 180°)
48 V type especially suitable for use in industrial or FTTH applications
Dimensions lighting unit (L x W x H) 415 x 20 x 20 mm
Power supply 48 V DC with switch & open end, cable length 1.5 m
Power consumption 4.0 W, luminosity 280 Lm
Colour temperature 3500 K (warm white)
Selective lighting due to turnable magnetic holder (turning angle ca. 180°)
48 V type especially suitable for use in industrial or FTTH applications
Dimensions lighting unit (L x W x H) 415 x 20 x 20 mm
Power supply 48 V DC with switch & open end, cable length 1.5 m
Power consumption 4.0 W, luminosity 280 Lm
Colour temperature 3500 K (warm white)
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Lamp power: | 4 W |
| Magnetic mounting: | True |
| Material: | Aluminium |
| Rated voltage: | 48 V DC |
| Type of electrical connection: | Other |
| Type of lamp: | LED |
| With light sensor: | False |
| With on/off switch: | True |
| With socket outlet: | False |
