Splice box LC-APC 9/125µ OS2 extendable
Splice box LC-APC 9/125µ OS2 extendable, 12 pigtails stripped/ 6 adapters
Item number:
BA71920L12
EAN no.:
4049759284534
Product information for Splice box LC-APC 9/125µ OS2 extendable, 12 pigtails stripped/ 6 adapters

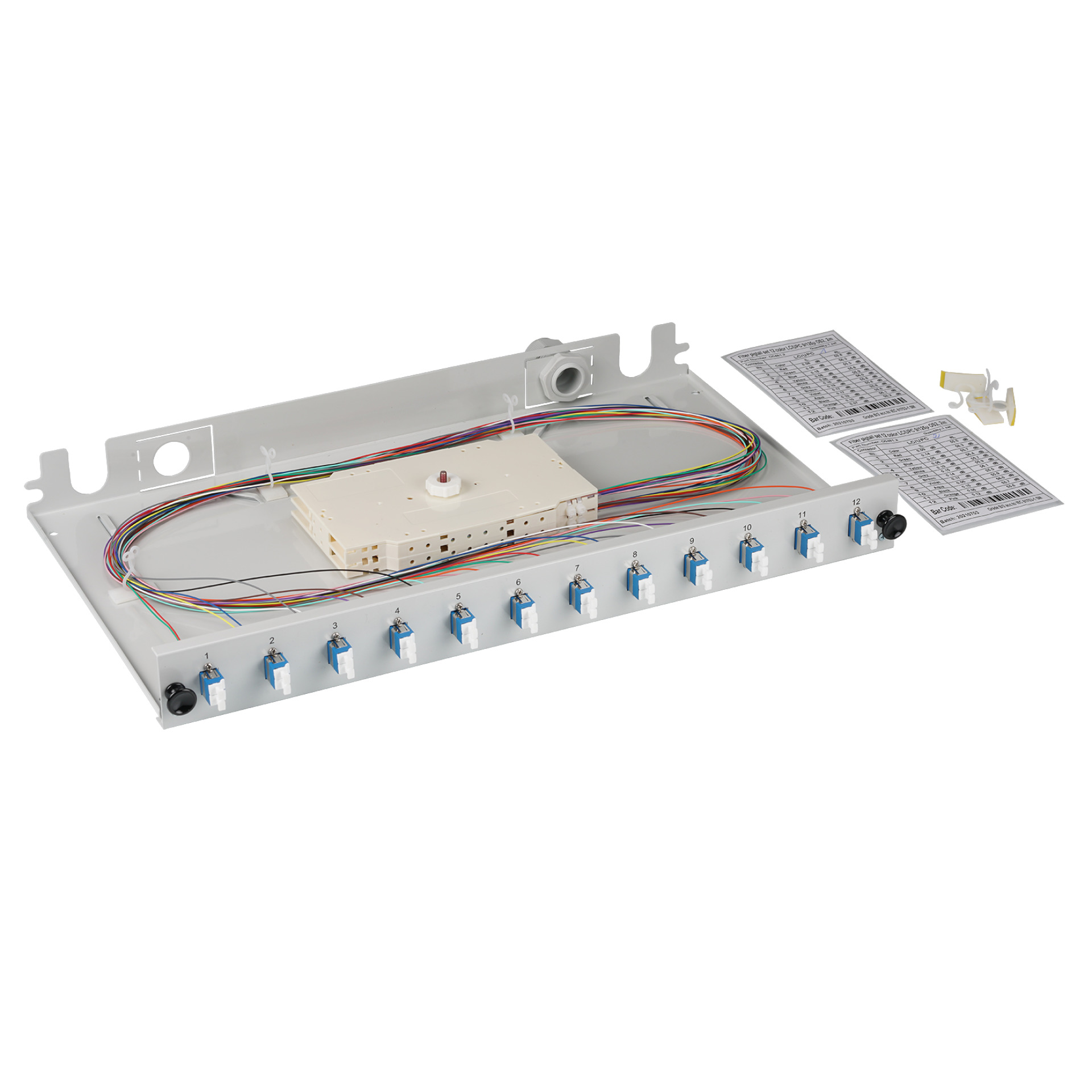

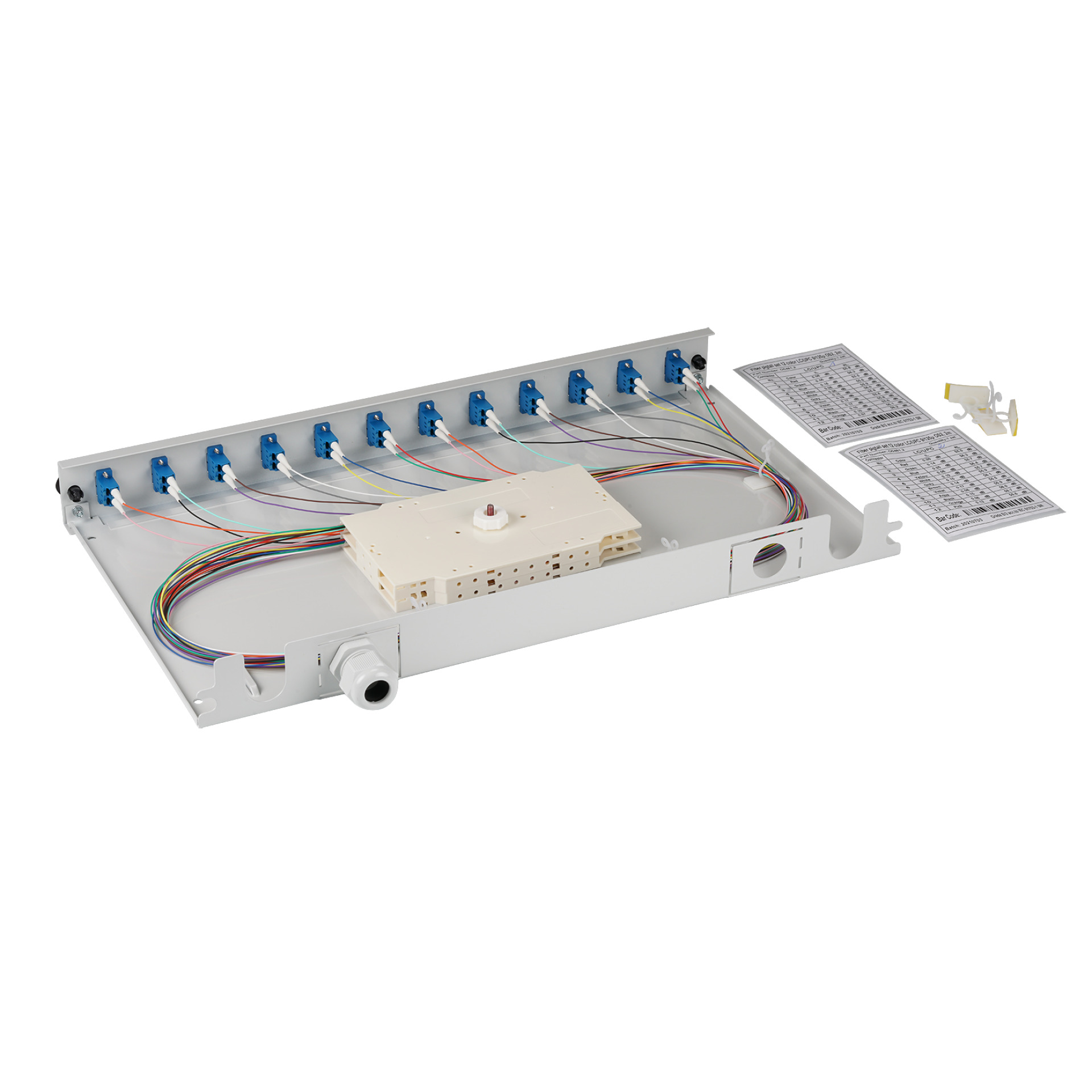

completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
metal housing depth adjustable
cable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Singlemode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| Item no. | Name | Type of connector external | Color | Pigtail | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | Unique | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BA71920L12 | Splice box LC-APC 9/125µ OS2 extendable, 12 pigtails stripped/ 6 adapters | LC-Duplex | grey | 12 x LC/APC | 12 | 6 | 7035 | LC-Duplex | green | - | |
| BA71920L24 | Splice box LC-APC 9/125µ OS2 extendable, 24 pigtails/ 12 adapters | - | - | - | - | - | - | - | - | Unique |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
