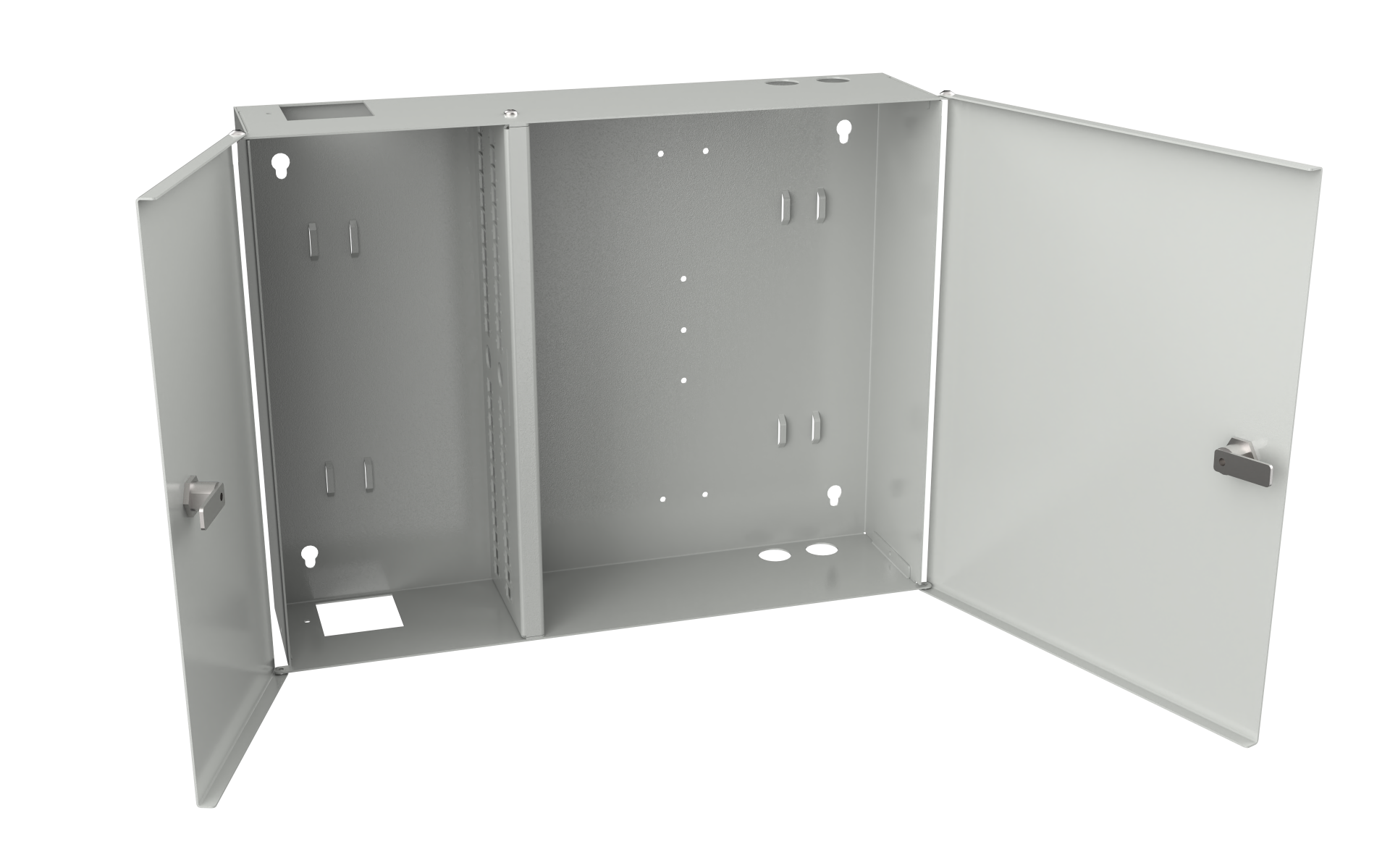

Wall distributor splice housing W=430 x H=330 x D=100mm
Wall distributor splice housing W=430 x H=330 x D=100mm, without panels
Item number:
53604.1V2
EAN no.:
4049759301521
Product information for Wall distributor splice housing W=430 x H=330 x D=100mm, without panels
Housing with two swing doors, lockable,
2 different locks with 2 keys each
With 2 cable entry openings at the top and bottom
for PG16 plus 2 cable entry openings
with sealing strip
Additional strain relief clamps and guides
for fiber and cable storage for fastening
with cable ties. Max. 5 splice cassettes and one
Distributor plate can be mounted.
Up to 6 Pro splice cassettes can be mounted
The distribution plate is fastened in two ways
M3 screws.
Dimensions (W) x (H) x (D) 430 x 330 x 100 mm
Sheet steel 1.2 mm, weight approx. 4.6 kg
2 different locks with 2 keys each
With 2 cable entry openings at the top and bottom
for PG16 plus 2 cable entry openings
with sealing strip
Additional strain relief clamps and guides
for fiber and cable storage for fastening
with cable ties. Max. 5 splice cassettes and one
Distributor plate can be mounted.
Up to 6 Pro splice cassettes can be mounted
The distribution plate is fastened in two ways
M3 screws.
Dimensions (W) x (H) x (D) 430 x 330 x 100 mm
Sheet steel 1.2 mm, weight approx. 4.6 kg
Technical properties
| Depth: | 100 mm |
|---|---|
| Height: | 330 mm |
| Mounting method: | Wall mounting |
| Suitable for number of module inserts: | 5 |
| Width: | 430 mm |
| With front plate: | False |
| With housing: | True |
| With pigtails: | False |
