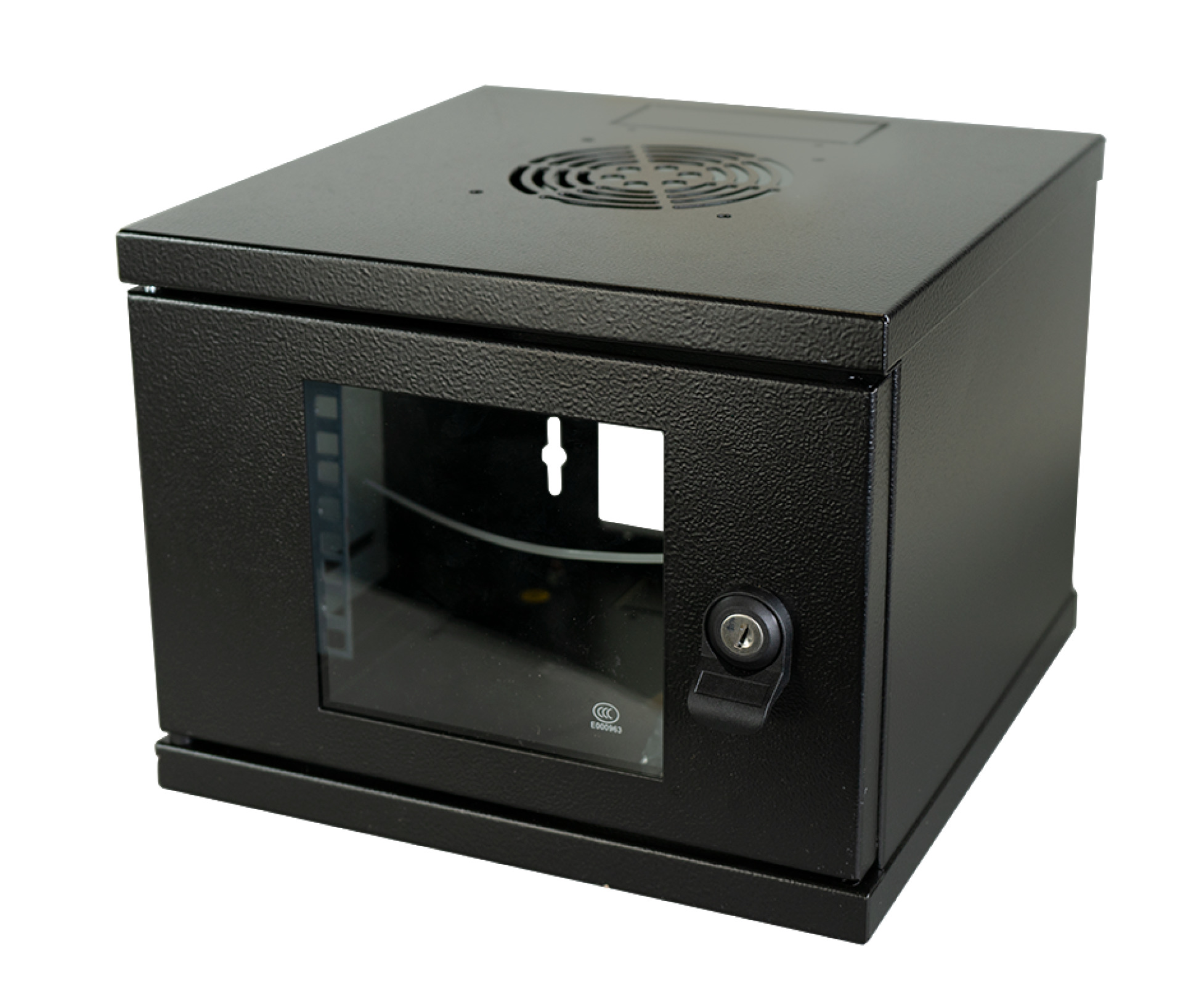

10" Wandgehäuse 6HE, Tiefe 300 mm,
10" Wall Housing 6U, Depth 300 mm, RAL9005
Item number:
691803TS.6
EAN no.:
4049759242336
Product information for 10" Wall Housing 6U, Depth 300 mm, RAL9005
Self-ventilated steel sheet housing, welded

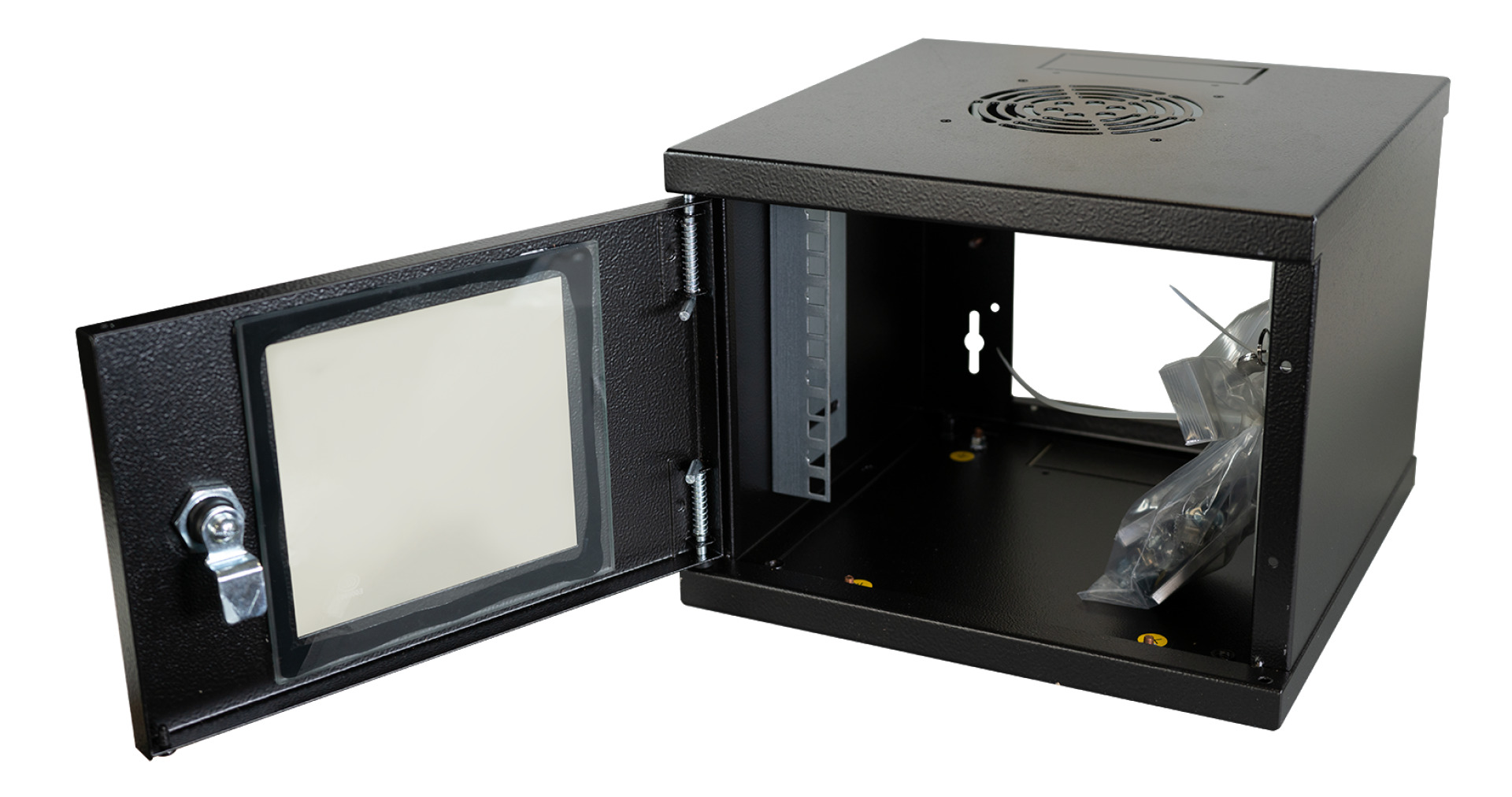

Front door lockable, with latch, door opening angle > 180°
Front door with window made of certified safety glass (4 mm)
2 x 10" profile rails, depth adjustable, usable mounting depth 203..263 mm

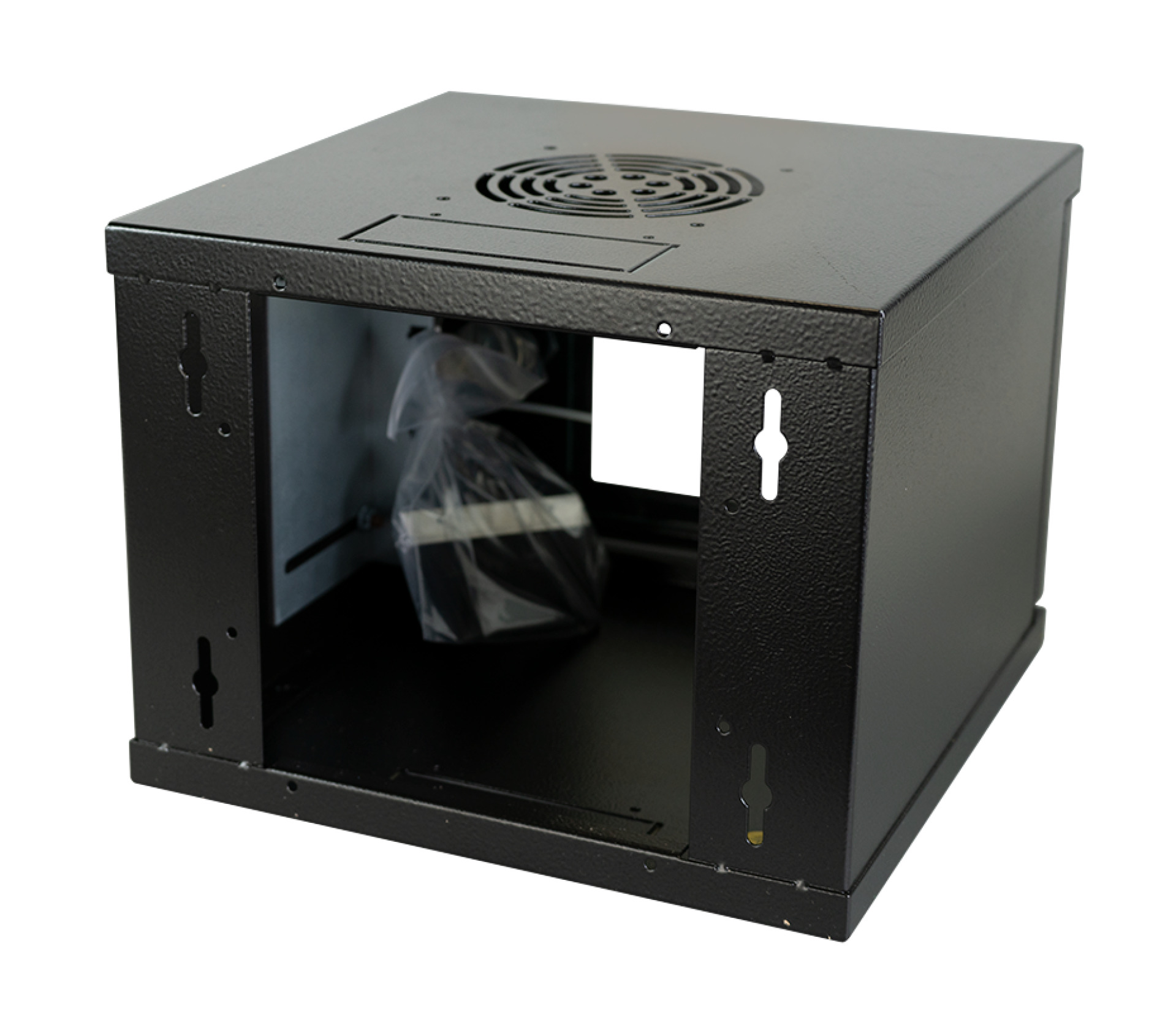

Cable entry possible from top, bottom (opening 44 x 115 mm) or rear-sided (177 x 280 mm)
Bottom with 4 x thread for leveling feet M8 (Art.-No. OFF-NIV01)
Roof with pre-punched opening for single fan
Long holes for wall mounting
Max. load 60 kg

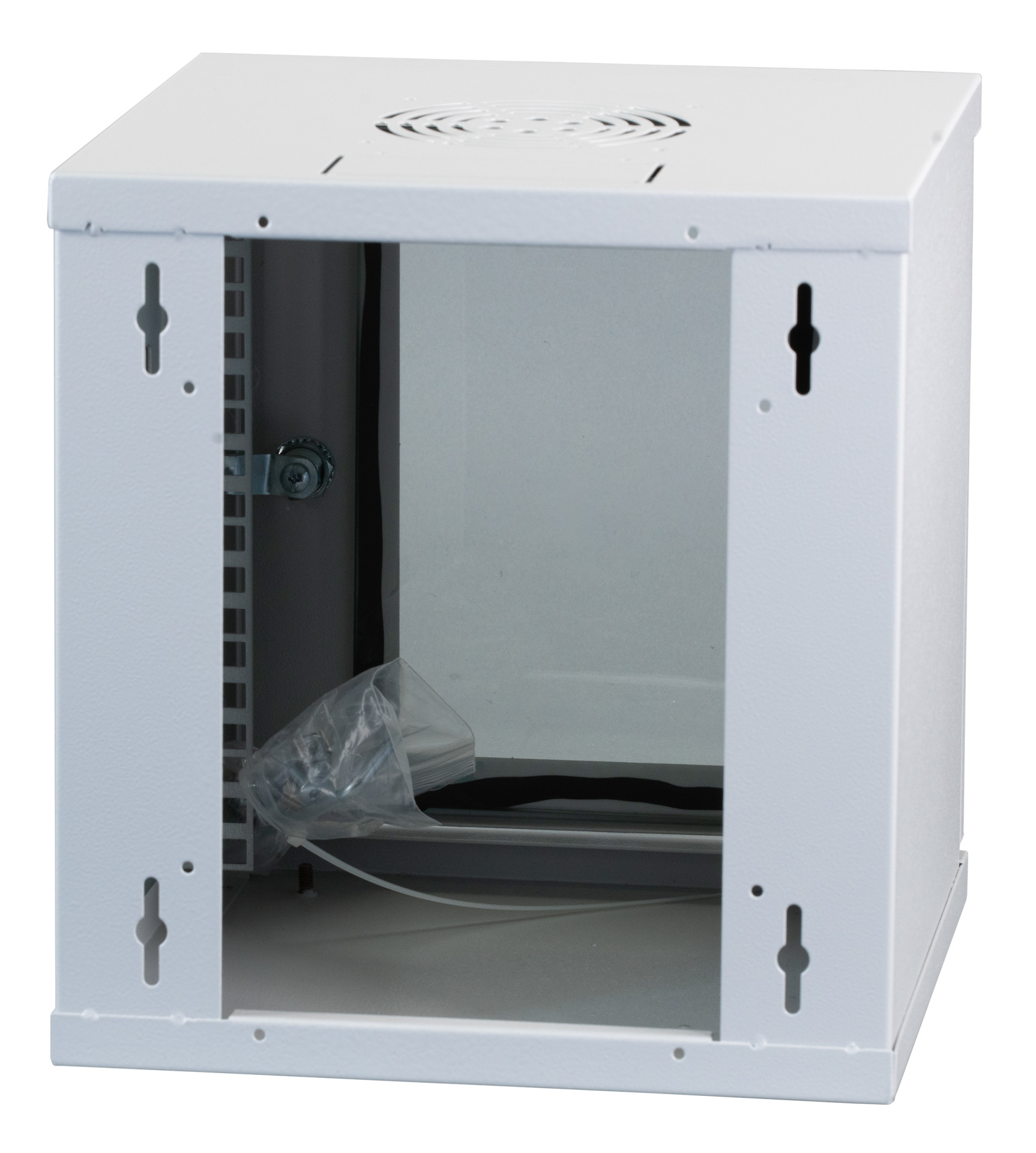

Paint finish RAL7035, light grey / RAL9005 jet black
Delivery in transport packaging, incl. 2 x brush, 2 x key
Front door lockable, with latch, door opening angle > 180°
Front door with window made of certified safety glass (4 mm)
2 x 10" profile rails, depth adjustable, usable mounting depth 203..263 mm
Cable entry possible from top, bottom (opening 44 x 115 mm) or rear-sided (177 x 280 mm)
Bottom with 4 x thread for leveling feet M8 (Art.-No. OFF-NIV01)
Roof with pre-punched opening for single fan
Long holes for wall mounting
Max. load 60 kg
Paint finish RAL7035, light grey / RAL9005 jet black
Delivery in transport packaging, incl. 2 x brush, 2 x key
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Demountable: | Ja |
| Material: | Stahl |
| Model: | mit Festrahmen |
| Modular spacing: | 254 mm (10 Zoll) |
| Mounting level: | vorne |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | pulverbeschichtet |
| Type of profile rail: | L-förmig |
| Type of ventilation: | passiv |
| With earthing: | Ja |
| With front door: | Ja |
| With roof plate: | Ja |
| With sidewall: | Ja |
