19" 1U Heavy-Duty Shelves, Depth-Adjust., Max. Load 150 kg

Prices only visible for logged in users

19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL9005
Item number: 691653TS.80
EAN no.: 4049759252700
Piece

Product information for 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL9005

For use in all 19" network and server cabinets
Fixing at the front and rear-sided 19" profiles necessary

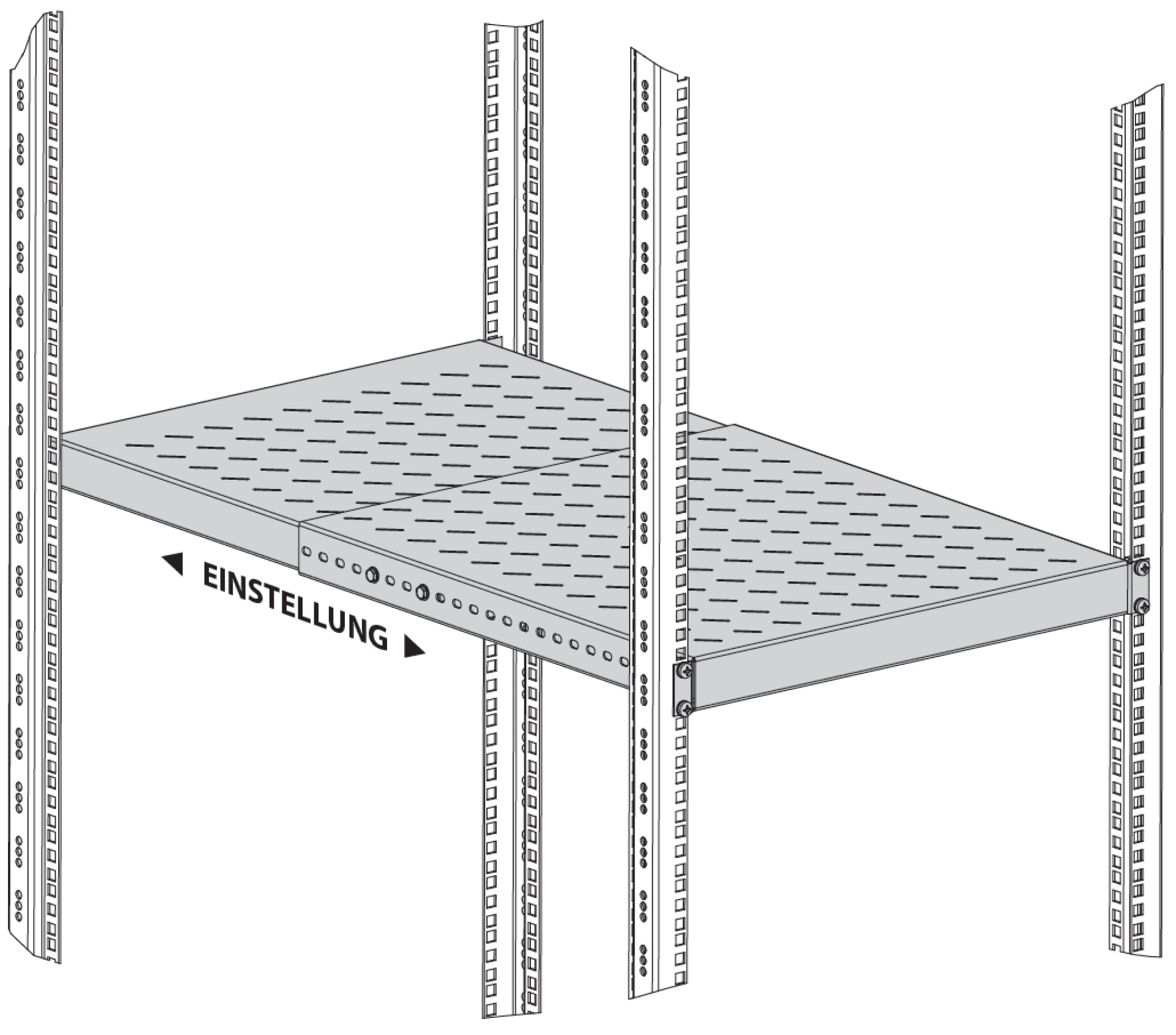

Mounting depth adjustable with self-tapping screws
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories

Technical properties

Material: Metal
Model: Shelf

Variants

Item no. Name Max. Load Colour Adjustment Depth Breite Höhe RAL-Nummer Nutzbreite Für Schranktiefe Nutztiefe
691653GR.6 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL7035 150 kg grey 350 – 600 mm 350 – 600 mm 482,6 mm 44 mm 7035 440 mm 600 mm 350 – 600 mm
691653GR.80 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL7035 150 kg grey 500 – 900 mm 500 – 900 mm 482,6 mm 44 mm 7035 440 mm 800 - 1000 mm 500 – 900 mm
691653TS.6 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL9005 150 kg black 350 – 600 mm 350 – 600 mm 482,6 mm 44 mm 9005 440 mm 600 mm 350 – 600 mm
691653TS.80 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL9005 150 kg black 500 – 900 mm 500 – 900 mm 482,6 mm 44 mm 9005 440 mm 800 - 1000 mm 500 – 900 mm
