19" 1U Lighting Unit "Basic LED"
19" 1U Lighting Unit "Basic LED"
Item number:
698023.3
EAN no.:
4049759254469
Product information for 19" 1U Lighting Unit "Basic LED"
Ready-to-connect lighting unit 19“ 1U
For horizontal mounting in the 19" level of network and server cabinets
Operating voltage 100 .. 240 V AC, 8 W
This lighting unit contains a lighting source in energy efficiancy class E
LED light colour warm-white, light output 800 Lm, Ra > 80
Materials holder stainless steel, body aluminium, cover plastic
Dimensions (WxHxD) 480 x 44 x 26 mm

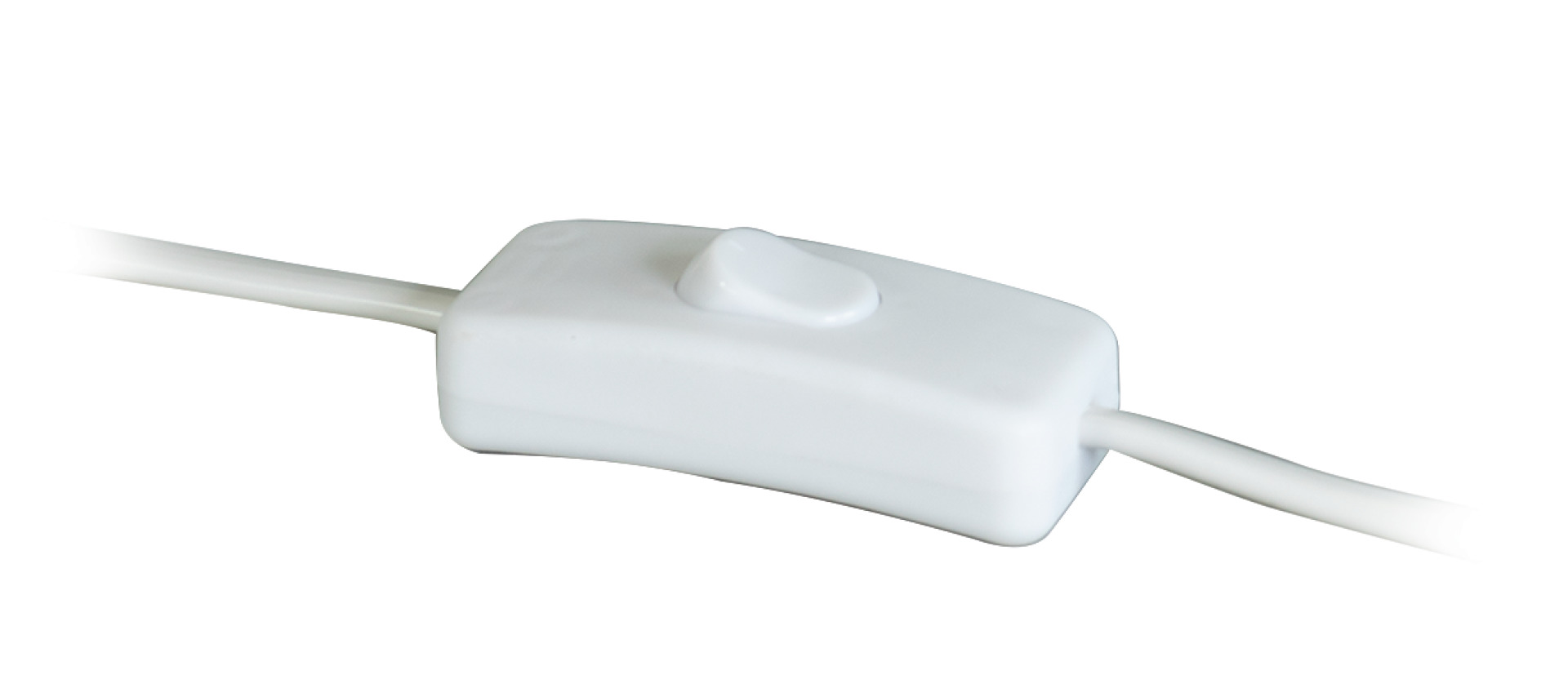

Dielivery incl. power cable 2 m white, with Euro plug and switch
For horizontal mounting in the 19" level of network and server cabinets
Operating voltage 100 .. 240 V AC, 8 W
This lighting unit contains a lighting source in energy efficiancy class E
LED light colour warm-white, light output 800 Lm, Ra > 80
Materials holder stainless steel, body aluminium, cover plastic
Dimensions (WxHxD) 480 x 44 x 26 mm
Dielivery incl. power cable 2 m white, with Euro plug and switch
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Lamp power: | 8 W |
| Magnetic mounting: | False |
| Material: | Aluminium |
| Rated voltage: | 240 V |
| Type of electrical connection: | Plug/connector |
| Type of lamp: | LED |
| With light sensor: | False |
| With on/off switch: | True |
| With socket outlet: | False |
