EFB server 42U, 800x1200 mm, F+R 2-part, with SW
19" EFB server 42U, 800x1200 mm, F+R 2-part, perforated, with SW, RAL9005
Item number:
ESV-4282TS.P2
EAN no.:
4049759322359
Product information for 19" EFB server 42U, 800x1200 mm, F+R 2-part, perforated, with SW, RAL9005
19“ server cabinet according to DIN41494

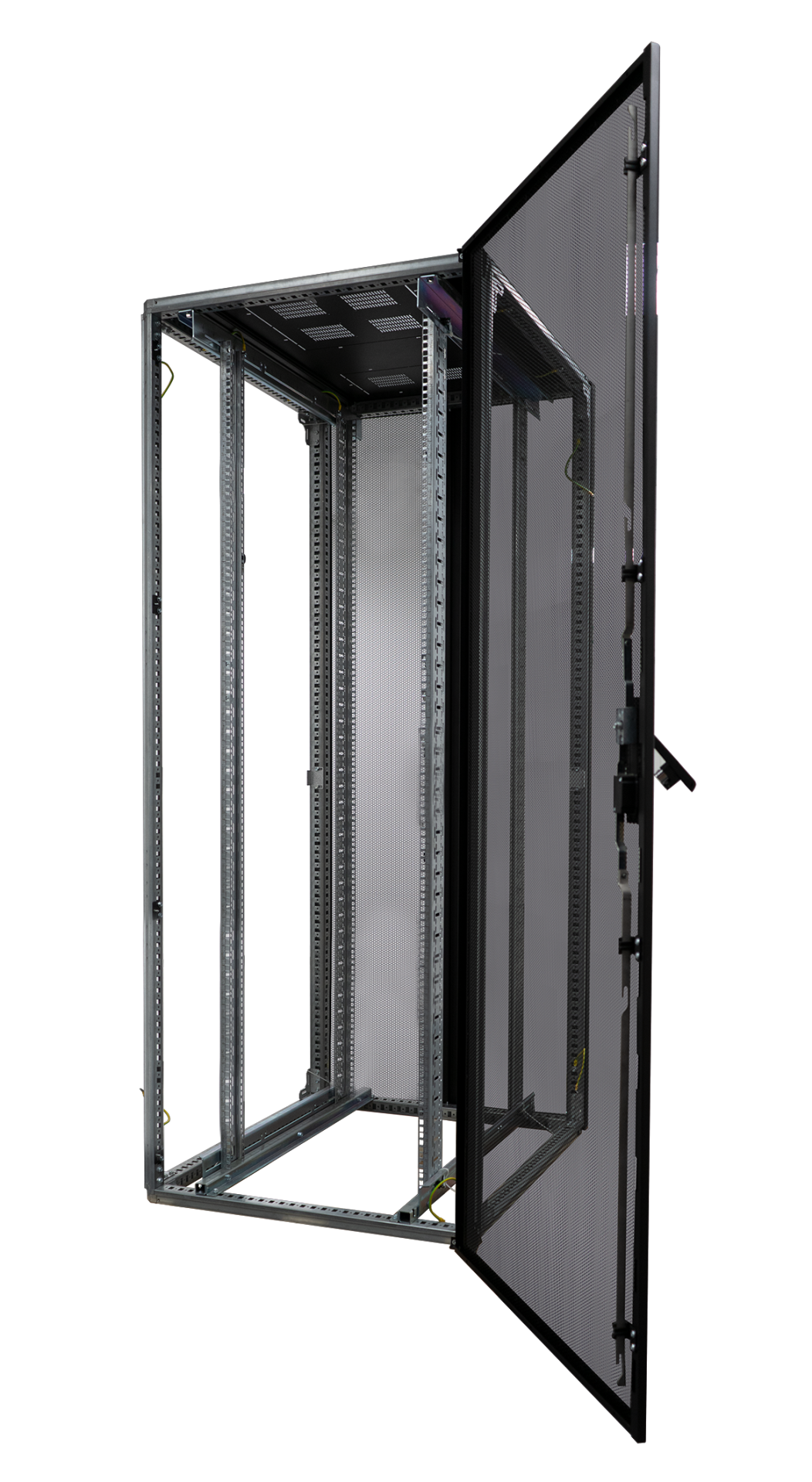

Steel sheet housing with screwed profile frame, completely pre-assembled, dismountable

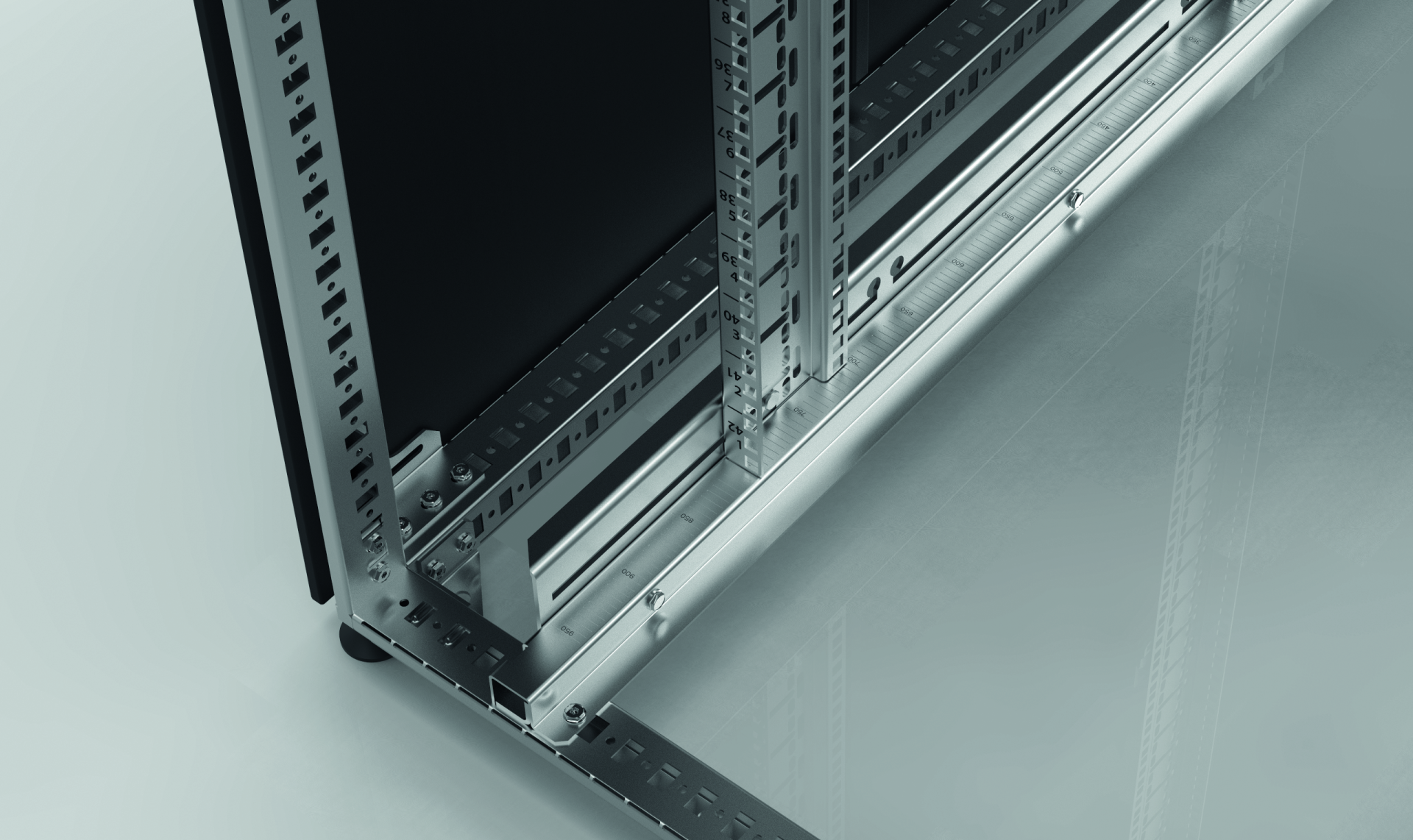

Inside front and rear 4 x 19“ profile rails (2 front, 2 rear), galvanised, toolless stepless depth-adjustable
Scaling for depth-adjustment at the profile carrying rails
Contrariwsie numbering of rack units at the 19“ profiles

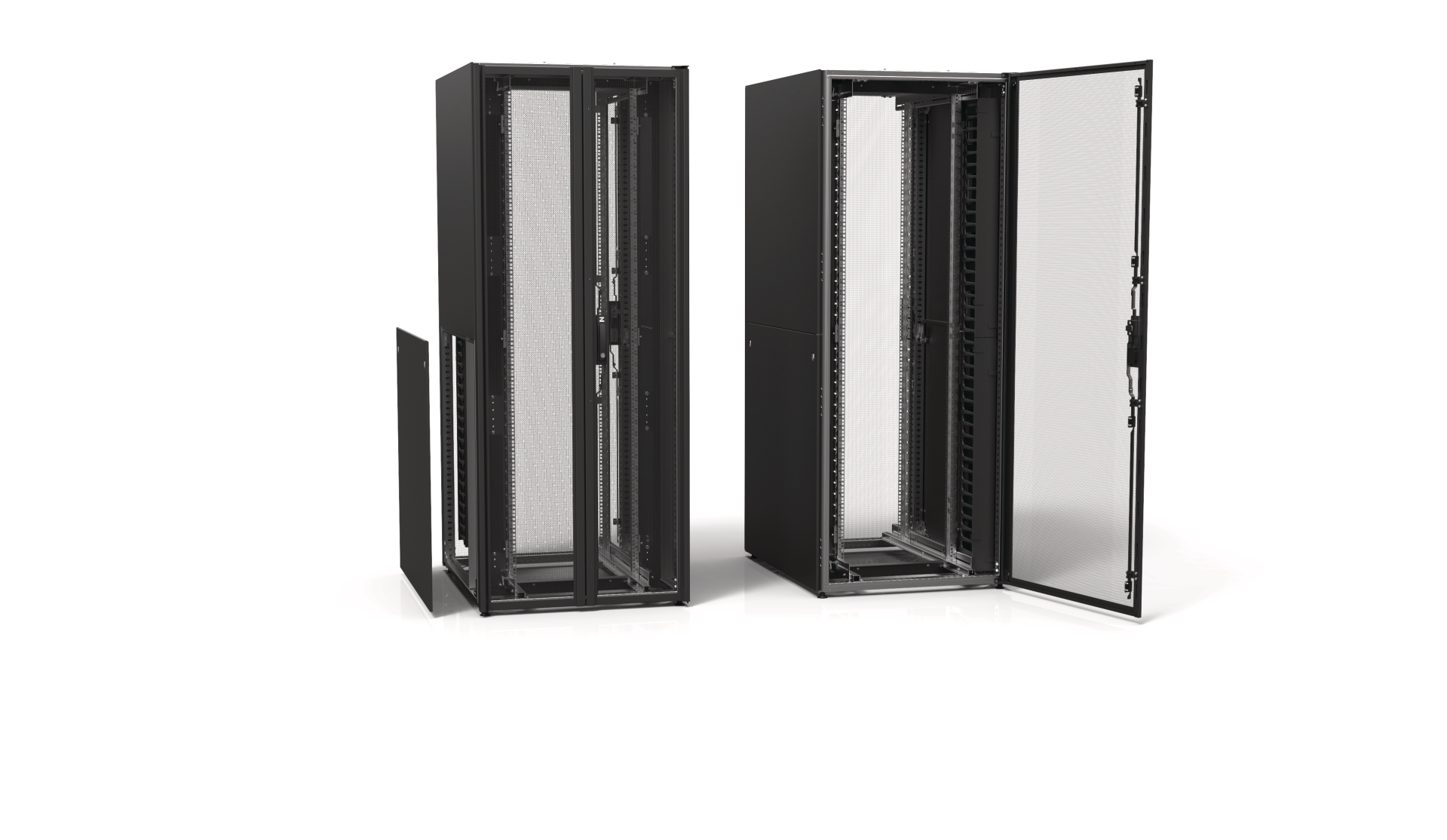

Front- and rear door steel, perforated, 1-part or 2-part, perforation degree > 80 %, perforation area up to 86 %
1-part door with 5-point locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303, door stop right or left-sided possible
2-part door with 3-point bar locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door opening angle up to 270°
Delivery with side walls type A, side walls available in 4 variants:
Type A – Side wall, horizontally divided, door opening angle 270°
Type B – Side wall, horizontally divided, enables lateral PDU mounting in cabinet width 600 mm
Type C – Bulkhead, 1-part, for cabinets with levelling feet
Type D – Bulkhead, 1-part, for cabinets without levelling feet
Type E – Bulkhead, 1-part, for mounting inside the rack frame
Cabinets stackable side-by-side with stacking set Art.-No. ESV-ANR01
Bulkheads are retrofittable onto already stacked cabinets

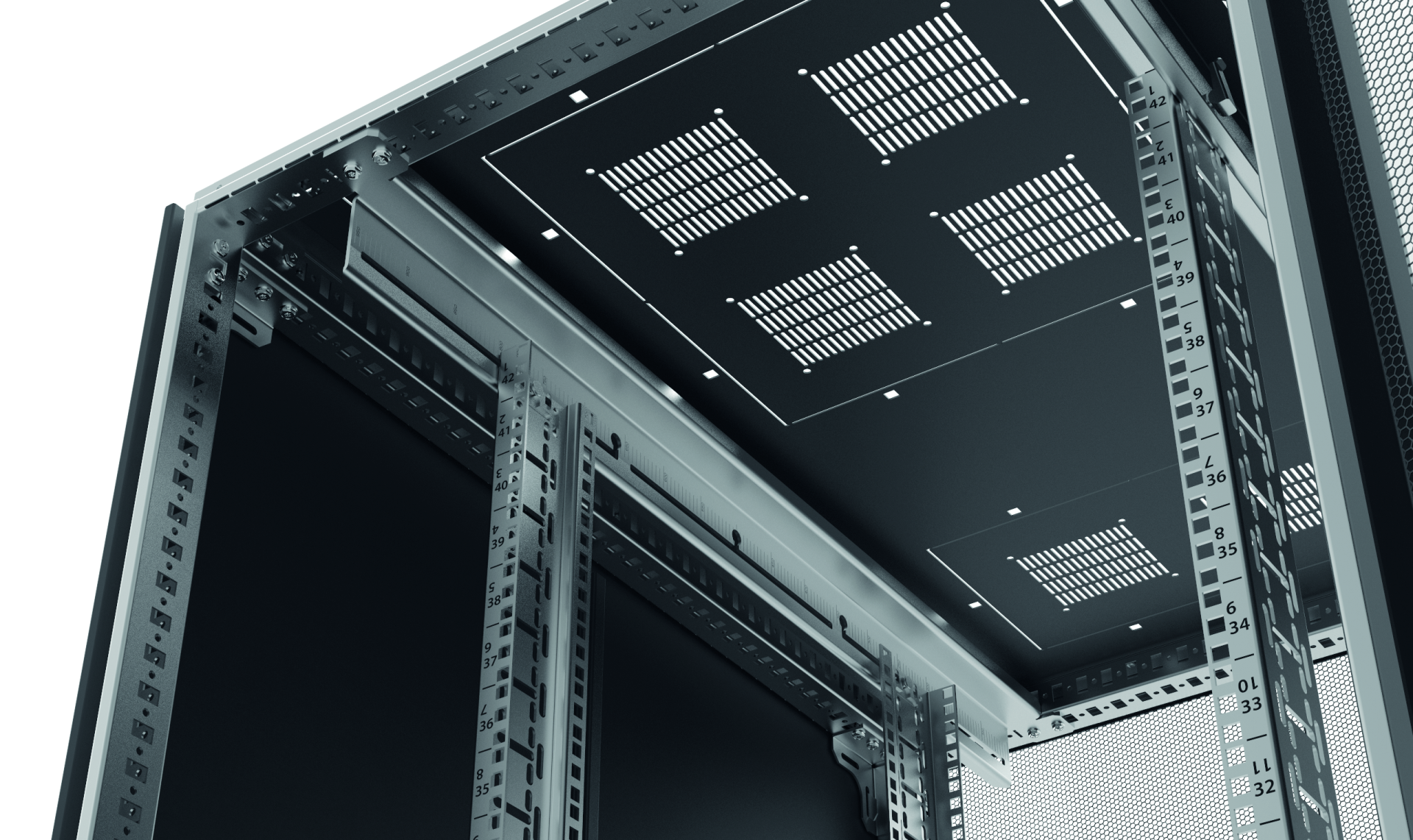

Roof toolless mountable, with pre-punched ventilation openings for use of up to 2 fan units (2-fan or 4-fan type)
Roof with cable entries over full cabinet length after toolless removal of the pre-punched lateral covers
Delivery without bottom
Max. load 1500 kg, optionally up to 2400 kg possible
All cabinet parts inside completely grounded
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20 (except of bottom area)
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed profile frame, completely pre-assembled, dismountable
Inside front and rear 4 x 19“ profile rails (2 front, 2 rear), galvanised, toolless stepless depth-adjustable
Scaling for depth-adjustment at the profile carrying rails
Contrariwsie numbering of rack units at the 19“ profiles
Front- and rear door steel, perforated, 1-part or 2-part, perforation degree > 80 %, perforation area up to 86 %
1-part door with 5-point locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303, door stop right or left-sided possible
2-part door with 3-point bar locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door opening angle up to 270°
Delivery with side walls type A, side walls available in 4 variants:
Type A – Side wall, horizontally divided, door opening angle 270°
Type B – Side wall, horizontally divided, enables lateral PDU mounting in cabinet width 600 mm
Type C – Bulkhead, 1-part, for cabinets with levelling feet
Type D – Bulkhead, 1-part, for cabinets without levelling feet
Type E – Bulkhead, 1-part, for mounting inside the rack frame
Cabinets stackable side-by-side with stacking set Art.-No. ESV-ANR01
Bulkheads are retrofittable onto already stacked cabinets
Roof toolless mountable, with pre-punched ventilation openings for use of up to 2 fan units (2-fan or 4-fan type)
Roof with cable entries over full cabinet length after toolless removal of the pre-punched lateral covers
Delivery without bottom
Max. load 1500 kg, optionally up to 2400 kg possible
All cabinet parts inside completely grounded
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20 (except of bottom area)
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Technical properties
| Cabinet Series: | EFB-Server |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | Ja |
| Material: | Stahl |
| Model: | mit Festrahmen |
| Modular spacing: | 482,6 mm (19 Zoll) |
| Mounting level: | vorne und hinten |
| Surface finishing: | pulverbeschichtet |
| Toolless depth adjustment: | Ja |
| Type of back door: | Stahltür perforiert geteilt |
| Type of front door: | Stahltür perforiert geteilt |
| Type of profile rail: | verkröpft |
| Type of ventilation: | passiv |
| With backside door: | Ja |
| With earthing: | Ja |
| With front door: | Ja |
| With roof plate: | Ja |
| With sidewall: | Ja |
| With socket: | Nein |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
