EFB Server, 600x1000, 1-Part Doors
19" EFB Server 47U, 600x1000 mm, F+R 1-Part, RAL9005
Item number:
ESV-4760TS.P1OS
EAN no.:
4049759243999
Product information for 19" EFB Server 47U, 600x1000 mm, F+R 1-Part, RAL9005
19“ server cabinet according to DIN41494
Steel sheet housing with screwed profile frame, completely pre-assembled, dismountable

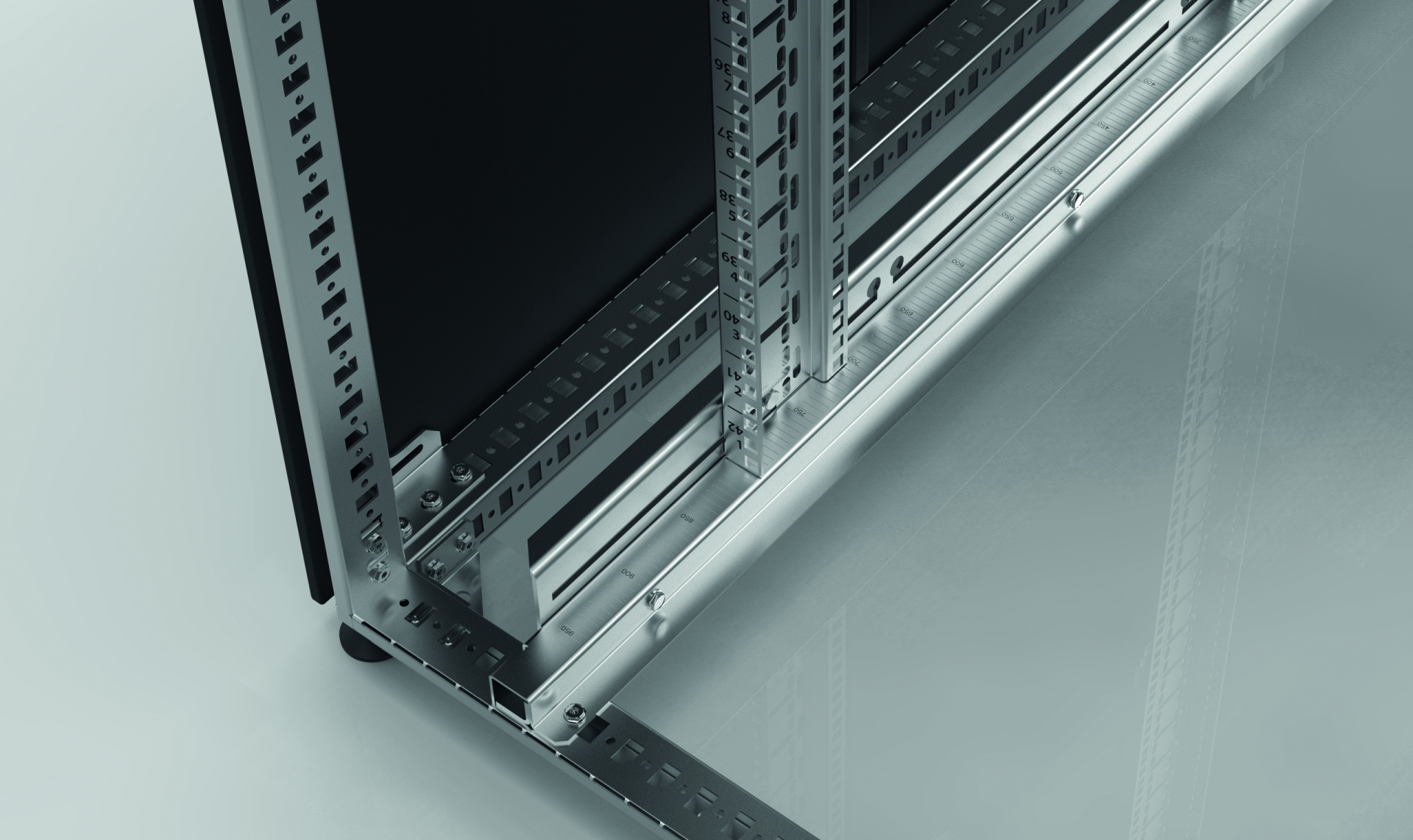

Inside front and rear 4 x 19“ profile rails (2 front, 2 rear), galvanised, depth-adjustable step-less and tool-less
Scaling for depth-adjustment at the profile carrying rails
Contrariwise numbering of rack units at the 19“ profiles
Front- and rear door steel, perforated, 1-part or 2-part, perforation degree > 80 %, perforation area up to 86 %

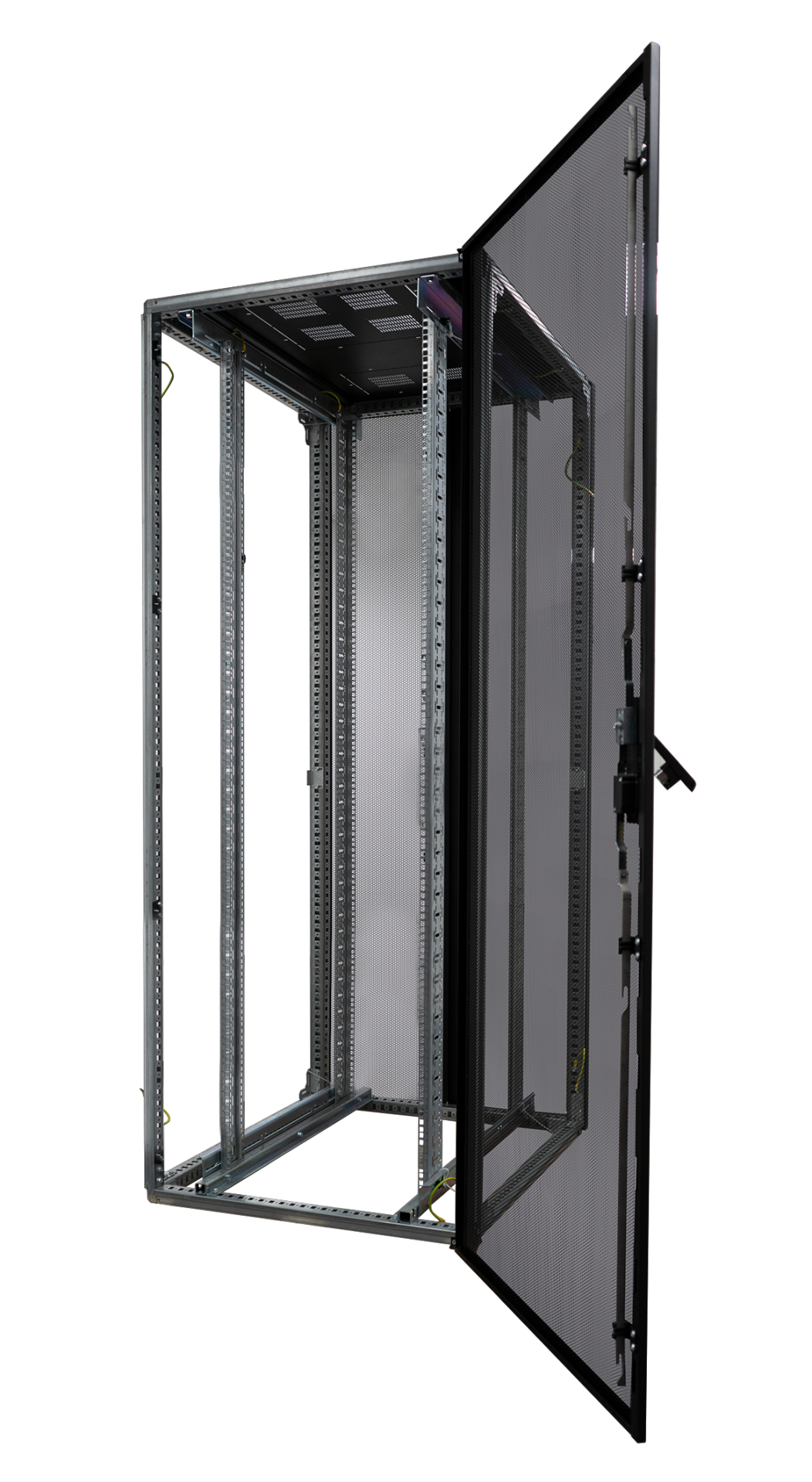

1-part door with 5-point locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303, door stop right or left-sided possible
2-part door with 3-point bar locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door opening angle up to 270°

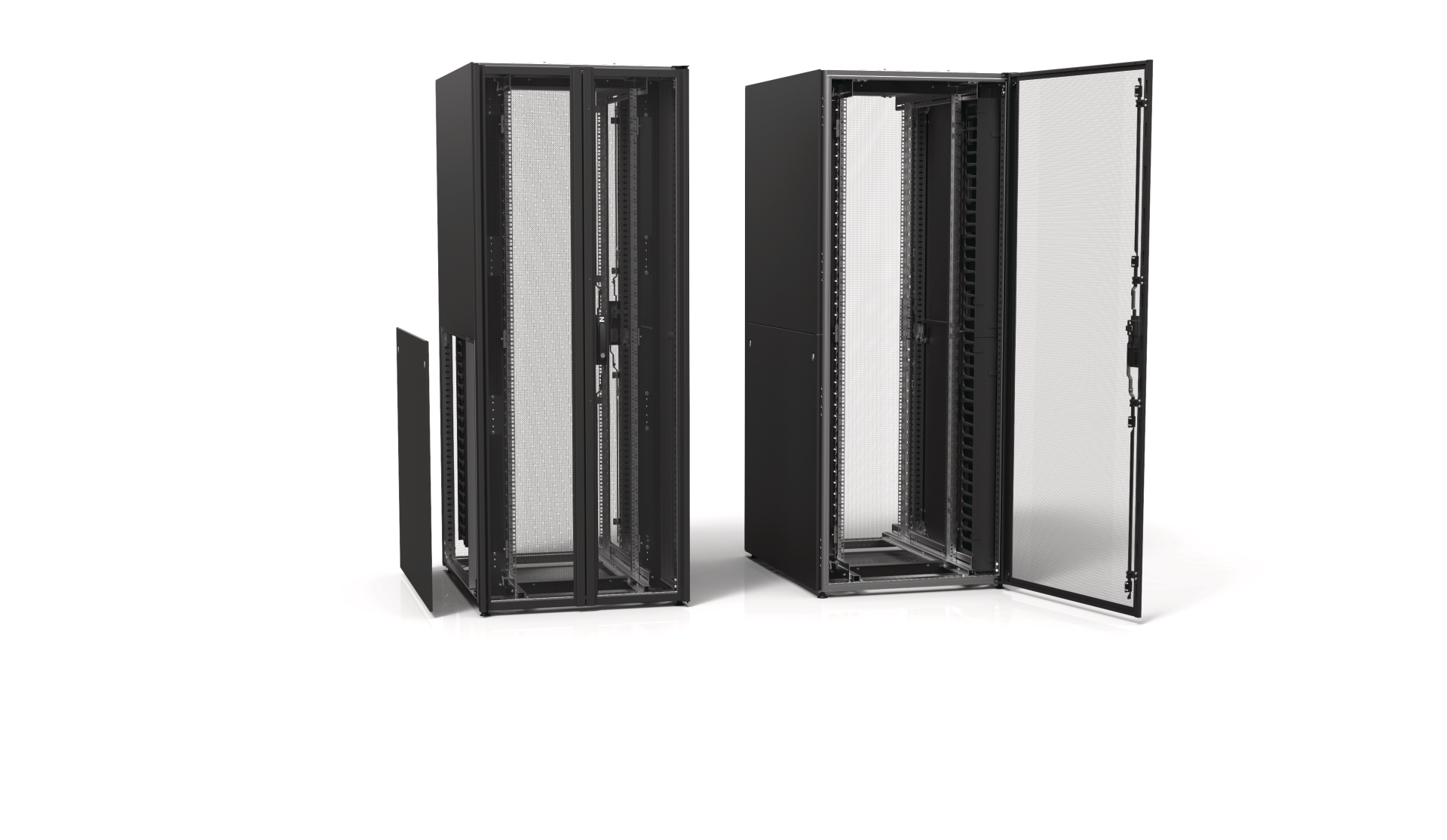

Delivery without side walls, side walls available in various variants:
Type A – Side wall, horizontally divided, door opening angle 270°
Type B – Side wall, horizontally divided, enables lateral PDU mounting in cabinet width 600 mm
Type C – Partition, 1-part, for cabinets with leveling feet
Type D – Partition, 1-part, for cabinets without leveling feet
Type E – Partition, 1-part, for mounting in cabinet frame (both-sided screwed optional)
Cabinets stackable side-by-side with stacking set Art.-No. ESV-ANR01
Partitions are retrofitable onto already lined-up cabinets

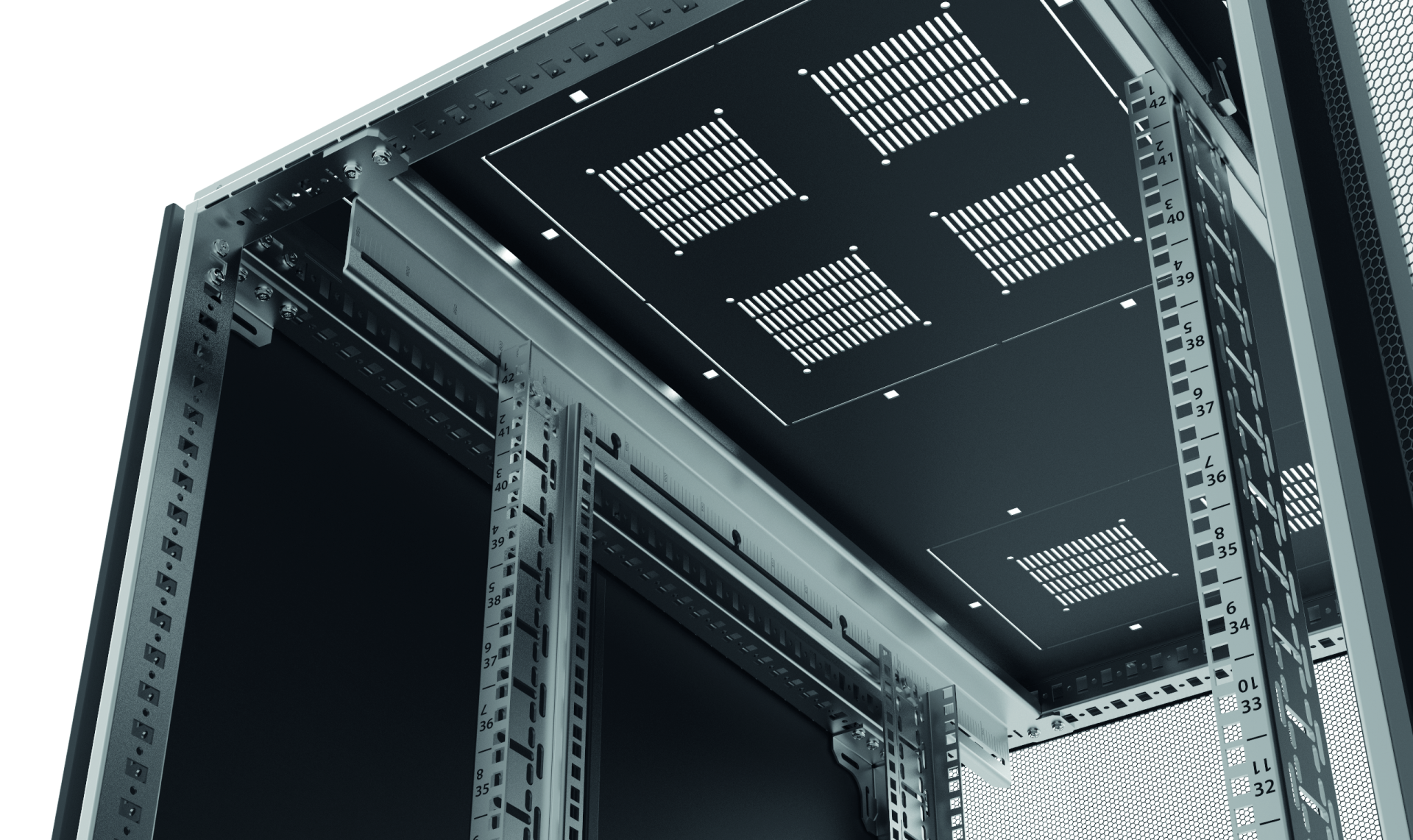

Roof mountable tool-less, with pre-punched ventilation openings for use of up to 2 fan units (2-fan or 4-fan type)
Roof with cable entries over full cabinet length after removal of the pre-punched lateral covers
Delivery without bottom (bottom sets optional)
Max. load 1500 kg, optional possible higher
All cabinet parts inside completely grounded
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20 (except bottom area)
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed profile frame, completely pre-assembled, dismountable
Inside front and rear 4 x 19“ profile rails (2 front, 2 rear), galvanised, depth-adjustable step-less and tool-less
Scaling for depth-adjustment at the profile carrying rails
Contrariwise numbering of rack units at the 19“ profiles
Front- and rear door steel, perforated, 1-part or 2-part, perforation degree > 80 %, perforation area up to 86 %
1-part door with 5-point locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303, door stop right or left-sided possible
2-part door with 3-point bar locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door opening angle up to 270°
Delivery without side walls, side walls available in various variants:
Type A – Side wall, horizontally divided, door opening angle 270°
Type B – Side wall, horizontally divided, enables lateral PDU mounting in cabinet width 600 mm
Type C – Partition, 1-part, for cabinets with leveling feet
Type D – Partition, 1-part, for cabinets without leveling feet
Type E – Partition, 1-part, for mounting in cabinet frame (both-sided screwed optional)
Cabinets stackable side-by-side with stacking set Art.-No. ESV-ANR01
Partitions are retrofitable onto already lined-up cabinets
Roof mountable tool-less, with pre-punched ventilation openings for use of up to 2 fan units (2-fan or 4-fan type)
Roof with cable entries over full cabinet length after removal of the pre-punched lateral covers
Delivery without bottom (bottom sets optional)
Max. load 1500 kg, optional possible higher
All cabinet parts inside completely grounded
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20 (except bottom area)
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Toolless depth adjustment: | True |
| Type of back door: | Steel perforated 1-part |
| Type of front door: | Steel perforated 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | False |
| With socket: | False |
Variants
| Item no. | Name | Depth | With vertical cable management | Width | Material rear door | With glazed door | Max. Load Capacity | Material front door | Colour | Number of height units | Höhe | RAL-Nummer | Anzahl der Türen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESV-4260GR.P1OS | 19" EFB Server 42U, 600x1000 mm, F+R 1-Part, RAL7035 | 1000 mm | False | 600 mm | Steel | False | 1500 kg | Steel | grey | 42 U | 2000 mm | 7035 | 2 | |
| ESV-4760GR.P1OS | 19" EFB Server 47U, 600x1000 mm, F+R 1-Part, RAL7035 | 1000 mm | False | 600 mm | Steel | False | 1500 kg | Steel | grey | 47 U | 2200 mm | 7035 | 2 | |
| ESV-4260TS.P1OS | 19" EFB Server 42U, 600x1000 mm, F+R 1-Part, RAL9005 | 1000 mm | False | 600 mm | Steel | False | 1500 kg | Steel | black | 42 U | 2000 mm | 9005 | 2 | |
| ESV-4760TS.P1OS | 19" EFB Server 47U, 600x1000 mm, F+R 1-Part, RAL9005 | 1000 mm | False | 600 mm | Steel | False | 1500 kg | Steel | black | 47 U | 2200 mm | 9005 | 2 |
