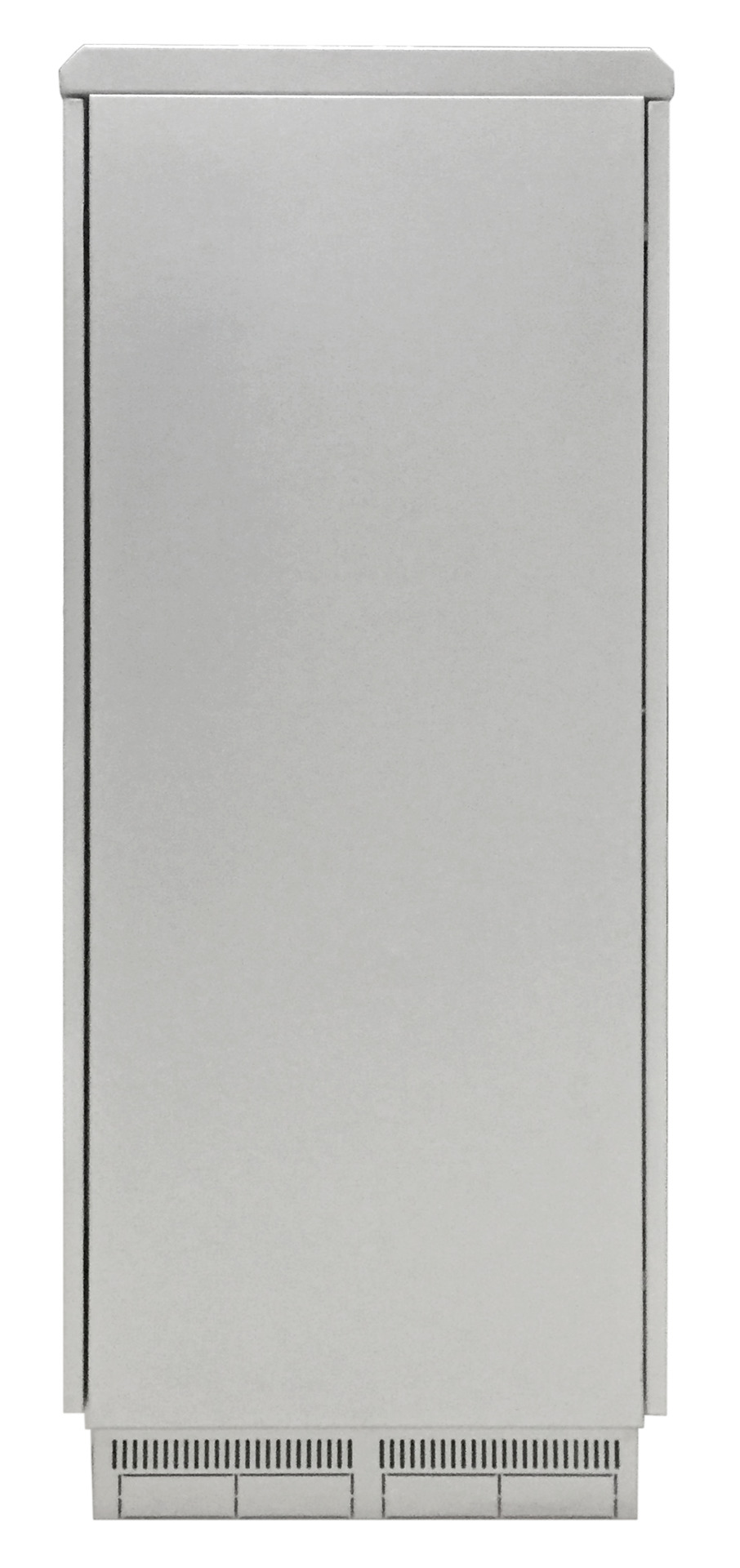

19" Network Cabinet 42U 800x800, GDPR, RAL9005
Item number:
692724DSGVO.TS
EAN no.:
4049759258498
Product information for 19" Network Cabinet 42U 800x800, GDPR, RAL9005
19" network-/server cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled
Completely closed construction, no intrusion possible
Pre-assembled plinth 100 mm
Inside 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the profiles
Front- and rear door steel, 1-part
Front- and rear door with 2-point bar-locking, lockable
Front- and rear door with door opening angle > 120°
Side walls closed, not detachable

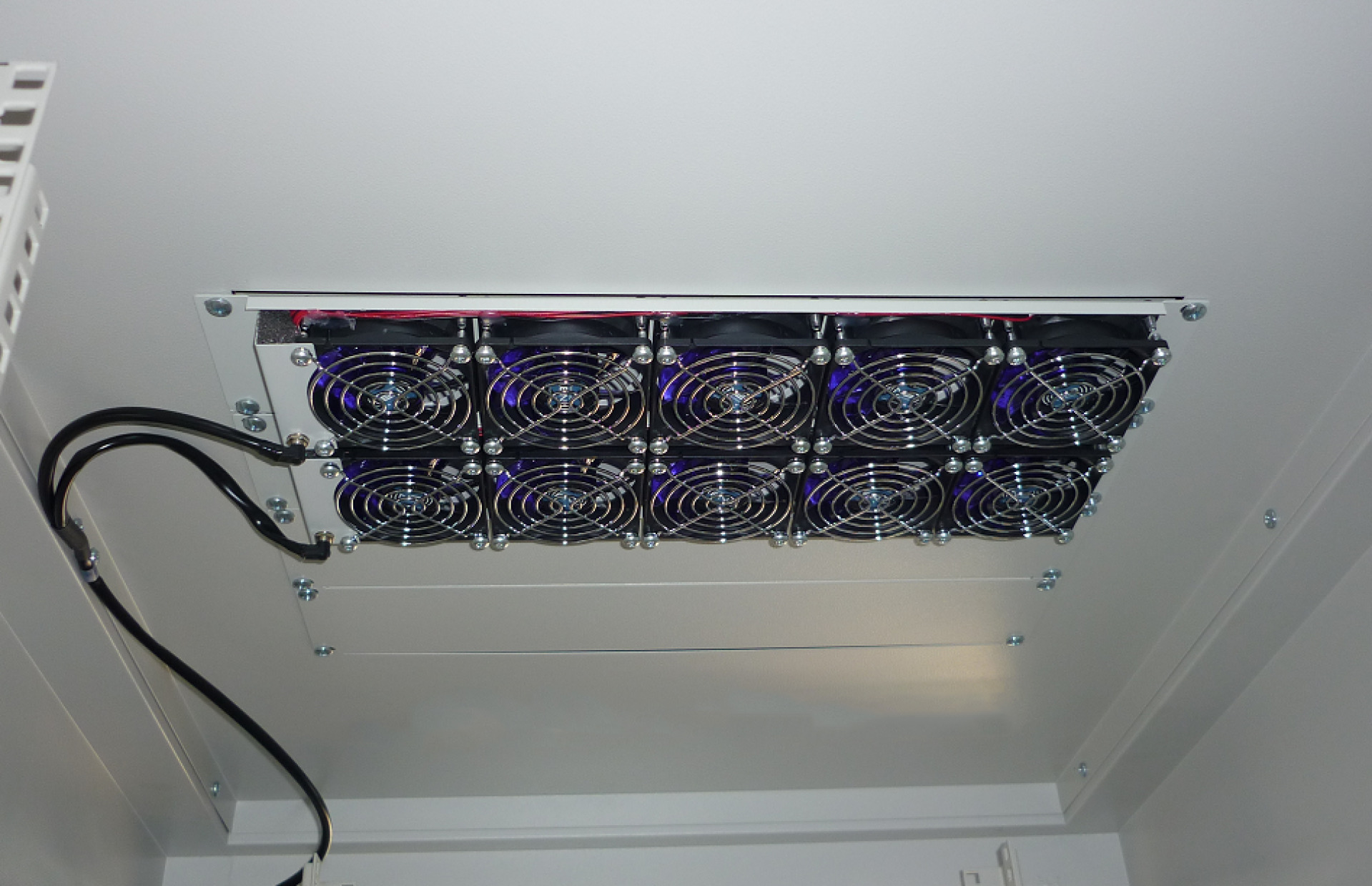

Inner roof with out-blowing Silent fans

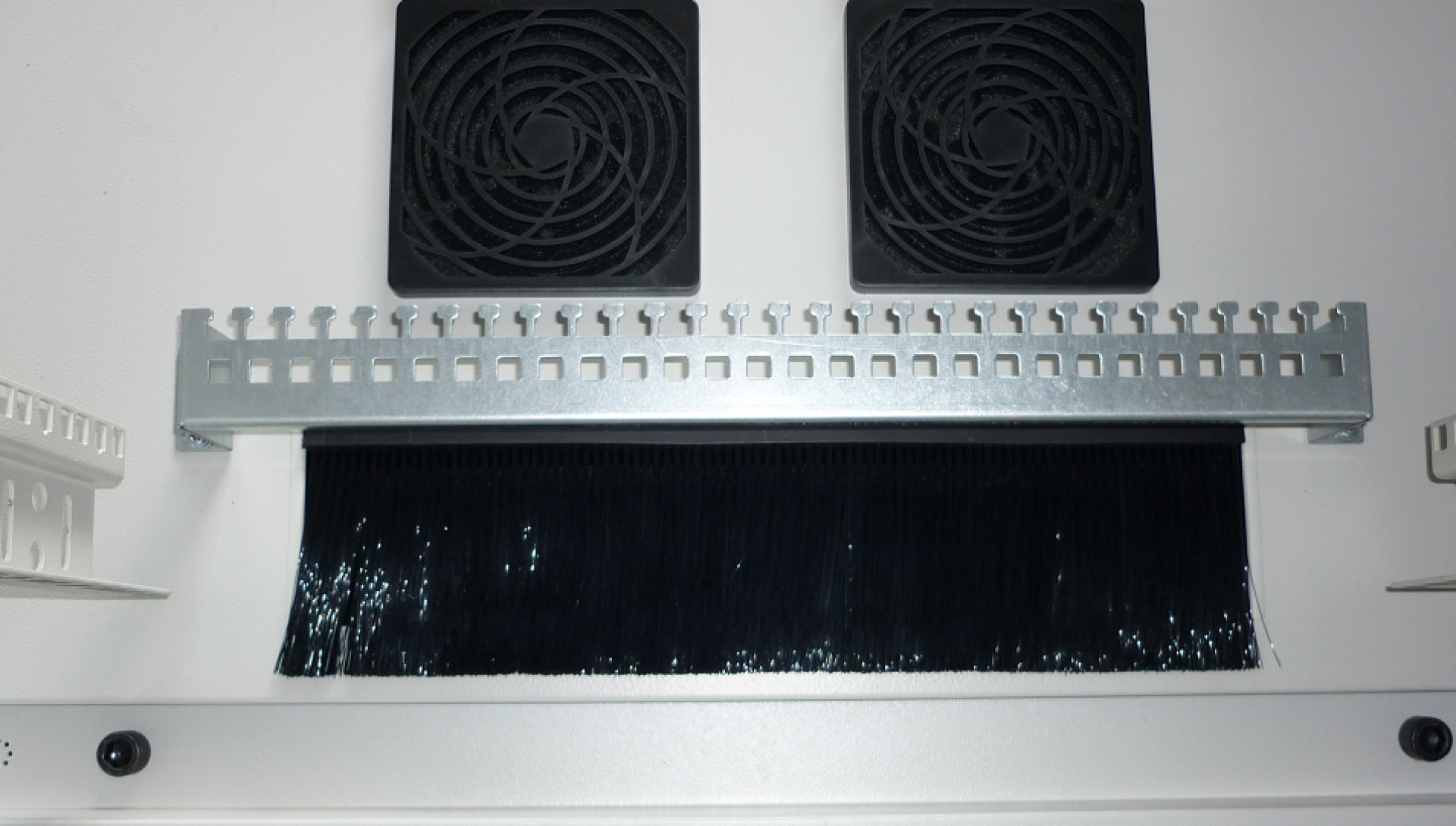

Bottom with cable entry and cable clamping rail
Bottom sheet with in-blowing fans
2 vertical cable managements with hinged cover rear-sided left and right
Power distribution unit socket strip with 8 x CEE7/3 outlets
All cabinet parts inside completely grounded
Max. load 1000 kg static
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP55
Included access: 1 x cage nut set (PU 20 pcs.), plinth pre-assembled, 2 x key
Delivery in transport packaging
Steel sheet housing with welded frame, completely pre-assembled
Completely closed construction, no intrusion possible
Pre-assembled plinth 100 mm
Inside 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the profiles
Front- and rear door steel, 1-part
Front- and rear door with 2-point bar-locking, lockable
Front- and rear door with door opening angle > 120°
Side walls closed, not detachable
Inner roof with out-blowing Silent fans
Bottom with cable entry and cable clamping rail
Bottom sheet with in-blowing fans
2 vertical cable managements with hinged cover rear-sided left and right
Power distribution unit socket strip with 8 x CEE7/3 outlets
All cabinet parts inside completely grounded
Max. load 1000 kg static
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP55
Included access: 1 x cage nut set (PU 20 pcs.), plinth pre-assembled, 2 x key
Delivery in transport packaging
Technical properties
| Degree of protection: | IP55 |
|---|---|
| Demountable: | False |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Surface finishing: | Powder coating |
| Type of back door: | Steel door 1-part |
| Type of front door: | Steel door 1-part |
| Type of ventilation: | Active |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | True |
Variants
| Item no. | Name | Width | Depth | Number of height units | Colour | Höhe | RAL-Nummer | Anzahl der Türen | |
|---|---|---|---|---|---|---|---|---|---|
| 692724DSGVO.GR | 19" Network Cabinet 24U 800x800, DSGVO, RAL7035 | 800 mm | 800 mm | 24 U | grey | 1360 mm | 7035 | 2 | |
| 692724DSGVO.TS | 19" Network Cabinet 42U 800x800, GDPR, RAL9005 | 800 mm | 800 mm | 24 U | black | 1360 mm | 9005 | 2 |
