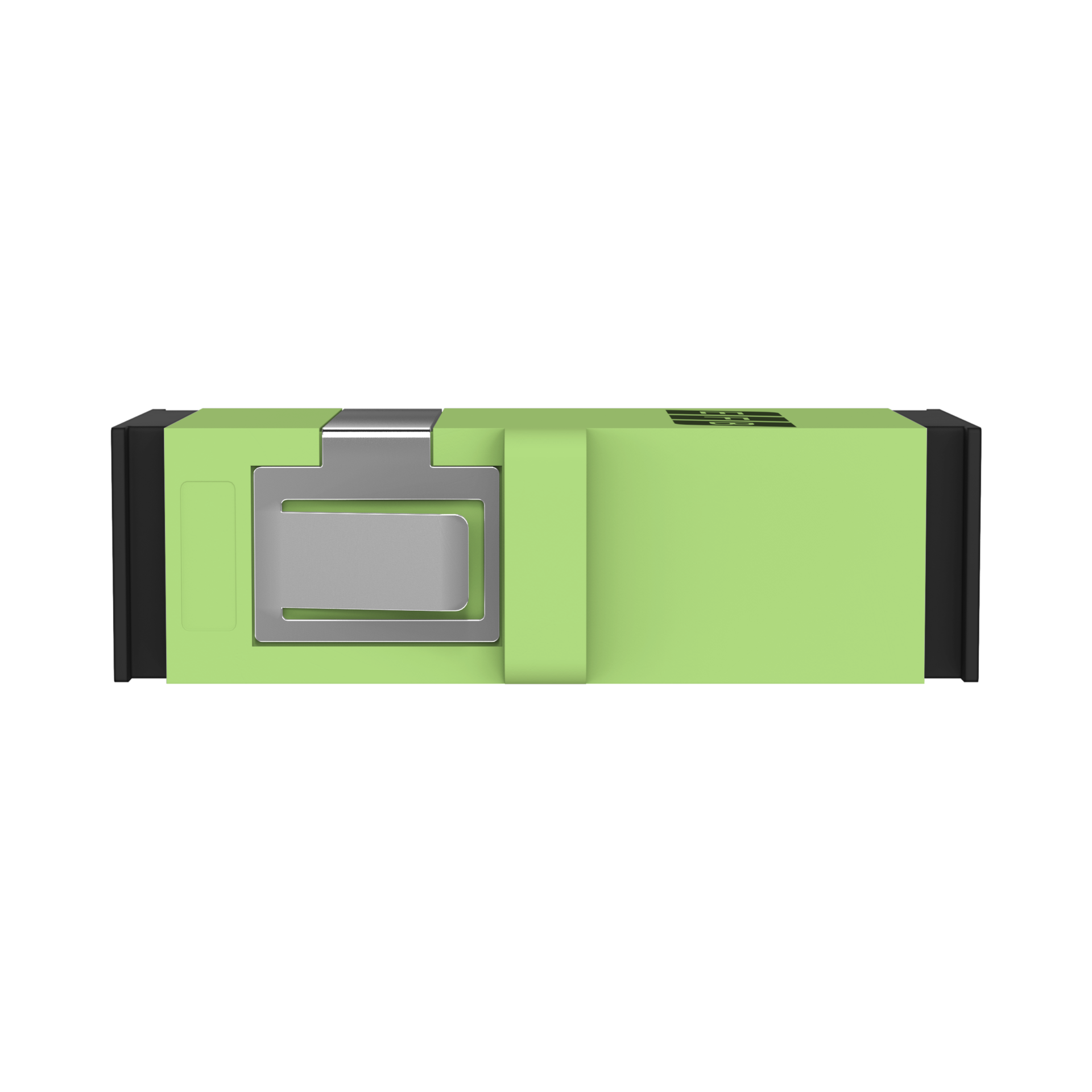

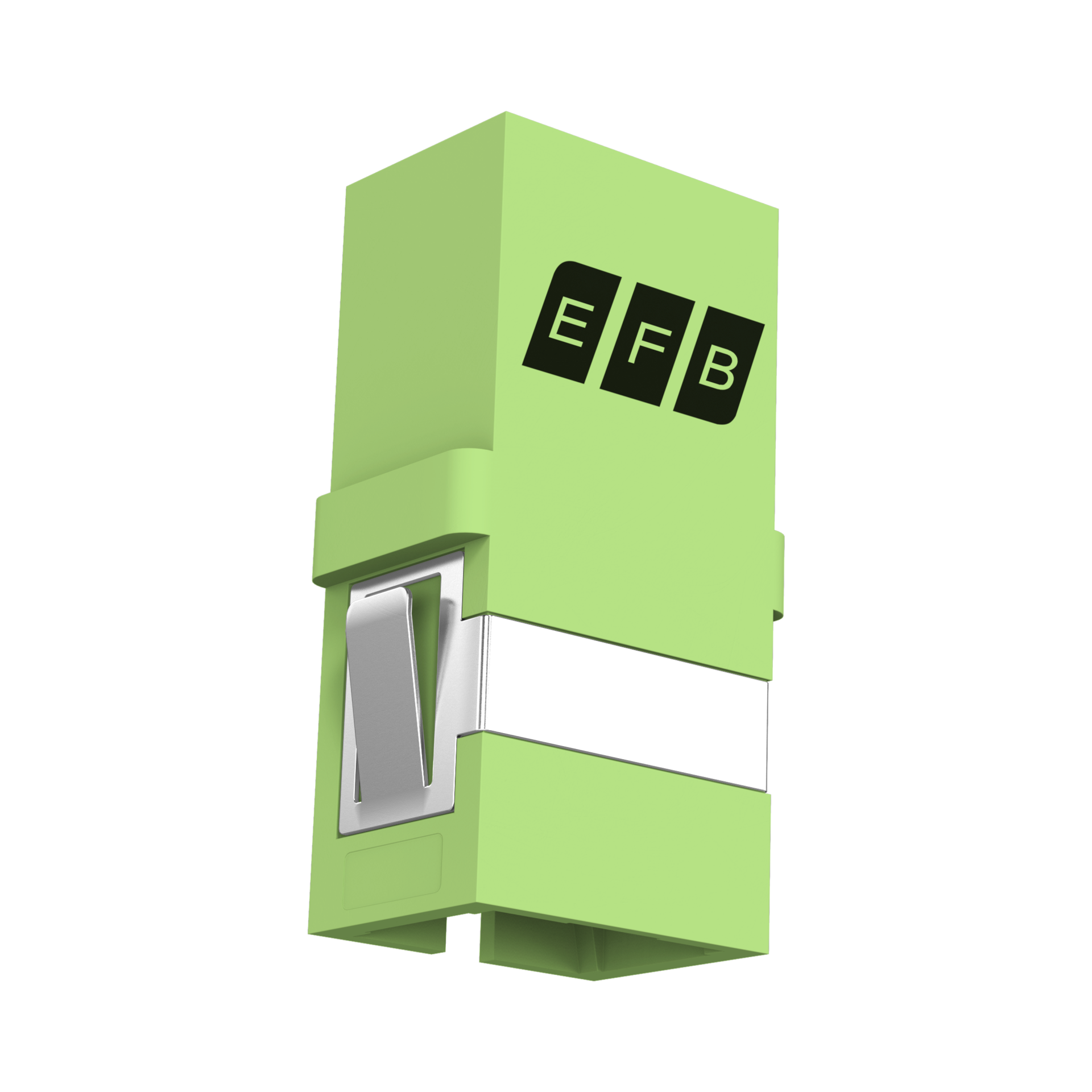

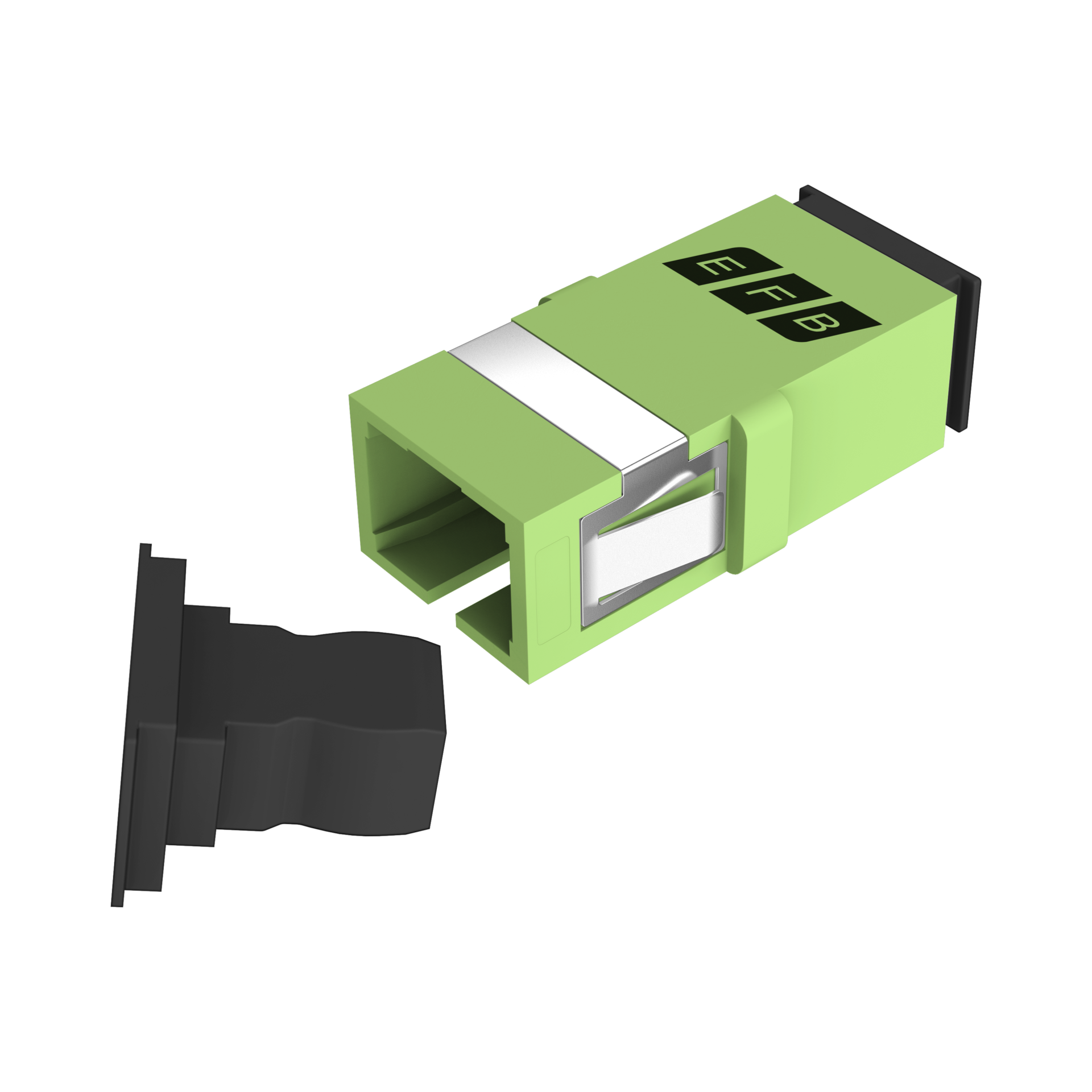

SC Simplex Adapter without flansch, Plastic housing

Adapter SC Simplex Adapter OM5 lime green flangeless
Item number: 53513.1OM5
EAN no.: 4049759224943

Product information for Adapter SC Simplex Adapter OM5 lime green flangeless

• Flangeless adapter are good for high density and could be used as keystone modules
in consumption with keystone adapter frames

Technical properties

Conform to Standard: IEC61754-4
Construction type: SC-Simplex
Dust cover: True
Height: 9.2 mm
Internal Shutter: False
Length: 27.5 mm
Material housing: plastic
Material sleeve: ceramic
Operating Temperature: -40 – 85 °C
Storage Temperature: -40 – 85 °C
Type of connector connection 1: SC
Type of connector connection 2: SC
Type of fastening: snap-in
Type of housing: flangeless
Width: 14.7 mm
