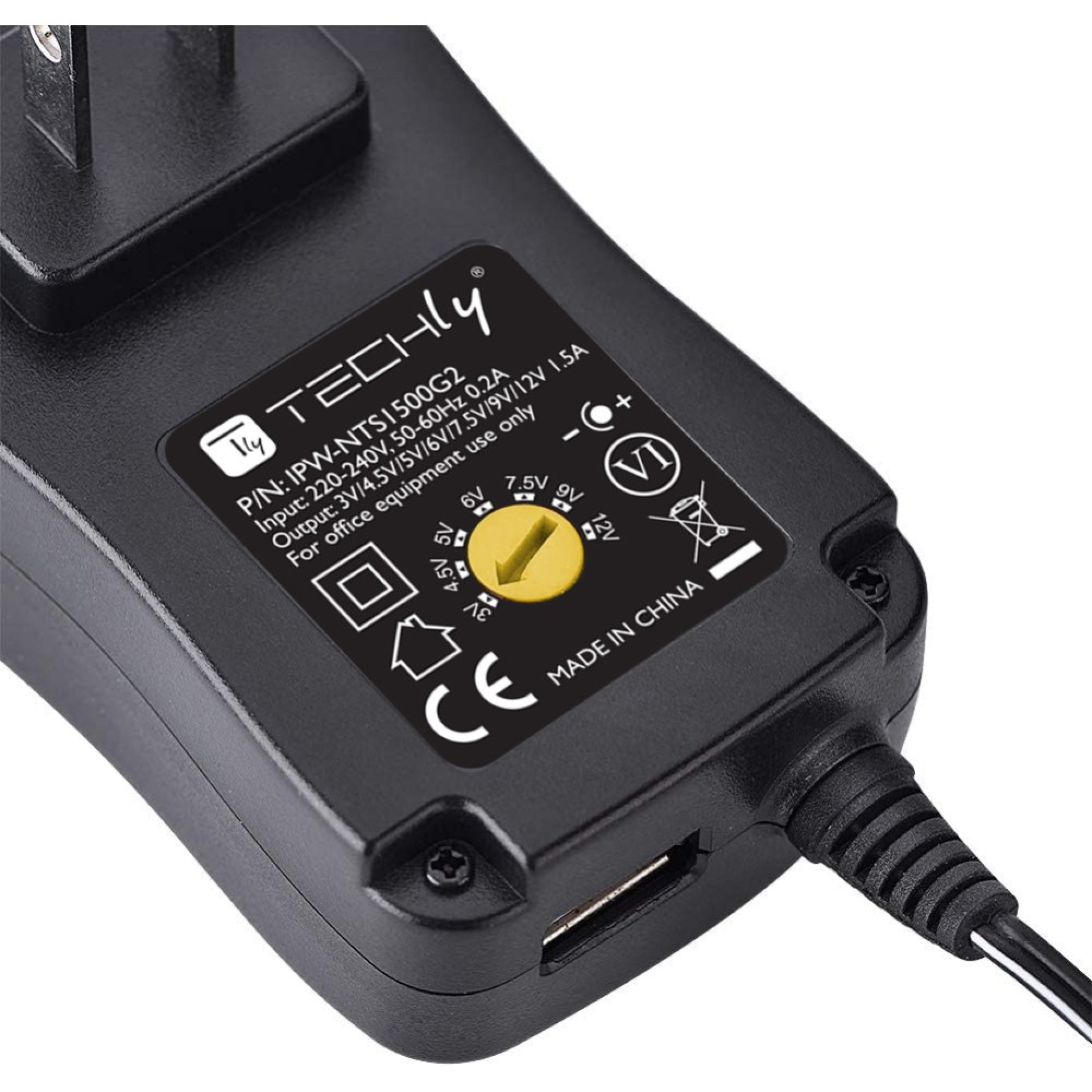

Adjustable universal power supply 18W AC/DC 3V-12V
Adjustable universal power supply 18W AC/DC 3V-12V, with 6 DC plugs 1A USB
Item number:
IPW-NTS1500G2
EAN no.:
8059018368635
Product information for Adjustable universal power supply 18W AC/DC 3V-12V, with 6 DC plugs 1A USB
Features
Universal and stabilized switching power supply for computer and office equipment
Input voltage 220-240V AC at 50/60 Hz 0.2A
Output voltage selectable from 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12 V DC
Maximum output power: 18W
Max output current 1500 mA
AC plug: European type
Cable length: 1.2 m
Stabilized version

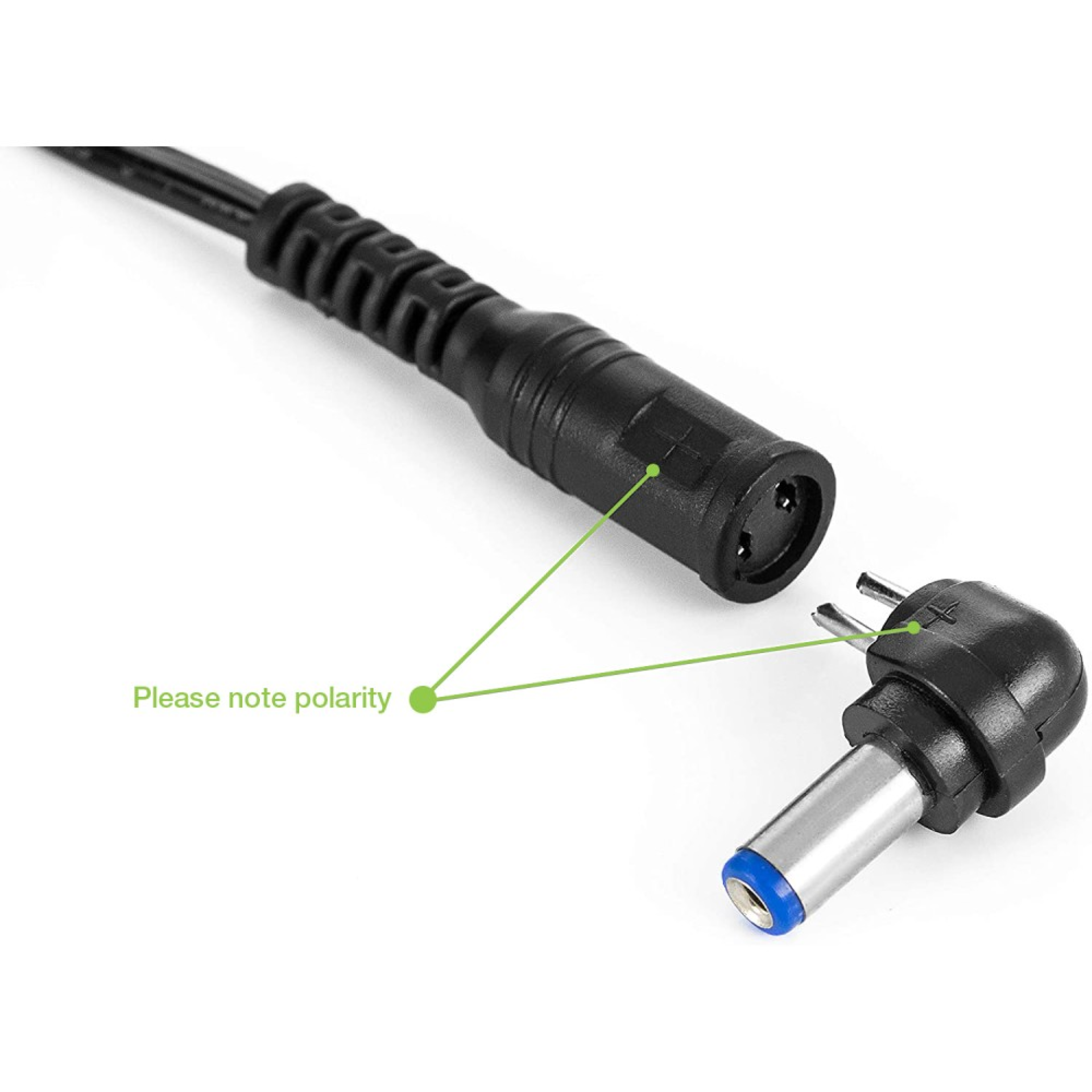

With 6 interchangeable 90° connectors and USB port
With blue status LED
Protection against overvoltage, overcurrent, short circuit and overheating
Dimensions
Length: 85 mm
Width: 51 mm
Height: 36 mm
Cable: 120 cm

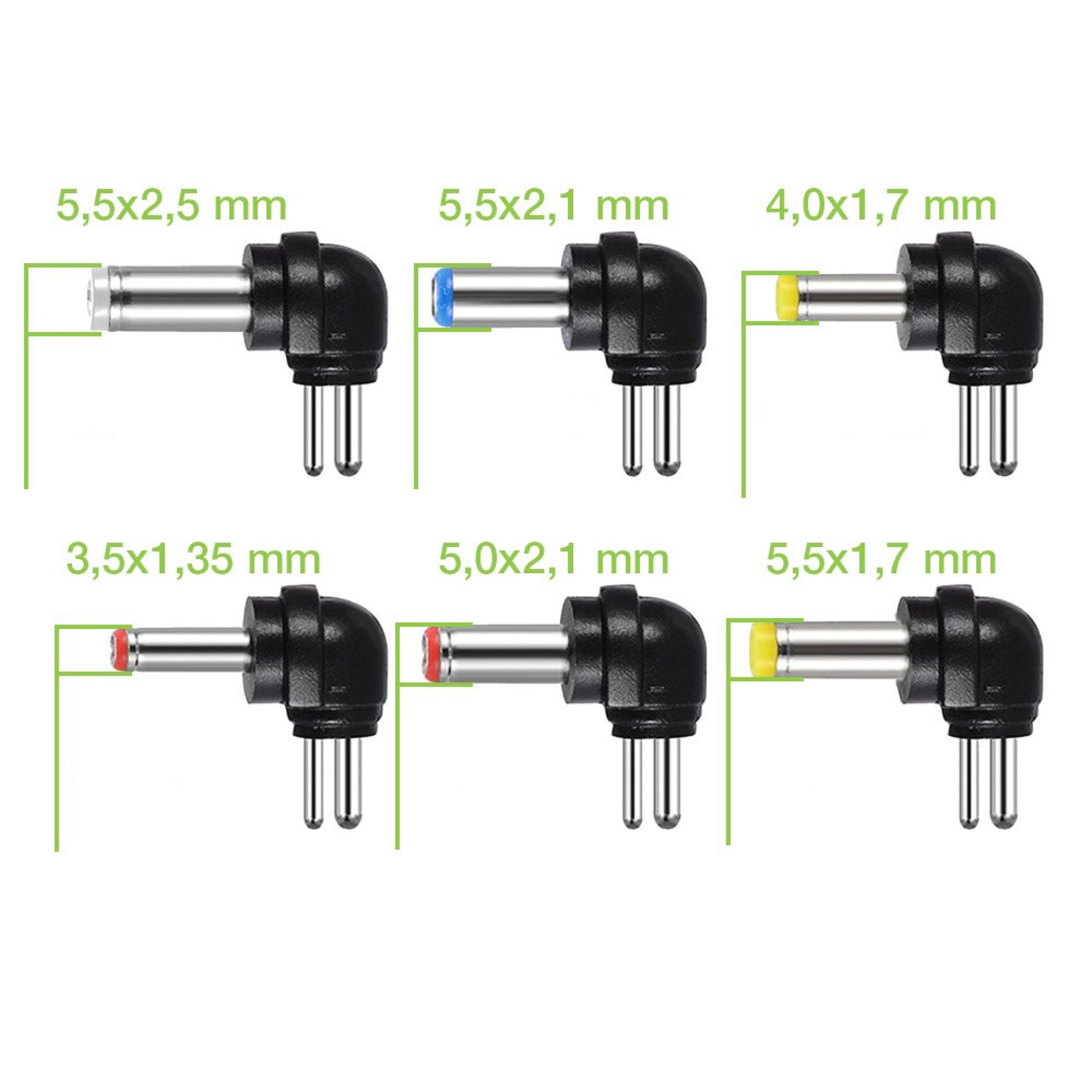

Connectors
2.5 x 5.5mm
2.1 x 5.5mm
4.0 x 1.7mm
3.5 x 1.35mm
5.0 x 2.1mm
5.5 x 1.7mm
Environmental characteristics
Operating temperature: 0 - 70 °C
Relative humidity: 20 - 95%
Package contents
IPW-NTS1500G2 adjustable power supply
6 interchangeable connectors
Adjustment key
User Manual
Universal and stabilized switching power supply for computer and office equipment
Input voltage 220-240V AC at 50/60 Hz 0.2A
Output voltage selectable from 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12 V DC
Maximum output power: 18W
Max output current 1500 mA
AC plug: European type
Cable length: 1.2 m
Stabilized version
With 6 interchangeable 90° connectors and USB port
With blue status LED
Protection against overvoltage, overcurrent, short circuit and overheating
Dimensions
Length: 85 mm
Width: 51 mm
Height: 36 mm
Cable: 120 cm
Connectors
2.5 x 5.5mm
2.1 x 5.5mm
4.0 x 1.7mm
3.5 x 1.35mm
5.0 x 2.1mm
5.5 x 1.7mm
Environmental characteristics
Operating temperature: 0 - 70 °C
Relative humidity: 20 - 95%
Package contents
IPW-NTS1500G2 adjustable power supply
6 interchangeable connectors
Adjustment key
User Manual
Technical properties
| Connection type: | Plug |
|---|---|
| Input voltage: | 220 – 240 V |
| Mounting method: | Steckdose |
| Output current: | 1500 mA |
| Output voltage: | 3 – 12 V |
| Stabilized: | True |
| Type of output voltage: | DC |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
