Roof Elements for Cold-/Warm Aisle for PRO

Prices only visible for logged in users

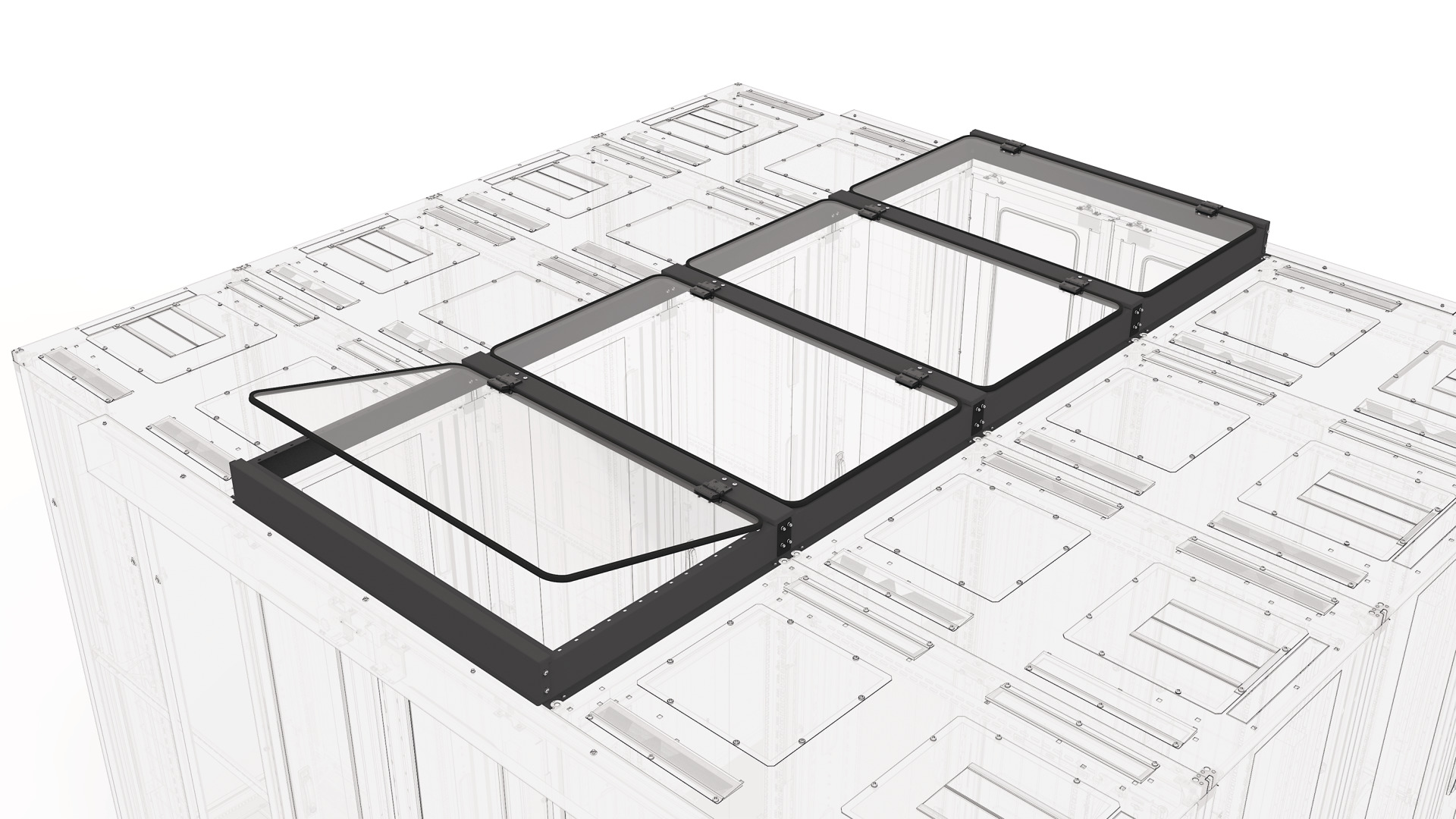

Aisle Roof for PRO, Raised, Width=800 mm, Aisle=1200 mm, RAL7035
Item number: PRO-GDE82F.GR
EAN no.: 4049759227814
Piece

Product information for Aisle Roof for PRO, Raised, Width=800 mm, Aisle=1200 mm, RAL7035

Roof elements for cold/warm aisle containment
Screw mounting directly at the cabinet roof
Raised construction +100 mm
Other widths on request (e.g. for In-Row coolers)
Material steel sheet, Acryl glass

Technical properties

Cabinet Series: PRO
Material: Steel
Suitable for outdoor set-up: False
Surface finishing: With powder coating

Variants

Item no. Name Height Depth Width RAL-number Colour
PRO-GDE62F.GR Aisle Roof for PRO, Raised, Width=600 mm, Aisle=1200 mm, RAL7035 100 mm 1200 mm 600 mm 7035 grey
PRO-GDE82F.GR Aisle Roof for PRO, Raised, Width=800 mm, Aisle=1200 mm, RAL7035 100 mm 1200 mm 800 mm 7035 grey
PRO-GDE32F.GR Aisle Roof for PRO, Raised, Width=300 mm, Aisle=1200 mm, RAL7035 100 mm 1200 mm 300 mm 7035 grey
PRO-GDE62F.TS Aisle Roof for PRO, Raised, Width=600 mm, Aisle=1200 mm, RAL9005 100 mm 1200 mm 600 mm 9005 black
PRO-GDE82F.TS Aisle Roof for PRO, Raised, Width=800 mm, Aisle=1200 mm, RAL9005 100 mm 1200 mm 800 mm 9005 black
PRO-GDE32F.TS Aisle Roof for PRO, Raised, Width=300 mm, Aisle=1200 mm, RAL9005 100 mm 1200 mm 300 mm 9005 black
