ESV Bottom Sheets, Adjustable
Bottom Sheets for ESV 600x1000, Adjustable, RAL9005
Item number:
ESV-BOV60.TS
EAN no.:
4049759280369
Product information for Bottom Sheets for ESV 600x1000, Adjustable, RAL9005

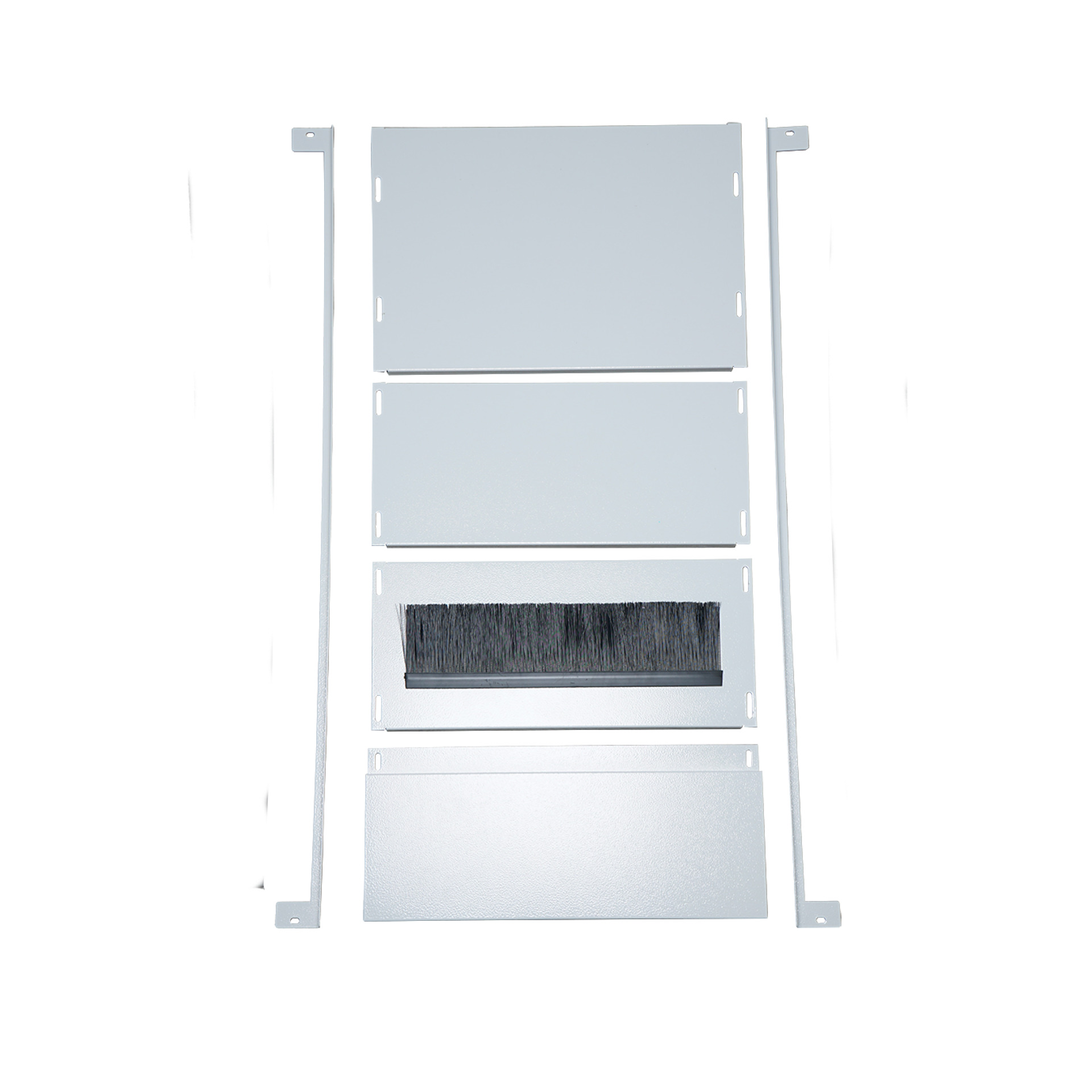

Set of bottom elements for installation in one cabinet EFB-Server
One element with opening for cable entry, individually positionable
Cabinet width 800 mm: right/left side with 2 x sheet stripe and brush
Cabinet width 600 mm: right/left side with 2 x sheet stripe
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. mounting accessories, 1 x brush for cable entry opening, 2 x lateral brush (for width 800 only)
One element with opening for cable entry, individually positionable
Cabinet width 800 mm: right/left side with 2 x sheet stripe and brush
Cabinet width 600 mm: right/left side with 2 x sheet stripe
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. mounting accessories, 1 x brush for cable entry opening, 2 x lateral brush (for width 800 only)
Technical properties
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Steel |
| Suitable for outdoor set-up: | False |
| Surface finishing: | Powder coating |
| With cable feed-through: | True |
| With de-aeration: | False |
Variants
| Item no. | Name | Suitable for roof planking | With cable entry | Suitable for bottom planking | RAL-number | Colour | Suitable for enclosure building width | Width | Depth | Suitable for enclosure building depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ESV-BOV60.GR | Bottom Sheets for ESV 600x1000, Adjustable, RAL7035 | False | True | True | 7035 | grey | 600 mm | 600 mm | 1000 mm | 1000 mm | |
| ESV-BOV62.GR | Bottom Sheets for ESV 600x1200, Adjustable, RAL7035 | False | True | True | 7035 | grey | 600 mm | 600 mm | 1200 mm | 1200 mm | |
| ESV-BOV80.GR | Bottom Sheets for ESV 800x1000, Adjustable, RAL7035 | False | True | True | 7035 | grey | 800 mm | 800 mm | 1000 mm | 1000 mm | |
| ESV-BOV82.GR | Bottom Sheets for ESV 800x1200, Adjustable, RAL7035 | False | True | True | 7035 | grey | 800 mm | 800 mm | 1200 mm | 1200 mm | |
| ESV-BOV60.TS | Bottom Sheets for ESV 600x1000, Adjustable, RAL9005 | False | True | True | 9005 | black | 600 mm | 600 mm | 1000 mm | 1000 mm | |
| ESV-BOV62.TS | Bottom Sheets for ESV 600x1200, Adjustable, RAL9005 | False | True | True | 9005 | black | 600 mm | 600 mm | 1200 mm | 1200 mm | |
| ESV-BOV80.TS | Bottom Sheets for ESV 800x1000, Adjustable, RAL9005 | False | True | True | 9005 | black | 800 mm | 800 mm | 1000 mm | 1000 mm | |
| ESV-BOV82.TS | Bottom Sheets for ESV 800x1200, Adjustable, RAL9005 | False | True | True | 9005 | black | 800 mm | 800 mm | 1200 mm | 1200 mm |
