Floor-standing distributors + wall-mounted distributors
Back

BOX II for 50pairs

Box II for 50pairs with Latch

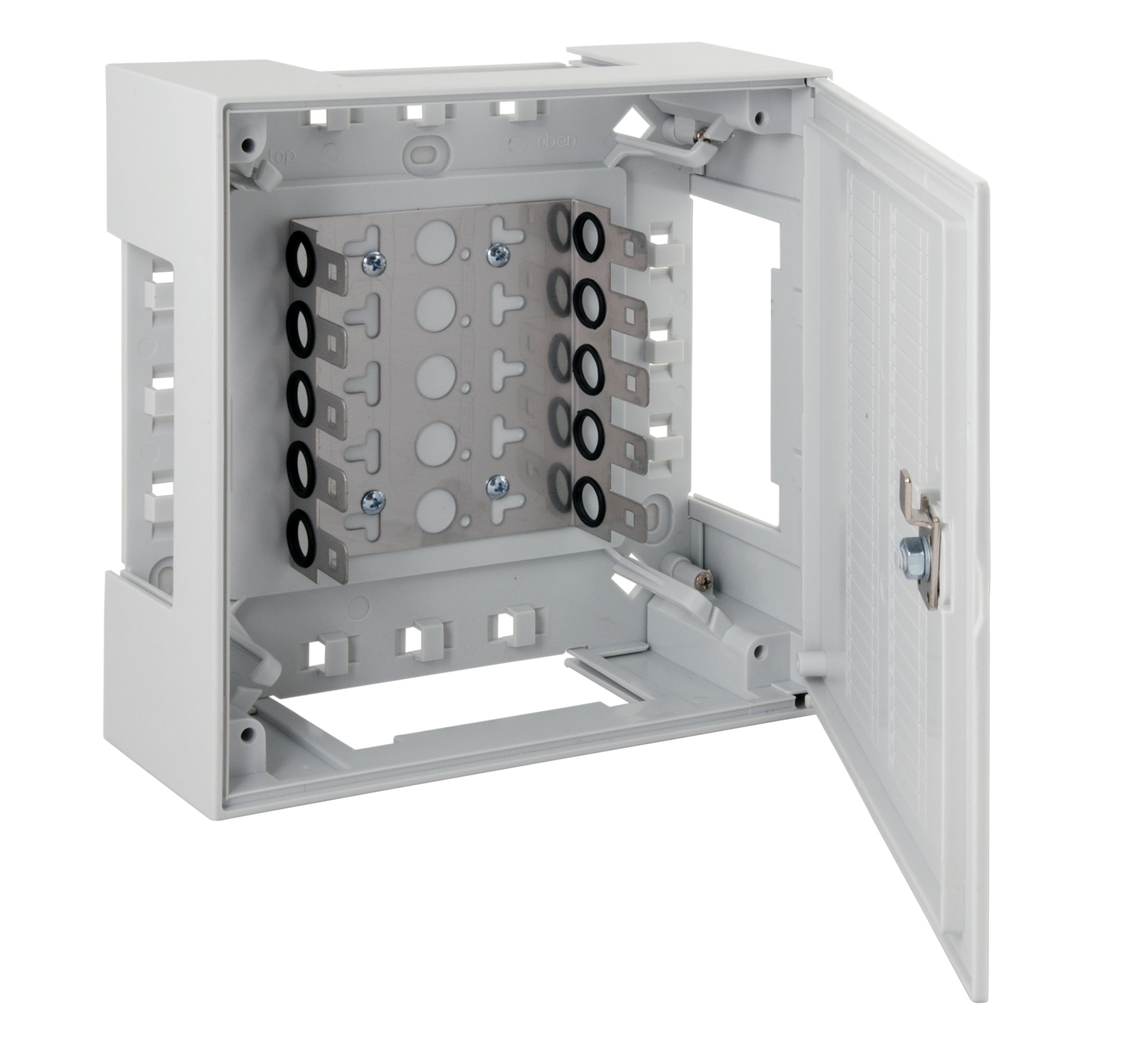

Box II for 50pairs with Latch
Item number: 46025.1
EAN no.: 4049759066833
Piece
Log in as a customer
Description

Product information for Box II for 50pairs with Latch

Plastic distributor, indoor
Protection degree IP30
With 1 x backmount frame for 5 x LSA connection modules 2/10 10pair
Incl. 4 top strip
Technical properties

Technical properties

110-compatible: False
Colour: grey
DIN-compatible: False
Degree of protection: IP30
LSA: True
Material: Plastic
Model: Distributor enclosure
Mounting dimension (standardised): 96 mm
Mounting method: Surface mounted (plaster)
With connecting lugs: False
Variants

Variants

Item no. Name Type Max. number of dual cores Breite Höhe Tiefe Gewicht
46025.1 Box II for 50pairs with Latch Box II 50pairs with latch 50 215 mm 215 mm 76 mm 0,83 kg
Select variants
46025.2 Box II for 50pairs with Lock BOX II 50pairs with lock 50 215 mm 215 mm 76 mm 0,83 kg
Select variants
Downloads

Downloads

accessory

Stacking Frame for Box II
Stacking Frame for Box II
Select variants
Flush mounting frame Box II (46025.1, 46025.2)
Flush mounting frame Box II (46025.1, 46025.2)
Select variants
