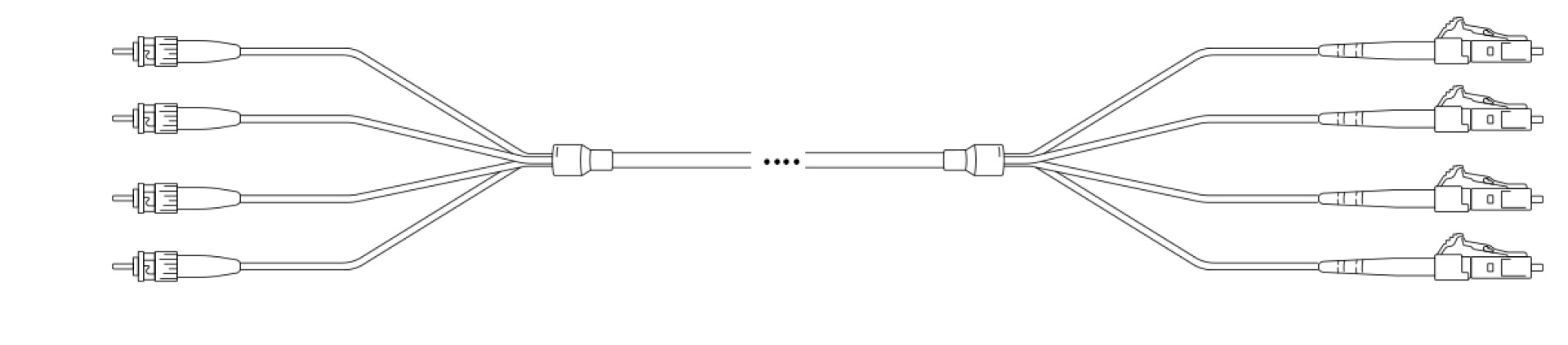

Breakout Cable I-V(ZN) HH OM2 50/125µm ST/LC

Prices only visible for logged in users

Breakout I-V(ZN) HH OM2 50/125µm ST/LC 2G 1,0m
Item number: O6122.1
EAN no.: 4049759048907
Piece

Product information for Breakout I-V(ZN) HH OM2 50/125µm ST/LC 2G 1,0m

Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring

Technical properties

Category: OM2
Coding: 1:1
Colour outer sheath: orange
Connector connection 1: ST
Connector connection 2: SC
Crossed: False
Fibre type: OM2 50/125
Flame retardant: According to EN 50266-2-4
Halogen free (according to EN 50267-2-3): True
Jacket Material: LSZH
Operating Temperature: -20 – 60 °C
Storage Temperature: -25 – 70 °C
With rodent protection: False

Variants

Item no. Name Length Number of connectors connection 1 Number of fibres Number of connectors connection 2
O6122.1 Breakout I-V(ZN) HH OM2 50/125µm ST/LC 2G 1,0m 1.0 m 2 2 2
O6512.1 Breakout I-V(ZN) HH OM2 50/125µm ST/LC 4G 1,0m 1.0 m 4 4 4
O6532.1 Breakout I-V(ZN) HH OM2 50/125µm ST/LC 8G 1,0m 1.0 m 8 8 8
O9872.1 Breakout I-V(ZN) HH OM2 50/125µm ST/LC 12G 1,0m 1.0 m 12 12 12

accessory

Drawing-In Tube with PG screwing, 1m

necessary tools

Professional Fiber Optic Tool Case
