Breakout Cable I-V(ZN) HH OS2 9/125µm SC/E2000®

Prices only visible for logged in users

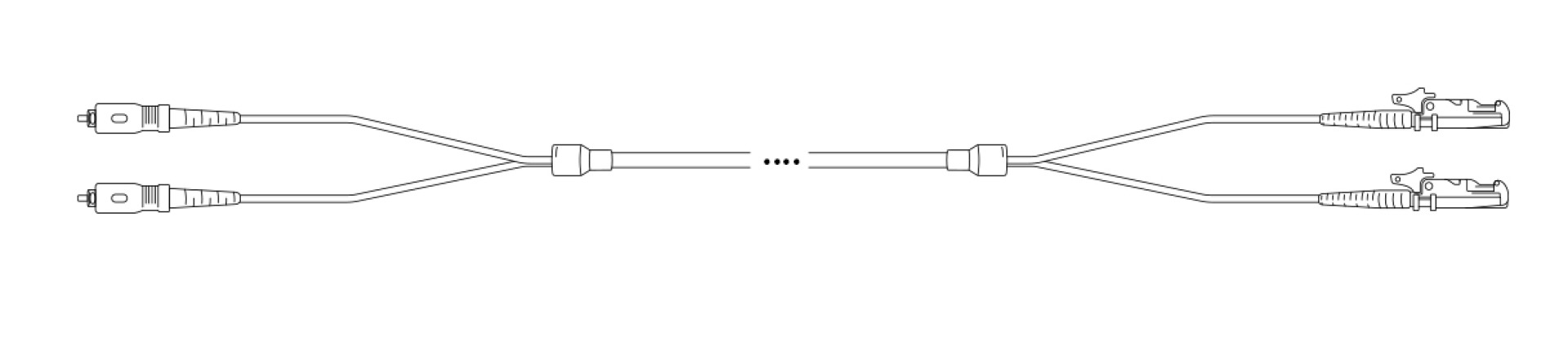

Breakout I-V(ZN) HH OS2 9/125µm SC/E2000® 2E 1,0m
Item number: O1808.1
EAN no.: 4049759113001
Piece

Product information for Breakout I-V(ZN) HH OS2 9/125µm SC/E2000® 2E 1,0m

Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring

Technical properties

Category: OS2
Coding: 1:1
Colour outer sheath: yellow
Connector connection 1: SC
Connector connection 2: E2000®
Crossed: False
Fibre type: OS2 9/125
Flame retardant: According to EN 50266-2-4
Halogen free (according to EN 50267-2-3): True
Jacket Material: LSZH
Operating Temperature: -20 – 60 °C
Storage Temperature: -25 – 70 °C
With rodent protection: False

Variants

Item no. Name Length Number of connectors connection 1 Number of fibres Number of connectors connection 2
O1808.1 Breakout I-V(ZN) HH OS2 9/125µm SC/E2000® 2E 1,0m 1.0 m 2 2 2

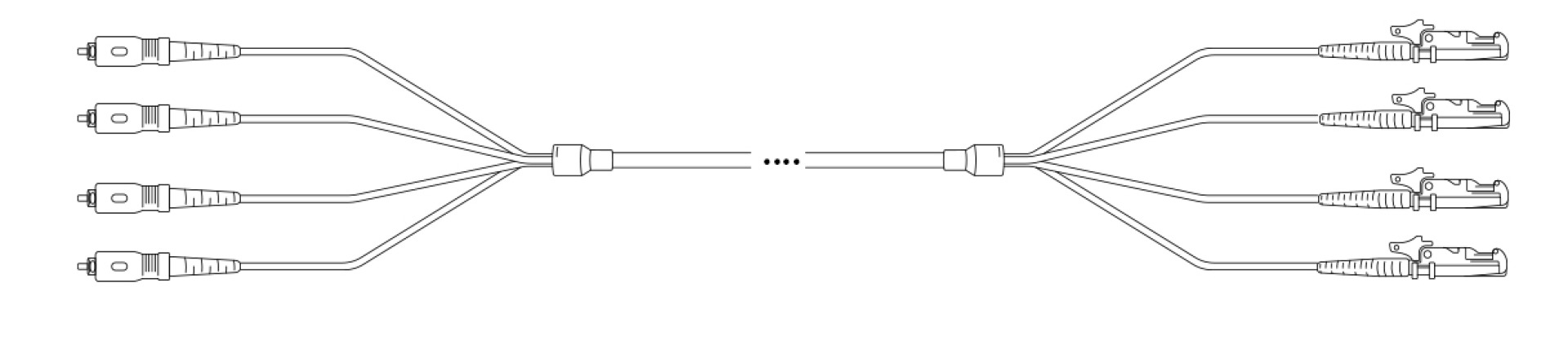

O1718.1 Breakout I-V(ZN) HH OS2 9/125µm SC/ E2000® 04E 1,0m 1.0 m 4 4 4

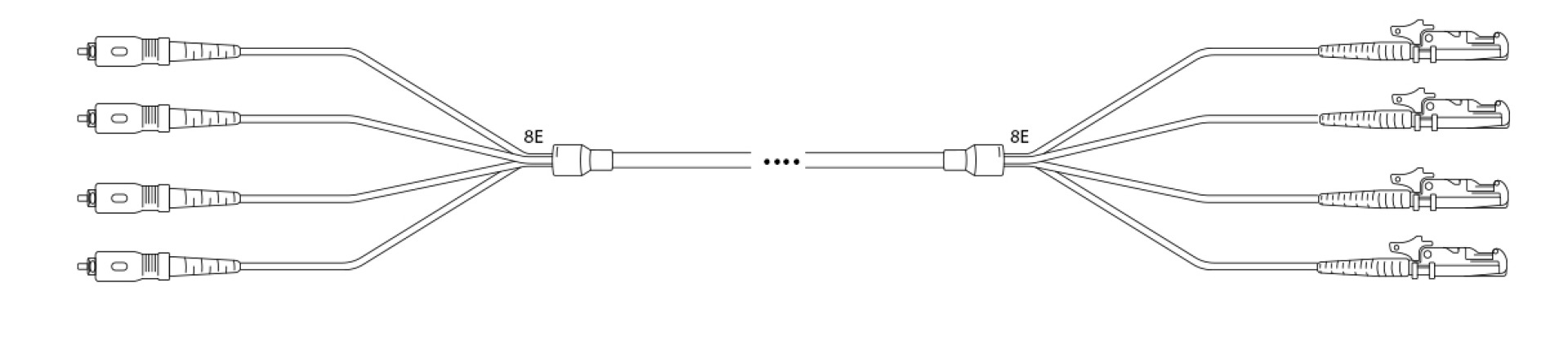

O1834.1 Breakout I-V(ZN) HH OS2 9/125µm SC/ E2000® 8E 1,0m 1.0 m 8 8 8
O1865.1 Breakout I-V(ZN) HH OS2 9/125µm SC/ E2000® 12E 1,0m 1.0 m 12 12 12
