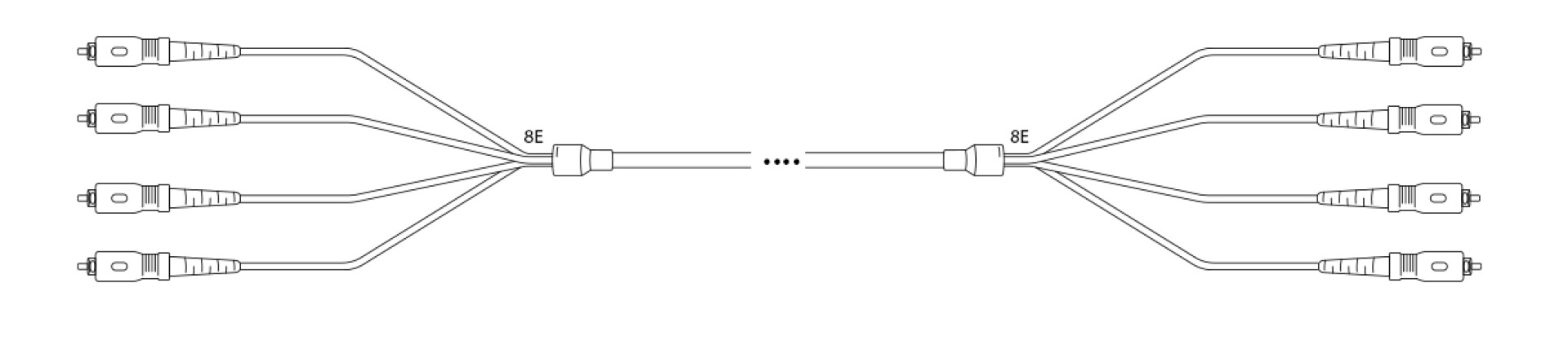

Breakout Cable I-V(ZN) HH OS2 9/125µm SC/SC-APC
Breakout I-V(ZN) HH OS2 9/125µm SC/SC-APC 2E 1,0m
Item number:
O1805.1
EAN no.:
4049759112974
Product information for Breakout I-V(ZN) HH OS2 9/125µm SC/SC-APC 2E 1,0m
Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring
Technical properties
| Category: | OS2 |
|---|---|
| Coding: | 1:1 |
| Colour outer sheath: | yellow |
| Connector connection 1: | SC |

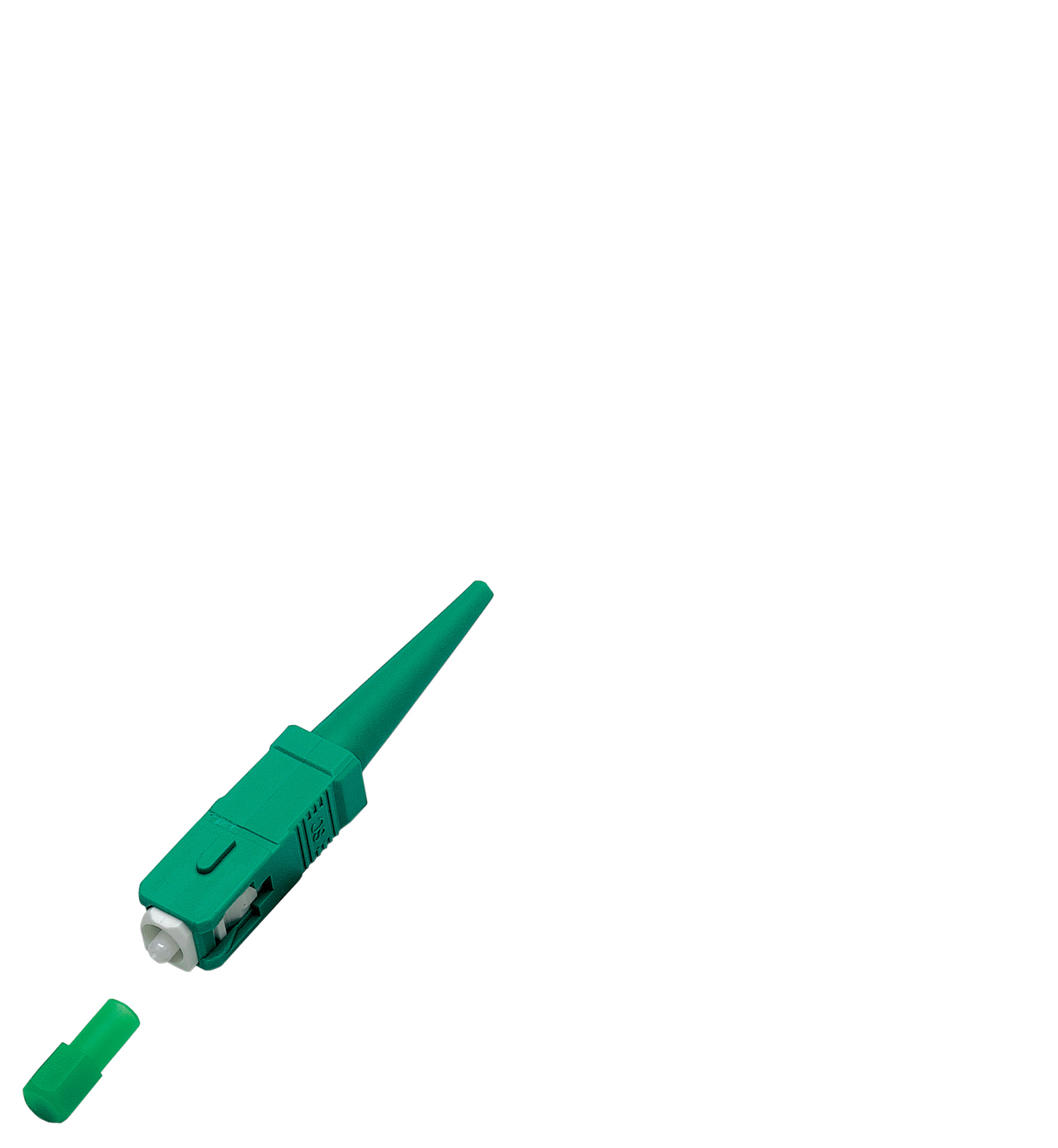

| Connector connection 2: | SC-APC |
| Crossed: | False |
| Fibre type: | OS2 9/125 |
| Flame-retardant: | According to EN 50266-2-4 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Operating Temperature: | -20 – 60 °C |
| Storage Temperature: | -25 – 70 °C |
| With rodent protection: | False |
Variants
| Item no. | Name | Length | Number of connectors connection 1 | Number of fibres | Number of connectors connection 2 | |
|---|---|---|---|---|---|---|
| O1805.1 | Breakout I-V(ZN) HH OS2 9/125µm SC/SC-APC 2E 1,0m | 1.0 m | 2 | 2 | 2 | |
| O1815.1 | Breakout I-V(ZN) HH OS2 9/125µm SC/SC-APC 4E 1,0m | 1.0 m | 4 | 4 | 4 | |
| O1730.1 | Breakout I-V(ZN) HH OS2 9/125µm SC/SC-APC 08E 1,0m | 1.0 m | 8 | 8 | 8 | |
| O1879.1 | Breakout I-V(ZN) HH OS2 9/125µm SC/SC-APC 12E 1,0m | 1.0 m | 12 | 12 | 12 |
