19" Co-Location Racks PRO, 800 x 800 mm, F+R 1-Part
Prices only visible for logged in users
Co-Location Rack PRO, 1 x 42U, 800x800 mm, F+R 1-Part Perforated, RAL9005
Item number:
PRO-CL1-4288TS.P1
EAN no.:
4049759259853
Product information for Co-Location Rack PRO, 1 x 42U, 800x800 mm, F+R 1-Part Perforated, RAL9005
19" network cabinet according to DIN 41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated

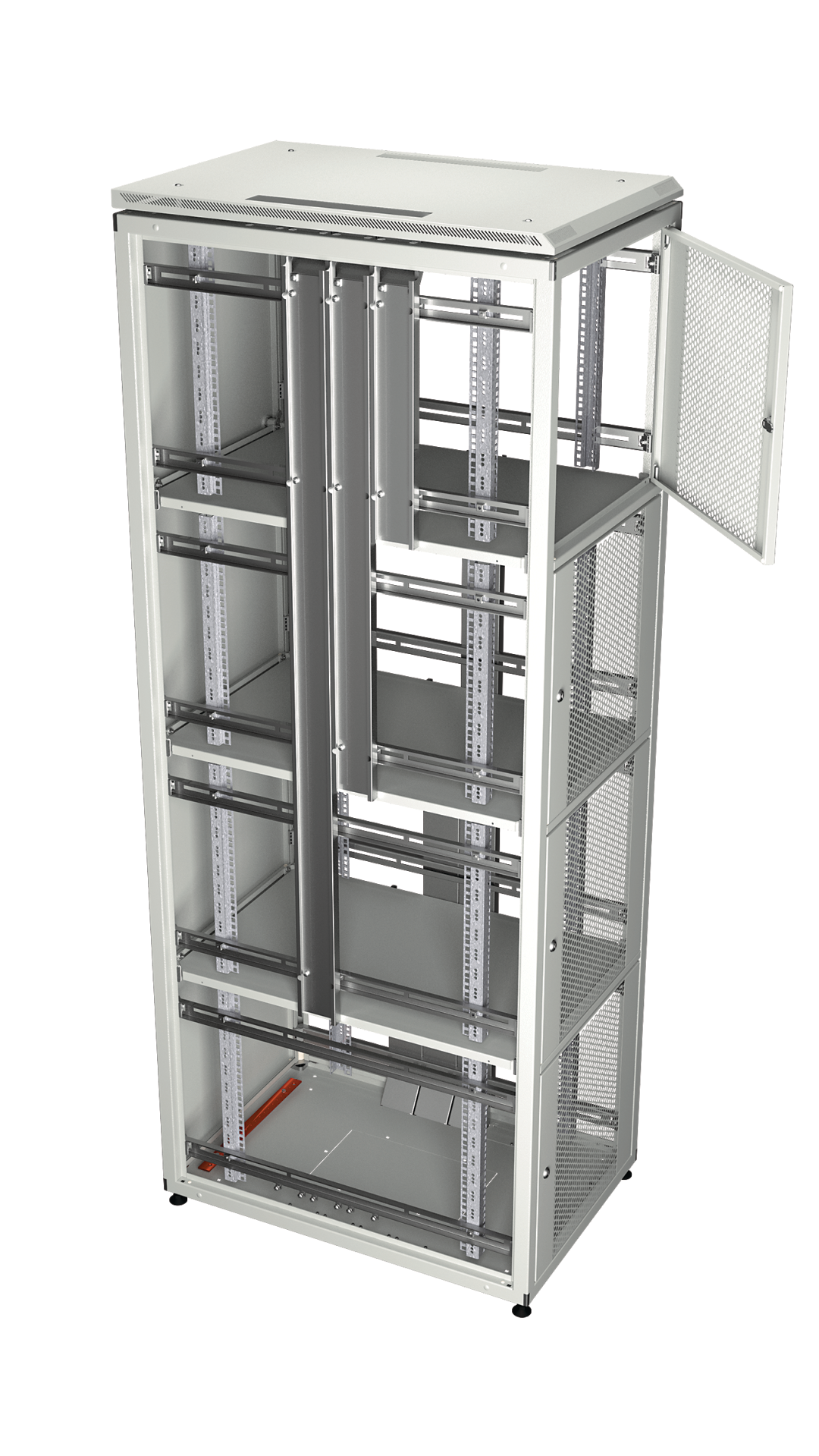

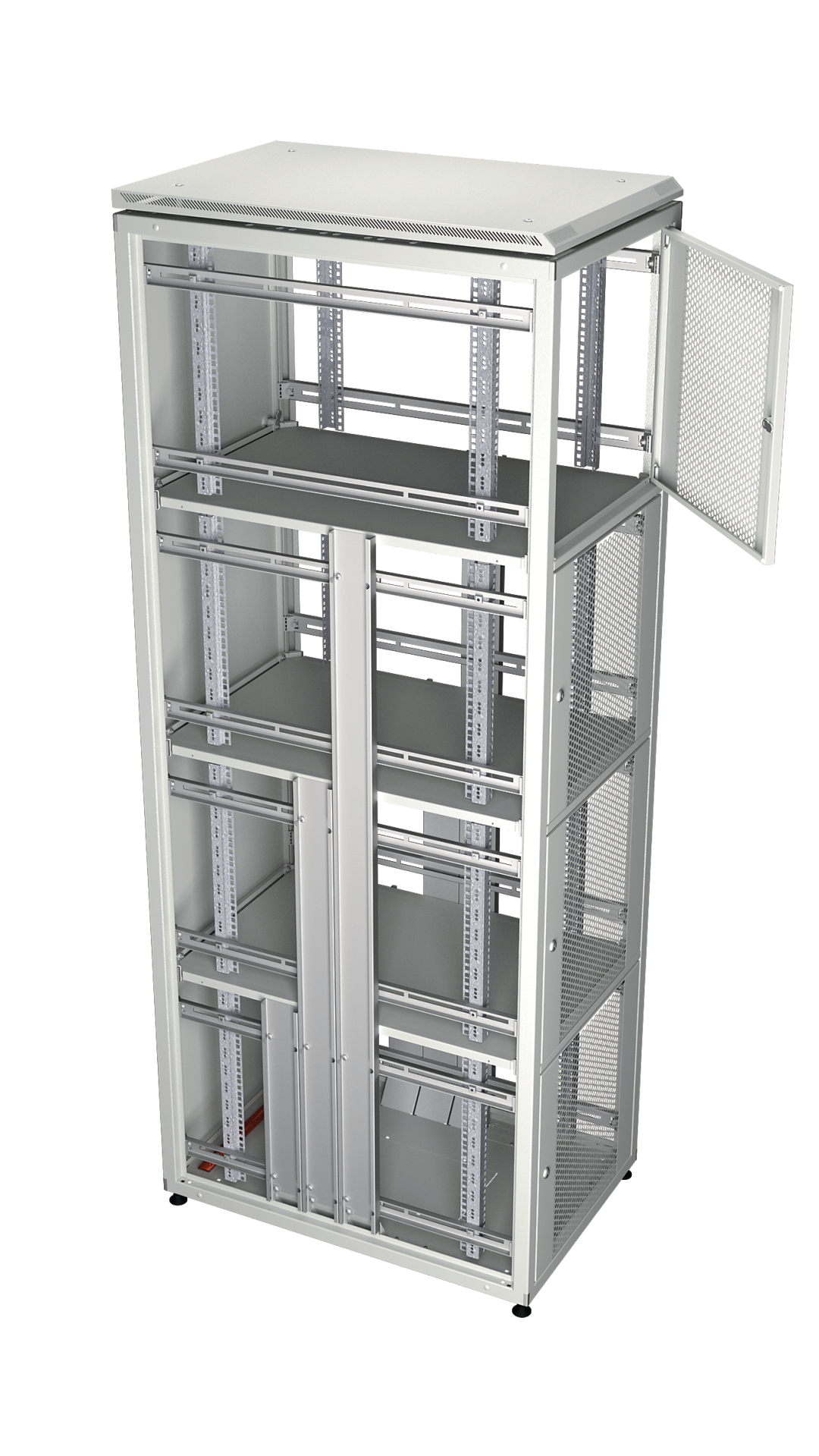

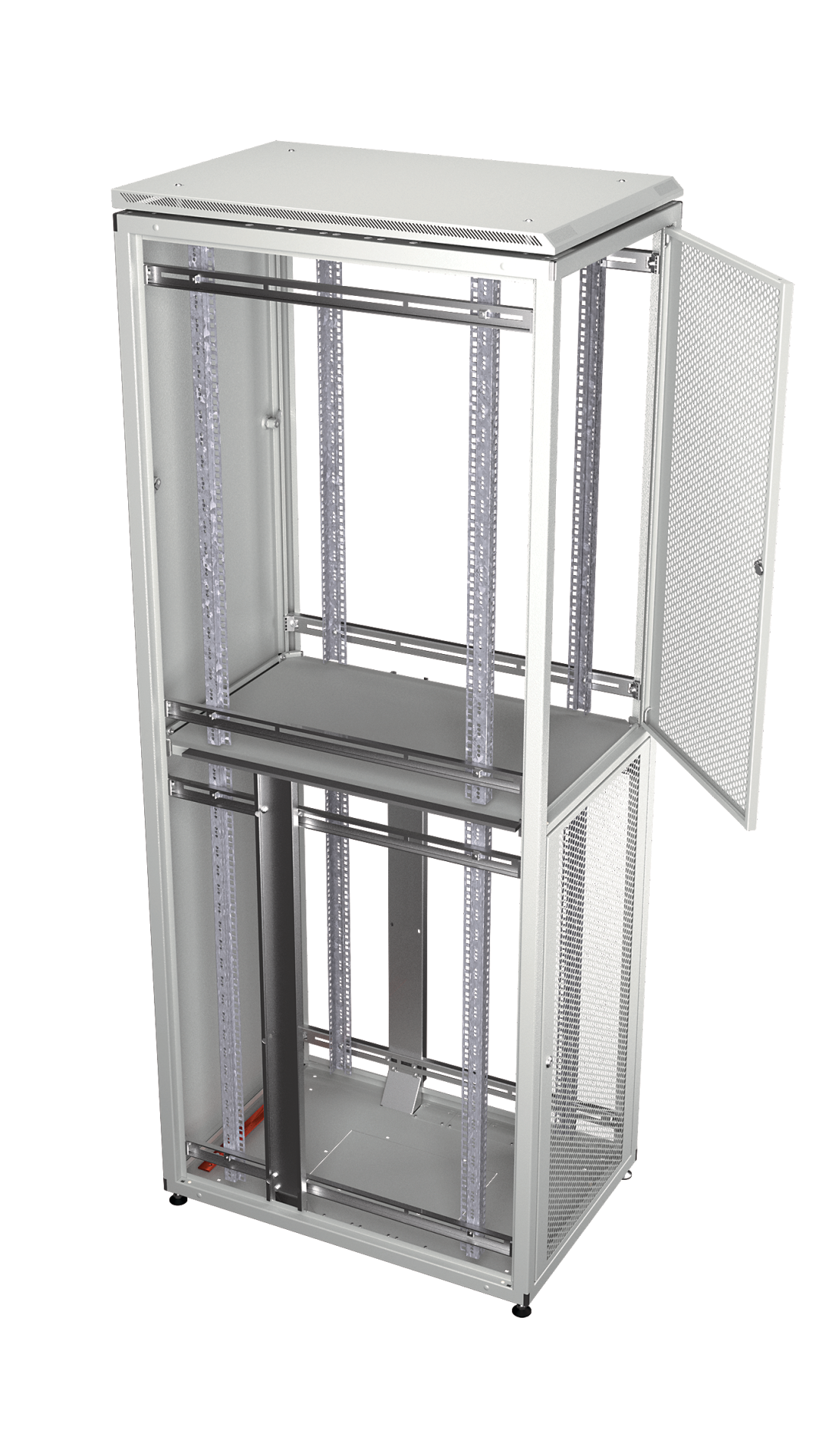

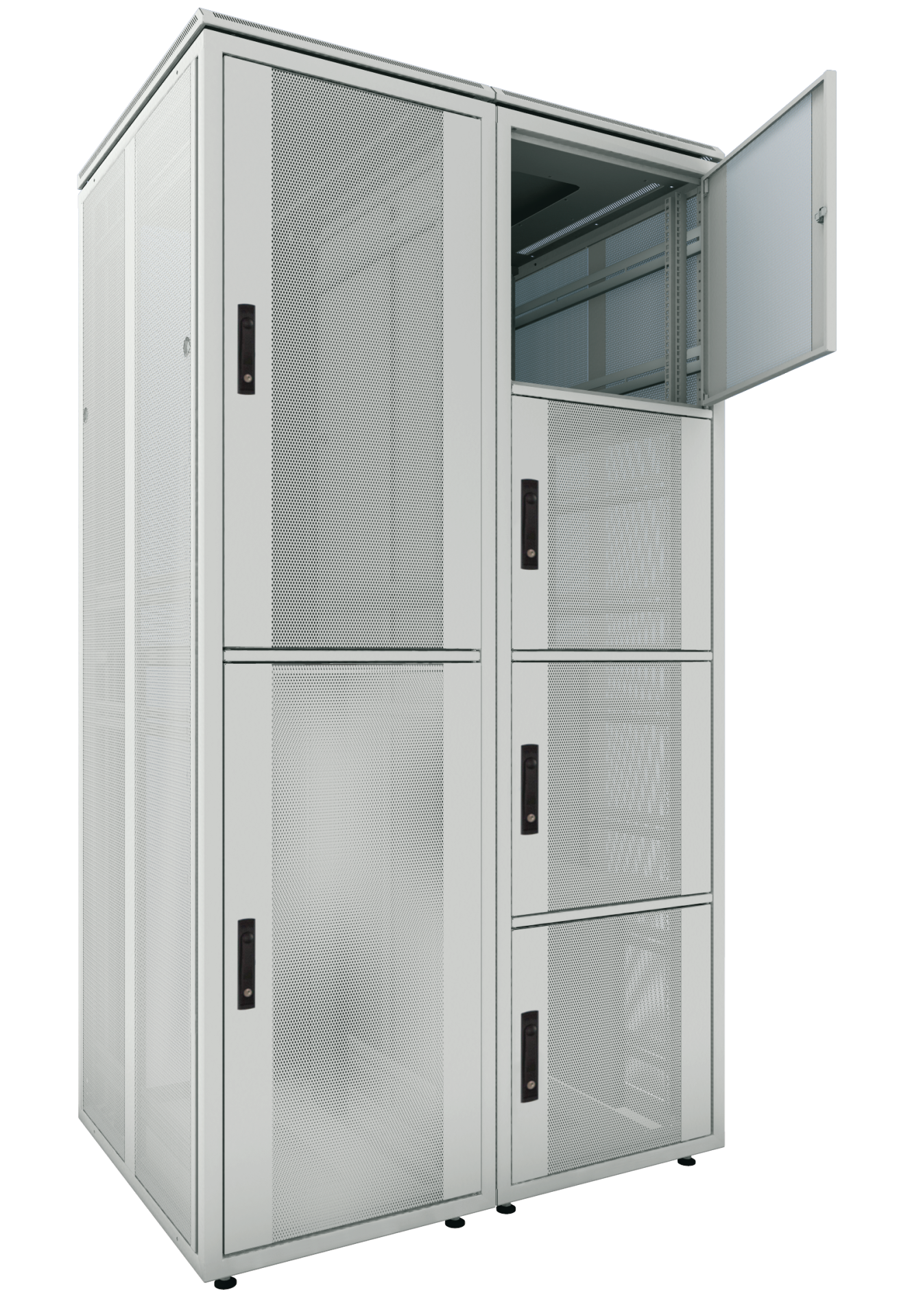

1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01

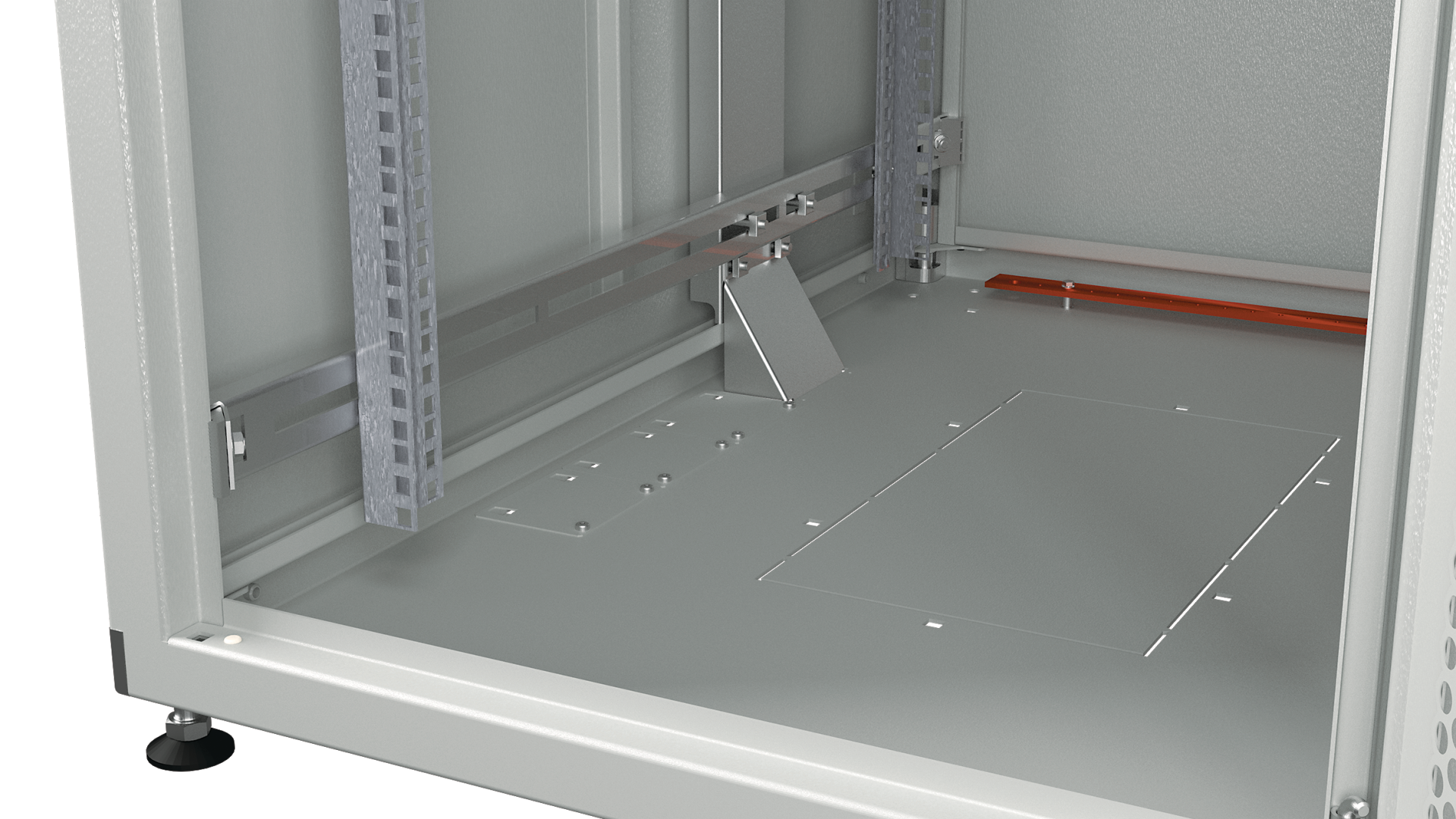

Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx

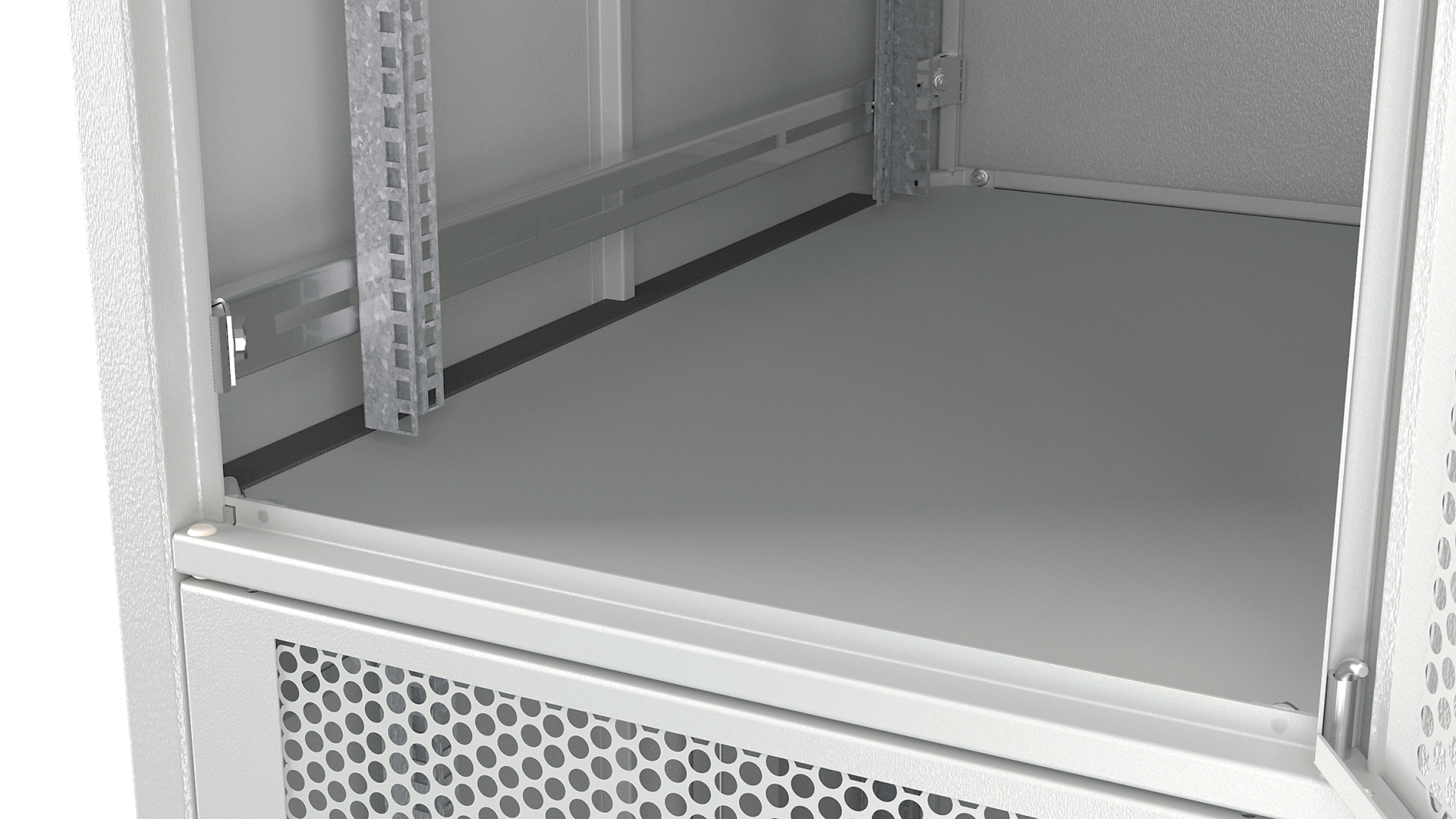

Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated
1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01
Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx
Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Technical properties
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482,6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | With powder coating |
| Type of back door: | Steel perforated 1-part |
| Type of front door: | Steel perforated 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Variants
| Item no. | Name | Width | Depth | Material rear door | Colour | Max. Load Capacity | Front door locking system | With vertical cable management | Material front door | Rear door locking system | Number of height units | Höhe | RAL-Nummer | Anzahl der Türen | Geeignete Lüfter | Anzahl der Boxen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-CL1-4288TS.P1 | Co-Location Rack PRO, 1 x 42U, 800x800 mm, F+R 1-Part Perforated, RAL9005 | 800 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 1 x 42 U | 1963 mm | 9005 | 2 | PRO-LFD02BT.x | 1 | |
| PRO-CL2-4288GR.P1 | Co-Location Rack PRO, 2 x 20U, 800x800 mm, F+R 1-Part Perforated, RAL7035 | 800 mm | 800 mm | Steel | grey | 600 kg | One point | True | Steel | One point | 2 x 20 U | 1963 mm | 7035 | 4 | PRO-LFD02BT.x | 2 | |
| PRO-CL2-4288TS.P1 | Co-Location Rack PRO, 2 x 20U, 800x800 mm, F+R 1-Part Perforated, RAL9005 | 800 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 2 x 20 U | 1963 mm | 9005 | 4 | PRO-LFD02BT.x | 2 | |
| PRO-CL4-4288TS.P1 | Co-Location Rack PRO, 4 x 9U, 800x800 mm, F+R 1-Part Perforated, RAL9005 | 800 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 4 x 10 U | 1963 mm | 9005 | 8 | PRO-LFD02BT.x | 4 |
