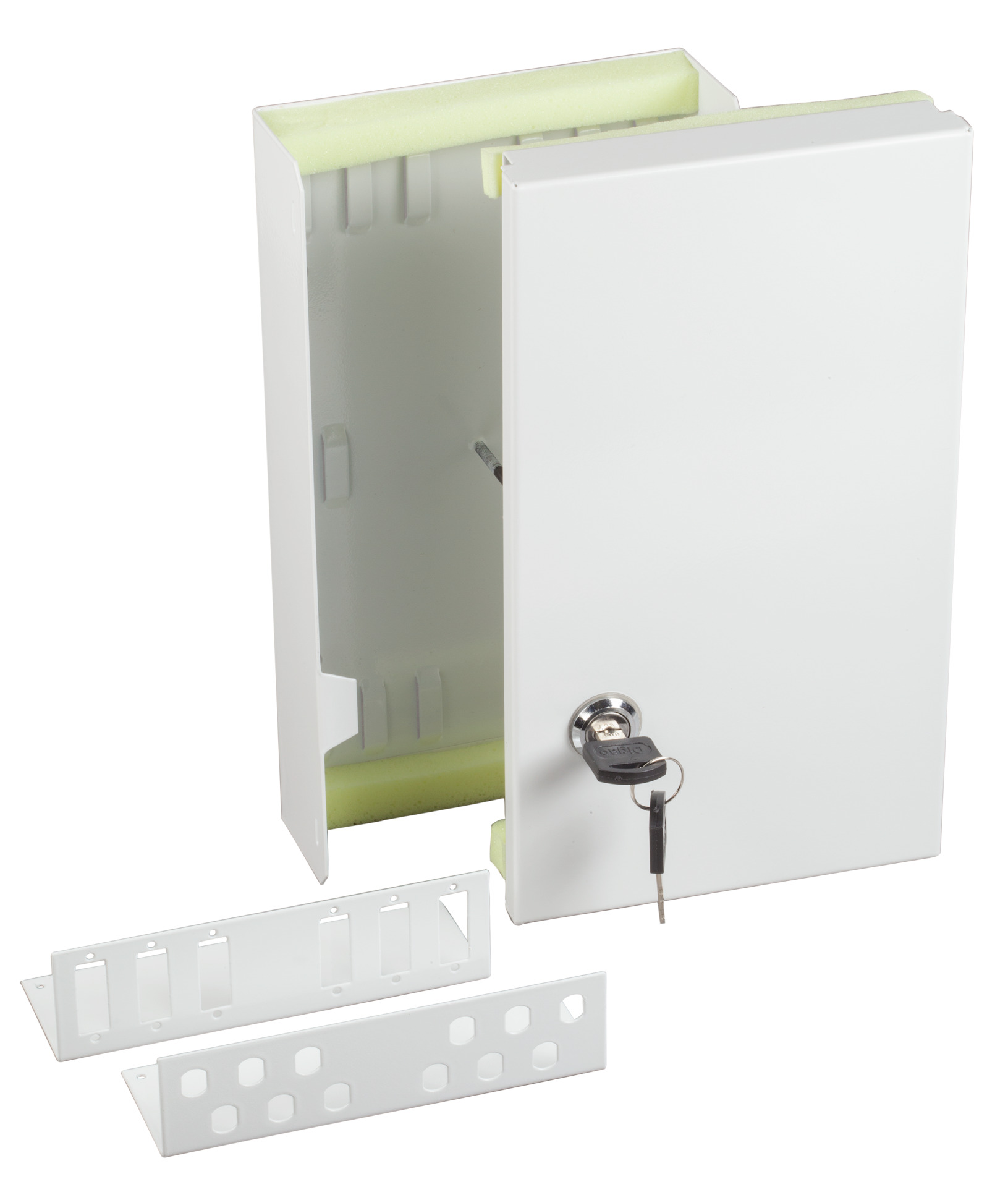

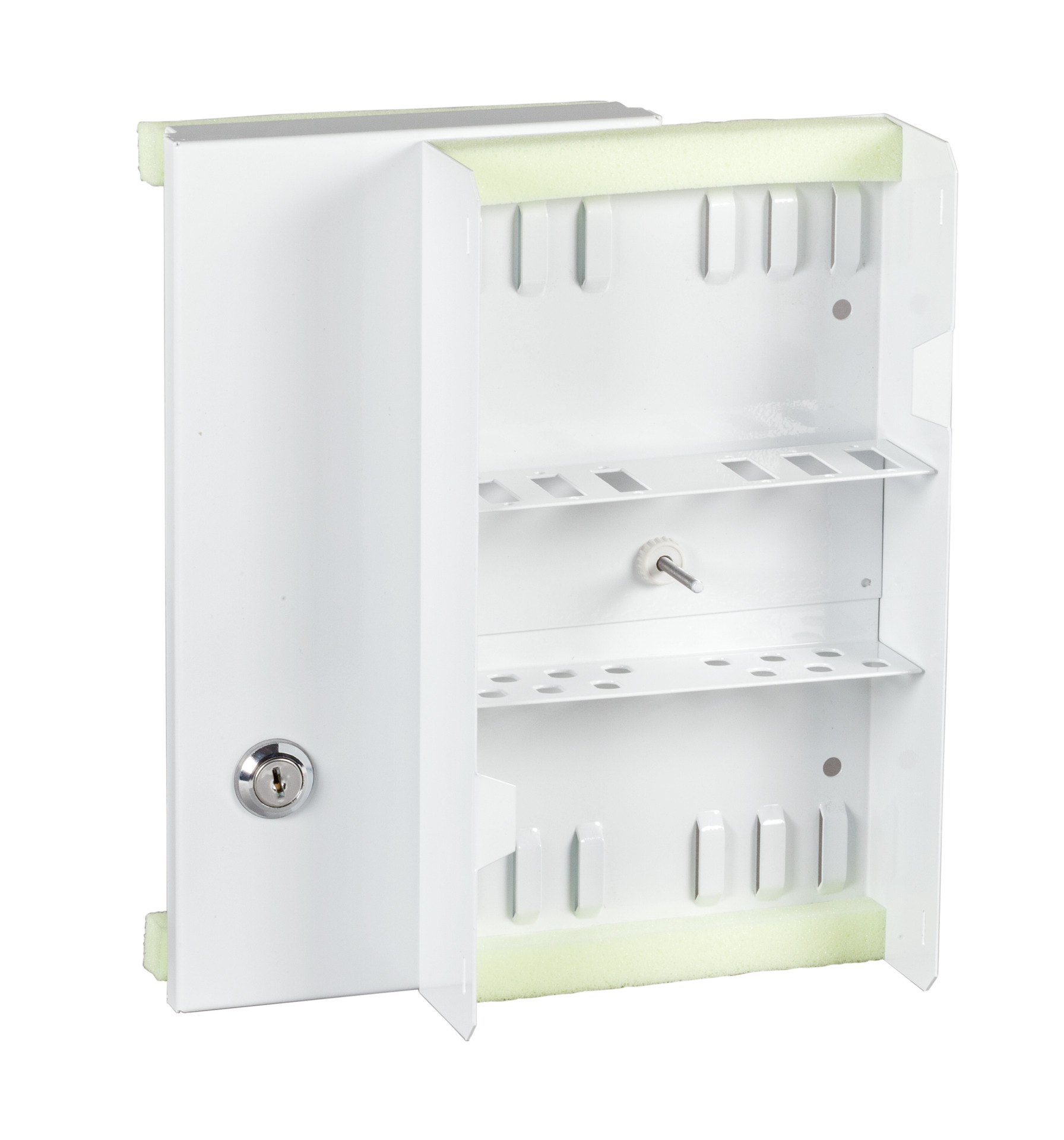

Name: Compact splice dist. set RAL7035,W=265 x H=150 x D=55mm
Brand: EFB-Elektronik
SKU: 53603.1
Price: 47.04 EUR
Availability: InStock

Compact Splice Distributor Set

Prices only visible for logged in users

Compact splice dist. set RAL7035,W=265 x H=150 x D=55mm

Item number: 53603.1

EAN no.: 4049759036393

Piece

Description

Product information for Compact splice dist. set RAL7035,W=265 x H=150 x D=55mm

Housing with swivel lid lockable, 2 keys
2 openings with dust-tight strips for incoming and outgoing cable for fixing with cable ties
For max. 4 splice cassettes or 1 splice cassette plus one distribution plate
Steel sheet

Scope of delivery:
Housing with 2 keys
1 x distribution plate for 12 x ST
1 x distribution plate for 6 x SC-Duplex

Dimensions: 265x150x55mm

Technical properties

Depth:	55.0 mm
Height:	265.0 mm
Mounting method:	Wall mounting
Width:	150.0 mm
With front plate:	True
With housing:	True
With pigtails:	False

Variants

Item no.	Name	Colour	RAL-Nummer
53603.1	Compact splice dist. set RAL7035,W=265 x H=150 x D=55mm	grey	7035	Select variants
53603.1WS	Compact splice dist. set RAL9003,W=265 x H=150 x D=55mm	white	9003	Select variants
