Connection Module Cat.6A/Cat.7/Cat.7A
EFB-Elektronik
Connection Module Cat.6A/Cat.7/Cat.7A
Item number:
38591.1
EAN no.:
4049759327460
Product information for Connection Module Cat.6A/Cat.7/Cat.7A
Reliable Network Connections for Professional Installations

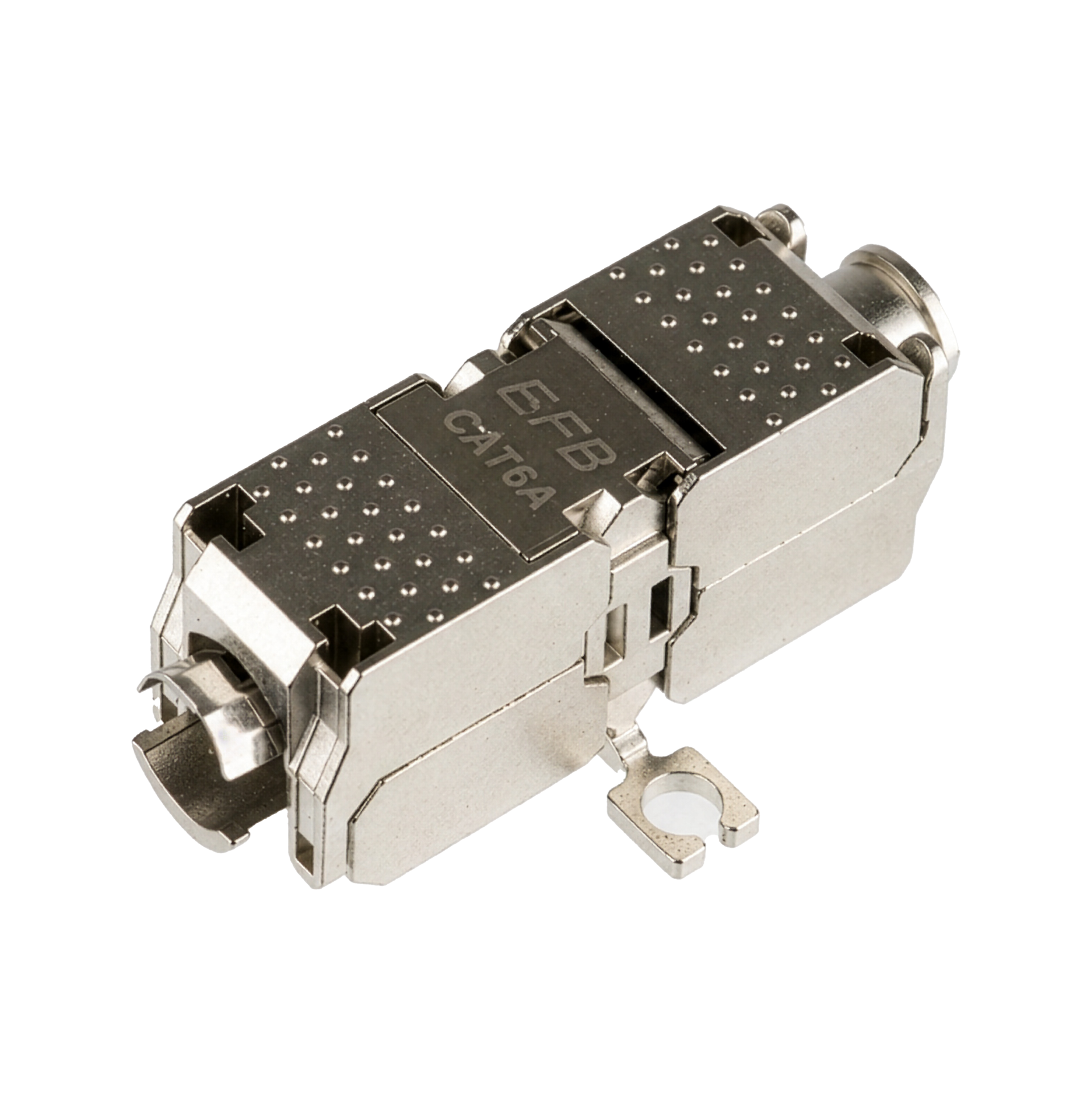

The shielded Cat.6A RJ45 cable connector enables fast and secure connection of network cables in professional cabling environments. The LSA cutting terminals ensure a durable and reliable connection to the wires, while the robust die-cast zinc housing provides high mechanical stability and effective shielding against electromagnetic interference. Thanks to the integrated mounting eyelets, the connector can be securely installed and seamlessly integrated into existing setups.
Your benefits at a glance
Cat.6A performance up to 10 Gigabit Ethernet
Robust die-cast zinc metal housing for optimal shielding
Integrated mounting eyelets for secure installation
Product Highlights

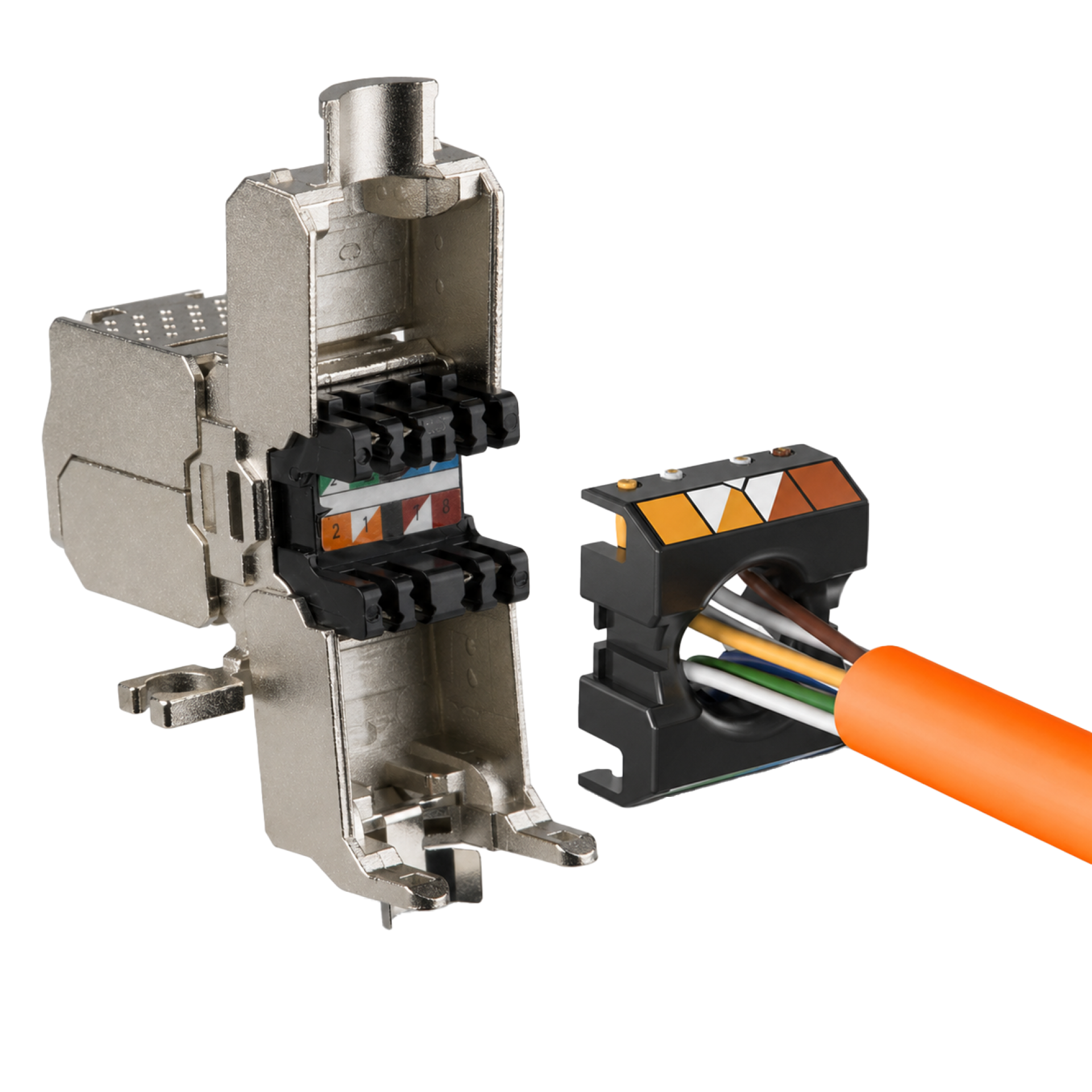

RJ45 cable connector with LSA-to-LSA connection
Fully populated 8-pin 1:1 connection
Suitable for cable diameters from 5.5 to 8 mm
Supports conductor sizes AWG22, AWG23, and AWG24
Shielded STP design for interference-free data transmission
Compatible with 100Base-TX, 1000Base-T, and 10GBASE-T
Robust housing made of high-quality zinc alloy
Two mounting eyelets for easy installation
Temperature range from -10 °C to +60 °C
Ideal for
Structured Building Cabling
Network Cabinets and Patch Panels

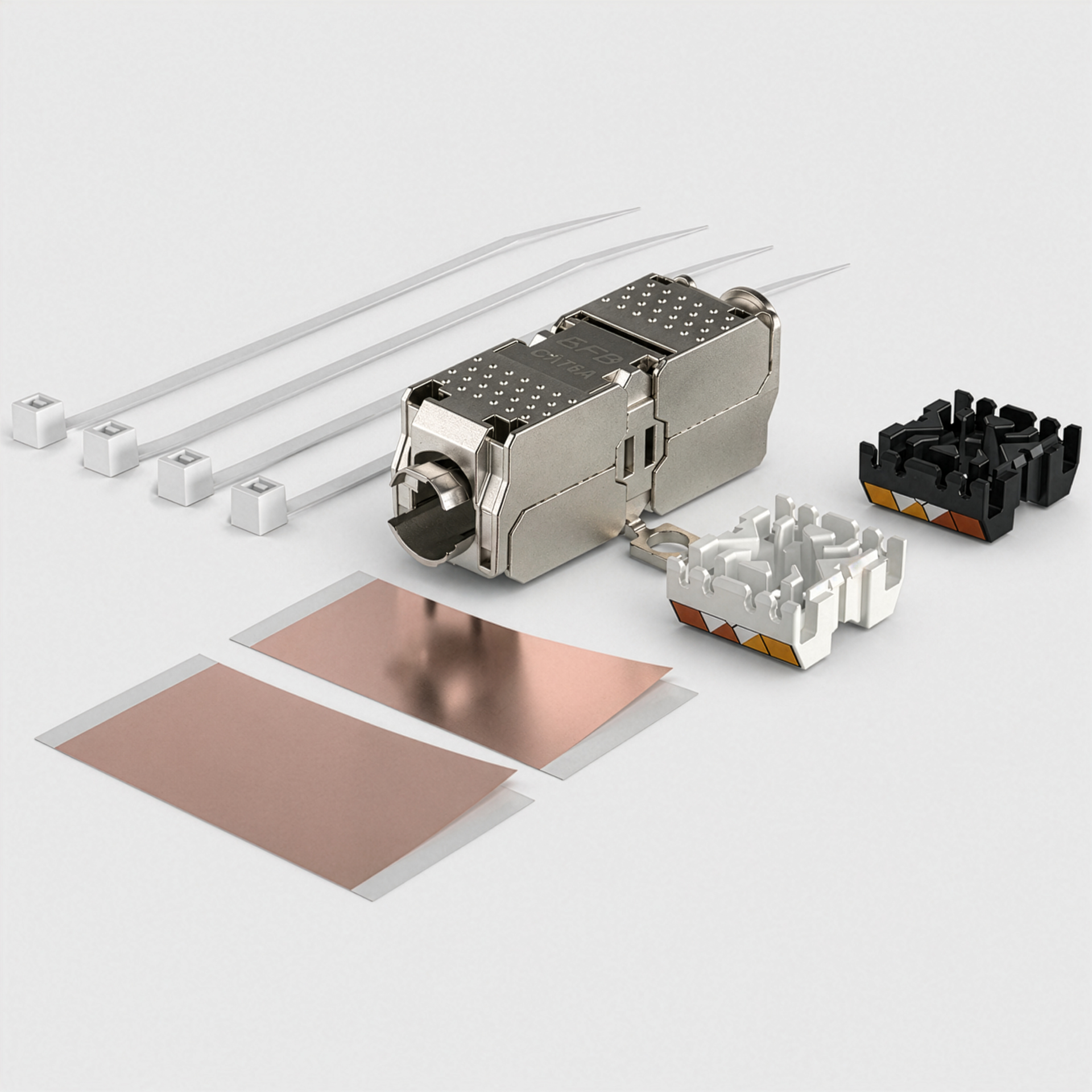

Package Contents
1 × Cat.6A/Cat.7/Cat.7A Connector
1 × Installation Instructions
The shielded Cat.6A RJ45 cable connector enables fast and secure connection of network cables in professional cabling environments. The LSA cutting terminals ensure a durable and reliable connection to the wires, while the robust die-cast zinc housing provides high mechanical stability and effective shielding against electromagnetic interference. Thanks to the integrated mounting eyelets, the connector can be securely installed and seamlessly integrated into existing setups.
Your benefits at a glance
Cat.6A performance up to 10 Gigabit Ethernet
Robust die-cast zinc metal housing for optimal shielding
Integrated mounting eyelets for secure installation
Product Highlights
RJ45 cable connector with LSA-to-LSA connection
Fully populated 8-pin 1:1 connection
Suitable for cable diameters from 5.5 to 8 mm
Supports conductor sizes AWG22, AWG23, and AWG24
Shielded STP design for interference-free data transmission
Compatible with 100Base-TX, 1000Base-T, and 10GBASE-T
Robust housing made of high-quality zinc alloy
Two mounting eyelets for easy installation
Temperature range from -10 °C to +60 °C
Ideal for
Structured Building Cabling
Network Cabinets and Patch Panels
Package Contents
1 × Cat.6A/Cat.7/Cat.7A Connector
1 × Installation Instructions
| 360° shield contact: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Dust cover: | false |
| Model: | connector |
| Screened: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of locking: | Latching mechanism |
Technical properties
| 360° shield contact: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Dust cover: | false |
| Model: | connector |
| Screened: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of locking: | Latching mechanism |
Product information for Connection Module Cat.6A/Cat.7/Cat.7A
Reliable Network Connections for Professional Installations
The shielded Cat.6A RJ45 cable connector enables fast and secure connection of network cables in professional cabling environments. The LSA cutting terminals ensure a durable and reliable connection to the wires, while the robust die-cast zinc housing provides high mechanical stability and effective shielding against electromagnetic interference. Thanks to the integrated mounting eyelets, the connector can be securely installed and seamlessly integrated into existing setups.
Your benefits at a glance
Cat.6A performance up to 10 Gigabit Ethernet
Robust die-cast zinc metal housing for optimal shielding
Integrated mounting eyelets for secure installation
Product Highlights
RJ45 cable connector with LSA-to-LSA connection
Fully populated 8-pin 1:1 connection
Suitable for cable diameters from 5.5 to 8 mm
Supports conductor sizes AWG22, AWG23, and AWG24
Shielded STP design for interference-free data transmission
Compatible with 100Base-TX, 1000Base-T, and 10GBASE-T
Robust housing made of high-quality zinc alloy
Two mounting eyelets for easy installation
Temperature range from -10 °C to +60 °C
Ideal for
Structured Building Cabling
Network Cabinets and Patch Panels
Package Contents
1 × Cat.6A/Cat.7/Cat.7A Connector
1 × Installation Instructions
The shielded Cat.6A RJ45 cable connector enables fast and secure connection of network cables in professional cabling environments. The LSA cutting terminals ensure a durable and reliable connection to the wires, while the robust die-cast zinc housing provides high mechanical stability and effective shielding against electromagnetic interference. Thanks to the integrated mounting eyelets, the connector can be securely installed and seamlessly integrated into existing setups.
Your benefits at a glance
Cat.6A performance up to 10 Gigabit Ethernet
Robust die-cast zinc metal housing for optimal shielding
Integrated mounting eyelets for secure installation
Product Highlights
RJ45 cable connector with LSA-to-LSA connection
Fully populated 8-pin 1:1 connection
Suitable for cable diameters from 5.5 to 8 mm
Supports conductor sizes AWG22, AWG23, and AWG24
Shielded STP design for interference-free data transmission
Compatible with 100Base-TX, 1000Base-T, and 10GBASE-T
Robust housing made of high-quality zinc alloy
Two mounting eyelets for easy installation
Temperature range from -10 °C to +60 °C
Ideal for
Structured Building Cabling
Network Cabinets and Patch Panels
Package Contents
1 × Cat.6A/Cat.7/Cat.7A Connector
1 × Installation Instructions
| 360° shield contact: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Dust cover: | false |
| Model: | connector |
| Screened: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of locking: | Latching mechanism |
| 360° shield contact: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Dust cover: | false |
| Model: | connector |
| Screened: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of locking: | Latching mechanism |
