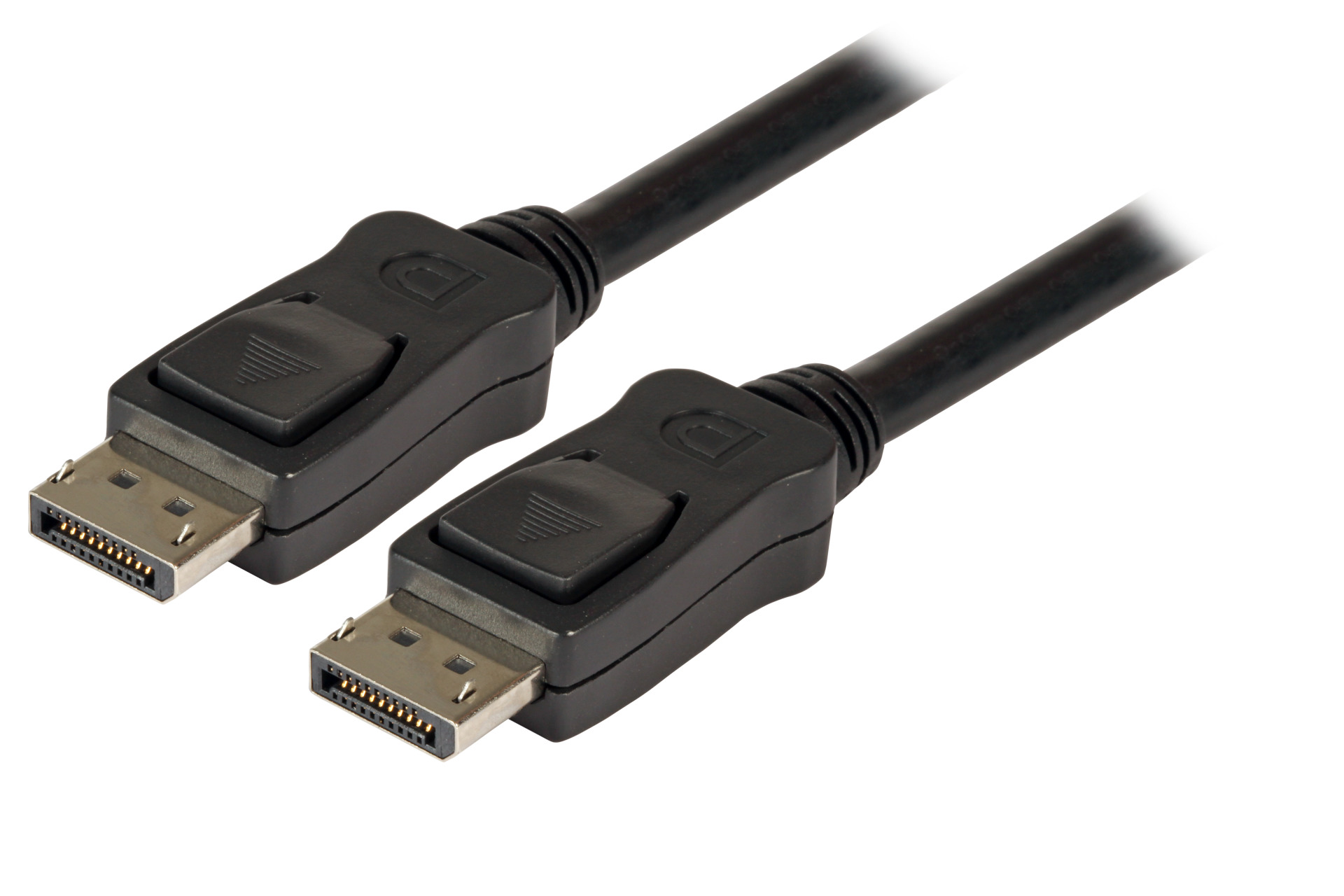

DisplayPort 1.2 Cable, 4K 60Hz, with Premium Zinc-die-cast housing
Prices only visible for logged in users
DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 10m, black
Item number:
K5560HQSW.10
EAN no.:
4049759229146
Product information for DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 10m, black
According to DisplayPort1.4 standard
Resolution up to 4K Ultra HD (4096 x 2160 @ 60Hz)
Premium Zinc-die-cast housing with full EMC shielding and DP lock
DisplayPort plugs and contacts gold plated
Tripple shielding
Conductor: bare copper, Jacket: PVC
Pin 20: DP_PWR not connected
Resolution up to 4K Ultra HD (4096 x 2160 @ 60Hz)
Premium Zinc-die-cast housing with full EMC shielding and DP lock
DisplayPort plugs and contacts gold plated
Tripple shielding
Conductor: bare copper, Jacket: PVC
Pin 20: DP_PWR not connected
Technical properties
| Connection type connection 1: | plug |
|---|---|
| Connection type connection 2: | plug |
| Number of poles connection 1: | 20 |
| Number of poles connection 2: | 20 |
| Type of connector connection 1: | DisplayPort (DP) |
| Type of connector connection 2: | DisplayPort (DP) |
Variants
| Item no. | Name | Colour | Length | |
|---|---|---|---|---|
| K5560HQSW.1 | DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 1m, black | black | 1.0 m | |
| K5560HQSW.2 | DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 2m, black | black | 2.0 m | |
| K5560HQSW.3 | DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 3m, black | black | 3.0 m | |
| K5560HQSW.5 | DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 5m, black | black | 5.0 m | |
| K5560HQSW.10 | DisplayPort 1.2 Cable 4K 60Hz,A-A M-M, Premium ZDC housing, 10m, black | black | 10.0 m |
