DisplayPort/HDMI Cable, 4K 60Hz

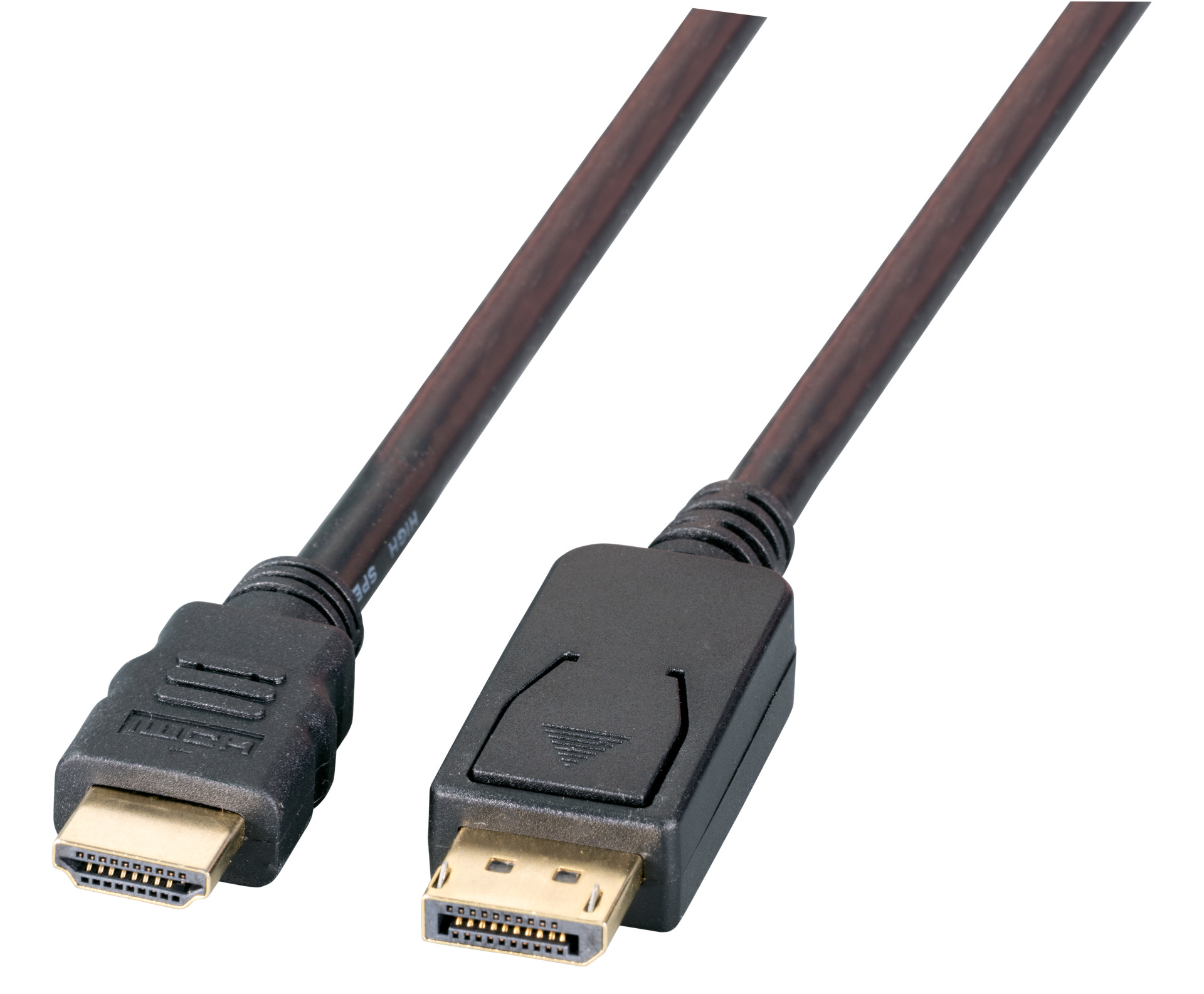

DisplayPort/HDMI Cable 4K60Hz,A-A M-M, 5m, black
Item number:
K5561HQSW.5
EAN no.:
4049759228200
Product information for DisplayPort/HDMI Cable 4K60Hz,A-A M-M, 5m, black
DisplayPort to HDMI Adapter cable with one sided signal way DisplayPort => HDMI output device
Supports 4K @ 60Hz resolution
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated, HDMI side moulded, DP mounted with locking protection
Pin 20: DP_PWR not connected
Supports 4K @ 60Hz resolution
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated, HDMI side moulded, DP mounted with locking protection
Pin 20: DP_PWR not connected
Technical properties
| 3D: | True |
|---|---|
| ARC: | True |
| Backwards compatible: | Ja |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | True |
| Cable and plug compatibility: | High-Speed HDMI |
| Cable set: | Nein |
| Cable type (passive/active/optical): | passiv |
| Chip: | Ja |
| Color depth: | 12-Bit |
| Compliant with: | TV |
| Compressions technologies: | DSC |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | vergoldet |
| DSC: | Ja |
| Dust cover: | Yes |
| Enhanced Color: | Deep Color |
| HDMI Power: | True |
| HDMI certified: | True |
| HDR: | HDR |
| HEC (Ethernet channel): | True |
| Halogenfree: | Nein |
| Kink protection: | Ja |
| MSA: | Nein |
| MST: | Nein |
| Material Connector Housing: | PVC umspritzt |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. mating cycles: | 5000 |
| Max. resolution: | 4K@60Hz |
| Model: | Rundkabel |
| Number of poles connection 1: | 20 |
| Number of poles connection 2: | 20 |
| Number of shieldings: | dreifach |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | Nein |
| Plug dimensions Side 1: | 20*12*51mm |
| Plug dimensions Side 2: | 19.3*9.9*37.3mm |
| Printing: | Displayport Cable AWM STYLE 20276 80ºC 30V VW-1 www.efb-elektronik.de |
| Scope of delivery: | 1xDP-HDMI Cable |
| Shielded: | Ja |
| Speed: | 25,92 Gbit/s |
| Storage Temperature: | -20 – 70 °C |
| Supported audio formats: | compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos) |
| Supported video standards: | 4K UHD - Ultra High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | DP |
| Type of connector connection 2: | HDMI Typ A |
| Type of locking: | Snap-In-Verriegelung |
| Type of packaging: | Plastiktüte |
| Type of signal: | Digital |
| VESA certified: | Nein |
| VRR: | Nein |
| Various lengths cable set: | 1x1m |
| Version: | HDMI Version 2.0 |
| Warranty: | 36 Monate |
| With termination resistor: | Nein |
| eARC: | Nein |
Variants
| Item no. | Name | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5561HQSW.1 | DisplayPort/HDMI Cable 4K60Hz,A-A M-M, 1m, black | schwarz | 1,0 m | 7.3 mm | 30AWG | |
| K5561HQSW.2 | DisplayPort/HDMI Cable 4K60Hz,A-A M-M, 2m, black | schwarz | 2.0 m | 7.3 mm | 30AWG | |
| K5561HQSW.3 | DisplayPort/HDMI Cable 4K60Hz,A-A M-M, 3m, black | schwarz | 3.0 m | 7.3 mm | 30AWG | |
| K5561HQSW.5 | DisplayPort/HDMI Cable 4K60Hz,A-A M-M, 5m, black | schwarz | 5.0 m | 7.3 mm | 30AWG |
