USB Type-C Docking Station 12 in 1
Prices only visible for logged in users
Docking Station 12 in 1 USB-C
Item number:
IUSB31C-DOCK12DPHD
Product information for Docking Station 12 in 1 USB-C

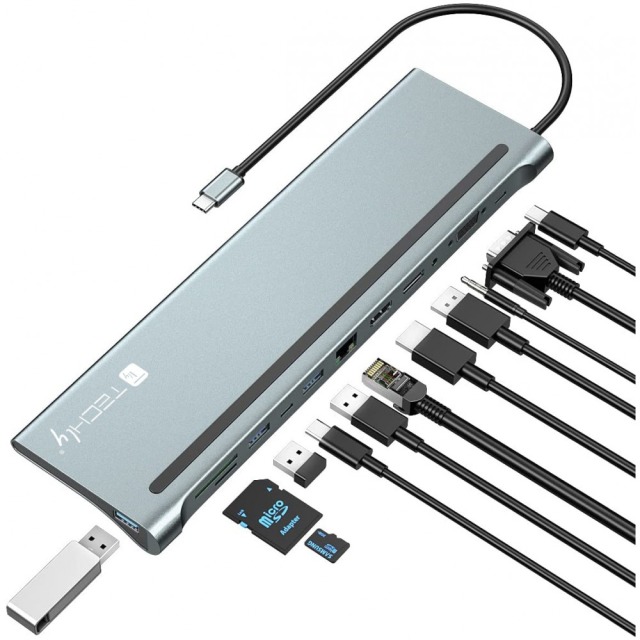

IUSB31C-DOCK12DPHD is a multifunctional type-C™ hub. It supports HDCP video and is compatible with the USB 3.2 type-C™ interface. Supports video transmission from computer, tablet and smartphone to 3 monitors in extension or mirroring mode. If your device does not have ports available, this multi-purpose hub can meet your needs by allowing you to charge, read and write data, connect other devices such as mouse, keyboard and other USB peripherals, network connection and audio and video output.
The docking station can be placed at the bottom of the notebook and effectively dissipate the heat from the laptop. Thanks to its pocket size it is very comfortable to use and carry with you.
Technical specifications
(1) USB-C™ female (PD) port Supports maximum power of 100W
(2) VGA Compatible with Samsung Dex and Nintendo Switch
VGA adapter: supports VGA video resolutions 1920x1080P @ 60Hz (HD)
Card reader:
- Slot 1 supports: Micro SD card
- Slot 2 supports: SD card
- Can read and write SD and Micro SD at the same time
USB hub:
- 2 USB3.0 ports
- Supports USB3.0 SuperSpeed 5Gbps data transmission
- The maximum output of the USB 3.0 port is 900mA
PD charging function:
- 1 port with PD charging function
- The maximum input of the PD charging port is 100W
Gigabit network card:
- Connect directly to the network
- Supports 10/100 / 1000Mbps auto-sensing capability
Supports Plug and Play, Hot Swap
Connections
USB-C™ male input
Two USB-A and one USB-C™ ports with 5 Gbps data transmission
One USB-A with data transmission at 480Mbps
USB-C™ port with PD function, supports 100W for charging
Gigabit Ethernet port with 10/100/1000 Mbps auto detection capability
VGA port: 1080p @ 60Hz, backward compatible with HDTV 1080p, 1080i, 720p and simultaneous 1080p support
HDMI 1.4 port
DP 1.2 port
With SD and Micro SD slot for reading and writing memory cards
3.5mm audio out port
Compatibility
Windows: Windows Me / 2000 / XP / Vista / NT / 7/8/10
Mac
Linux
Dimensions
Width: 95 mm
Depth: 55 mm
Height: 17.6 mm
Package Contents
IUSB31C-DOCK12DPHD docking station
USB cable
User Manual
The docking station can be placed at the bottom of the notebook and effectively dissipate the heat from the laptop. Thanks to its pocket size it is very comfortable to use and carry with you.
Technical specifications
(1) USB-C™ female (PD) port Supports maximum power of 100W
(2) VGA Compatible with Samsung Dex and Nintendo Switch
VGA adapter: supports VGA video resolutions 1920x1080P @ 60Hz (HD)
Card reader:
- Slot 1 supports: Micro SD card
- Slot 2 supports: SD card
- Can read and write SD and Micro SD at the same time
USB hub:
- 2 USB3.0 ports
- Supports USB3.0 SuperSpeed 5Gbps data transmission
- The maximum output of the USB 3.0 port is 900mA
PD charging function:
- 1 port with PD charging function
- The maximum input of the PD charging port is 100W
Gigabit network card:
- Connect directly to the network
- Supports 10/100 / 1000Mbps auto-sensing capability
Supports Plug and Play, Hot Swap
Connections
USB-C™ male input
Two USB-A and one USB-C™ ports with 5 Gbps data transmission
One USB-A with data transmission at 480Mbps
USB-C™ port with PD function, supports 100W for charging
Gigabit Ethernet port with 10/100/1000 Mbps auto detection capability
VGA port: 1080p @ 60Hz, backward compatible with HDTV 1080p, 1080i, 720p and simultaneous 1080p support
HDMI 1.4 port
DP 1.2 port
With SD and Micro SD slot for reading and writing memory cards
3.5mm audio out port
Compatibility
Windows: Windows Me / 2000 / XP / Vista / NT / 7/8/10
Mac
Linux
Dimensions
Width: 95 mm
Depth: 55 mm
Height: 17.6 mm
Package Contents
IUSB31C-DOCK12DPHD docking station
USB cable
User Manual
Technical properties
| Service primary side: | USB |
|---|
