Steel Door Perforated 24U, 1-Part, Width 800 mm, 1-Pt.-Locking
Prices only visible for logged in users
Door for PRO 24U, W=800, Steel perf., 1-Part, TH, RAL7035
Item number:
PRO-TUR248P1.GR
EAN no.:
4049759220372
Product information for Door for PRO 24U, W=800, Steel perf., 1-Part, TH, RAL7035

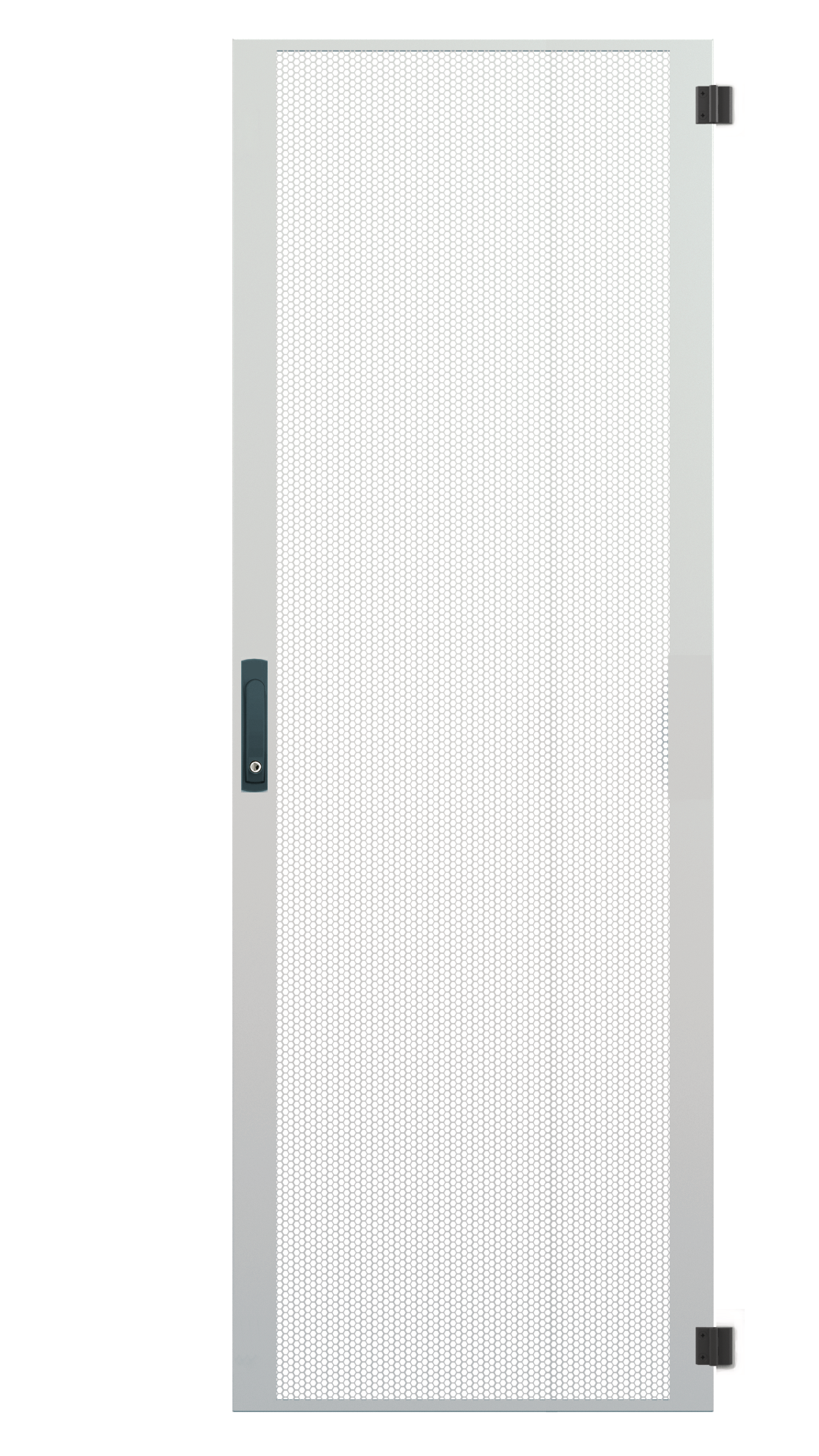

1-part steel door, perforated, for 24U cabinets PRO in width 800 mm
Perforation 80 %
3-point-locking with turning handle and profile half-cylinder acc. to DIN18252 / EN1303 (PHC exchangeable by customer)
Door opening angle 180°
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery pre-assembled incl. all hinges, screws, 2 x key
Perforation 80 %
3-point-locking with turning handle and profile half-cylinder acc. to DIN18252 / EN1303 (PHC exchangeable by customer)
Door opening angle 180°
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery pre-assembled incl. all hinges, screws, 2 x key
Technical properties
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Material: | Steel |
| Model: | Stop door |
| Profile half-cylinder exchangeable: | True |
| Surface finishing: | Powder coating |
| Type of closure: | Rotating handle with single-point latch |
| Version as glazed door: | True |
Variants
| Item no. | Name | Building width for cabinet build in | Colour | Breite | RAL-Nummer | EMV-Ausführung | Ausführung als Tür für Trennschalterverriegelung | |
|---|---|---|---|---|---|---|---|---|
| PRO-TUR248P1.GR | Door for PRO 24U, W=800, Steel perf., 1-Part, TH, RAL7035 | 800 mm | grey | 800 mm | 7035 | Ja | Ja | |

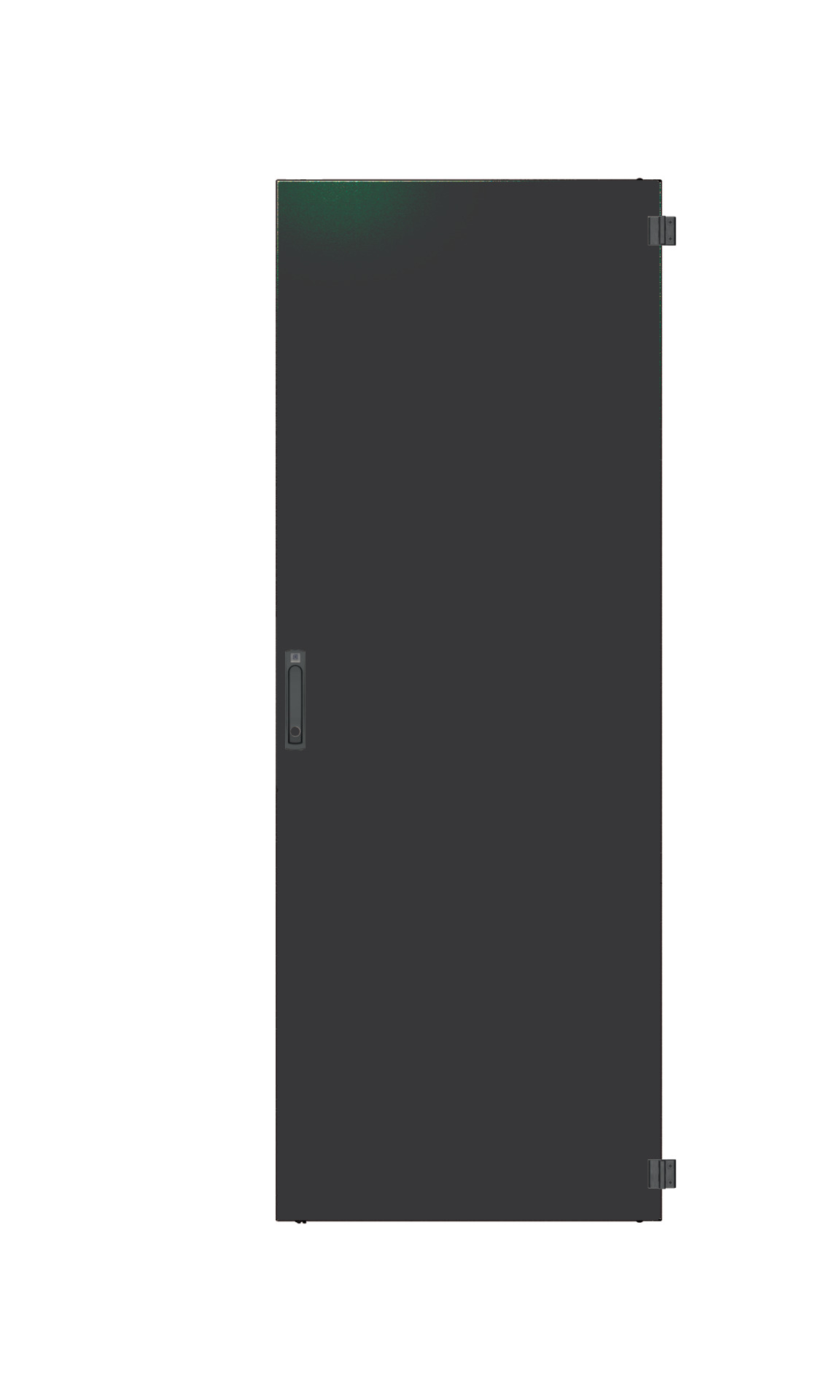

| PRO-TUR248P1.TS | Door for PRO 24U, W=800, Steel perf., 1-Part, TH, RAL9005 | 800 mm | black | 800 mm | 9005 | Ja | Ja |
