DVI 24+1 Dual Link Industrial Connection Cable
Prices only visible for logged in users

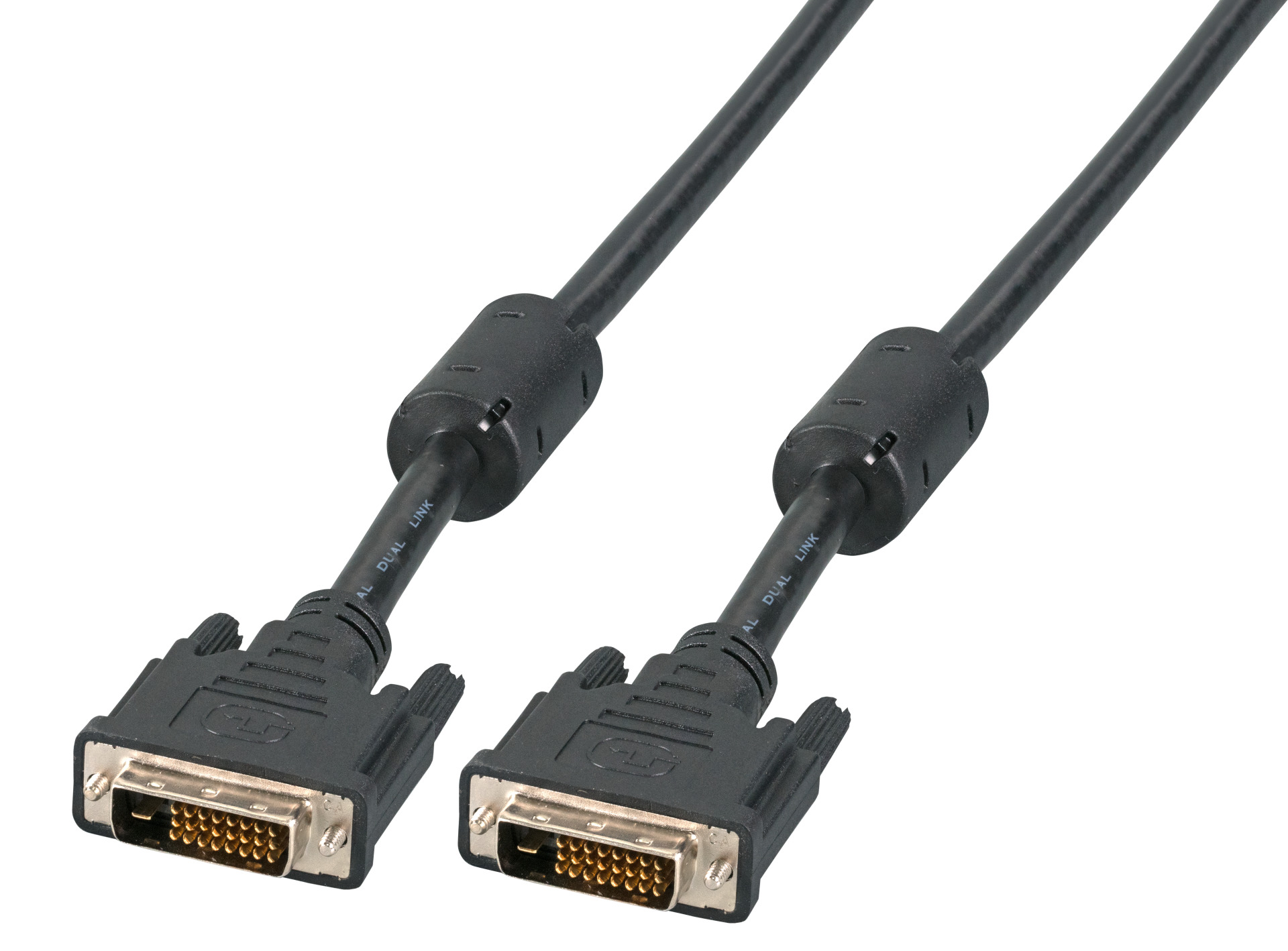

DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 2m
Item number:
K5434IND.2
EAN no.:
4049759119546
Product information for DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 2m
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC

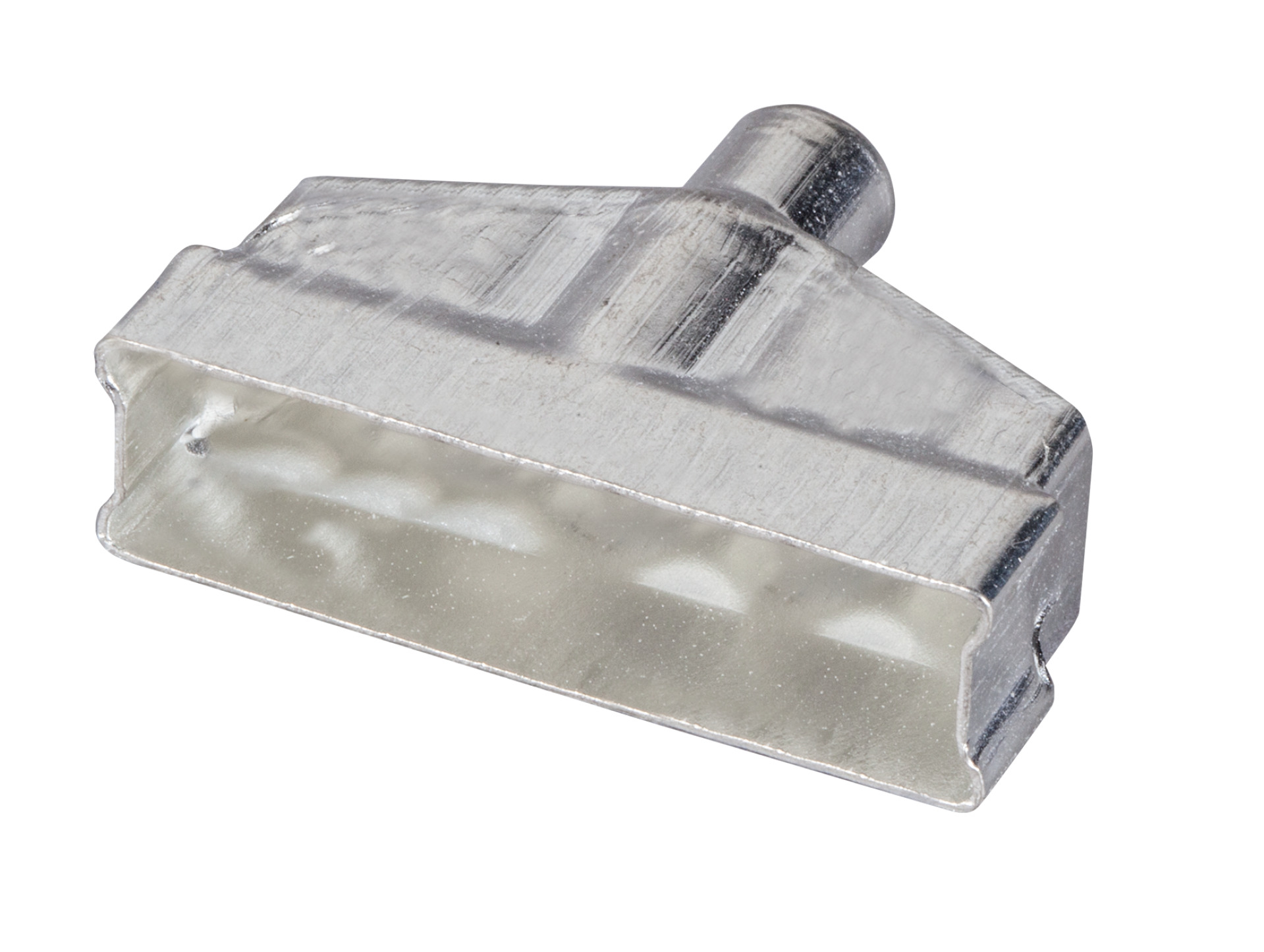

Tinned plugs and gold plated contacts, housing with full-metal shielding and moulded, for ideal shielding characteristics in rough industrial environment.
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Dual link cable
Support for resolution up to 2560 x 1600
Conductor: bare copper, Jacket: PVC
Tinned plugs and gold plated contacts, housing with full-metal shielding and moulded, for ideal shielding characteristics in rough industrial environment.
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Dual link cable
Support for resolution up to 2560 x 1600
Technical properties
| Connection type connection 1: | plug |
|---|---|
| Connection type connection 2: | plug |
| Number of poles connection 1: | 25 |
| Number of poles connection 2: | 25 |
| Type of connector connection 1: | DVI |
| Type of connector connection 2: | DVI |
Variants
| Item no. | Name | Colour | Length | |
|---|---|---|---|---|
| K5434IND.2 | DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 2m | black | 2.0 m | |
| K5434IND.3 | DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 3m | black | 3.0 m | |
| K5434IND.5 | DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 5m | black | 5.0 m |
