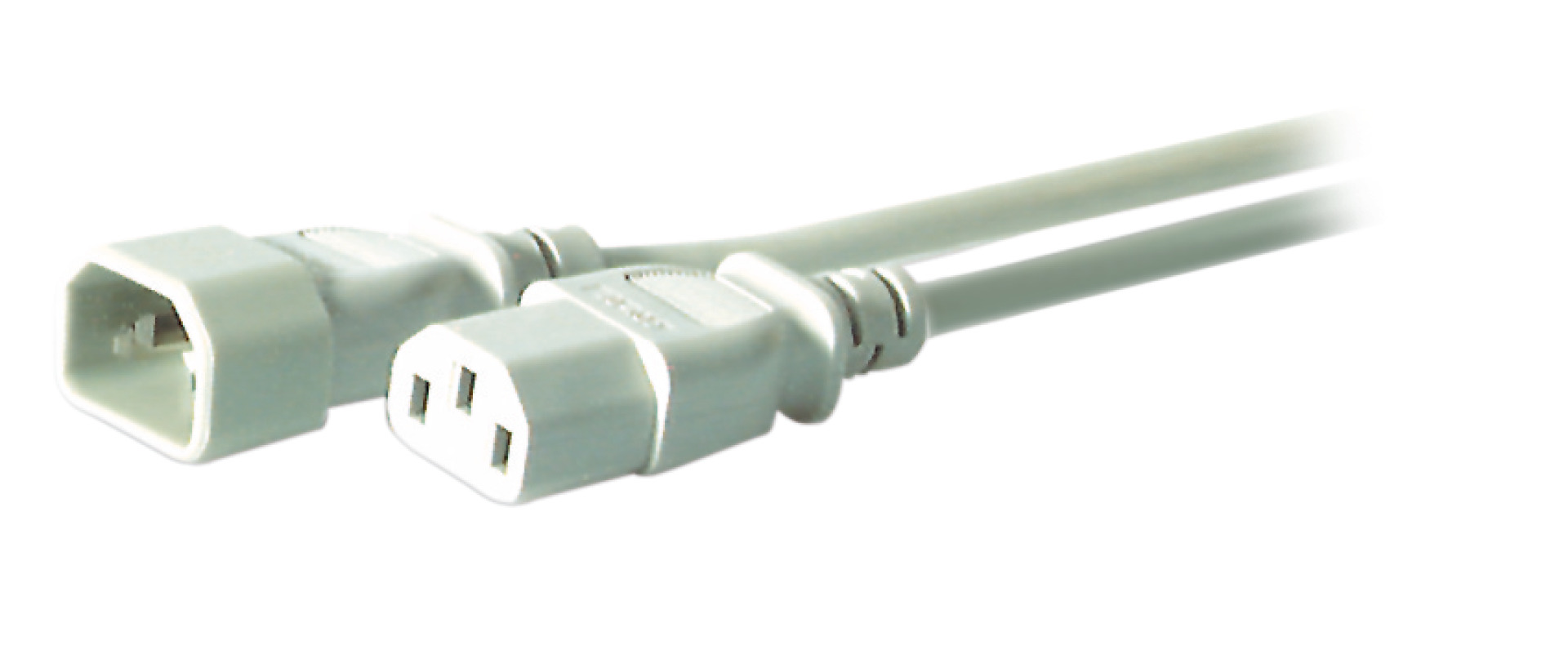

Extension Cable C14 180° - C13 180°, grey
Extension Cable C14 180° - C13 180°, Grey, 1.8 m, 3 x 0.75 mm²
Item number:
EK507.1,8
EAN no.:
4049759053055
Product information for Extension Cable C14 180° - C13 180°, Grey, 1.8 m, 3 x 0.75 mm²
Plug IEC60320/C14 to jack IEC60320/C13
10 A / 250 V VDE tested
10 A / 250 V VDE tested
Technical properties
| Colour outer sheath: | grey |
|---|---|
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Jacket Material: | Polyvinyl chloride (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 0 – 70 °C |
| With cord switch: | False |
Variants
| Item no. | Name | Colour outer sheath | Length | Leiternennquerschnitt | Außendurchmesser ca. | |
|---|---|---|---|---|---|---|
| EK507.1,8 | Extension Cable C14 180° - C13 180°, Grey, 1.8 m, 3 x 0.75 mm² | grey | 1.8 m | 0,75 mm² | 6,8 mm | |
| EK507.3 | Extension Cable C14 180° - C13 180°, Grey, 3.0 m, 3 x 1.00 mm² | grey | 3.0 m | 1,00 mm² | 7,1 mm | |
| EK507.5 | Extension Cable C14 180° - C13 180°, Grey, 5.0 m, 3 x 1.00 mm² | grey | 5.0 m | 1,00 mm² | 7,1 mm |
