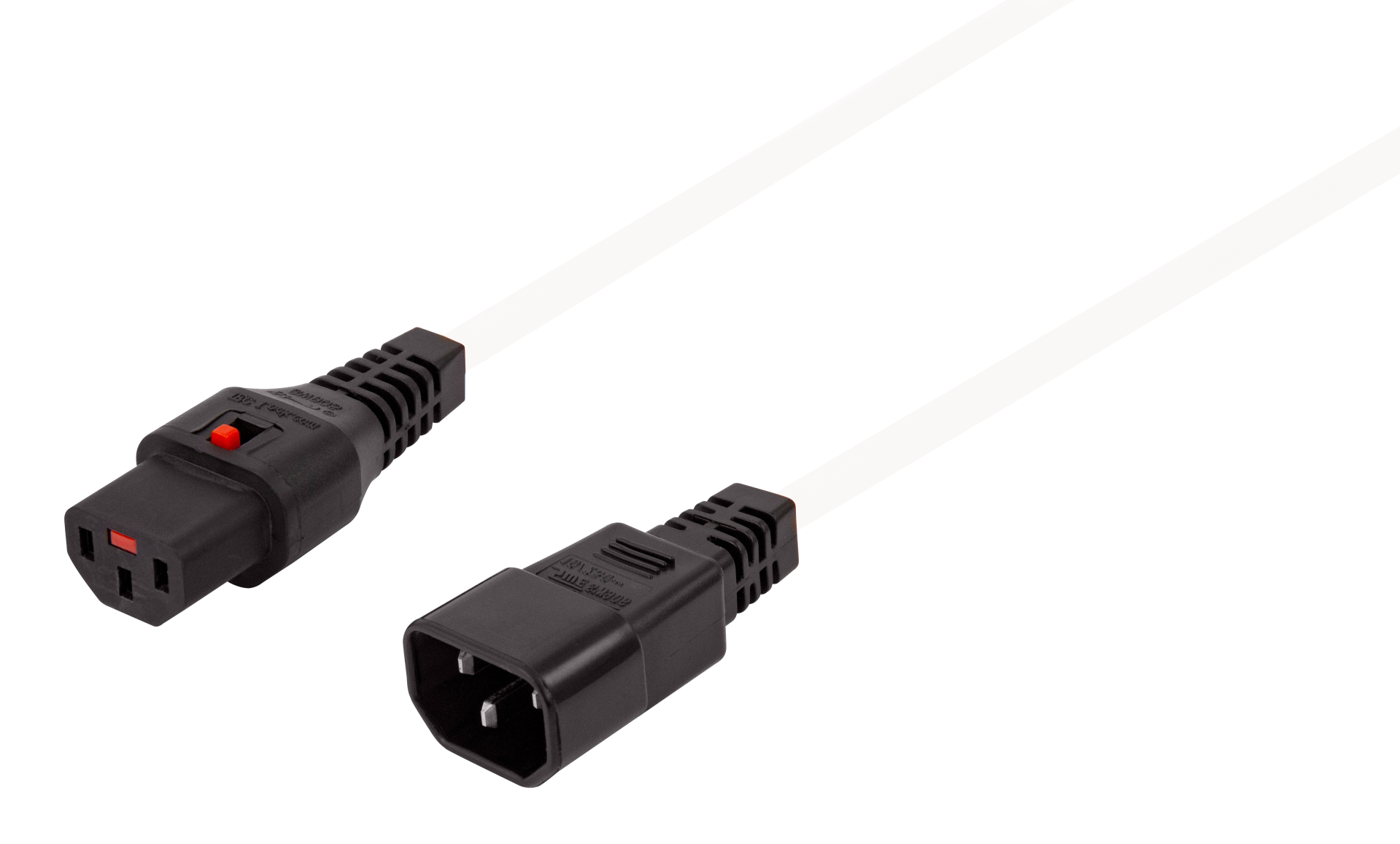

Extension Cable C14 180° - C13 180° with IEC Lock, white
Extension Cable C14 180° - C13 180°, White, 1.0 m, 3 x 1.00 mm², IEC Lock
Item number:
EK601WS.1
Product information for Extension Cable C14 180° - C13 180°, White, 1.0 m, 3 x 1.00 mm², IEC Lock
With „IEC Lock“: prevents accidentally removing of the C13 jack from devices
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested
Technical properties
| (Halogenfree): | False |
|---|---|
| Colour outer sheath: | white |
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Jacket Material: | Polyvinyl chloride (PVC) |
| Nominal voltage: | 250 V |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 10 – 70 °C |
| With cord switch: | False |
Variants
| Item no. | Name | Colour outer sheath | Length | Leiternennquerschnitt | Außendurchmesser ca. | |
|---|---|---|---|---|---|---|
| EK601WS.1 | Extension Cable C14 180° - C13 180°, White, 1.0 m, 3 x 1.00 mm², IEC Lock | white | 1.0 m | 1,00 mm² | 7,1 mm | |
| EK601WS.1,5 | Extension Cable C14 180° - C13 180°, White, 1.5 m, 3 x 1.00 mm², IEC Lock | white | 1.5 m | 1,00 mm² | 7,1 mm | |
| EK601WS.2 | Extension Cable C14 180° - C13 180°, White, 2.0 m, 3 x 1.00 mm², IEC Lock | white | 2.0 m | 1,00 mm² | 7,1 mm | |
| EK601WS.3 | Extension Cable C14 180° - C13 180°, White, 3.0 m, 3 x 1.00 mm², IEC Lock | white | 3.0 m | 1,00 mm² | 7,1 mm |
