HDBIT VGA/Audio Extender

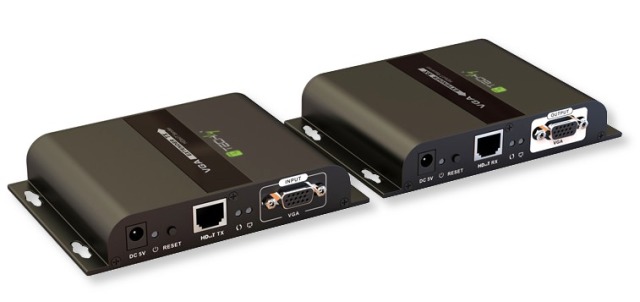

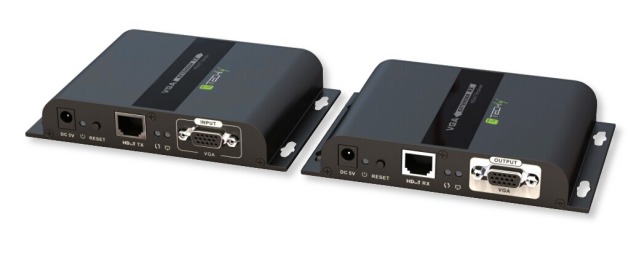

HDBIT VGA/Audio Extender Transmitter/Receiver over IP, 120m
Item number:
IDATA-EXTIP-383V
EAN no.:
8054529025541
Product information for HDBIT VGA/Audio Extender Transmitter/Receiver over IP, 120m
HDbitT VGA and Audio Extender for length of up to 120m over a single CAT6 cable. It saves on the cost of the cable and supports RGBHV input signal.
Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.
FeaturesSupports HDbitT technology Extends VGA and analog audio signals over a single CAT5 / 5e / 6 Supports resolutions up to 1920x1080 @ 60Hz VGA signal transmission up to 120m RGBHV Support 3.5mm audio jack Support Cascading to divide and extend the VGA signal indefinitely Housing material aluminum alloy
SpecificationsTransmission protocol: HDBitT VGA Signal Format: RGBHV VGA Resistance: 75 Ohm Supported resolutions: 1920x1080 @ 60Hz; 1680x1050 @ 60Hz; 1360x768 @ 60Hz; 1280x1024 @ 60Hz; 1280x960 @ 60Hz; 1024x768 @ 60Hz; 800x600 @ 60Hz Transmission Distance: transmits 1080p signal over CAT6 cable up to 120m; Cat.5E 100m; Cat.5 80m Audio connection: 3.5mm jack Operating Temperature: 0-60 ° C Power supply: 2 power supply 5V / 2A Consumption: TX <7.5W; RX <7W
SizeWidth: 138 mm Depth: 90 mm Height: 23.8 mm
Package Content1x Transmitter EXTENDER TX 1x Receiver RX EXTENDER 1x Audio cable 3.5mm 2x 5V 2A 1x User Manual
Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.
Features
Specifications
Size
Package Content
Technical properties
| Video norm: | Colour PAL |
|---|
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
