HDMI Matrix Sender bis zu 120m, FullHD HDMI Matrix Sender bis zu 120m, FullHD

HDMI Matrix Transmitter up to 120m, FullHD over IP
HDMI Matrix Transmitter up to 120m, FullHD over IP
HDMI Matrix Transmitter up to 120m, FullHD over IP
HDMI Matrix Transmitter up to 120m, FullHD over IP
HDMI Matrix Transmitter up to 120m, FullHD over IP
HDMI Matrix Transmitter up to 120m, FullHD over IP
HDMI Matrix Transmitter up to 120m, FullHD over IP
Item number: IDATA-HDMI-MX383
EAN no.: 8051128103953
Piece
Log in as a customer
Description

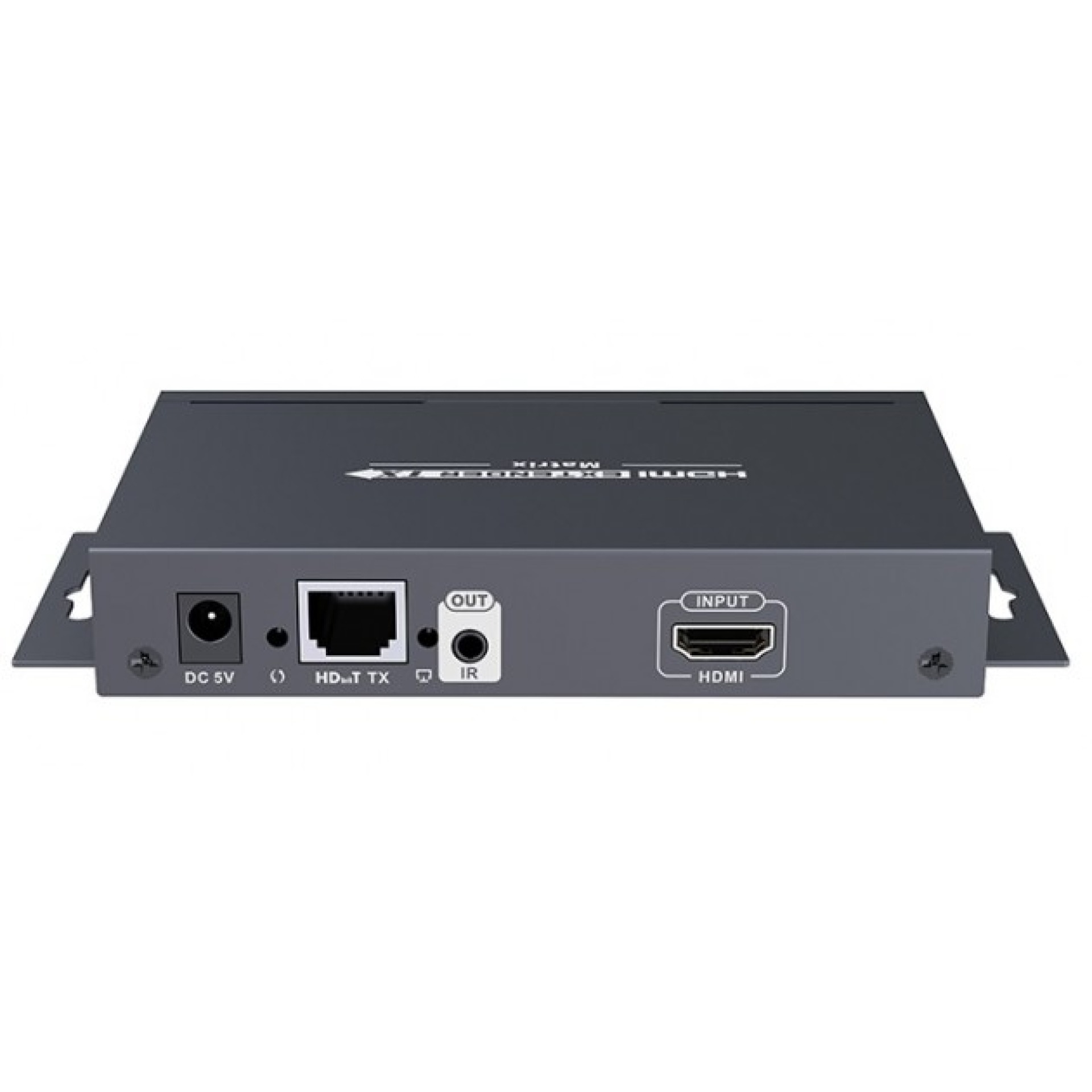

Product information for HDMI Matrix Transmitter up to 120m, FullHD over IP

  • Transmitter for HDMI Matrix Extender 120m with IR
  • Supports 1080p @ 60Hz full HD video resolution
  • Provides reliable HDMI 1.3 transmission over CAT6 network cable
  • Enables the signal extender function through the LAN network with IGMP support
  • Supports cascading connection
  • Supports TCP / IP
  • Provides good signal stability and reduces interference
  • Widely applied in fields that require full HD, such as advertising campaigns, demonstrations of new products, CCTV systems, etc.

    • Due to the high bandwidth consumption it is convenient to use these devices on dedicated networks or on separate port based VLANs.

    Technical specifications
  • Apply the advanced HDBitT technology over IP
  • Supports 1080p @ 60Hz full HD video resolution
  • Transmission distance up to 120 meters on CAT6 cable
  • Supports IR pass back to control the source device from the RX position
  • Offers a scalable and flexible matrix input-output configuration, allowing 100 inputs to infinite outputs
  • Supports computer control software to select and change the input of the source device
  • Plug and play
  • Support to select and change the input of the source device from the receiver by remote control and button
  • Supports APP control, the user can scan, preview and develop their own configuration easily using a smartphone or tablet


    • Features
  • Network cable: UTP / STP Cat5e / 6
  • Supports HDMI 1.3, HDCP compatible
  • Lan Switch: supports network management function and IGMP / IGMP snooping. Network bandwidth support in the local area ≥ 100m
  • IR remote control: supports IR frequency signal 20-60KHZ
  • Consumption: 3W sending; 3W reception
  • Power supply: DC 5V / 2A
  • Black color


    • Supported Resolutions
  • 480i / 480p @ 60Hz; 576i / 576p @ 50Hz; 720p / 1080i / 1080p (50Hz, 60Hz)


    • Installation Requirements
  • HDMI source (computer video card, DVD, PS3, etc.)
  • Monitor or projector with HDMI port
  • Network switch with IGMP or IGMP snooping function
  • Connection on Cat. 5E / 6 network cable


    • Dimensions
  • Width 10.5 cm
  • Depth 6.5 cm
  • Height 2.3 cm


    • Certification
  • CE
  • FCC
  • RoHS
  • WEEE


    • Package Contents
  • 1x Matrix HDMI RX Transmitter
  • 1x RX receiver extension cable
  • 1x Instructions for use
  • 1x 5V / 1A DC power supply

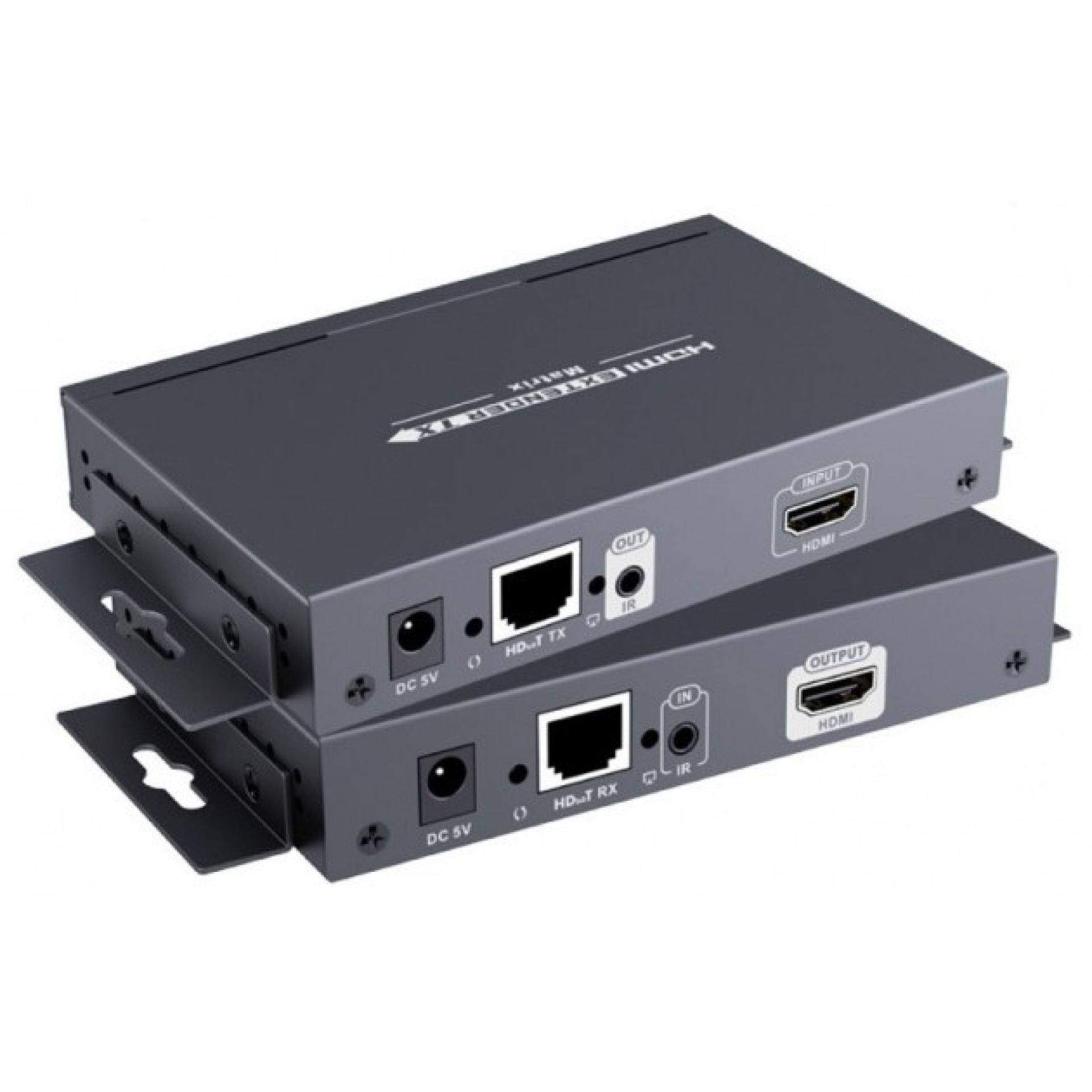

    • Receiver unit (needs to be ordered separately): IDATA-HDMI-MX383R
    Technical properties

    Technical properties

    Automatic alarm processing: False
    Automatic sequence: False
    Full screen at alarm: False
    OSD-programming: False
    Suitable for 19 inch mounting: False
    Text generator: False
    Video loss function: False
    Video norm: Farbe PAL
    With communication interface: False
    With loop through function: False
