HDMI Splitter, Full HD 1080p, 3D, 4-Port HDMI Splitter, Full HD 1080p, 3D, 4-Port
HDMI Splitter, Full HD 1080p, 3D, 4 way
Item number:
IDATA-HDMI-4SP
EAN no.:
8057685305250
Product information for HDMI Splitter, Full HD 1080p, 3D, 4 way

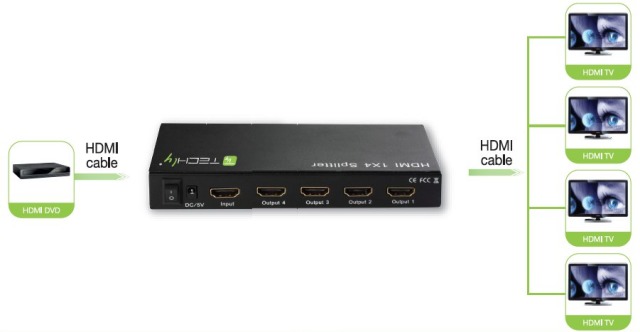

• HDMI Splitter with four outputs, distributes the HDMI input into four identical outputs simultaneously
• Able to buffering and amplification, each amplifier outputs can carry the signal up to 15 meters
Characteristics
• Easy to Use: Install in seconds, no configuration required
• Cascade: Large distribution achieved by cascading the HDMI Splitter Amplifiers
• Supports highest video resolution 1080p
• Supports bandwidth of 165MHz / 1.65Gbps per channel (4.95Gbps all channels)
• Supports Deep Color 8bit per channel (24bit all channel)
• Supports HDCP
• Supports uncompressed audio such LPCM
• Supports compressed audio DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
• Supports all 3D formats, including 1080p at 23.98 / 24Hz, 720p at 59.94 / 60Hz / 50Hz bandwidth of 165MHz
Specification
• Input DDC Signal: 5 volts p-p (TTL)
• Maximum Single Link Range: 1920x1080p
• Video Output: HDMI
• Vertical Frequency Range: 50 / 60Hz
• Video bandwidth: 1.65Gbps / 165MHz
• Resolutions (HDTV)
- Interlace: 480i, 576i, 1080i
- Progressive: 480p, 576p, 720p, 1080p
Physical Information
• Dimensions (W-P-A) 155 × 70 × 25mm
• Weight (Net) 285 g
• Power supply: 5V DC @ 3A
• Power consumption: 12W
Package Contents
• HDMI Splitter 4-way amplified
• Power supply 5V DC 2A
• User manual
