INFRALAN® Frame Set for Keystone Moduls

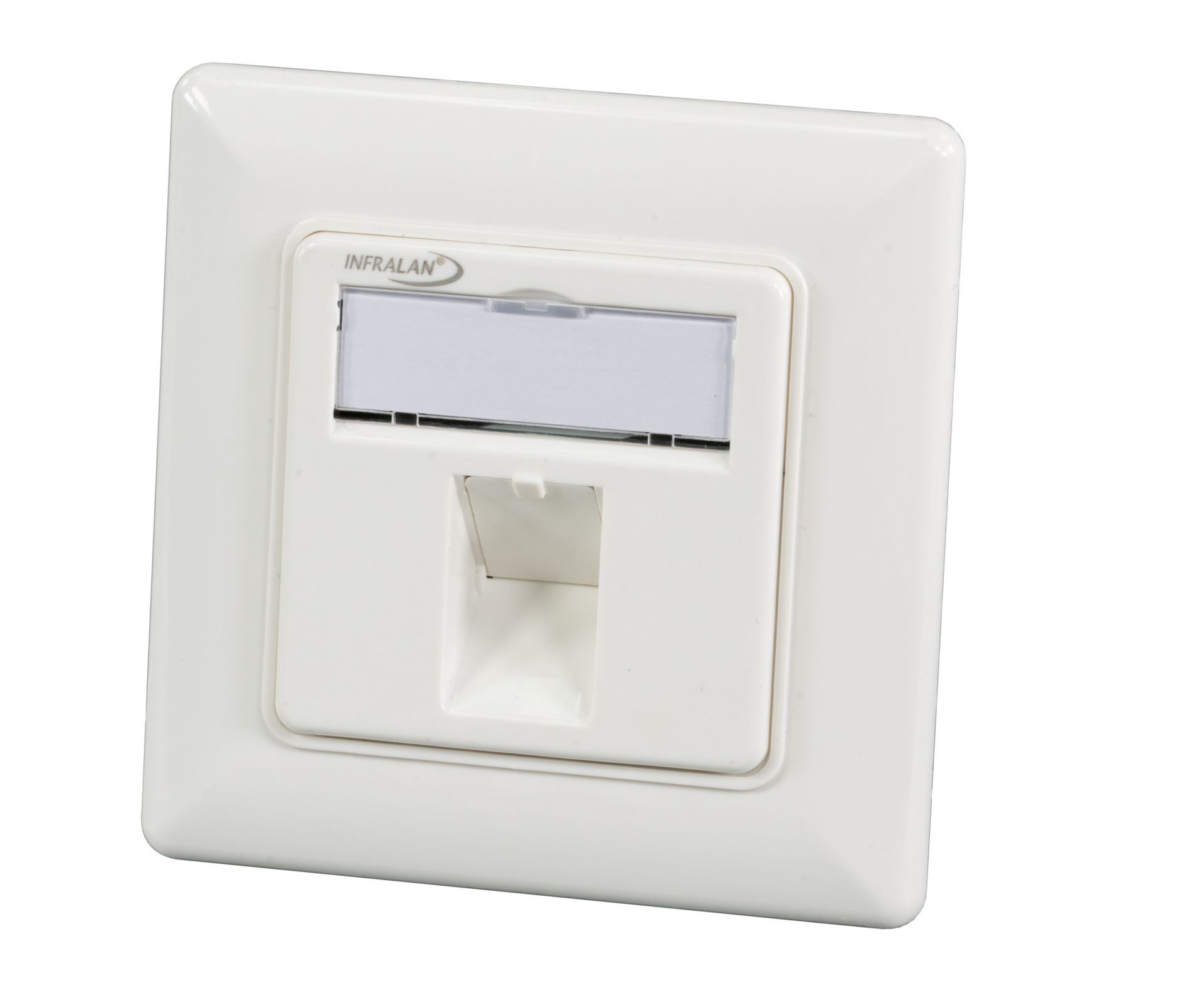

INFRALAN® 1-Port Frame Set, RAL9010, for all INFRALAN® Keystone Moduls
Item number:
IMT-01-RK-WS-KP
EAN no.:
4049759190347
Product information for INFRALAN® 1-Port Frame Set, RAL9010, for all INFRALAN® Keystone Moduls
To accommodate all INFRALAN® RJ45 Keystone modules

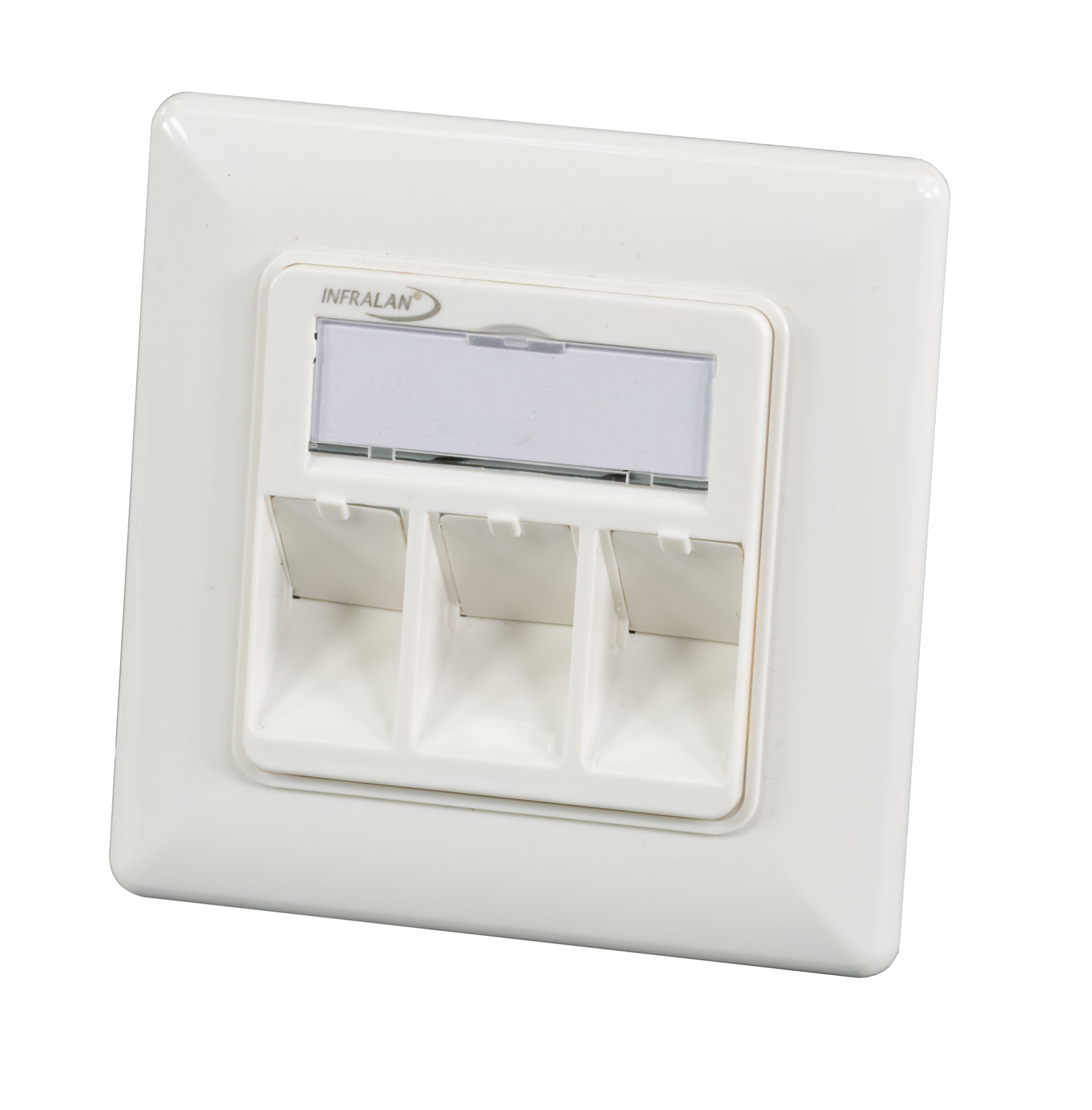

Frame set in 1-port, 2-port or 3-port
40° outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatible with any switch range with the adapter plate of the switch range manufacturer
Separate earthing latch for Faston 6.3mm blade receptacle

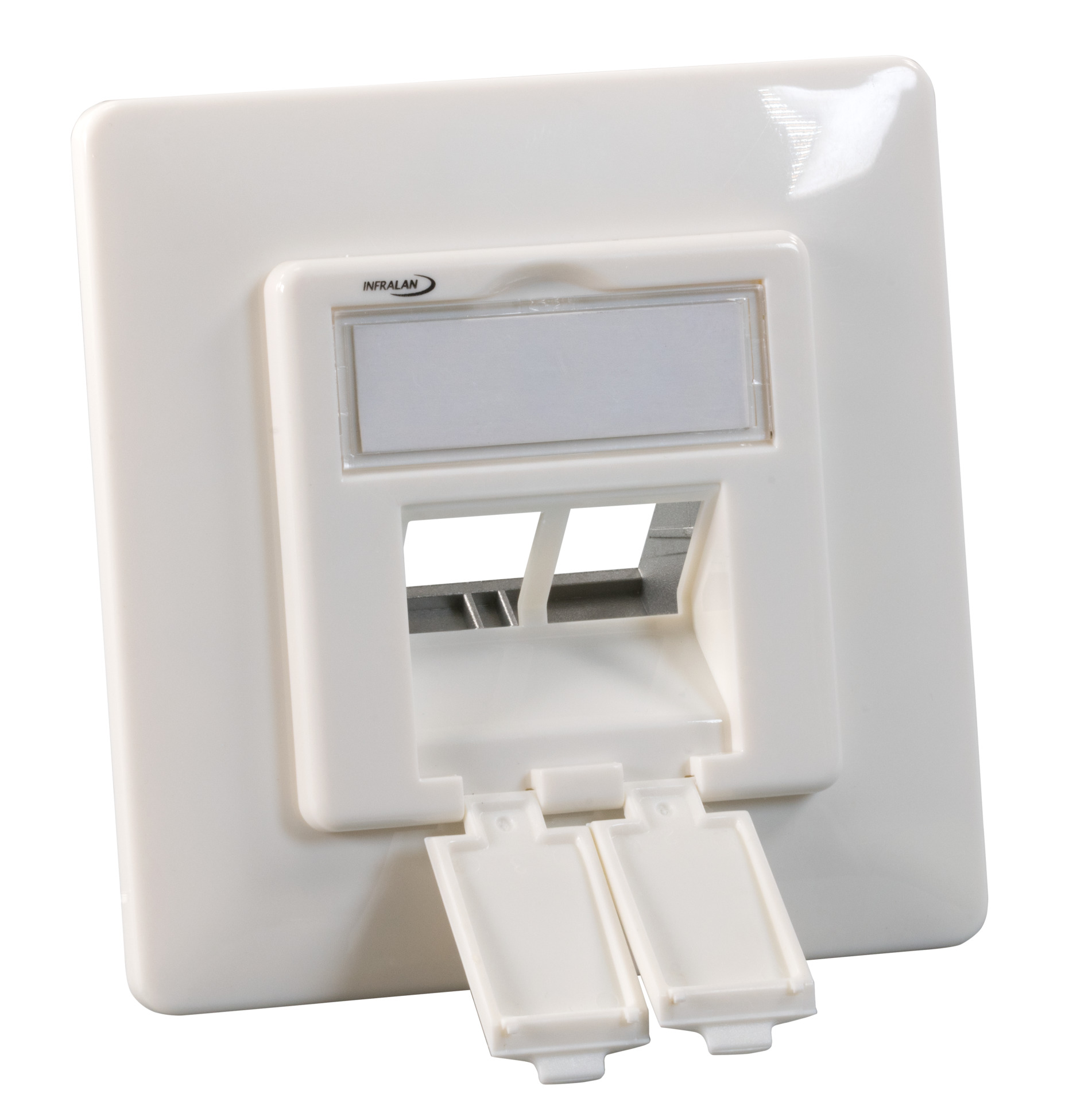

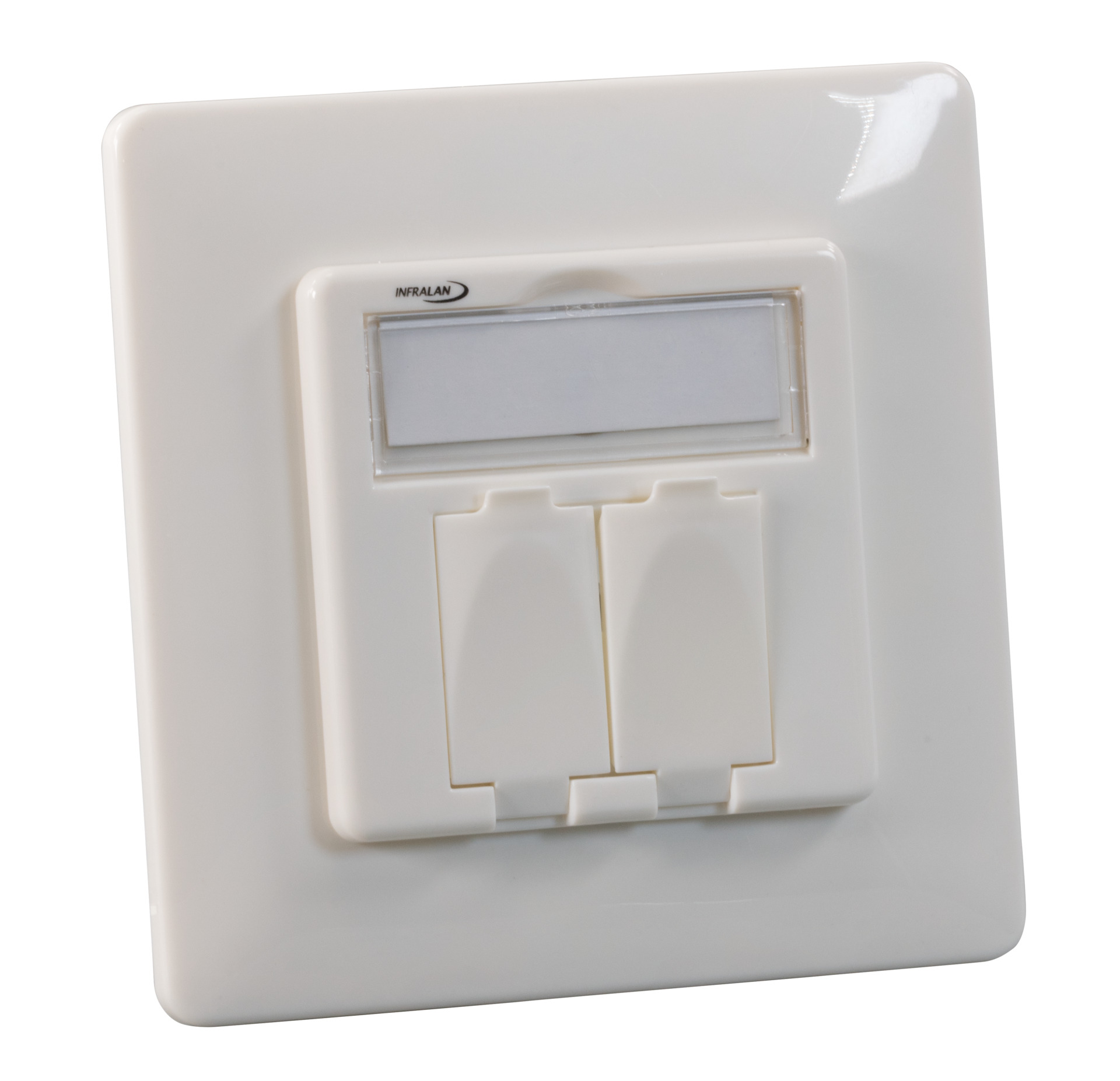

With dust protection flaps and integrated labelling field
Frame set in 1-port, 2-port or 3-port
40° outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatible with any switch range with the adapter plate of the switch range manufacturer
Separate earthing latch for Faston 6.3mm blade receptacle
With dust protection flaps and integrated labelling field
Technical properties
| Assembly arrangement: | Frame set |
|---|---|
| Halogen free: | No |
| Imprintable label: | with indication plate |
| Luster terminal: | False |
| Material: |
Metal Plastic |
| Material quality: | other |
| Mounting method: | Flush mounted (plaster) |
| Storage Temperature: | 0 - 60° °C |
| Suitable for degree of protection (IP): | - |
| Support ring: | True |
| Surface finishing: | matt |
| Surface treatment: | Other |
| Transparent: | False |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
| With strain relief: | False |
Variants
| Item no. | Name | With buses/couplings | Color | RAL-number (akin) | Height of device | Width of device | Depth of device | Suitable for number of connectors | |
|---|---|---|---|---|---|---|---|---|---|
| IMT-01-RK-WS-KP | INFRALAN® 1-Port Frame Set, RAL9010, for all INFRALAN® Keystone Moduls | False | white | 9010 | 80 mm | 80 mm | 17.45 mm | 1 | |
| IMT-02-RK-WS-DF | INFRALAN® 2-Port UAE Frame Set for Keystone, Slimline IKS-6A-PVP, design capable | False | white | 9010 | 80 mm | 80 mm | 17.45 mm | 2 | |

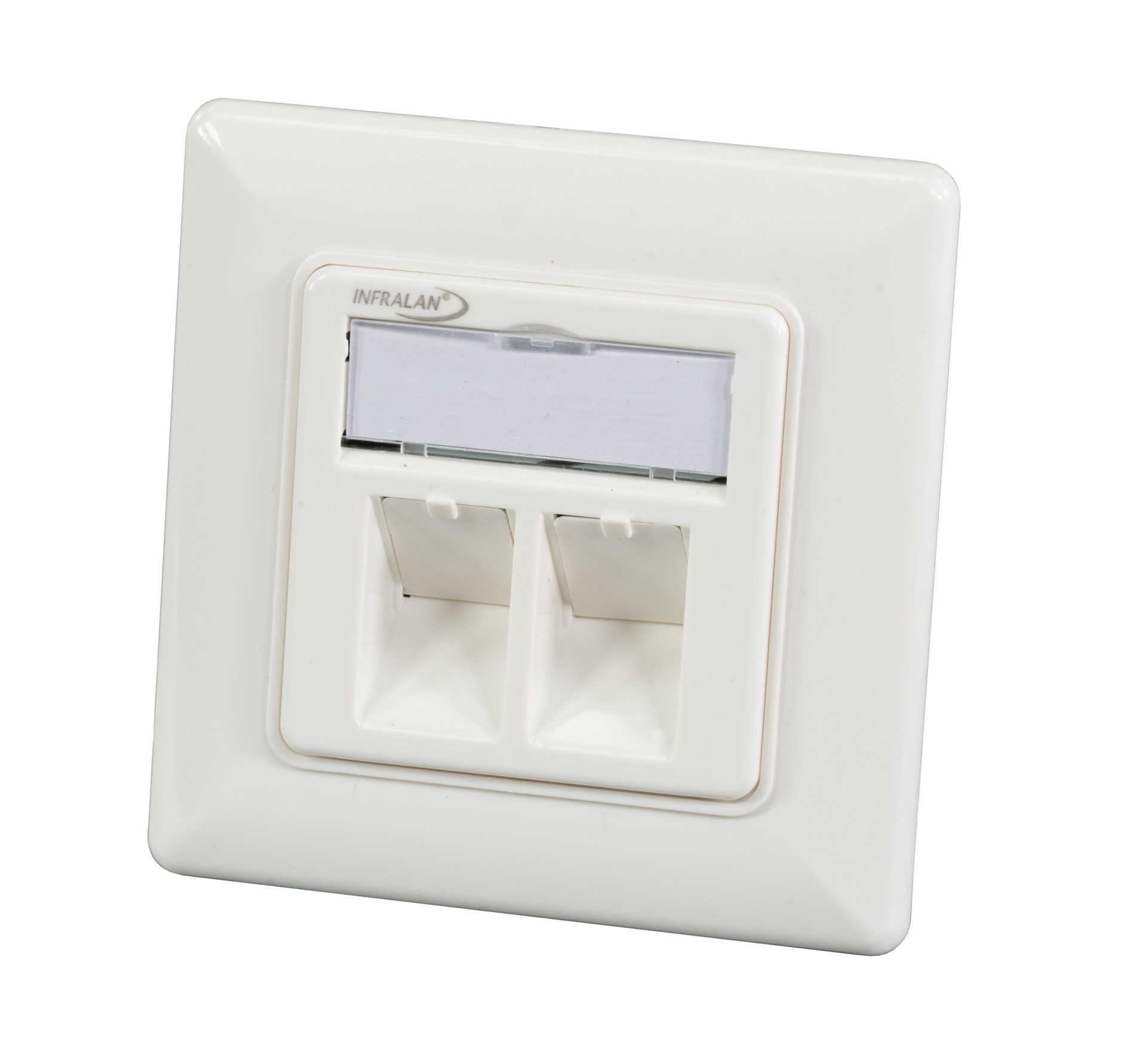

| IMT-02-RK-WS-KP | INFRALAN® 2-Port Frame Set, RAL9010, for all INFRALAN® Keystone Moduls | False | white | 9010 | 80 mm | 80 mm | 17.45 mm | 2 |
