INFRALAN® RJ45 Keystone UTP, Cat.6A / Class EA
INFRALAN® RJ45 Keystone UTP, Cat.6A, 500MHz, component certified
Item number:
IKU-6A-KOP-1
EAN no.:
4049759251024
Product information for INFRALAN® RJ45 Keystone UTP, Cat.6A, 500MHz, component certified

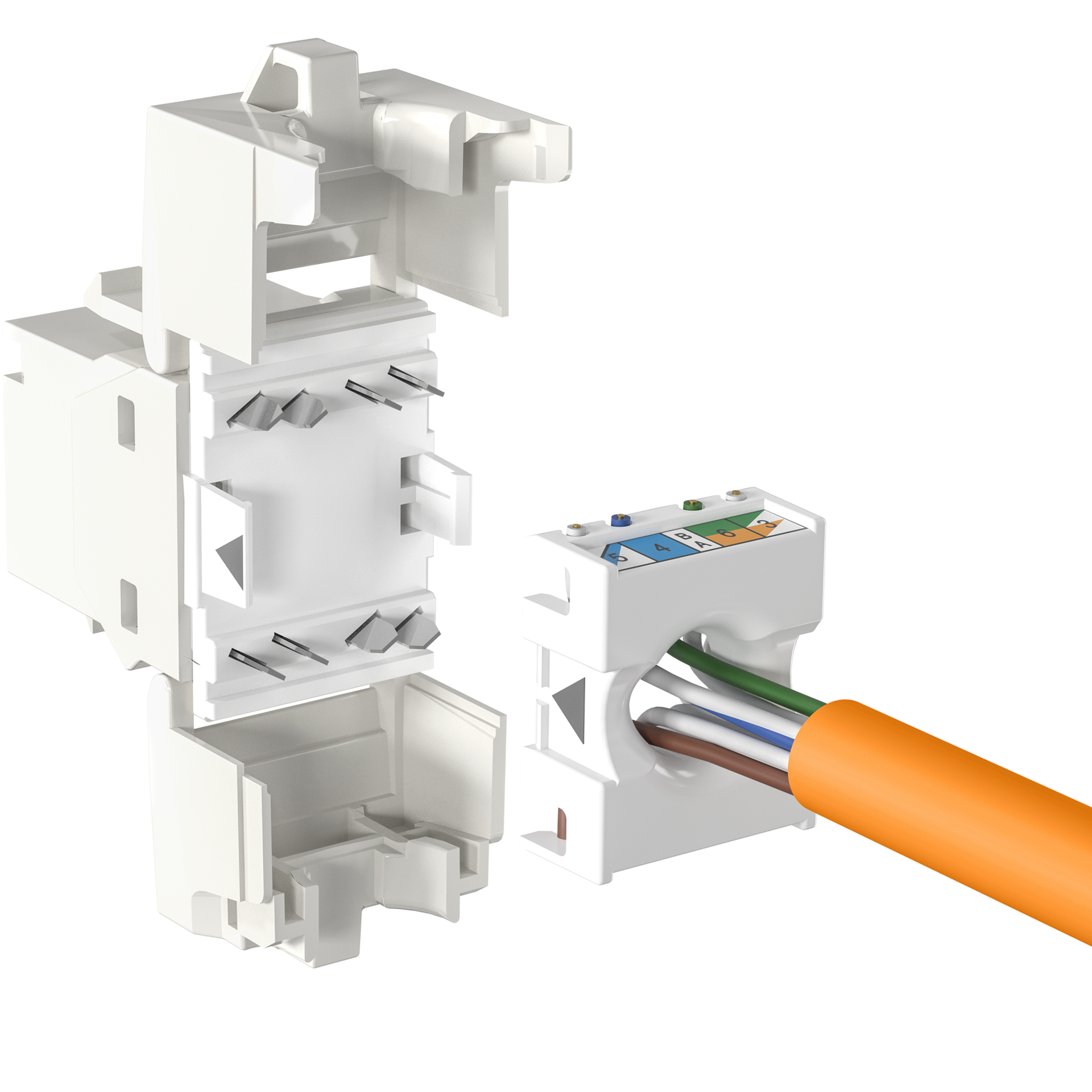

The RJ45 module provides a combination of excellent transmission properties and simple toolless assembly. The high quality of the module guarantees very good properties for 10 Gigabit Ethernet applications. The RJ45 keystone module is in combination with the Patchpanel IVF-24-SW-UTP ETL-certified. Special tool is not necessary. The assembly is quick and easy to realize. With the RJ45 keystone you get an unshielded module, which offers you a long time good service in your network installation.
Specifications:
Plastic housing PC+ABS
Cat.6A component certified acc. to ANSI/TIA-568-C.2 and ISO/IEC 11801
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for all distribution panels and frames with keystone slots
Recommended distribution panel, ANEXT optimzed: IVF-24-SW-UTP
Scope of delivery:

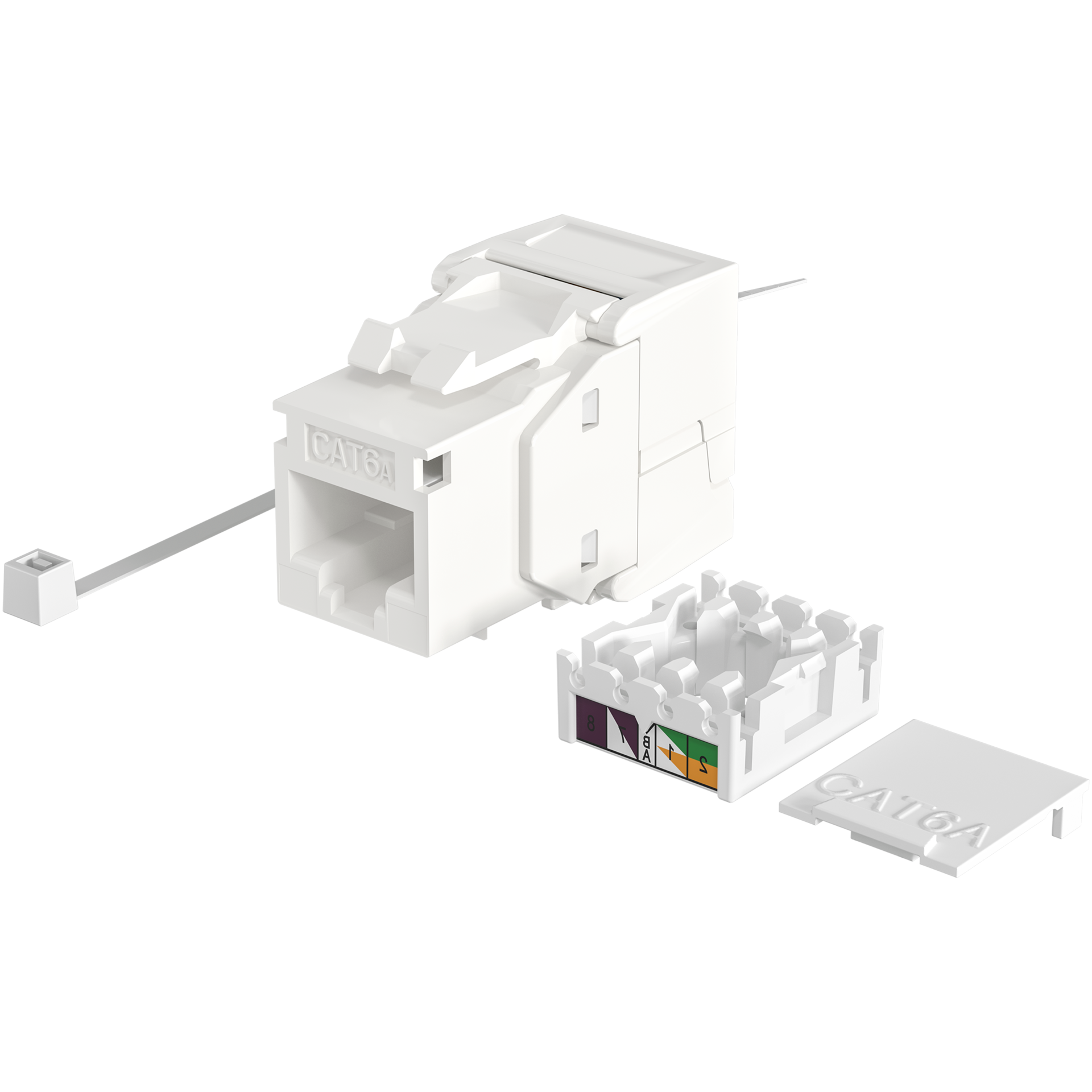

1 x RJ45 keystone, Cable coder, 1 x hinged dust cover, 1 x cable tie, 1 x mounting instruction
Specifications:
Plastic housing PC+ABS
Cat.6A component certified acc. to ANSI/TIA-568-C.2 and ISO/IEC 11801
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for all distribution panels and frames with keystone slots
Recommended distribution panel, ANEXT optimzed: IVF-24-SW-UTP
Scope of delivery:
1 x RJ45 keystone, Cable coder, 1 x hinged dust cover, 1 x cable tie, 1 x mounting instruction
Technical properties
| 4PPOE certified: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Plastic |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | < 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true |
| For UAE suitable: | False |
| Halogen Free: | True |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -40 – 66 °C |
| Screened: | False |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
