INFRALAN® Cat.6A/Class EA, angled RJ45 Connector
INFRALAN® RJ45 Premium Connector Cat.6A/ClassEA, field assembly, full metal
Item number:
IVB-6A-S
EAN no.:
4049759186661
Product information for INFRALAN® RJ45 Premium Connector Cat.6A/ClassEA, field assembly, full metal
The INFRALAN® Cat. 6A Premium RJ45 is a highlight in the chain of further development of RJ45 connectors for field assembly.
An extraordinarily robust full metal housing made of zinc die-casting paired with the unique variable cable feed opens up a wide range of application possibilities.

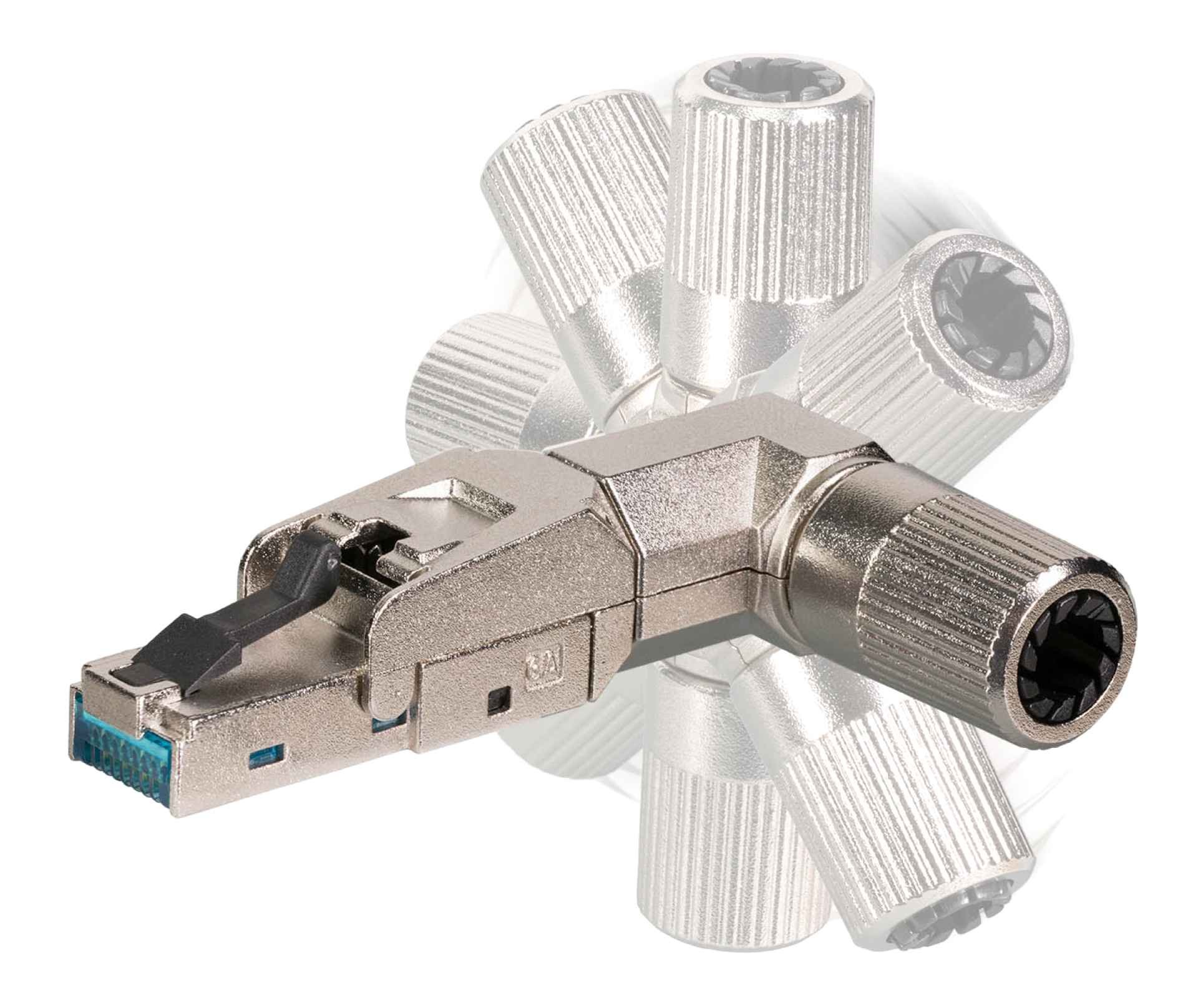

Installation can be done in 9 different positions:
8 different angled positions and a 180° straight cable entry.
The conical metal cable gland allows cable diameters from 6.0mm to 9.0mm.
The connector meets the requirements of transmission class Cat. 6A/Class EA and supports the Ethernet protocol up to 10 Gigabit per second.
The premium connector IVB-6A-S is the RJ45 for all cases.
USPs
FIELD ASSEMBLY WIRE OR STRAND
Cable diameter AWG 22/1... 26/1, 22/7... 27/7
CABLE ENTRY STRAIGHT, ANGLED
VARIABLE 9 POSSIBLE POSITIONS
MATERIAL ZINC DIE-CASTING
STRAIN RELIEF METAL GLAND
STANDARDS ISO11801, IEC60603-7-51
TRANSMISSION 10 GIGABIT ETHERNET
CONTACTS 50µ" GOLD PLATED
LIFETIME > 750 MATING CYCLES
CABLE THICKNESS 6,0MM TO 9,0MM
An extraordinarily robust full metal housing made of zinc die-casting paired with the unique variable cable feed opens up a wide range of application possibilities.
Installation can be done in 9 different positions:
8 different angled positions and a 180° straight cable entry.
The conical metal cable gland allows cable diameters from 6.0mm to 9.0mm.
The connector meets the requirements of transmission class Cat. 6A/Class EA and supports the Ethernet protocol up to 10 Gigabit per second.
The premium connector IVB-6A-S is the RJ45 for all cases.
USPs
FIELD ASSEMBLY WIRE OR STRAND
Cable diameter AWG 22/1... 26/1, 22/7... 27/7
CABLE ENTRY STRAIGHT, ANGLED
VARIABLE 9 POSSIBLE POSITIONS
MATERIAL ZINC DIE-CASTING
STRAIN RELIEF METAL GLAND
STANDARDS ISO11801, IEC60603-7-51
TRANSMISSION 10 GIGABIT ETHERNET
CONTACTS 50µ" GOLD PLATED
LIFETIME > 750 MATING CYCLES
CABLE THICKNESS 6,0MM TO 9,0MM
Technical properties
| 4PPOE certified: | True |
|---|---|
| AWG-range: | 26 – 22 |
| AWG-range for litz wire conductor: | 27 – 22 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Housing material: | Zinc die cast |
| Max. cable diameter: | 8.5 mm |
| Model: | plug |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| screened: | True |
