INFRALAN® U-DQ(ZN)BH OM2 Eca 2000N LSZH black 5.8mm
INFRALAN® U-DQ(ZN)BH OM2 24G (1x24) Eca 2000N LSZH black 5.8mm
Item number:
54224.1D-E2
EAN no.:
4049759316457
Product information for INFRALAN® U-DQ(ZN)BH OM2 24G (1x24) Eca 2000N LSZH black 5.8mm

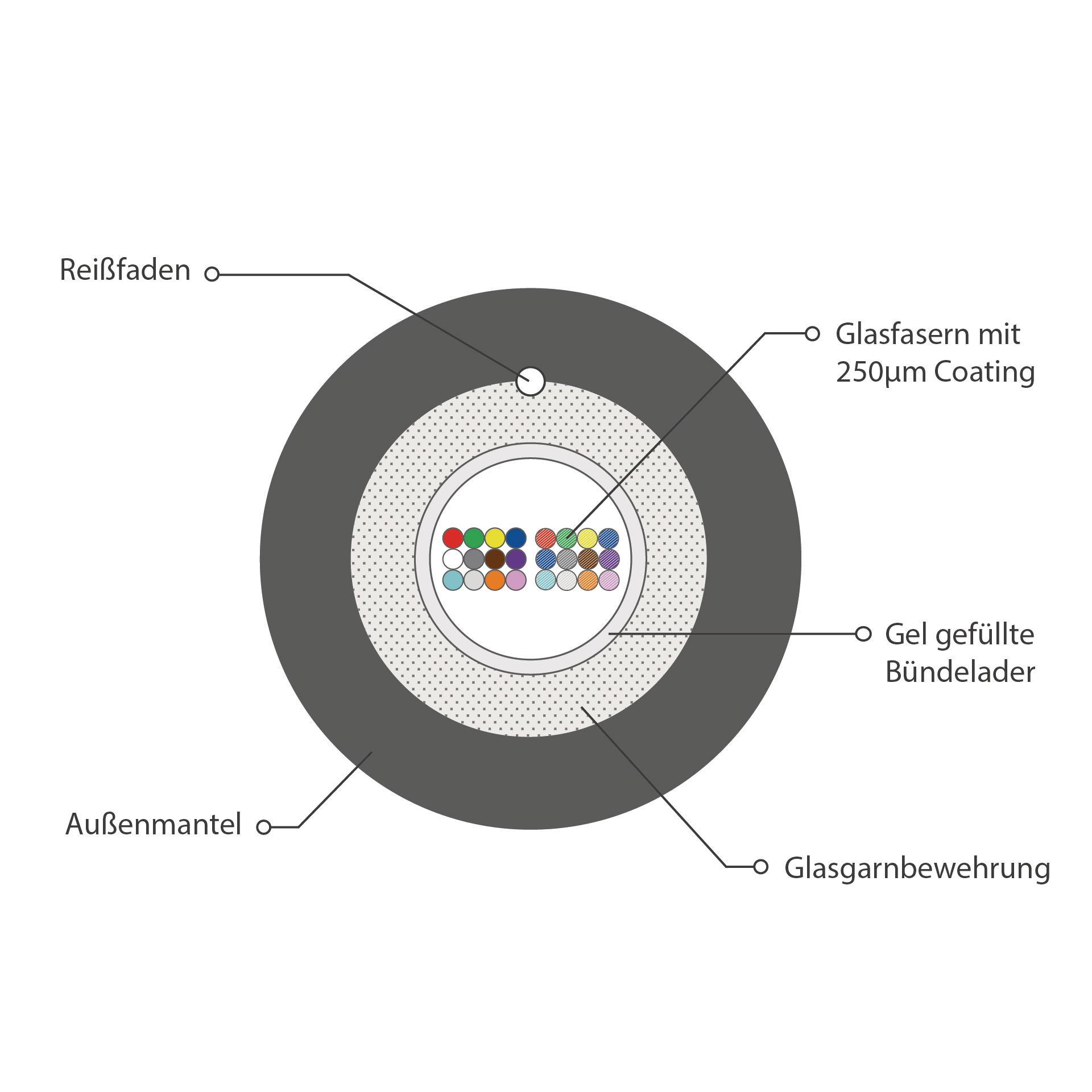

The fiber optic cable with a central, gel-filled loose tube and up to 24 fibers is ideal for structured cabling. Thanks to a high tensile strength of 2000N, it is designed for both indoor and outdoor applications. The dielectric construction with glass yarn reinforcement makes it longitudinally watertight and offers additional protection through a flame-retardant sheath.
It can be used outdoors, when laid directly underground in sand beds or in shafts, and as a flame-retardant cable indoors.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
Features:
• Universal cable for versatile applications
• The sheath is made of halogen-free, flame-retardant material in accordance with IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
It can be used outdoors, when laid directly underground in sand beds or in shafts, and as a flame-retardant cable indoors.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
Features:
• Universal cable for versatile applications
• The sheath is made of halogen-free, flame-retardant material in accordance with IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
Technical properties
| (Halogenfree): | Yes |
|---|---|
| Application: | Inside/outside |
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Colour outer sheath: | blue |
| Crush resistance: | 2000 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OM2 |
| Fibre type: | Multimode 50/125 |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Jacket Material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Temperature Range (Installation): | -15 – 40 °C |
| Temperature Range (Operation): | -30 – 60 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Farbe |
| Tube Ø: | 2,8 mm |
| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
Variants
| Item no. | Name | CPR-Class | Category | Cable Ø | Tensile force max. | Number of fibres | Aufbau | Außendurchmesser ca. | Brandlast | VDE-Bezeichnung | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54204.1D-E2 | INFRALAN® U-DQ(ZN)BH OM2 4G (1x4) Eca 2000N LSZH black 5.8mm | Eca | OM2 | 5.8 mm | 2000 N | 4 | 4G ( 1 x 4 ) Multimode OM2 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 4G50/125 | 33,6 kg/km | |
| 54208.1D-E2 | INFRALAN® U-DQ(ZN)BH OM2 8G (1x8) Eca 2000N LSZH black 5.8mm | Eca | OM2 | 5.8 mm | 2000 N | 8 | 8G ( 1 x 8 ) Multimode OM2 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 8G50/125 | 33,6 kg/km | |
| 54212.1D-E2 | INFRALAN® U-DQ(ZN)BH OM2 12G (1x12) Eca 2000N LSZH black 5.8mm | Eca | OM2 | 5.8 mm | 2000 N | 12 | 12G ( 1 x 12 ) Multimode OM2 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 12G50/125 | 33,6 kg/km | |
| 54224.1D-E2 | INFRALAN® U-DQ(ZN)BH OM2 24G (1x24) Eca 2000N LSZH black 5.8mm | Eca | OM2 | 5.8 mm | 2000 N | 24 | 24G ( 1 x 24 ) Multimode OM2 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 24G50/125 | 33,6 kg/km |
