INFRALAN® U-DQ(ZN)BH OS2 Eca 2000N LSZH black 5.8mm G657A1
INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Eca 2000N LSZH black 5.8mm G657A1
Item number:
54404.1D-E2
EAN no.:
4049759316587
Product information for INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Eca 2000N LSZH black 5.8mm G657A1

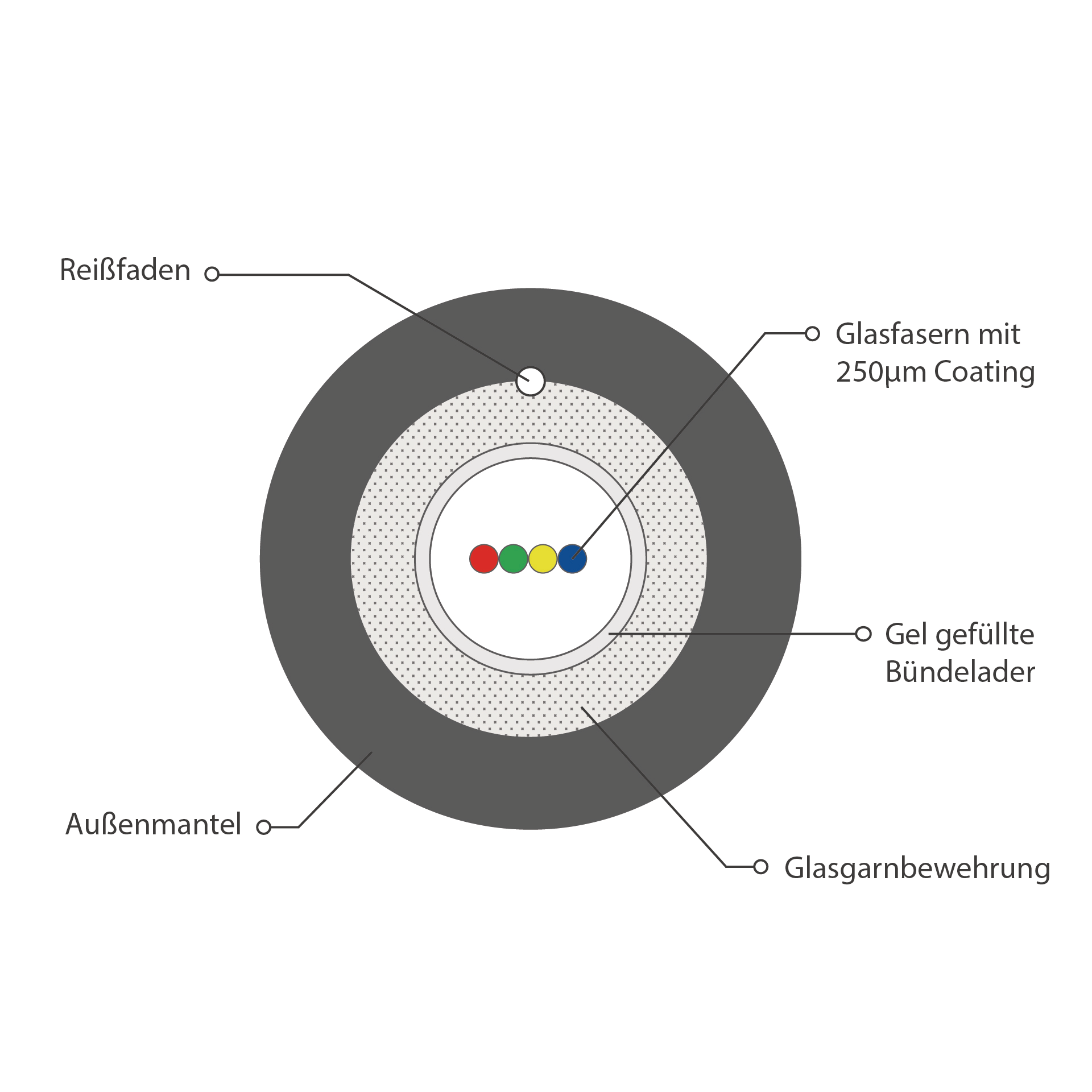

The fiber optic cable with a central, gel-filled loose tube and up to 24 fibers is ideal for structured cabling. Thanks to a high tensile strength of 2000N, it is designed for both indoor and outdoor applications. The dielectric construction with glass yarn reinforcement makes it longitudinally watertight and offers additional protection through a flame-retardant sheath.
It can be used outdoors, when laid directly underground in sand beds or in shafts, and as a flame-retardant cable indoors.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
Features:
• Universal cable for versatile applications
• The sheath is made of halogen-free, flame-retardant material in accordance with IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
It can be used outdoors, when laid directly underground in sand beds or in shafts, and as a flame-retardant cable indoors.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
Features:
• Universal cable for versatile applications
• The sheath is made of halogen-free, flame-retardant material in accordance with IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
Technical properties
| (Halogenfree): | Yes |
|---|---|
| Application: | Inside/outside |
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Colour outer sheath: | blue |
| Crush resistance: | 2000 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OS2 |
| Fibre type: | Single mode |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Jacket Material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Temperature Range (Installation): | -15 – 40 °C |
| Temperature Range (Operation): | -30 – 60 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Farbe |
| Tube Ø: | 2,8 mm |
| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
Variants
| Item no. | Name | Category | CPR-Class | Cable Ø | Tensile force max. | Number of fibres | Aufbau | Außendurchmesser ca. | Brandlast | VDE-Bezeichnung | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54404.1D-E2 | INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Eca 2000N LSZH black 5.8mm G657A1 | OS2 | Eca | 5.8 mm | 2000 N | 4 | 04E ( 1 x 4 ) Singlemode G.657.A1 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 4E9/125 | 33,6 kg/km | |
| 54408.1D-E2 | INFRALAN® U-DQ(ZN)BH OS2 8E (1x8) Eca 2000N LSZH black 5.8mm G657A1 | OS2 | Eca | 5.8 mm | 2000 N | 8 | 08E ( 1 x 8 ) Singlemode G.657.A1 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 8E9/125 | 33,6 kg/km | |
| 54412.1D-E2 | INFRALAN® U-DQ(ZN)BH OS2 12E (1x12) Eca 2000N LSZH black 5.8mm G657A1 | OS2 | Eca | 5.8 mm | 2000 N | 12 | 12E ( 1 x 12 ) Singlemode G.657.A1 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 12E9/125 | 33,6 kg/km | |
| 54424.1D-E2 | INFRALAN® U-DQ(ZN)BH OS2 24E (1x24),Eca 2000N LSZH black 5.8mm G657A1 | OS2 | Eca | 5.8 mm | 2000 N | 24 | 24E ( 1 x 24 ) Singlemode G.657.A1 | 5,8 mm | 864 MJ/km | U-DQ(ZN)BH 24E9/125 | 33,6 kg/km |
