LSA Backmount Frames Universal
Prices only visible for logged in users

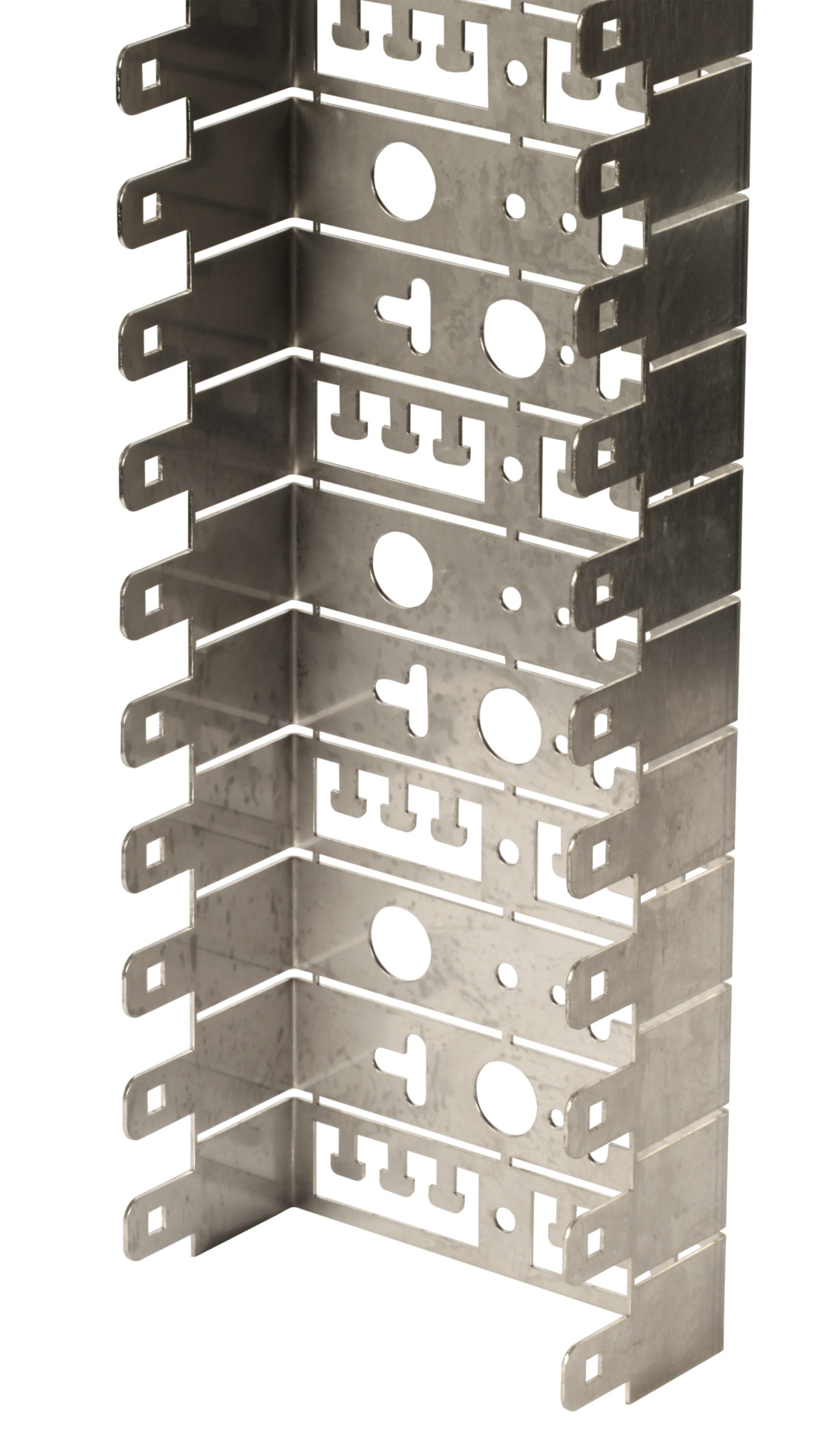

LSA Back Mount Frame, 50 Modules, D=30 mm, P=25 mm, PU 2 pcs.
Item number:
46011.50
EAN no.:
4049759066758
Product information for LSA Back Mount Frame, 50 Modules, D=30 mm, P=25 mm, PU 2 pcs.
For LSA modules 2/10 10pairs
Pitch (terminal-terminal distance) 25 mm
The depths are 22 / 30 / 50 mm
Individual modules are easy to cut off from the LSA backmount frame with diagonal cutter by customer, making them universally usable
Number of modules = 50
Pitch (terminal-terminal distance) 25 mm
The depths are 22 / 30 / 50 mm
Individual modules are easy to cut off from the LSA backmount frame with diagonal cutter by customer, making them universally usable
Number of modules = 50
Variants
| Item no. | Name | Depth | Breite | Anzahl der einbaubaren Anschlussleisten | Rastermaß | Länge | |
|---|---|---|---|---|---|---|---|
| 46010.50 | LSA Back Mount Frame, 50 Modules, D=22 mm, P=25 mm, PU 2 pcs. | 22.0 mm | 104,0 mm | 50 | 25,0 mm | 20,5 mm | |
| 46011.50 | LSA Back Mount Frame, 50 Modules, D=30 mm, P=25 mm, PU 2 pcs. | 30.0 mm | 104,0 mm | 50 | 25,0 mm | 20,5 mm | |
| 46012.50 | LSA Back Mount Frame, 50 Modules, D=50 mm, P=25 mm, PU 2 pcs. | 50.0 mm | 104,0 mm | 50 | 25,0 mm | 20,5 mm |
