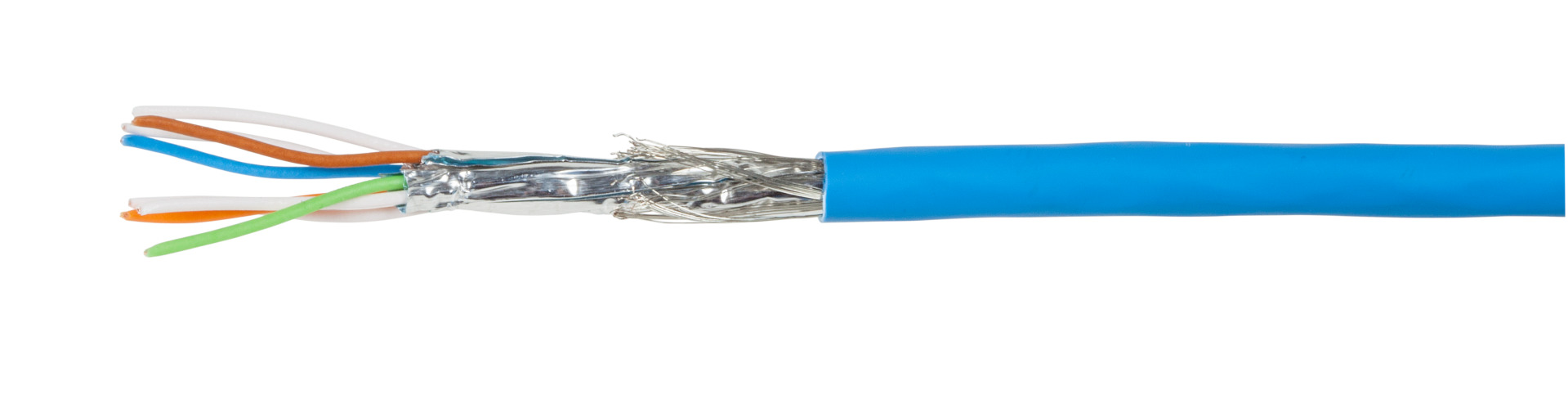

Cat.7 600 MHz S/FTP Kerpen Megaline F-6-90 S/F flex 4P H

Prices only visible for logged in users

MegaLine F6-90 S/F flex PIMF S/FTP, 900 MHz, H, grau,100M
Item number: 99728.100
EAN no.: 4049759085742
Piece

Product information for MegaLine F6-90 S/F flex PIMF S/FTP, 900 MHz, H, grau,100M

Exceeding the requirements of Category 7 according to EN50288 and IEC61156. Excellent NEXT, exzellent shielding characteristics, low Skew, bandwith 900 MHz. Ideal for all class D to F multimedia applications (video, data, voice), >10 GbE according to IEEE 802.3, Cable sharing, VoiP, PoE.

Technical properties

AWG-size: 27/7
Bending radius (dynamic): 50 mm
Bending radius (static): 25 mm
Cable: IEC 61156-6
Cable Construction: S/FTP
Cabling standards: EN 50173-1
ISO/IEC 11801
Category: 7
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Kl.2 = single wire
Conductor material: CU, tinned
Core identification: colour
Core insulation: foam-skin PE
Coupling attenuation: 80 dB
Delay skew: 2,5 ns/100m
Euro class: Dca
Flame retardant: According to IEC/EN 60332-1-2
Halogen free: acc. EN 60754-1/2
Halogen free (acc. EN 50267-2-2): True
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): 5000 MOhm/km
Jacket Material: FRNC-B
Loop resistance: 340 Ohm/km
Low smoke: acc. EN 61034-2
Low smoke (according to EN 61034-2): False
Max. Freuqency: 600 MHz
NVP value: 78 %
Nominal cross section conductor: - mm²
Permitted cable outer temperature after assembling without vibration: -20 – 60 °C
Permitted cable outer temperature during assembling/handling: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE
acc. to IEEE802.3at PoE+

acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 3 %
Screen over stranding: braiding
Screen over stranding element: foil + braid
Separation class acc. EN50174-2: D
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
UV resistance: no

accessory

RJ45-Hirose Connector TM21 grey 10 pcs., 3 Elements, Cat. 6
