Mini DisplayPort (Thunderbolt) 1.2 to DVI 15cm
Mini DisplayPort (Thunderbolt) 1.2 to DVI 15cm
Item number:
IADAP-MDP-DVIF12
EAN no.:
8057685309807
Product information for Mini DisplayPort (Thunderbolt) 1.2 to DVI 15cm

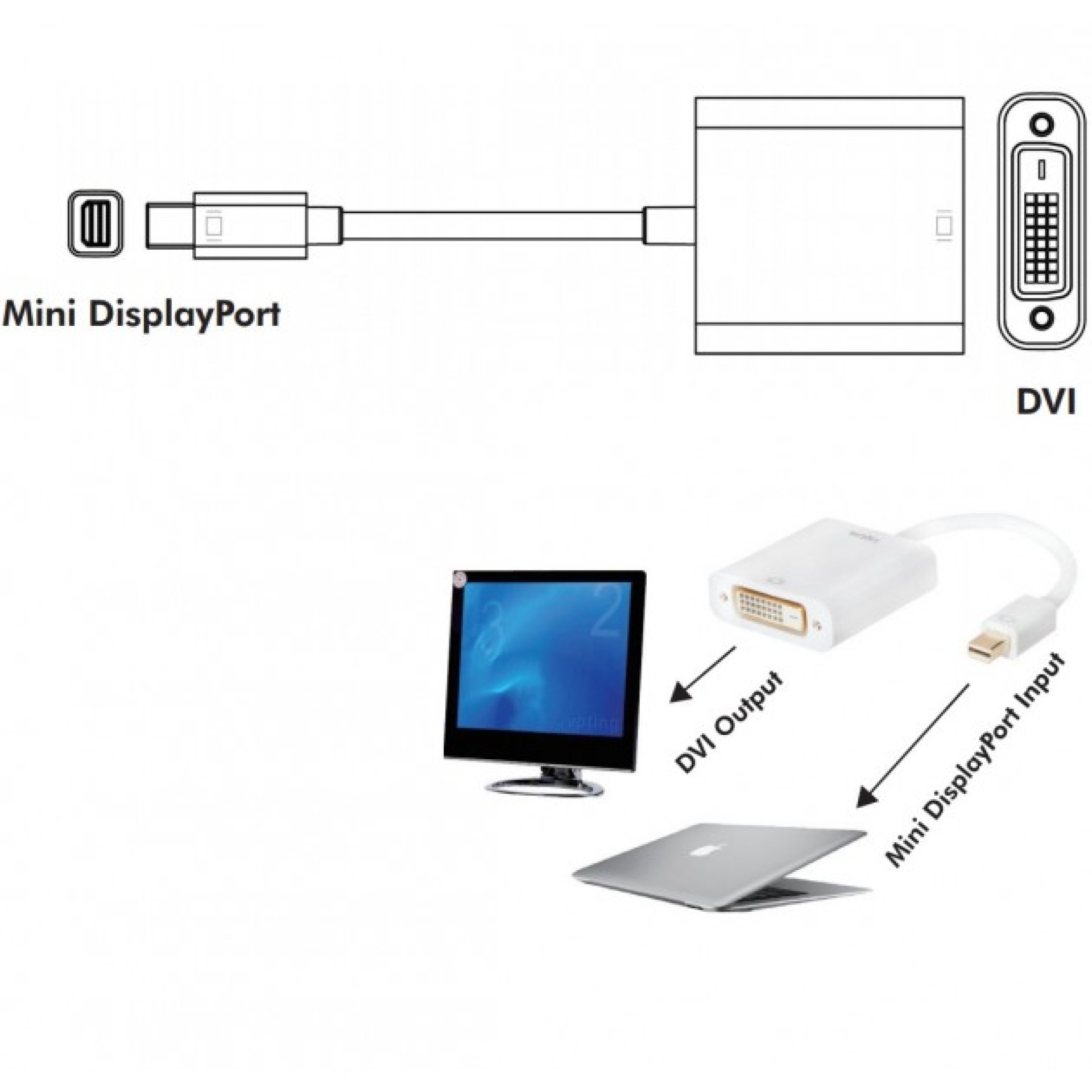

• Connect a source mini-DisplayPort (Thunderbolt) to a DVI monitor cable
• Provides a single high-quality signal to a DVI monitor - ideal for computer MAC
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot
Contacts
• (1) Mini-DisplayPort 20-pin male (Thunderbolt)
• (1) DVI-D Dual Link
• Molded PVC
• Shielded
Signal IN / OUT
• Input video signal: Mini DisplayPort
• Maximum range Single Link: 4K x 2K
• Video Output: DVI-D Dual Link
• Input Connector: Mini DisplayPort Male 20pin
• Output Connector Type: DVI 24 + 1 female
Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth of 1.62Gbps / 2.7Gbps
Resolutions (HDTV)
• 1920x1080 @ 60Hz
• Does not support 3D mode
Dimensions
• Length 43 mm
• Width 43 mm
• Height 15 mm
• Cable length 15 cm
Environmental Characteristics
• Operating Temperature: 0 ° C to + 70 ° C
• Operating humidity 10% to 85% (non-condensing)
• Storage temperature -10 ° C to + 80 ° C
• Storage Humidity 5% to 90% (non-condensing)
Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W
Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE
Package Contents
• Adapter Mini-DisplayPort (Thunderbolt) to DVI
• Instruction Manual
• Provides a single high-quality signal to a DVI monitor - ideal for computer MAC
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot
Contacts
• (1) Mini-DisplayPort 20-pin male (Thunderbolt)
• (1) DVI-D Dual Link
• Molded PVC
• Shielded
Signal IN / OUT
• Input video signal: Mini DisplayPort
• Maximum range Single Link: 4K x 2K
• Video Output: DVI-D Dual Link
• Input Connector: Mini DisplayPort Male 20pin
• Output Connector Type: DVI 24 + 1 female
Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth of 1.62Gbps / 2.7Gbps
Resolutions (HDTV)
• 1920x1080 @ 60Hz
• Does not support 3D mode
Dimensions
• Length 43 mm
• Width 43 mm
• Height 15 mm
• Cable length 15 cm
Environmental Characteristics
• Operating Temperature: 0 ° C to + 70 ° C
• Operating humidity 10% to 85% (non-condensing)
• Storage temperature -10 ° C to + 80 ° C
• Storage Humidity 5% to 90% (non-condensing)
Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W
Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE
Package Contents
• Adapter Mini-DisplayPort (Thunderbolt) to DVI
• Instruction Manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
