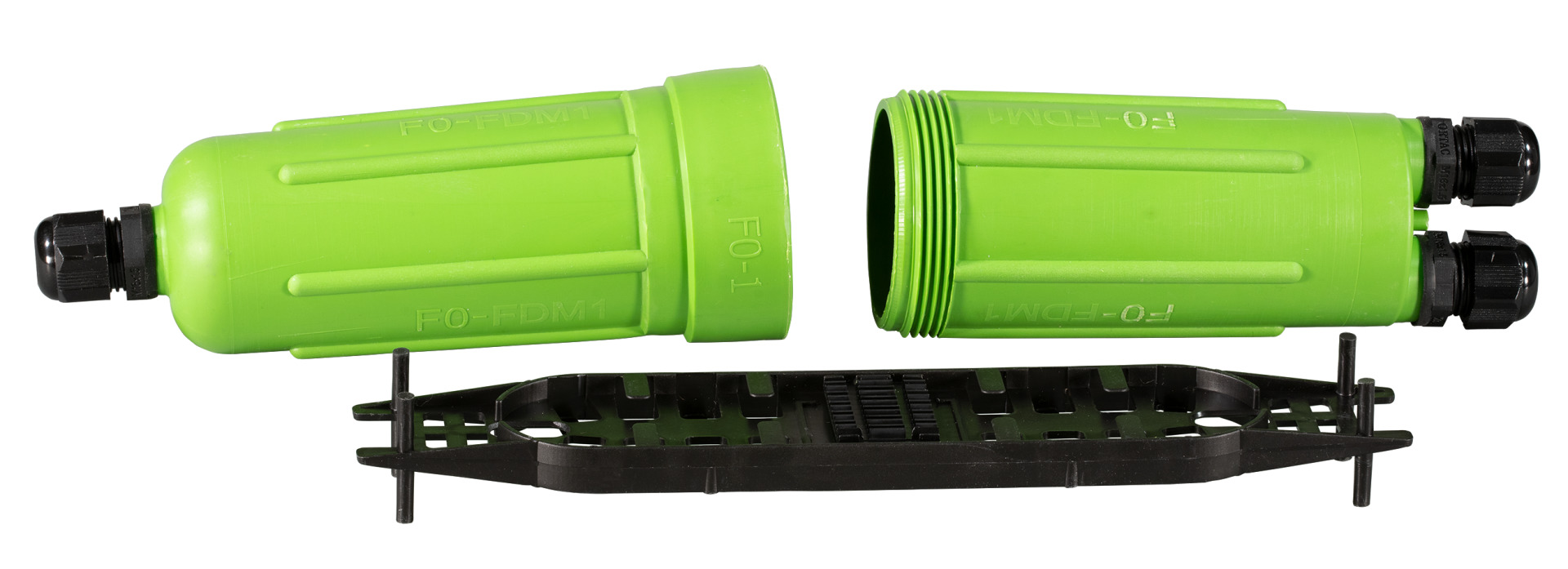

Outdoor Pipe Closure, for Junction and Connecting
Outdoor Pipe Closure, for Junction and Connecting, shrink-version
Item number:
83189.1
EAN no.:
4049759159559
Product information for Outdoor Pipe Closure, for Junction and Connecting, shrink-version
Outdoor Pipe Closure with 3 cable entries for junction or connecting of fiber optic cable. Including 2 splice holder
Features
Installation: direct burial in the ground
Material: Green Polypropylene (PP 4408) Housing
Seals made of thermoplastic elastomer and Sconablend
No Key in scope of delivery
Features
Installation: direct burial in the ground
Material: Green Polypropylene (PP 4408) Housing
Seals made of thermoplastic elastomer and Sconablend
No Key in scope of delivery
Technical properties
| Bending diameter fiber carrier: | 42 mm |
|---|---|
| Cable Diameter: | 3.5 – 10.7 mm |
| Cable glands: | M16 |
| Colour: | green |
| Degree of protection: | IP68 |
| Diameter of housing: | 69 mm |
| Direct Burial: | True |
| In-/Output: | 3 |
| Length of housing: | 307 mm |
| Material: | Plastic |
| Max. Fiber storage length: | 180 mm |
| Number of splice holders: | 2 |
| Splice Cassette: | integrated |
| Splice Holder: | Thermo |
| Suitable for number of fibres: | 24 |
| Temperature range: | -30 – 65 °C |
| Tensile stress / compression: | 55 N |
| Type of closure: | Junction closure |
| UV resistance: | True |
