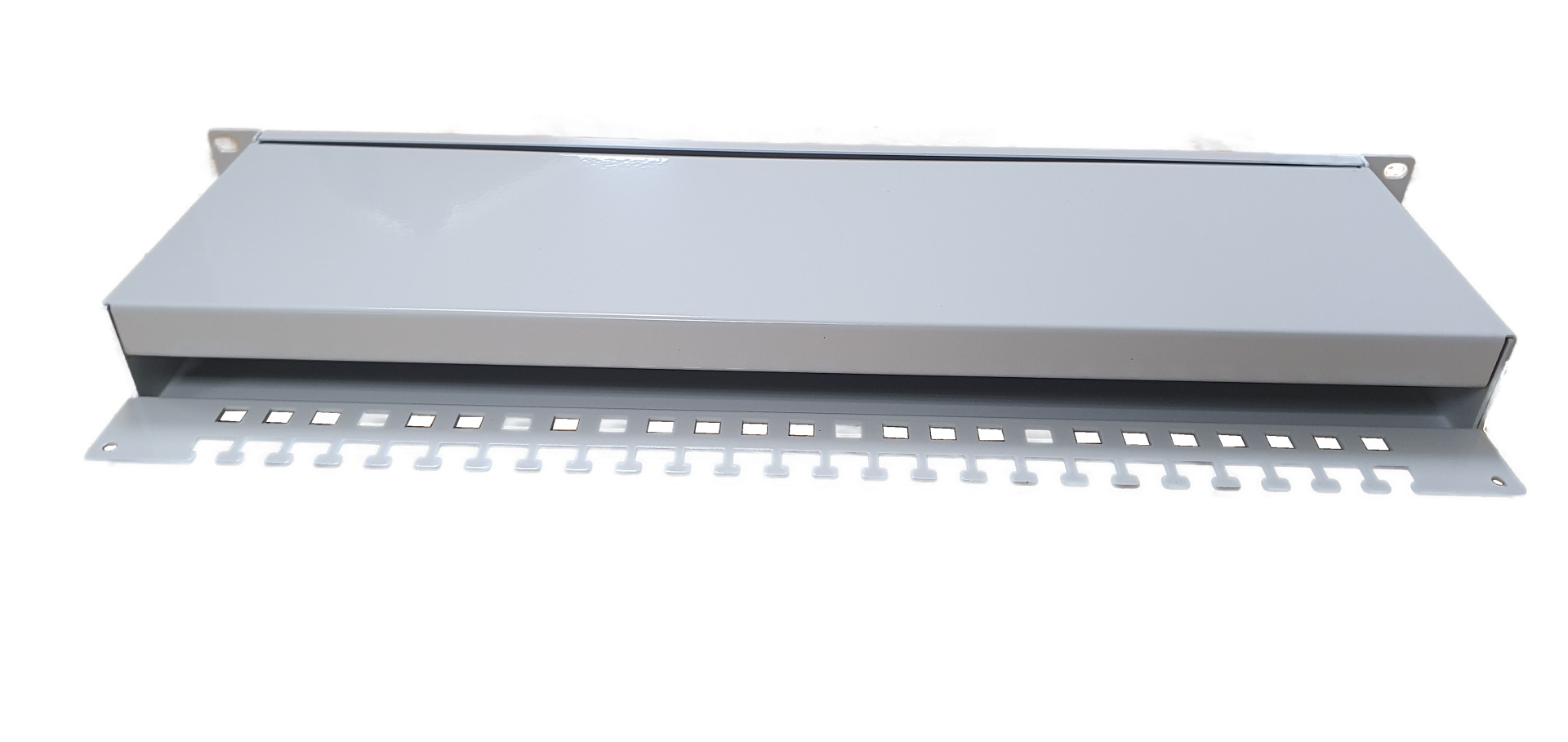

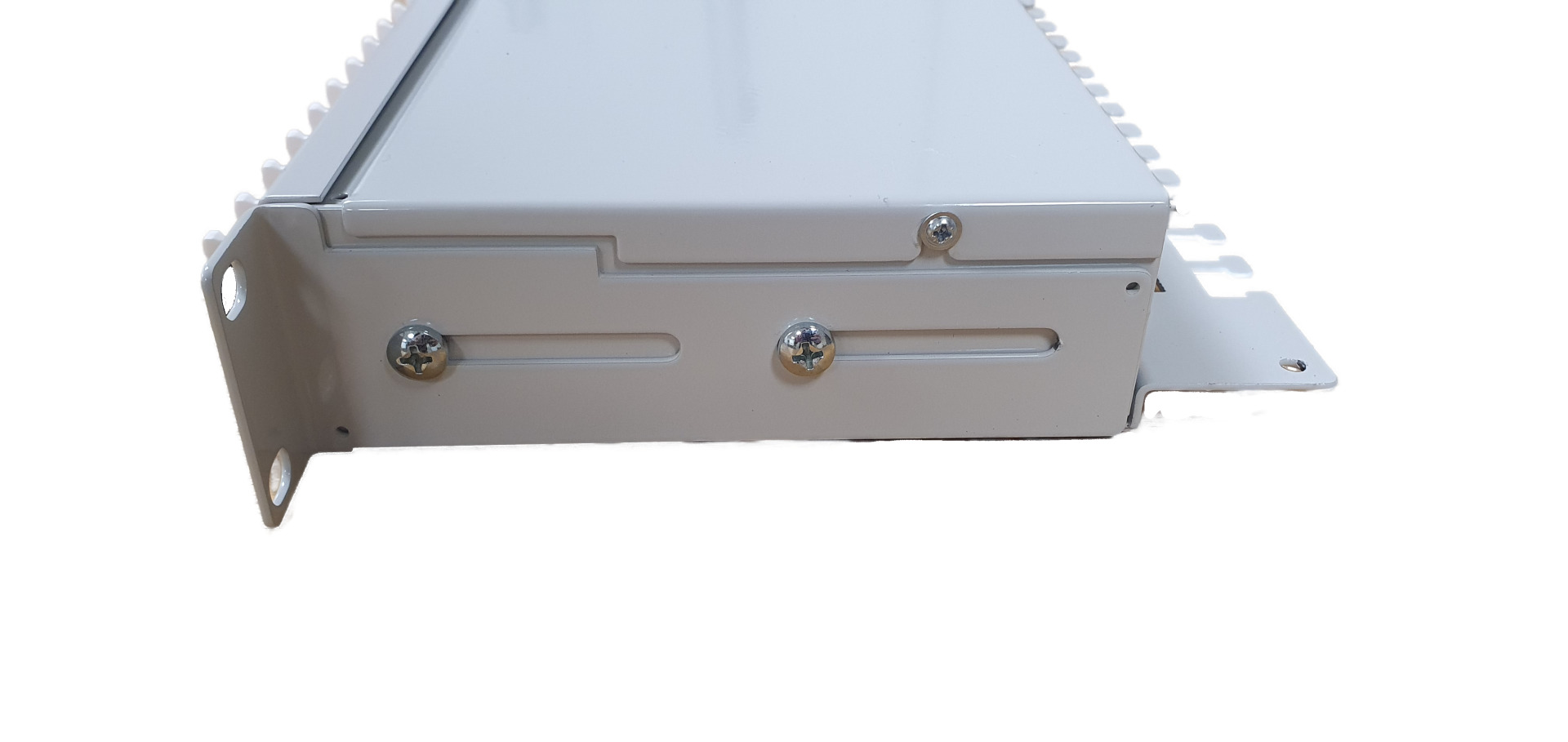

Partially Assembled Breakoutbox OM3
Partially Assembled Breakoutbox with 12 LC-Duplex adapter OM3
Item number:
B65901.12OM3
EAN no.:
4049759262167
Product information for Partially Assembled Breakoutbox with 12 LC-Duplex adapter OM3

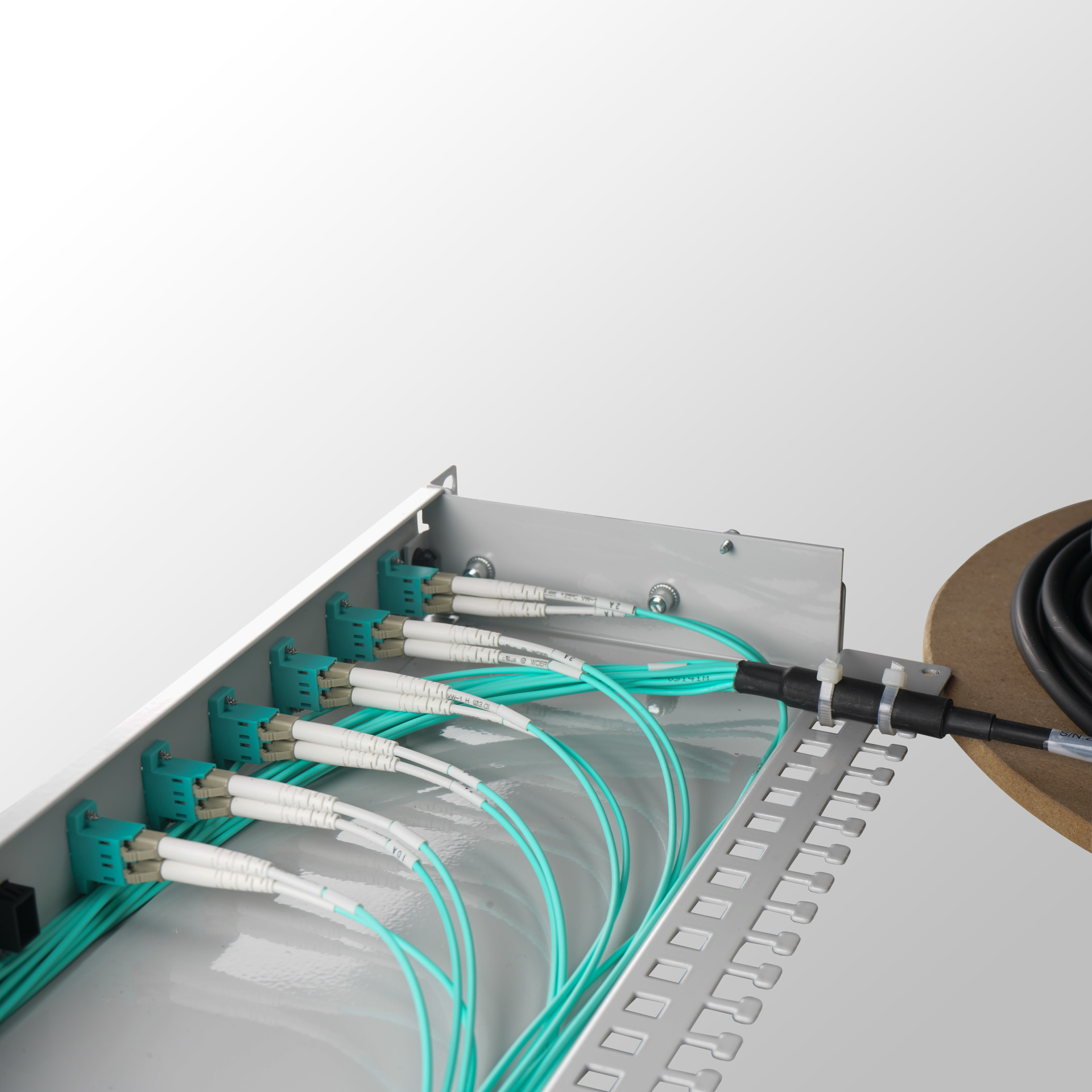

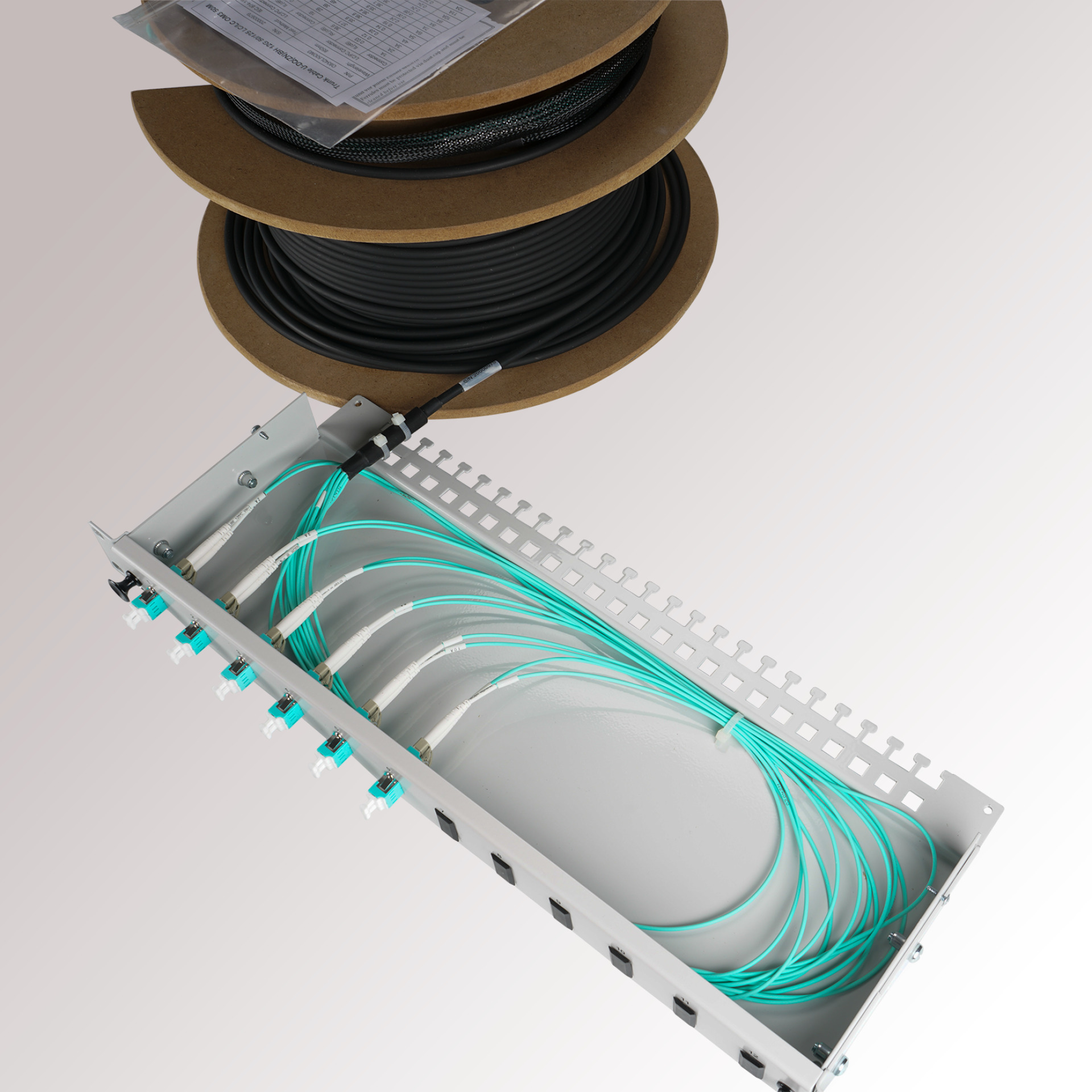

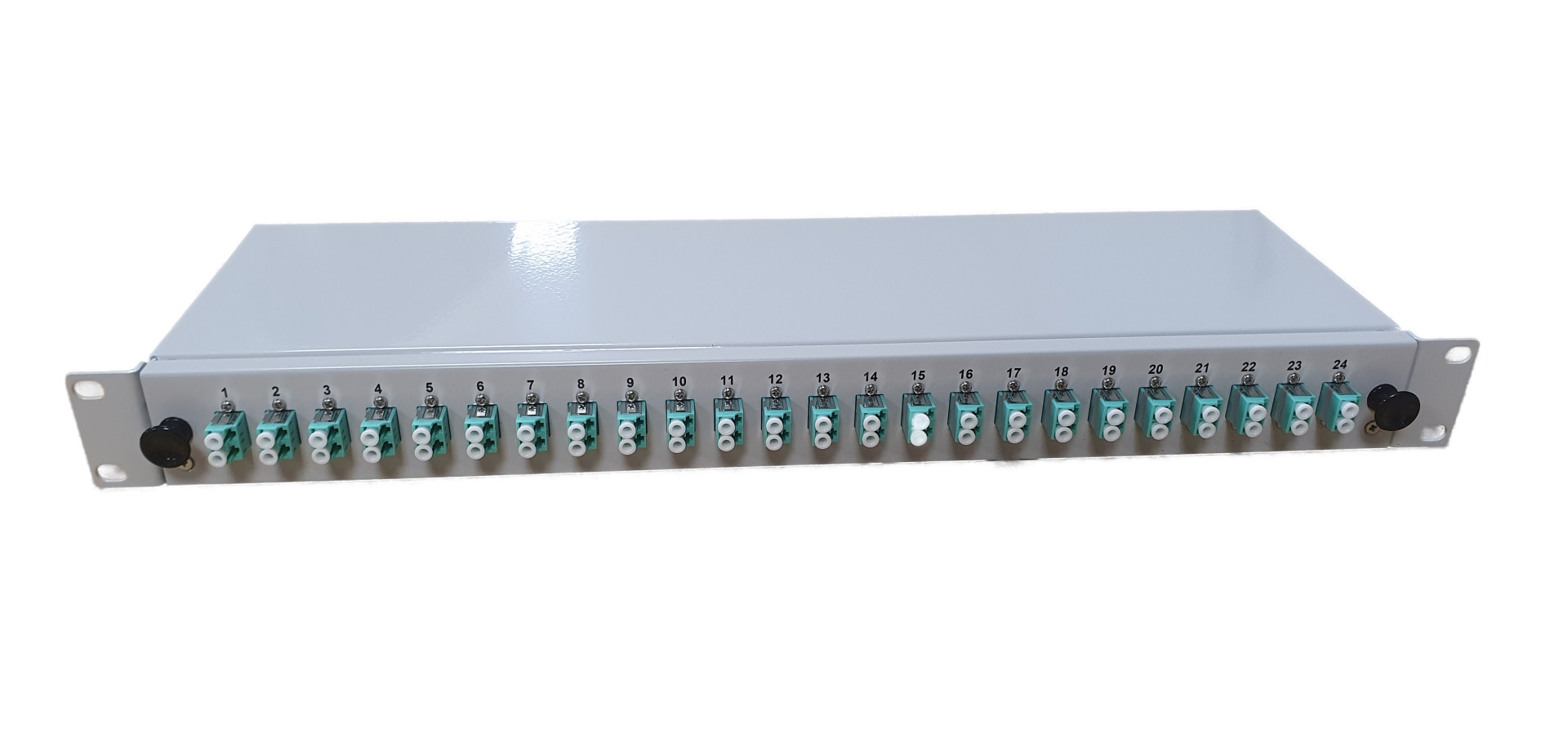

Partially assembled Breakout box equipped with LC duplex adapter
OM3
Front panel screwed and adapters inserted
Metal box
OM3
Front panel screwed and adapters inserted
Metal box
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 170 mm |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | non sliding version |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
Variants
| Item no. | Name | Type of connector external | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|
| B65901.2OM3 | Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM3 | LC-Duplex | grey | 2 | 2 | 7035 | LC-Duplex | aqua | |
| B65901.3OM3 | Partially Assembled Breakoutbox with 3 LC-Duplex adapter OM3 | LC-Duplex | grey | 3 | 3 | 7035 | LC-Duplex | aqua | |
| B65901.4OM3 | Partially Assembled Breakoutbox with 4 LC-Duplex adapter OM3 | LC-Duplex | grey | 4 | 4 | 7035 | LC-Duplex | aqua | |
| B65901.6OM3 | Partially Assembled Breakoutbox with 6 LC-Duplex adapter OM3 | LC-Duplex | grey | 6 | 6 | 7035 | LC-Duplex | aqua | |
| B65901.8OM3 | Partially Assembled Breakoutbox with 8 LC-Duplex adapter OM3 | LC-Duplex | grey | 8 | 8 | 7035 | LC-Duplex | aqua | |
| B65901.12OM3 | Partially Assembled Breakoutbox with 12 LC-Duplex adapter OM3 | LC-Duplex | grey | 12 | 12 | 7035 | LC-Duplex | aqua | |
| B65901.24OM3 | Partially Assembled Breakoutbox with 24 LC-Duplex adapter OM3 | LC-Duplex | grey | 24 | 24 | 7035 | LC-Duplex | aqua |
