Partially Assembled Breakoutbox OS2
Partially Assembled Breakoutbox with 2 LC-Duplex adapter OS2
Item number:
B65921.2
Product information for Partially Assembled Breakoutbox with 2 LC-Duplex adapter OS2

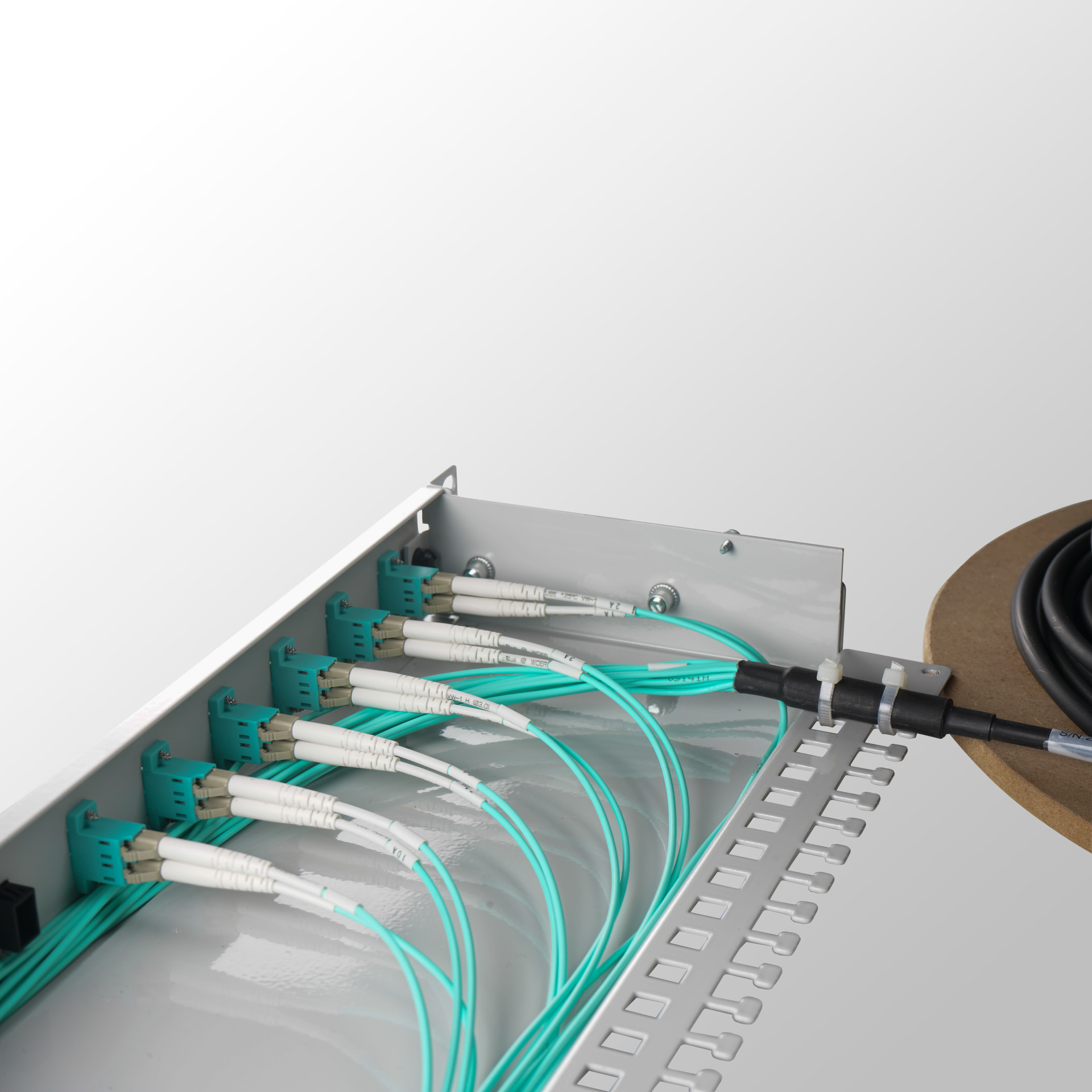

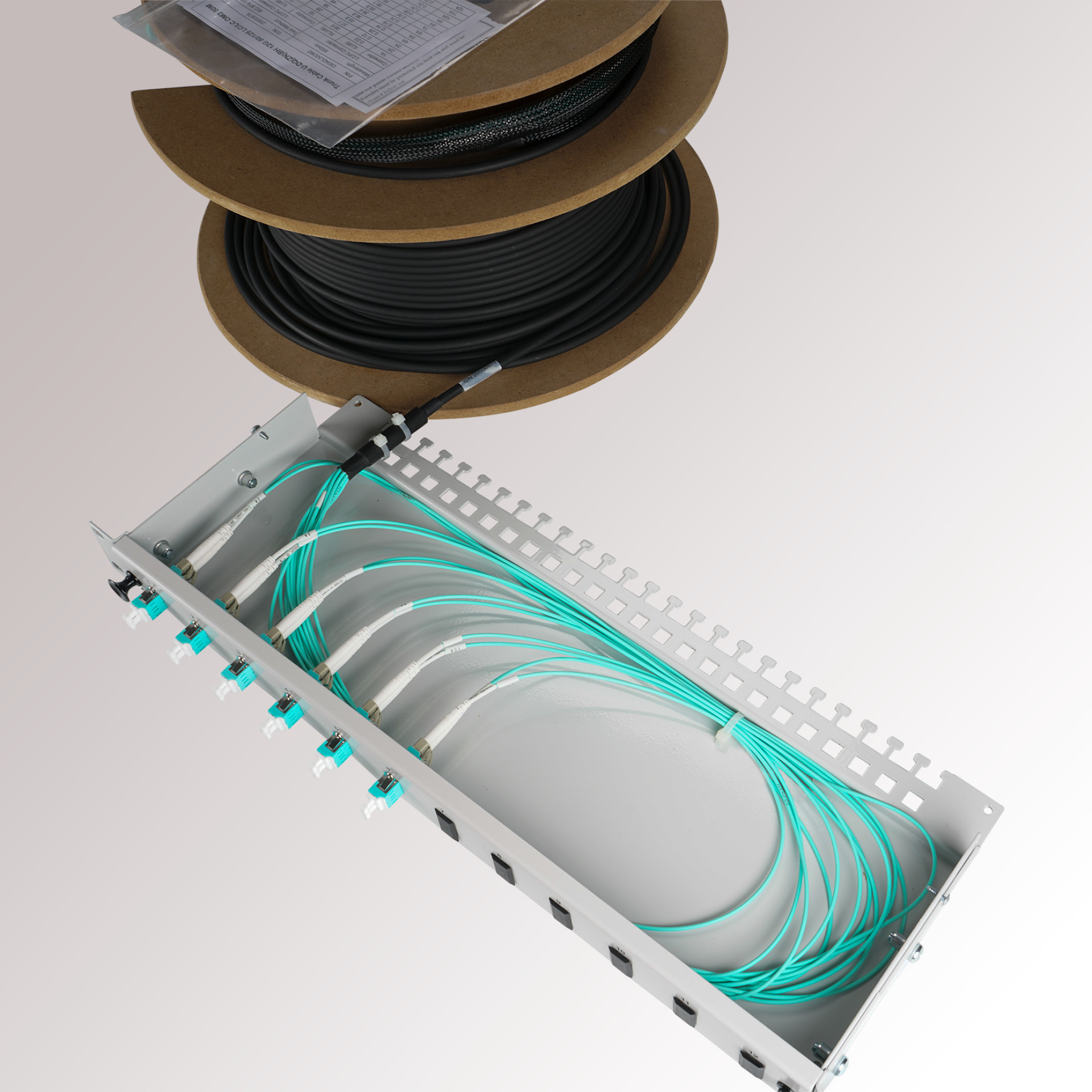

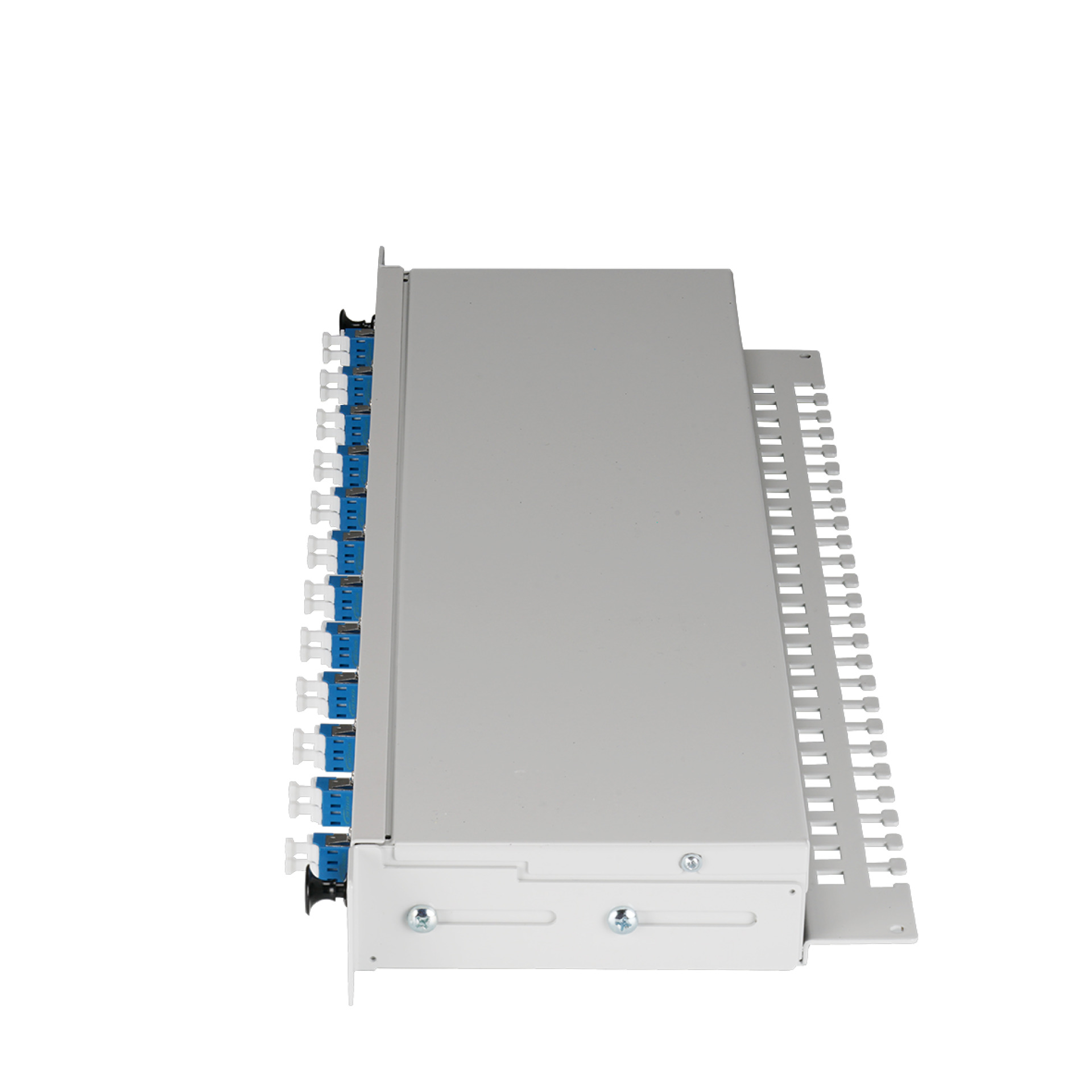

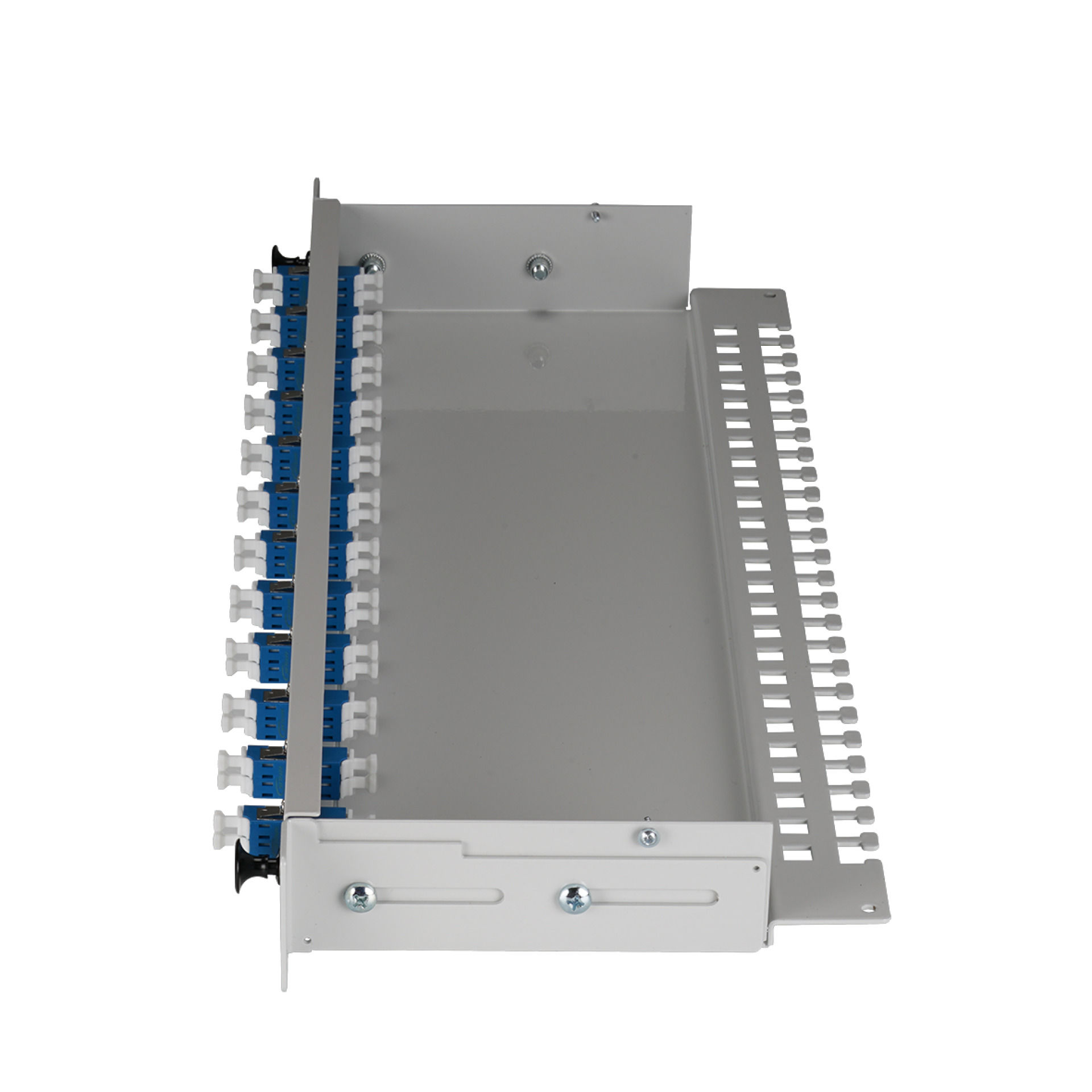

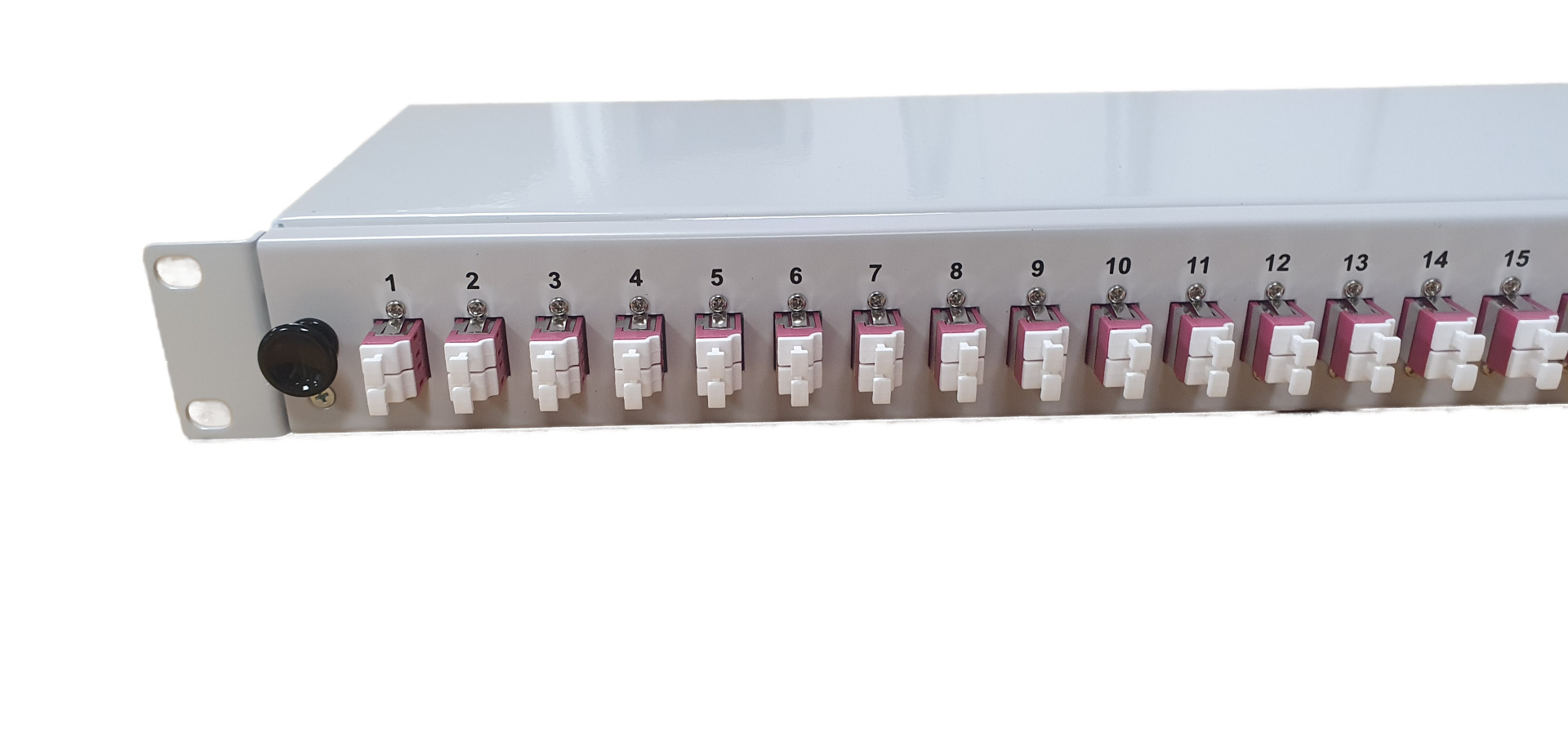

Partially assembled Breakout box equipped with LC duplex adapter
OS2
Front panel screwed and adapters inserted
Metal box
OS2
Front panel screwed and adapters inserted
Metal box
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 170 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | non sliding version |
| Width: | 482 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | Type of connector external | Colour | With number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|
| B65921.2 | Partially Assembled Breakoutbox with 2 LC-Duplex adapter OS2 | 12 | LC-Duplex | grey | 2 | 7035 | LC-Duplex | blau | |
| B65921.4 | Partially Assembled Breakoutbox with 4 LC-Duplex adapter OS2 | 12 | LC-Duplex | grey | 4 | 7035 | LC-Duplex | blau | |
| B65921.6 | Partially Assembled Breakoutbox with 6 LC-Duplex adapter OS2 | 12 | LC-Duplex | grey | 6 | 7035 | LC-Duplex | blau | |
| B65921.8 | Partially Assembled Breakoutbox with 8 LC-Duplex adapter OS2 | 12 | LC-Duplex | grey | 8 | 7035 | LC-Duplex | blau | |
| B65921.12 | Partially Assembled Breakoutbox with 12 LC-Duplex adapter OS2 | 12 | LC-Duplex | grey | 12 | 7035 | LC-Duplex | blau | |
| B65921.16 | Partially Assembled Breakoutbox with 16 LC-Duplex adapter OS2 | 24 | LC-Duplex | grey | 16 | 7035 | LC-Duplex | blau | |
| B65921.24 | Partially Assembled Breakoutbox with 24 LC-Duplex adapter OS2 | 24 | LC-Duplex | grey | 24 | 7035 | LC-Duplex | blau |
