Cat.5e 300MHzU/UTP, grey

Prices only visible for logged in users

Patch Cable Cat.5e UTP 4x2xAWG26, grey, 100m
Item number: 99148.100
EAN no.: 4049759074289
Piece

Product information for Patch Cable Cat.5e UTP 4x2xAWG26, grey, 100m

Mechanically high-quality 300 MHz patch cord. Clear differentiation of the cores in the assembled connector thanks to different core colours. Compatible with all common connector systems according to EN 50173 and ISO/IEC 11801 as well as D-Sub systems. As data patch cables in patch panels and as device connection cables. For the transmission of digital and analogue voice, image and data signals. ISDN, Ethernet 10 BASE-T, Fast Ethernet 100 BASE-T, Gigabit Ethernet 1000 BASE-T, Token Ring 4/16 Mbit/s, TP-PMD/TP-DDI 125 Mbit/s, ATM 155 Mbit/s.

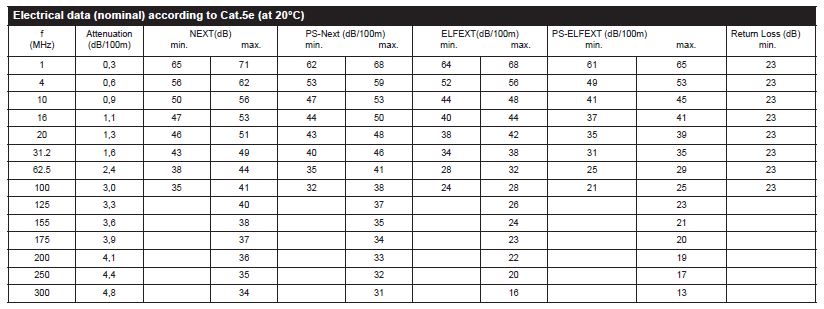

Technical properties

AWG-size: 26
Bending radius (dynamic): 40 mm
Bending radius (static): 20 mm
Cable Construction: U/UTP
Cabling standards: EN 50173-1
ISO/IEC 11801
Category: 5E
Characteristic impedance: 100 ± 15 Ohm
Conductor category: Class 2 = stranded
Conductor material: Cu, tinned
Core identification: Colour
Core insulation: PE
Delay skew: 20
Diameter conductor: 0.48 mm
Flame retardant: According to IEC/EN 60332-1-2
Halogen free (acc. EN 50267-2-2): False
Installation standard: EN 50174
Insulation resistance (500V): ≥ 2000 MOhm/km
Jacket Material: Polyvinylchlorid (PVC)
Loop resistance: 260 Ohm/km
Low smoke (according to EN 61034-2): False
Max. Freuqency: 300 MHz
NVP value: 67 %
Permitted cable outer temperature after assembling without vibration: -20 – 60 °C
Permitted cable outer temperature during assembling/handling: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE
acc. to IEEE802.3at PoE+

acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 3 %
Screen over stranding: without
Screen over stranding element: without
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
UV resistance: no

Variants

Item no. Name Number of cores Length Colour outer sheath Type Cu-Zahl Gewicht Max. Zugkraft Außendurchmesser ca. Brandlast
99148.100 Patch Cable Cat.5e UTP 4x2xAWG26, grey, 100m 8 100.0 m grey simplex 11 kg/km 25 kg/km 55 N 4,7 mm 344 MJ/km
99148.1 Patch Cable Cat.5e UTP 4x2xAWG26, grey 8 1.0 m grey simplex 11 kg/km 25 kg/km 55 N 4,7 mm 344 MJ/km
