Power Cable CEE7/7 90° - C13 180° with IEC Lock, black

Prices only visible for logged in users

Power Cable CEE7/7 90° - C13 180°, Black, 1.0 m, 3 x 1.00 mm², IEC Lock
Item number: EK600SW.1
EAN no.: 5055112840339
Piece

Product information for Power Cable CEE7/7 90° - C13 180°, Black, 1.0 m, 3 x 1.00 mm², IEC Lock

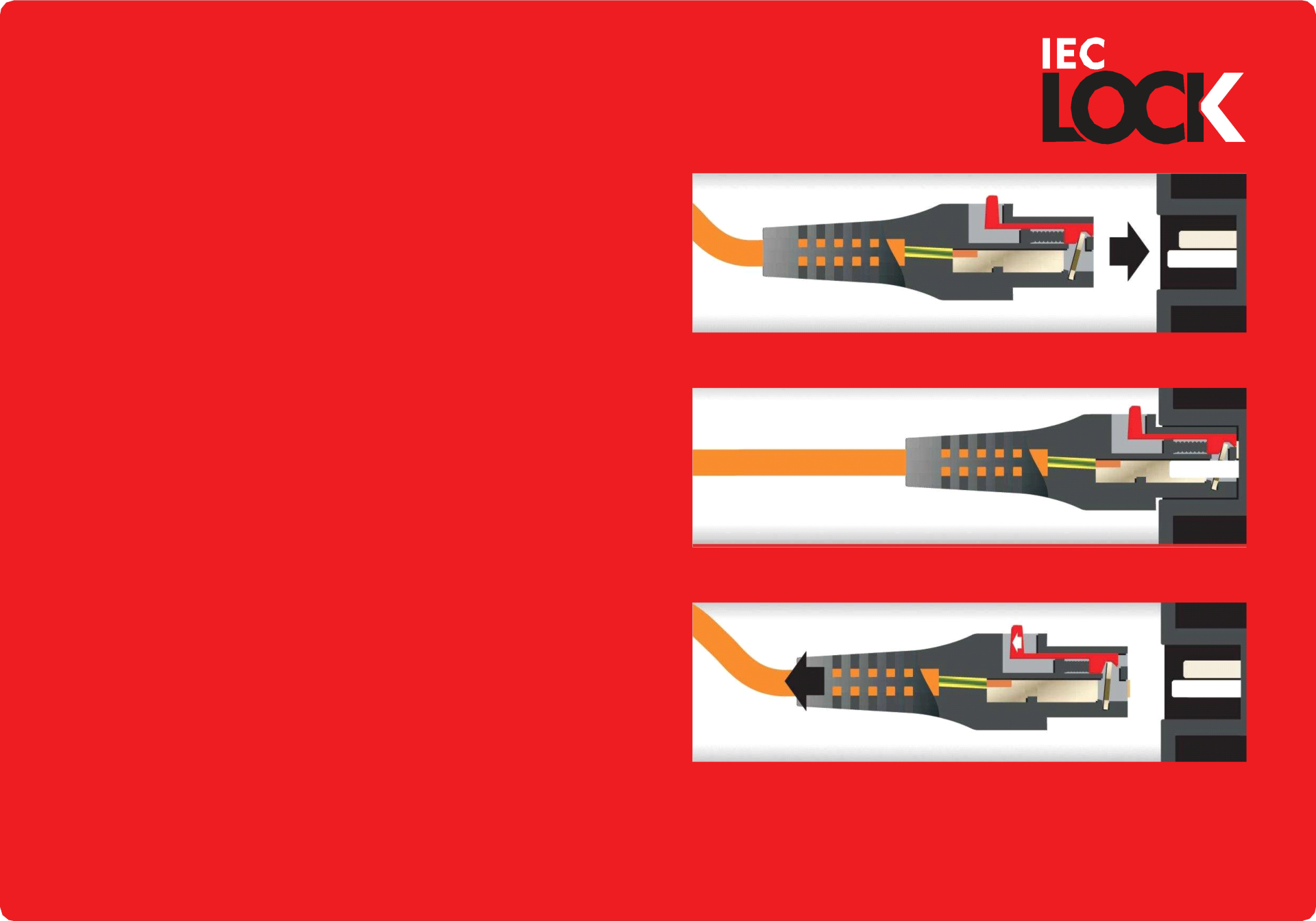

With „IEC Lock“: prevents accidentally removing of the C13 jack from devices
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested (optional: orange, blue, grey, white)
Suitable for Germany, Belgium, France and further
Other types on request: UK, USA/NEMA, Switzerland, open end

Technical properties

Colour outer sheath: black
Connection 1: Socket outlet with protective contact, right-angled
Connection 2: Cold device plug straight, female
Halogen free: False
Jacket Material: Polyvinyl chloride (PVC)
Nominal voltage: 250 V
Number of cores: 3
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Protective conductor: True
Spiralized cable: False
Temperature resistance: 0 – 70 °C
With cord switch: False

Variants

Item no. Name Colour outer sheath Length Leiternennquerschnitt Außendurchmesser ca.
EK600SW.1 Power Cable CEE7/7 90° - C13 180°, Black, 1.0 m, 3 x 1.00 mm², IEC Lock black 1.0 m 1,00 mm² 7,1 mm
EK600SW.1,5 Power Cable CEE7/7 90° - C13 180°, Black, 1.5 m, 3 x 1.00 mm², IEC Lock black 1.5 m 1,00 mm² 7,1 mm
EK600SW.2 Power Cable CEE7/7 90° - C13 180°, Black, 2.0 m, 3 x 1.00 mm², IEC Lock black 2.0 m 1,00 mm² 7,1 mm
EK600SW.3 Power Cable CEE7/7 90° - C13 180°, Black, 3.0 m, 3 x 1.00 mm², IEC Lock black 3.0 m 1,00 mm² 7,1 mm
EK600SW.5 Power Cable CEE7/7 90° - C13 180°, Black, 5.0 m, 3 x 1.00 mm², IEC Lock black 5.0 m 1,00 mm² 7,1 mm
