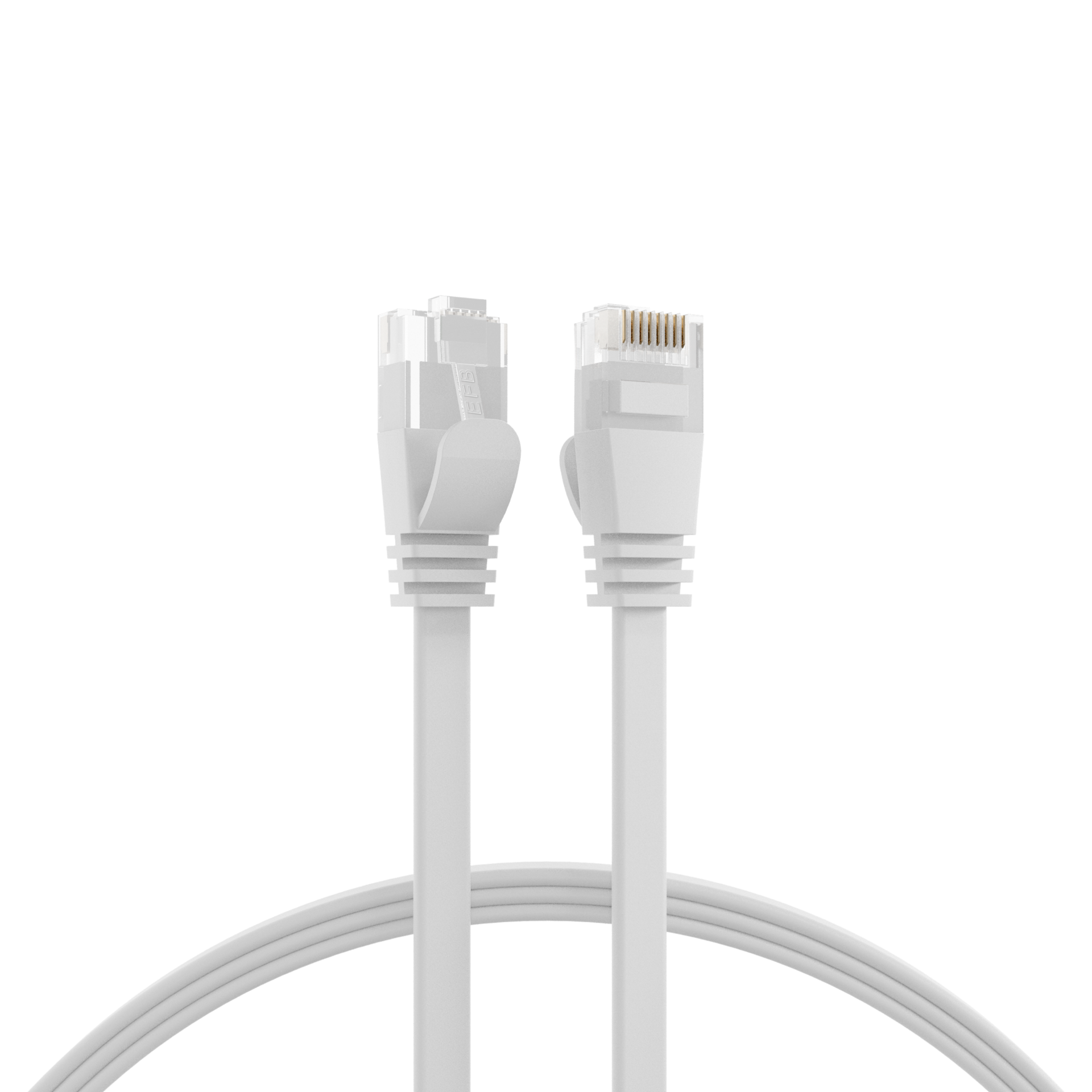

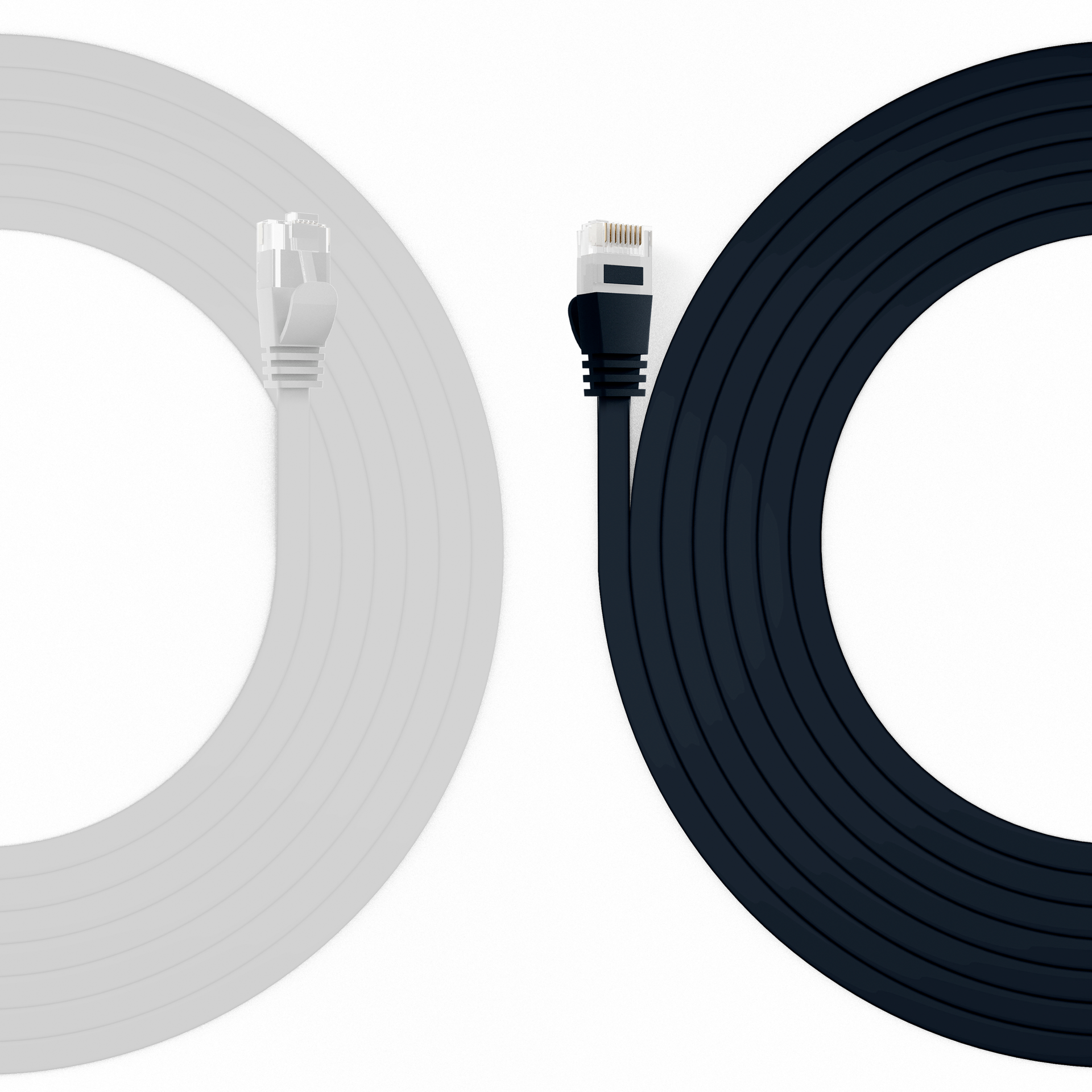

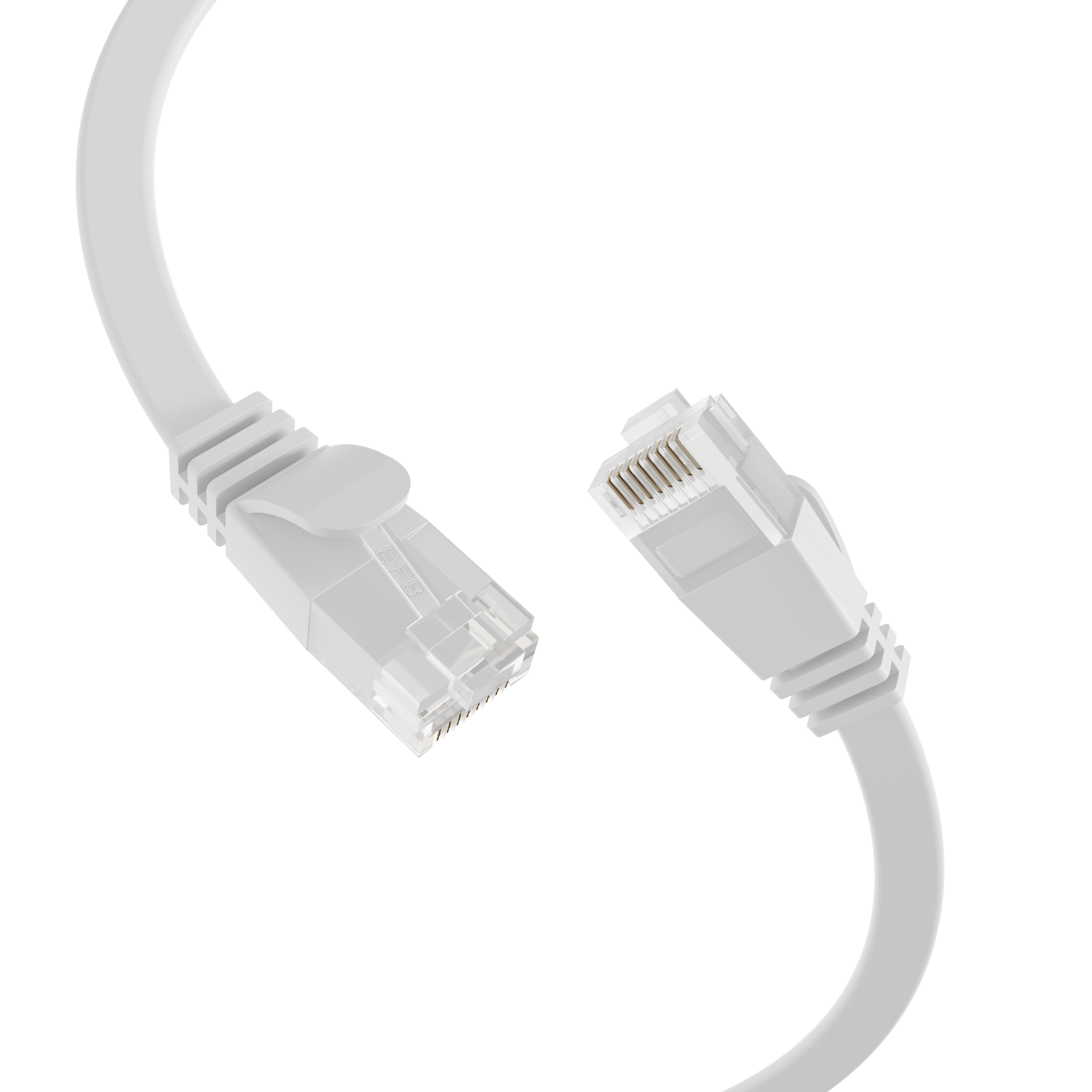

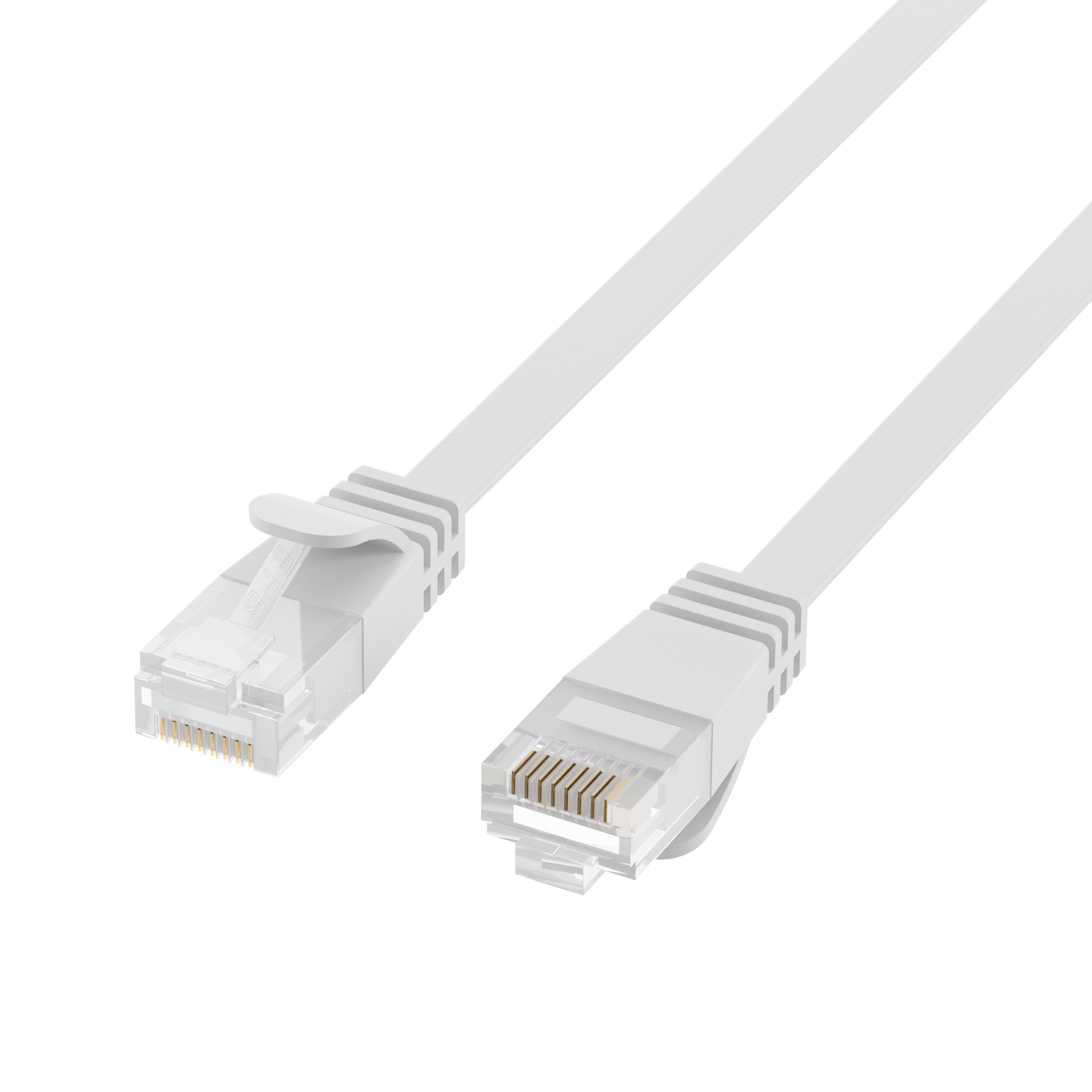

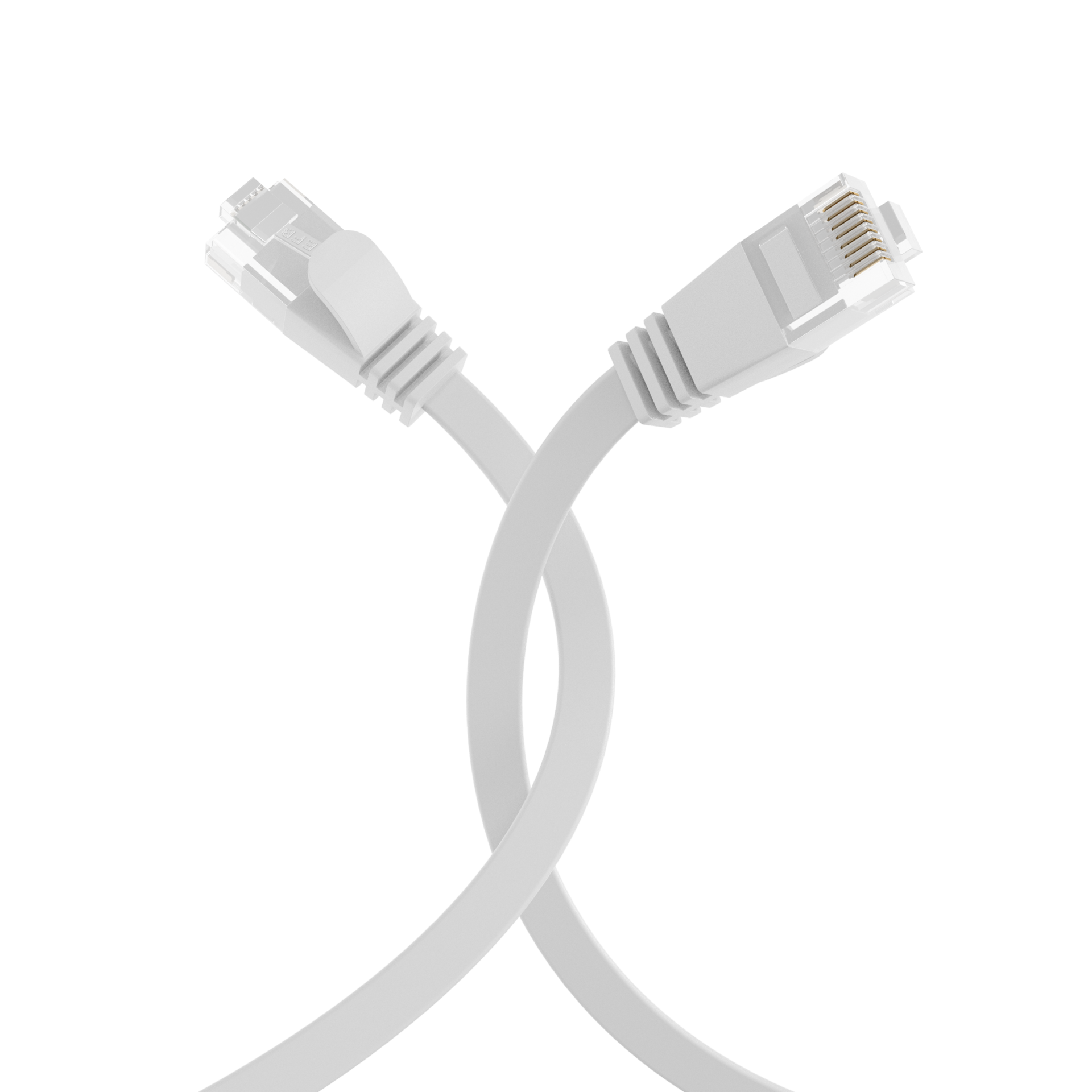

RJ45 Flat Patch Cord Cat.6A U/UTP PVC white
Prices only visible for logged in users
RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 1m
Item number:
K8107WS.1
EAN no.:
4049759155858
Product information for RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 1m
The unshielded Cat.6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The flat patch cable impresses with its flat construction and is with 1.6mm height ideal for laying e.g. behind ledges or under a carpet. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.
Sheath material: PVC
Cross section: 4 x 2 x AWG30 / 7
Cable diameter: 6.0 x 1.6 mm
Plug type: short plug
Sheath material: PVC
Cross section: 4 x 2 x AWG30 / 7
Cable diameter: 6.0 x 1.6 mm
Plug type: short plug
Technical properties
AWG-size: | 30/7 |
---|---|
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | moulded-on |
Area of Application: | Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | 10 mm |
Cable construction: | 4x2 |
Cable type: | U/UTP |
Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | white |
Colour outer sheath: | white |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Conductor resistance DC: | 376 Ω/km |
Connector: | IEC 60603-7-51 |
Connector type: | RJ45 short version |
Contacts: | Gold plated µ" Gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | False |
Halogen free: | False |
Impedance: | 100 ±15 Ω |
Insulation Resistance: | 100 MΩ |
Jacket Material: | Polyvinylchlorid (PVC) |
Locking lever: | True |
Loop resistance: | 752 Ω/km |
Mating cycles: | 2000 |
Model: | Unshielded |
NVP value: | 76 % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.0*1.6 mm |
POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | SLIM PATCHCABLE U/UTP CAT.6A ***10GB*** www.efb-elektronik.de |
Resistance unbalance: | < 4 % |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -20 – 55 °C |
Test voltage: | 1000 V DC, 1min |
Transmission: | 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Variants
Item no. | Name | Length | Längentoleranz | |
---|---|---|---|---|
K8107WS.0,25 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 0.25m | 0.25 m | ±5 % | |
K8107WS.0,5 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 0,5m | 0.5 m | ±5 % | |
K8107WS.1 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 1m | 1.0 m | ±5 % | |
K8107WS.1,5 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 1,5m | 1.5 m | ±5 % | |
K8107WS.2 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 2m | 2.0 m | ±5 % | |
K8107WS.3 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 3m | 3.0 m | ±5 % | |
K8107WS.5 | RJ45 Flat Patch Cord Cat.6A U/UTP PVC white 5m | 5.0 m | ±5 % |
