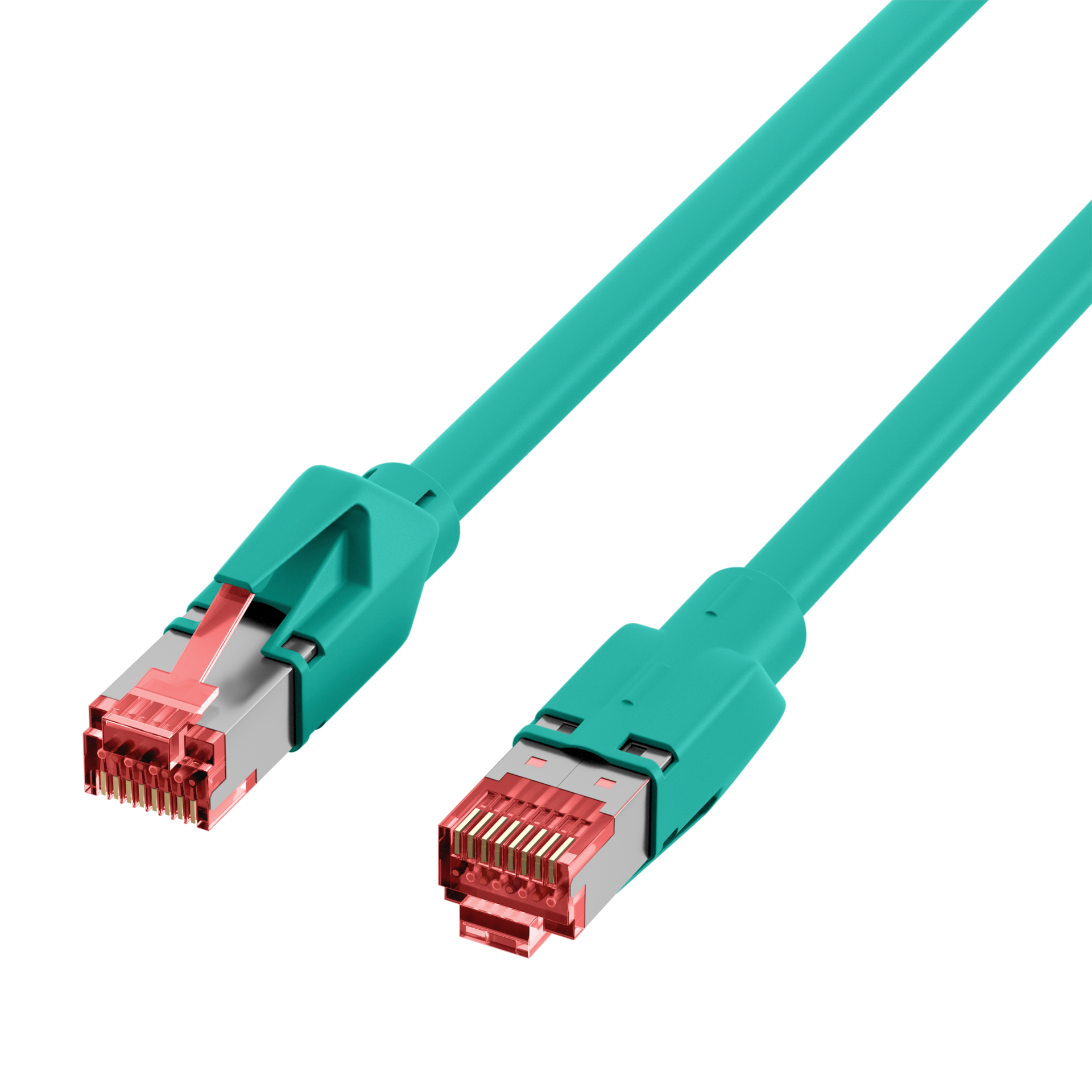

RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green
RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green 1m
Item number:
K8030.1
Product information for RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green 1m
RJ45 patch cable Cat.5e SF/UTP PUR TM21 grommet yellow trailing
The Cat.5e patch cable meets the requirements for 2.5Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat.5e
• S/UTP cable with AWG26/19
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A bandwidth of up to 100 MHz is thus achieved.
The Cat.5e patch cable meets the requirements for 2.5Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat.5e
• S/UTP cable with AWG26/19
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A bandwidth of up to 100 MHz is thus achieved.
Technical properties
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/19 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 100MHz |
| Bending radius: | 34 mm |
| Cable construction: | 4x2 |
| Cable type: | S/UTP |
| Cable type acc. to Manufacturer: | Helu |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 5e |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | green |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 125 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | TM21 red |
| Contact Resistance: | < 20 mΩ |
| Contacts: | Gold plated µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | acc. IEC60754-2 |
| Impedance: | 100 ±5 Ω |
| Insulation Resistance: | 500 MΩ |
| Jacket Material: | Polyurethan (PUR) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 250 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 68 % |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | True |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -40 – 85 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Total screening: | 90 % |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | True |
| UV resistance: | No |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8030.1 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green 1m | 1.0 m | ±5 % | |
| K8030.2 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green 2m | 2.0 m | ±5 % | |
| K8030.3 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green 3m | 3.0 m | ±5 % | |
| K8030.5 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable green 5m | 5.0 m | ±5 % | |
| K8030.10 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable 10m | 10.0 m | ±5 % | |
| K8030.15 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable 15m | 15.0 m | ±5 % | |
| K8030.20 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable 20m | 20.0 m | ±5 % | |
| K8030.25 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable 25m | 25.0 m | ±5 % | |
| K8030.30 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable 30m | 30.0 m | ±5 % | |
| K8030.40 | RJ45 Patch Cord Cat.5e SF/UTP PUR TM21 yellow boot drag chain suitable 40m | 40.0 m | ±5 % |
