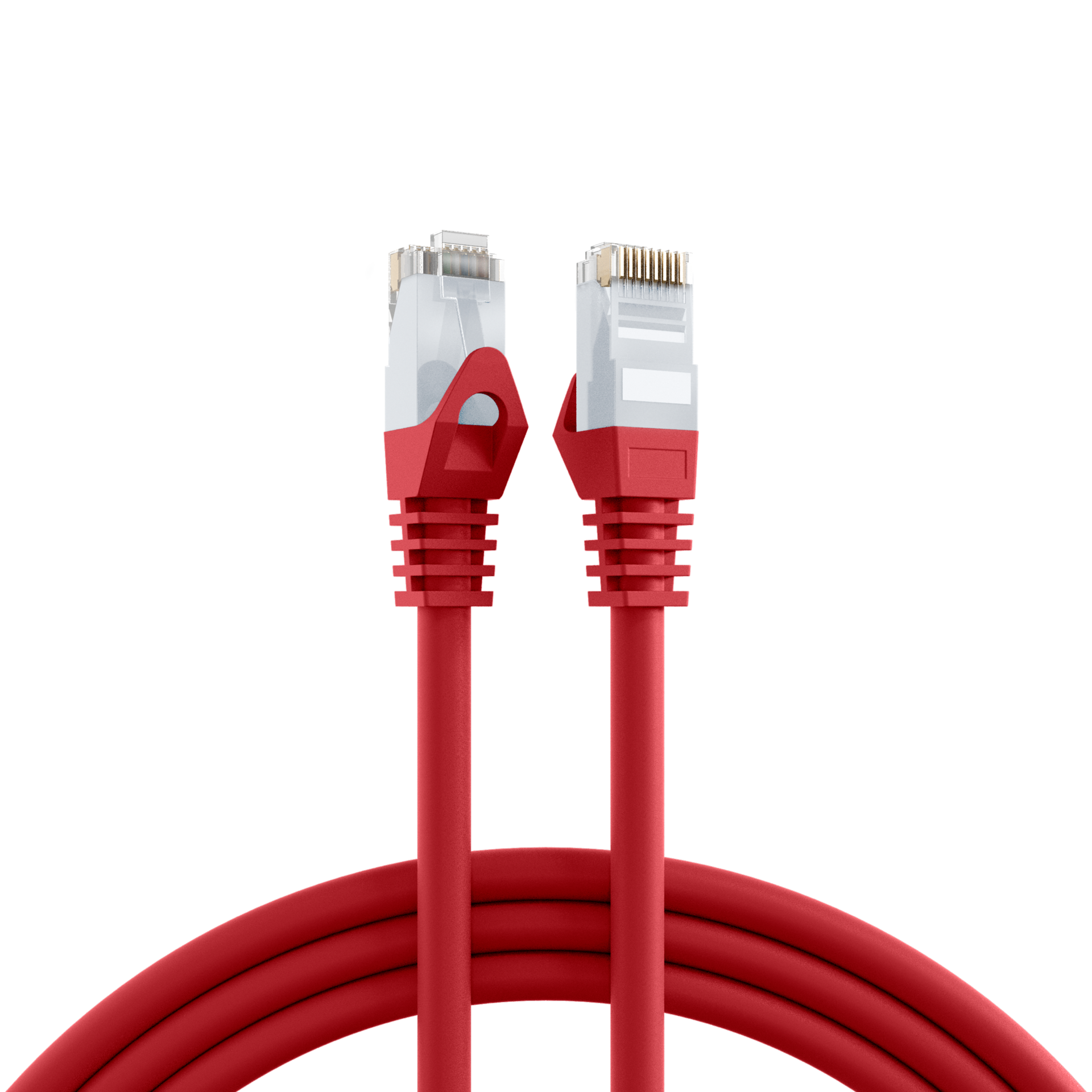

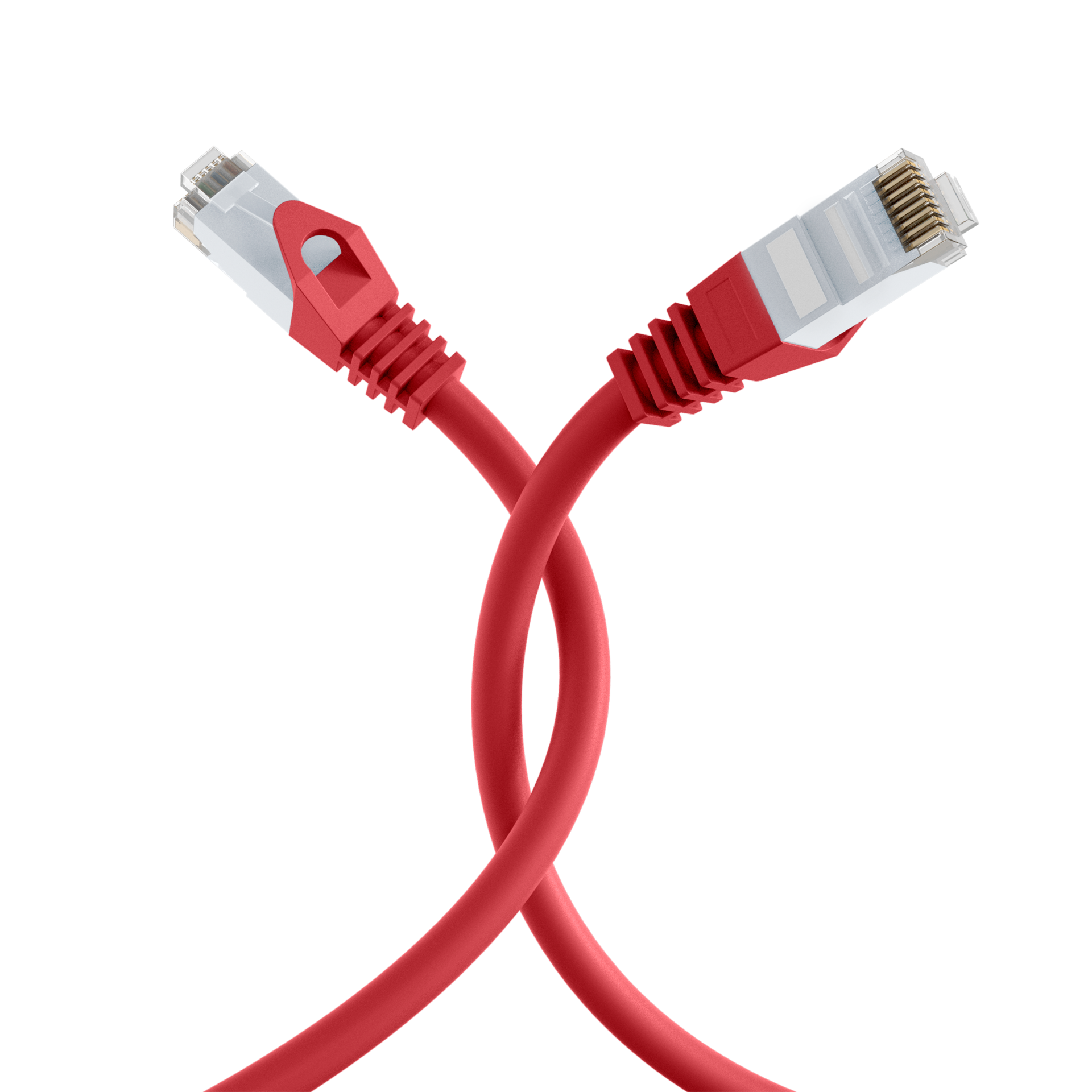

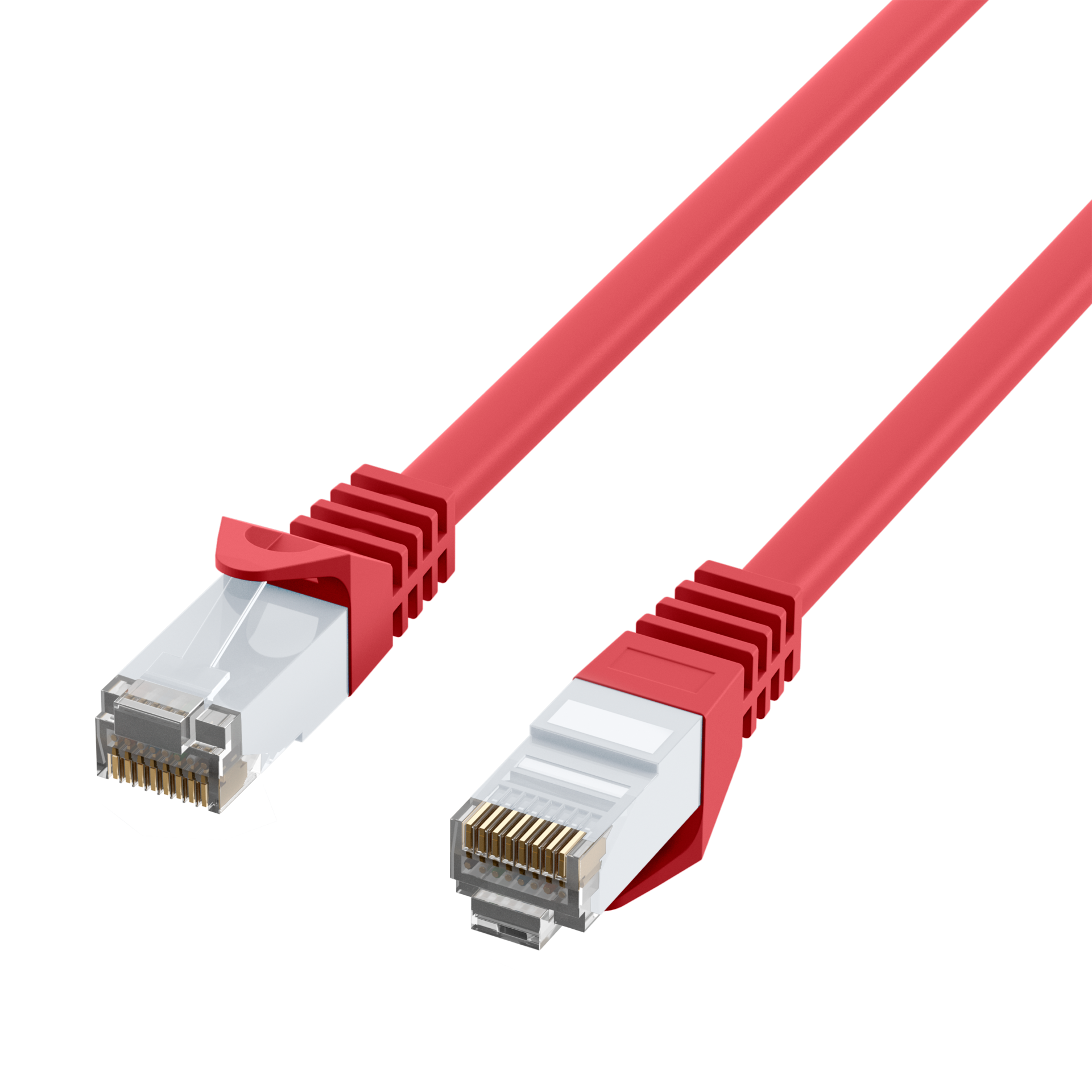

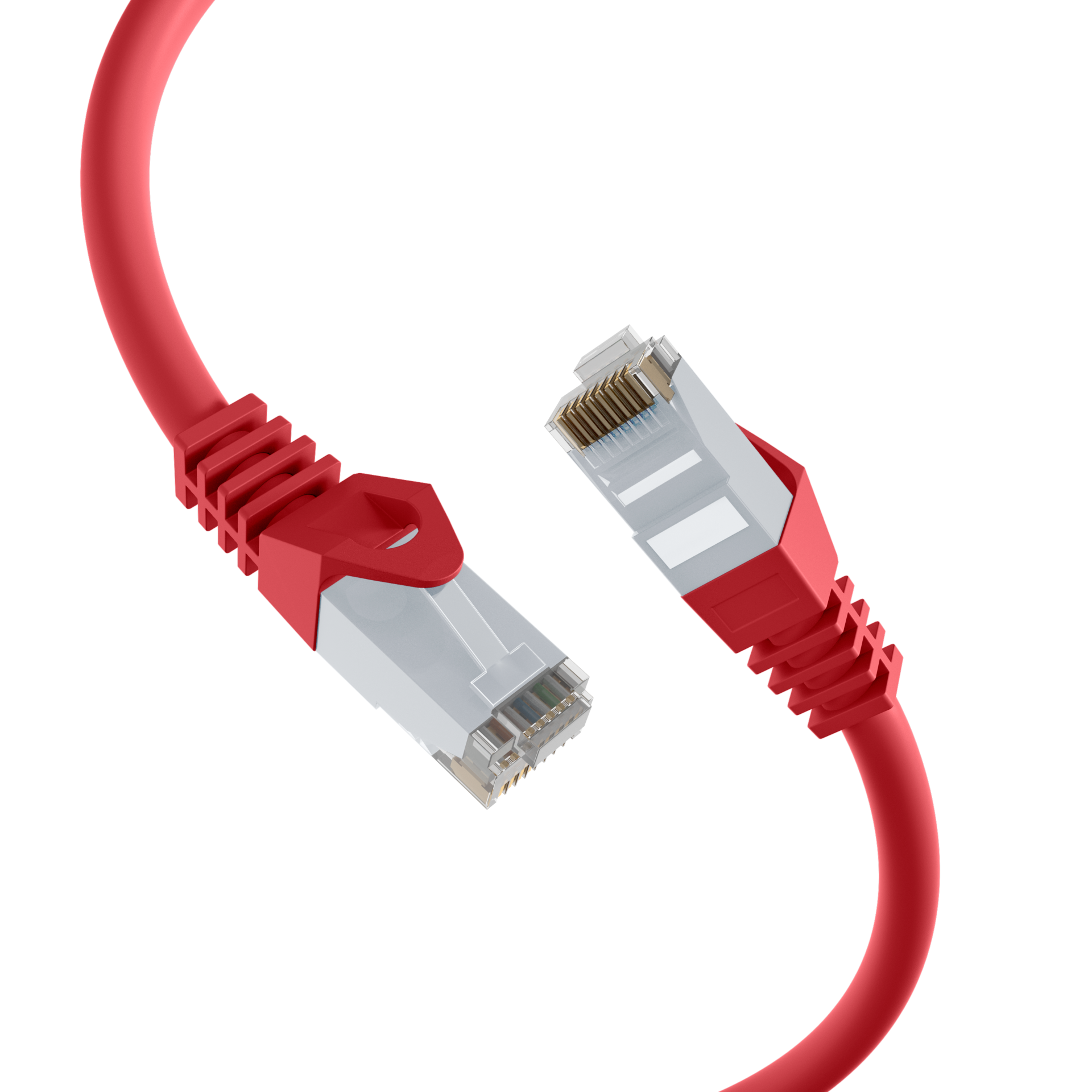

RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red
Prices only visible for logged in users
RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1,5m
Item number:
K8104RT.1,5
EAN no.:
4049759084271
Product information for RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1,5m
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
Technical properties
AWG-size: | 24/7 |
---|---|
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 250MHz |
Bending radius: | 30 mm |
Cable construction: | 4x2 |
Cable type: | U/UTP |
Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6 |
Colour anti-kink sleeve: | red |
Colour outer sheath: | red |
Conductor Material: | CCA |
Connector: | IEC 60603-7-4 |
Connector type: | RJ45 Standard |
Contacts: | Gold plated µ" gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | True |
Flame retardant: | True |
Halogen-free: | True |
Halogen free: | True |
Jacket Material: | LSZH |
Locking lever: | True |
Low smoke: | True |
Mating cycles: | ≥750 |
Model: | Unshielded |
NVP value: | - % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 5.9 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable www.efb-elektronik.de |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Transmission: | 5Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Variants
Item no. | Name | Length | Längentoleranz | |
---|---|---|---|---|
K8104RT.0,25 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,25m | 0.25 m | ±5 % | |
K8104RT.0,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,5m | 0.5 m | ±5 % | |
K8104RT.1 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1m | 1.0 m | ±5 % | |
K8104RT.1,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1,5m | 1.5 m | ±5 % | |
K8104RT.2 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 2m | 2.0 m | ±5 % | |
K8104RT.3 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 3m | 3.0 m | ±5 % | |
K8104RT.5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 5m | 5.0 m | ±5 % | |
K8104RT.7,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 7,5m | 7.5 m | ±5 % | |
K8104RT.10 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 10m | 10.0 m | ±5 % | |
K8104RT.15 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 15m | 15.0 m | ±5 % | |
K8104RT.20 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 20m | 20.0 m | ±5 % |
