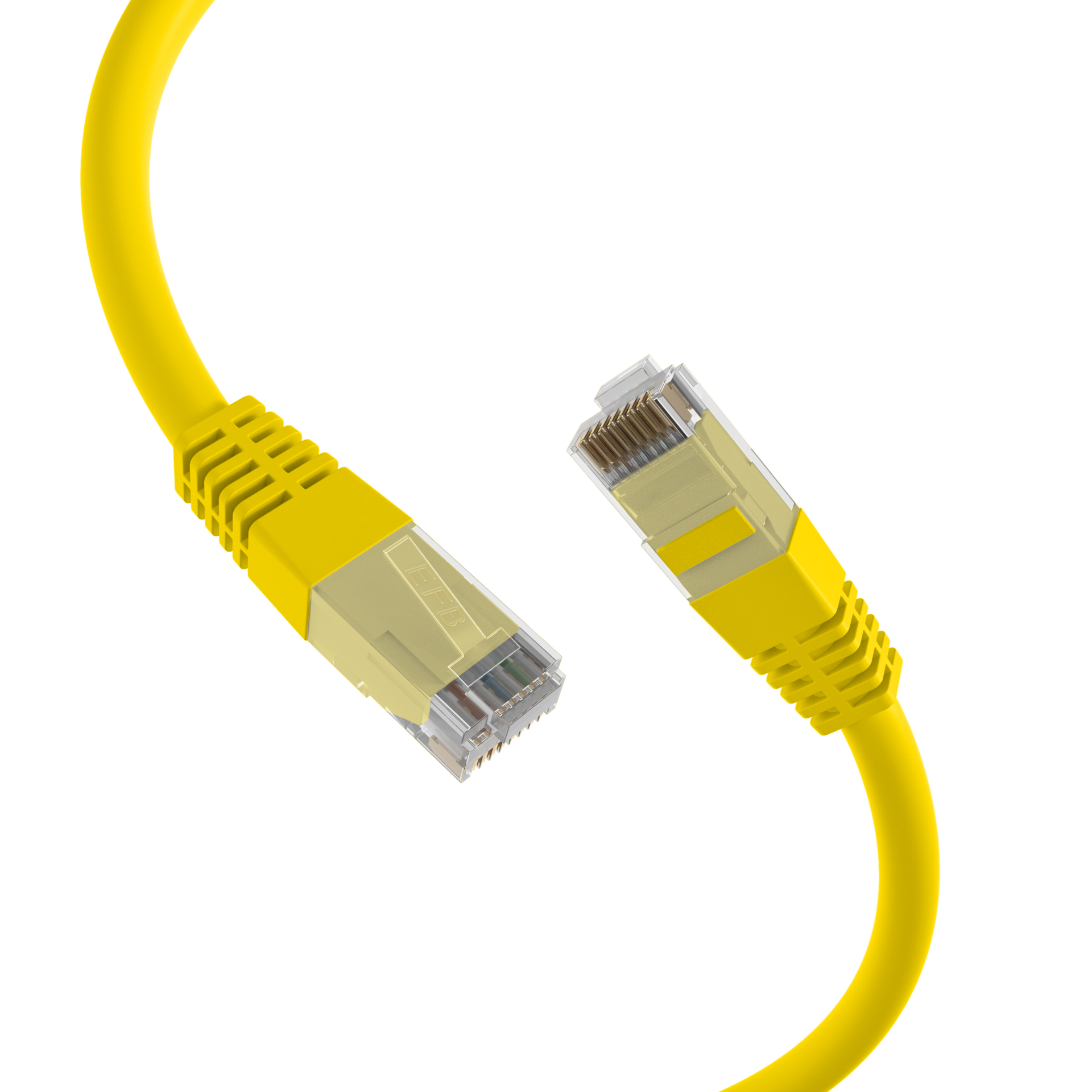

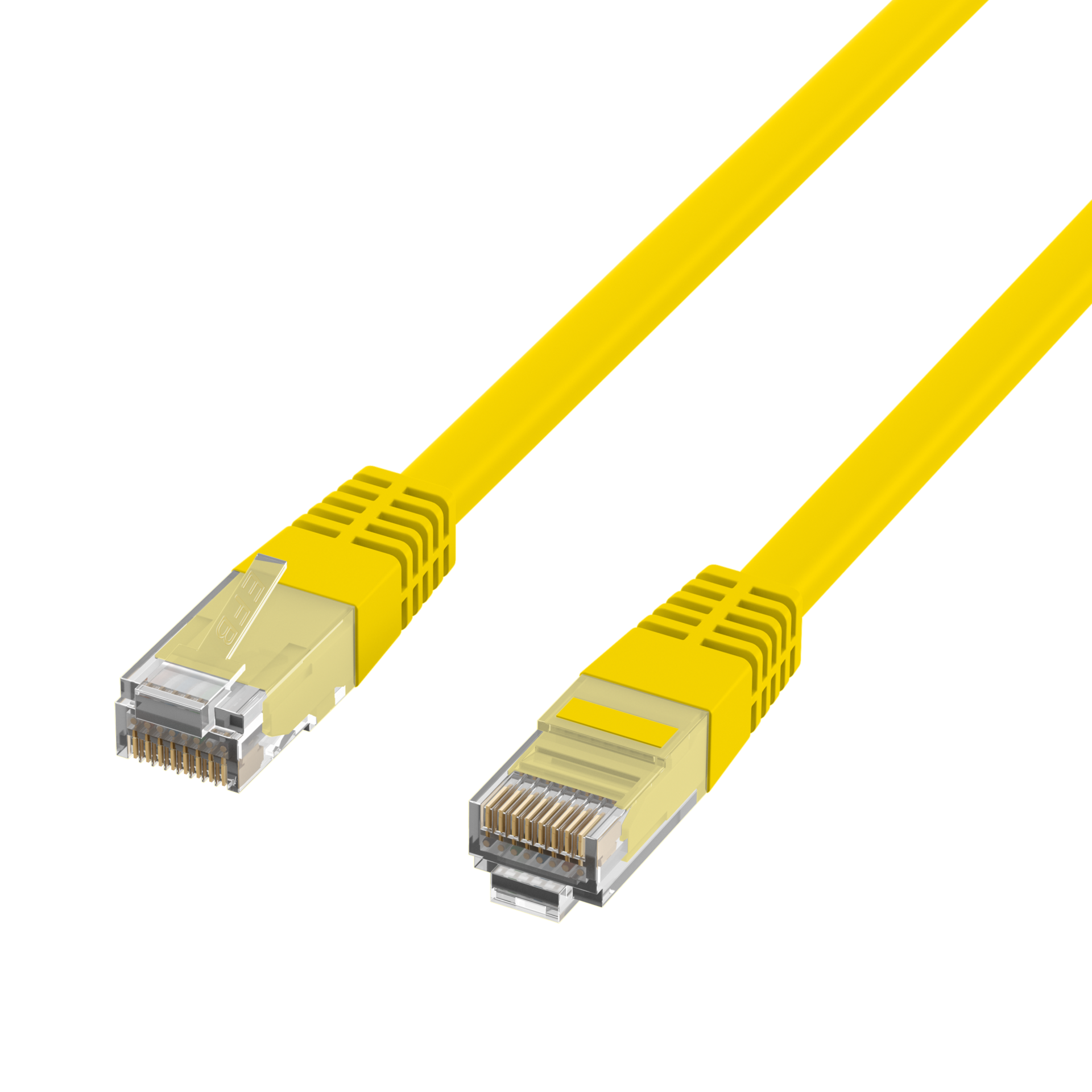

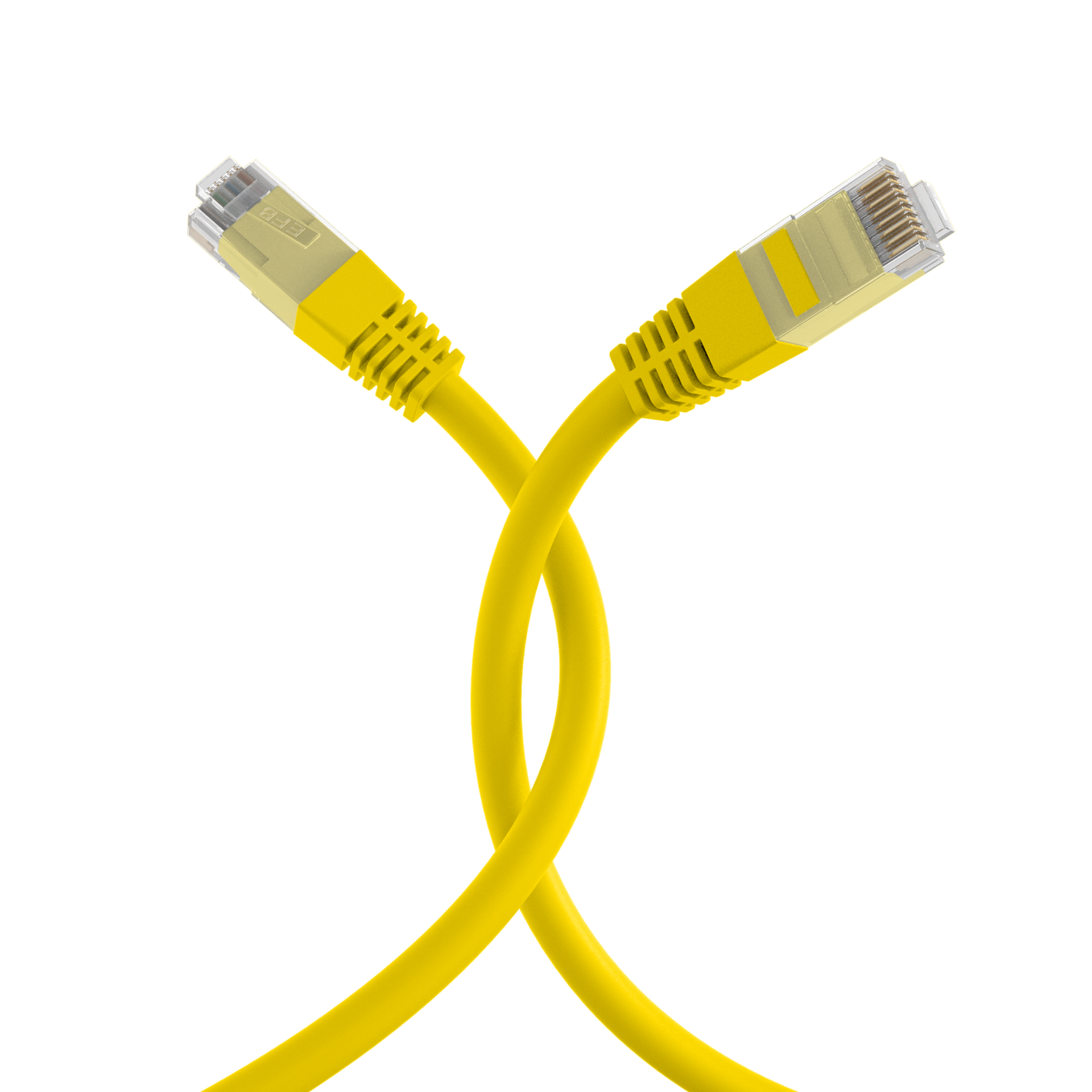

RJ45 Patchkabel Cat.6 U/UTP PVC CCA gelb
RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 1m
Item number:
K8100GE.1
EAN no.:
4049759033057
Product information for RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 1m
RJ45 patch cable Cat.6 U/UTP PVC CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
Technical properties
| (Halogenfree): | False |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 250MHz |
| Bending radius: | 30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-4 |
| Connector type: | RJ45 Standard |
| Contacts: | Gold plated µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | False |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | False |
| Mating cycles: | ≥750 |
| Model: | Unshielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 70 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8100GE.0,25 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 0,25m | 0.25 m | ±5 % | |
| K8100GE.0,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 0,5m | 0.5 m | ±5 % | |
| K8100GE.1 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 1m | 1.0 m | ±5 % | |
| K8100GE.1,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 1,5m | 1.5 m | ±5 % | |
| K8100GE.10 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 10m | 10.0 m | ±5 % | |
| K8100GE.15 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 15m | 15.0 m | ±5 % | |
| K8100GE.2 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 2m | 2.0 m | ±5 % | |
| K8100GE.20 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 20m | 20.0 m | ±5 % | |
| K8100GE.3 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 3m | 3.0 m | ±5 % | |
| K8100GE.30 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 30m | 30.0 m | ±5 % | |
| K8100GE.5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 5m | 5.0 m | ±5 % | |
| K8100GE.7,5 | RJ45 Patch Cord Cat.6 U/UTP PVC CCA yellow 7,5m | 7.5 m | ±5 % |
