RJ45 Patchkabel Cat.6A S/FTP FRNC
RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 1,5m
Item number:
DCK1001BL.1,5
EAN no.:
4049759058975
Product information for RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 1,5m

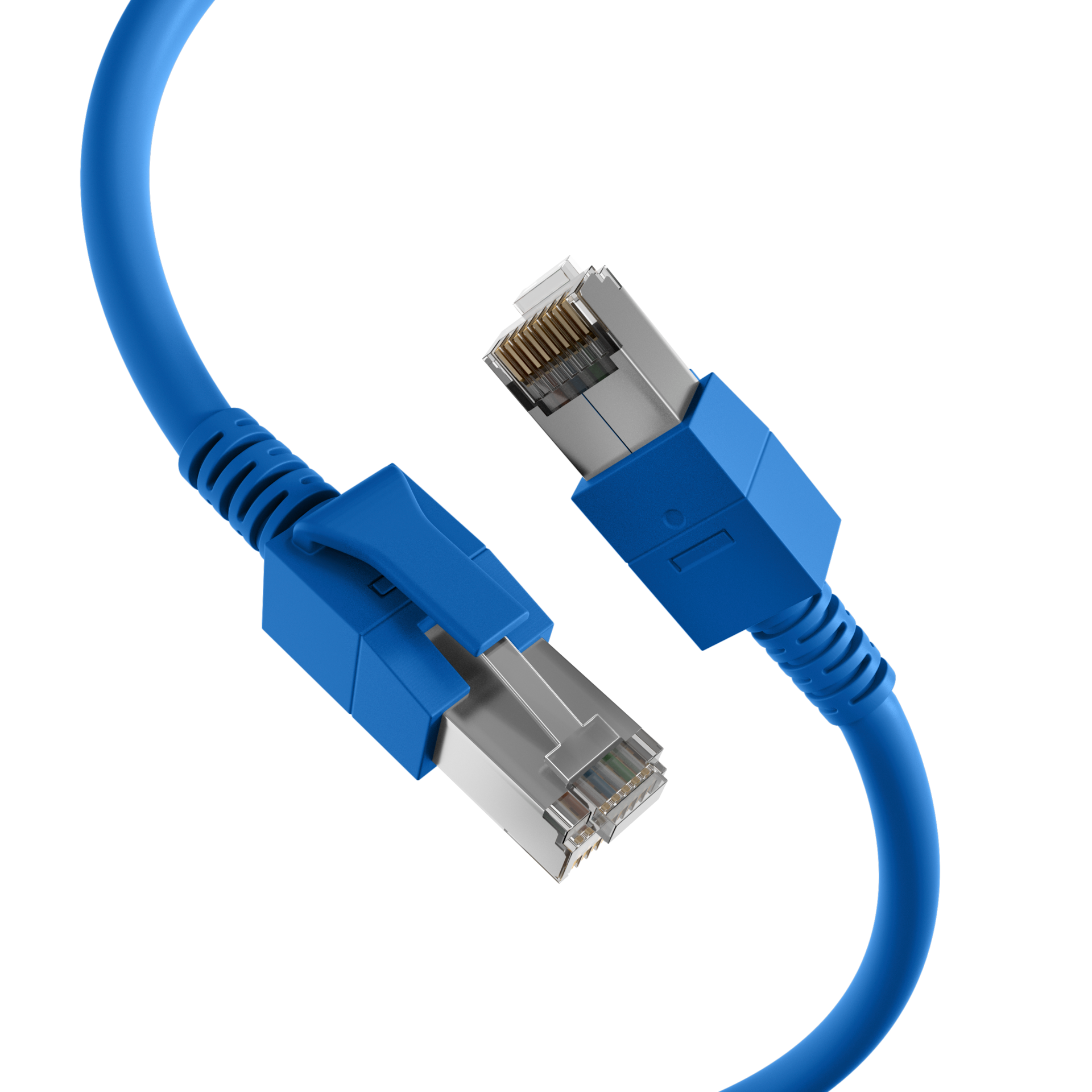

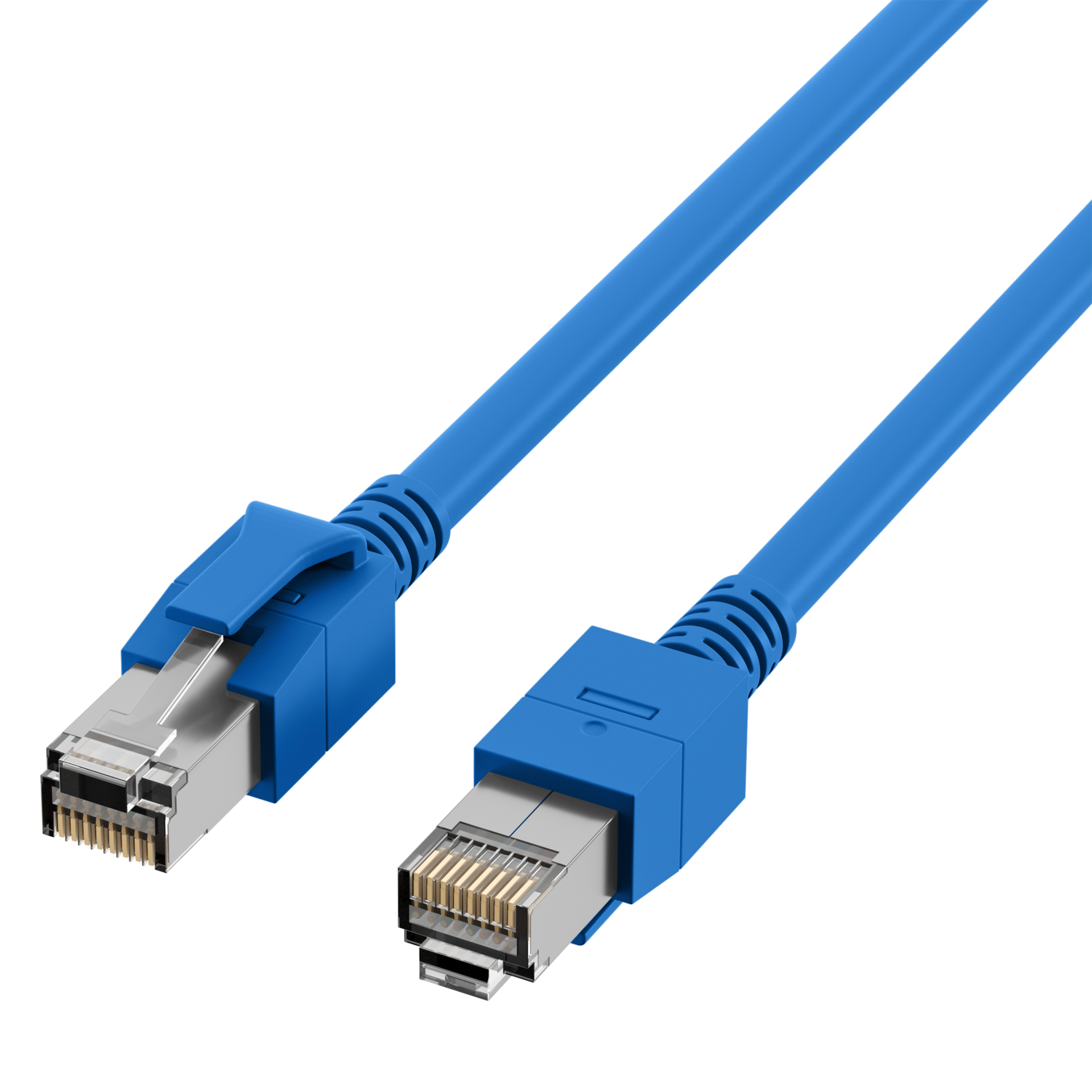

RJ45 patch cable Cat.6A S/FTP FRNC VC LED
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection< br>• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

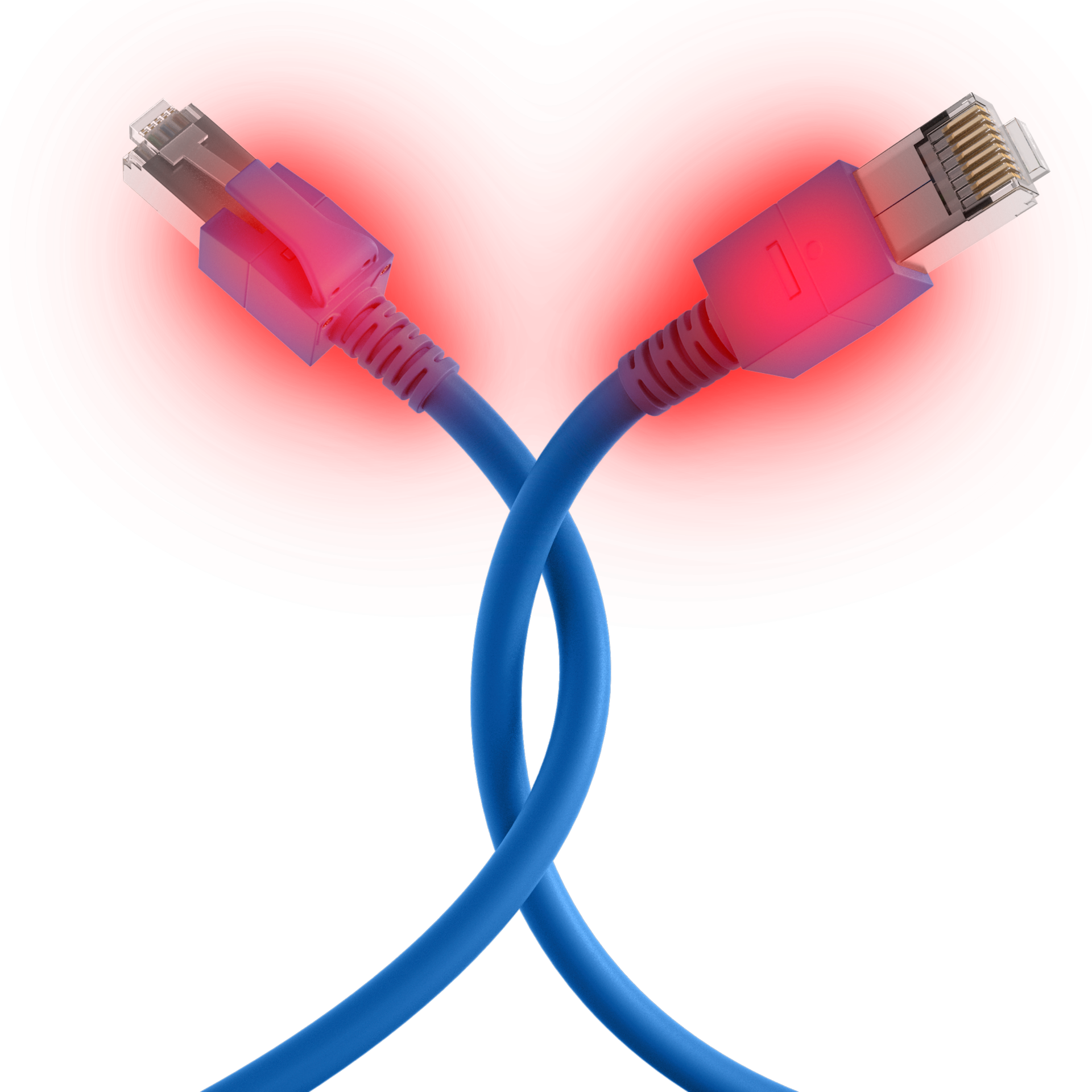

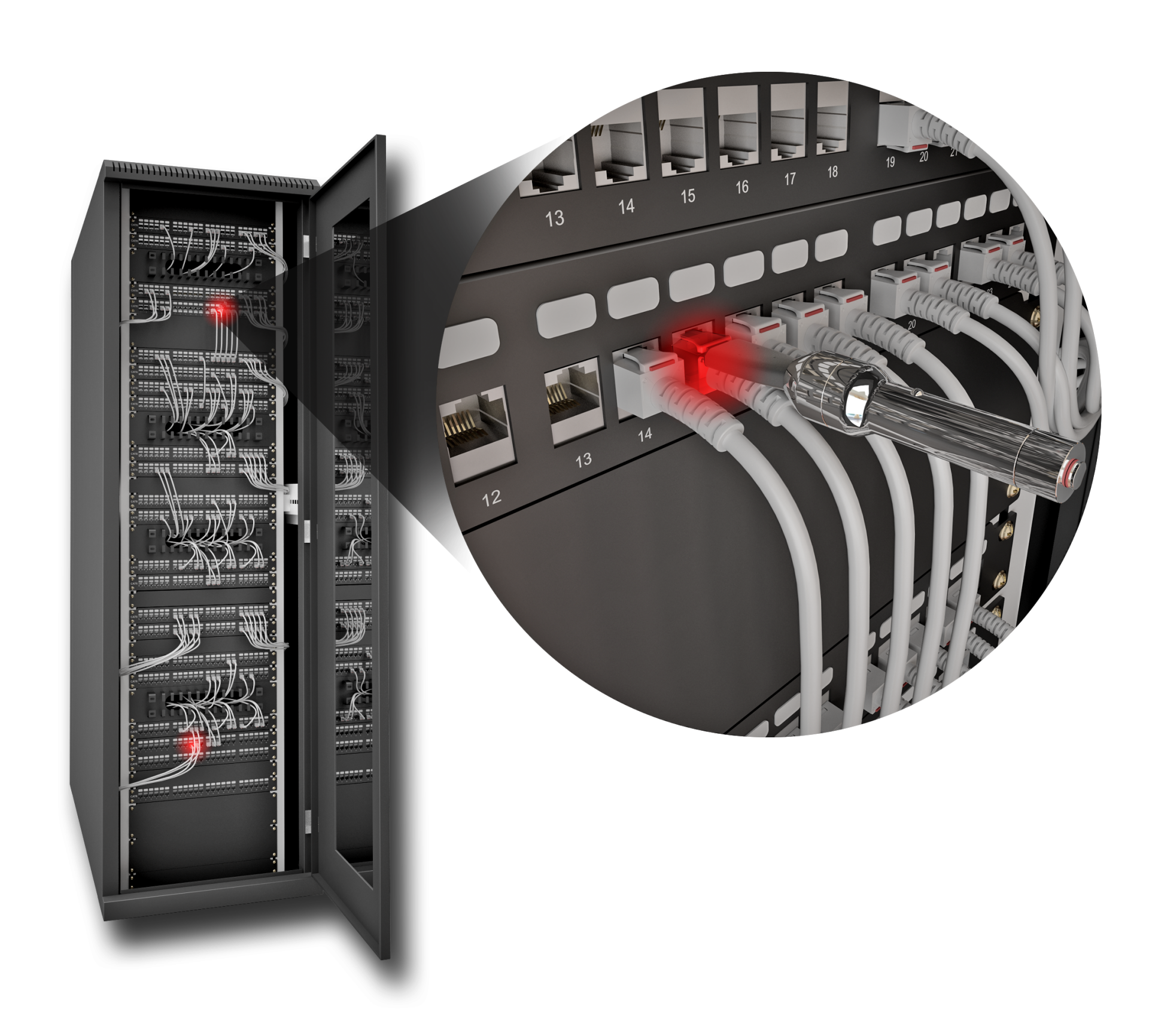

The RJ45 LED connector makes it easy to track the cable route. The assignment is according to TIA/EIA 568B and is 1:1.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection< br>• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The RJ45 LED connector makes it easy to track the cable route. The assignment is according to TIA/EIA 568B and is 1:1.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 500 MHz.
Technical properties
| (Halogenfree): | Ja |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | blau |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 165 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 LED |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | Ja |
| Flame retardant: | acc. IEC60332-3 |
| Halogen-free: | acc. IEC60754-2 |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | > 5000 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | Ja |
| Loop resistance: | 330 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | >750 |
| Model: | shielded |
| NVP value: | 0 % |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | Nein |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.2 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Total screening: | >65 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
