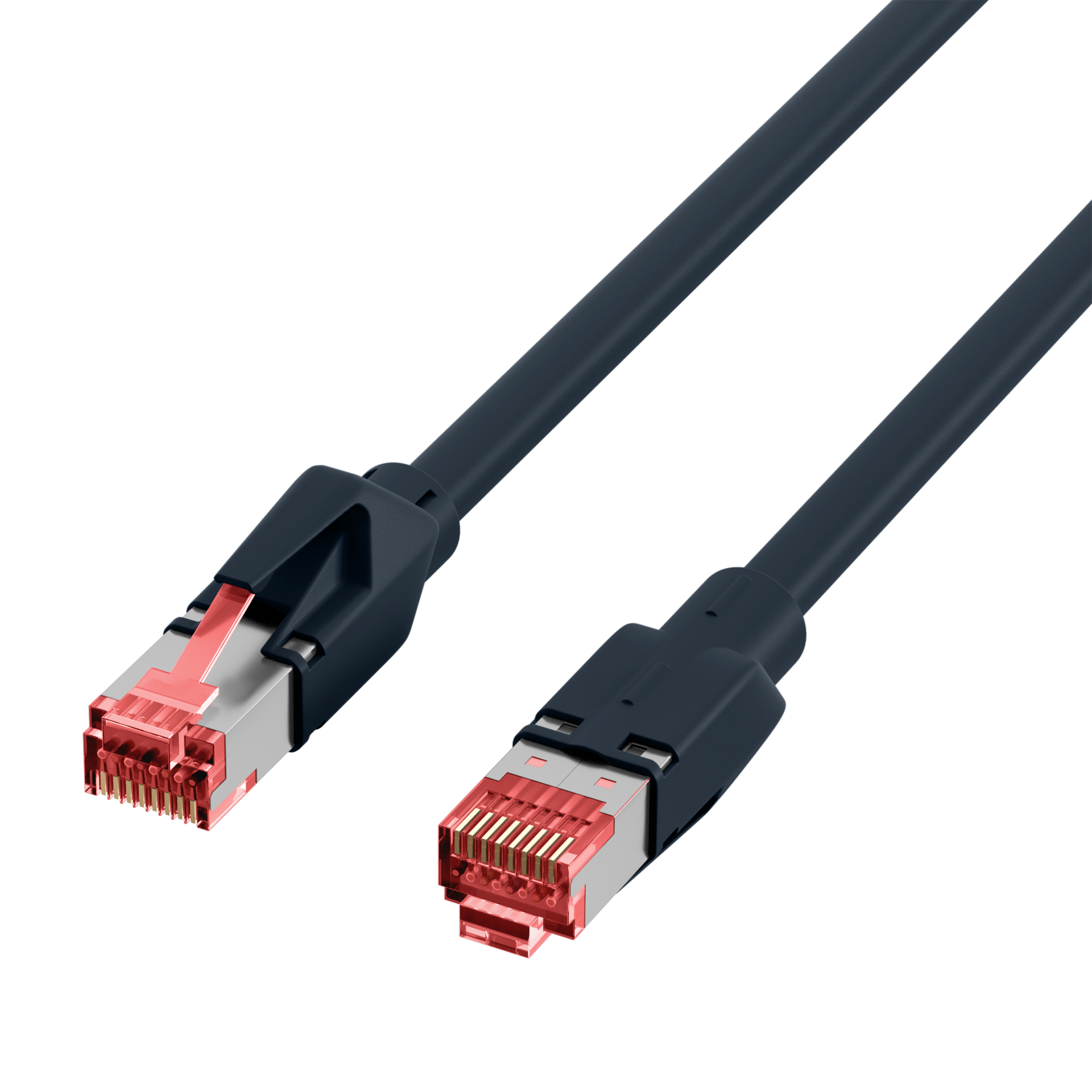

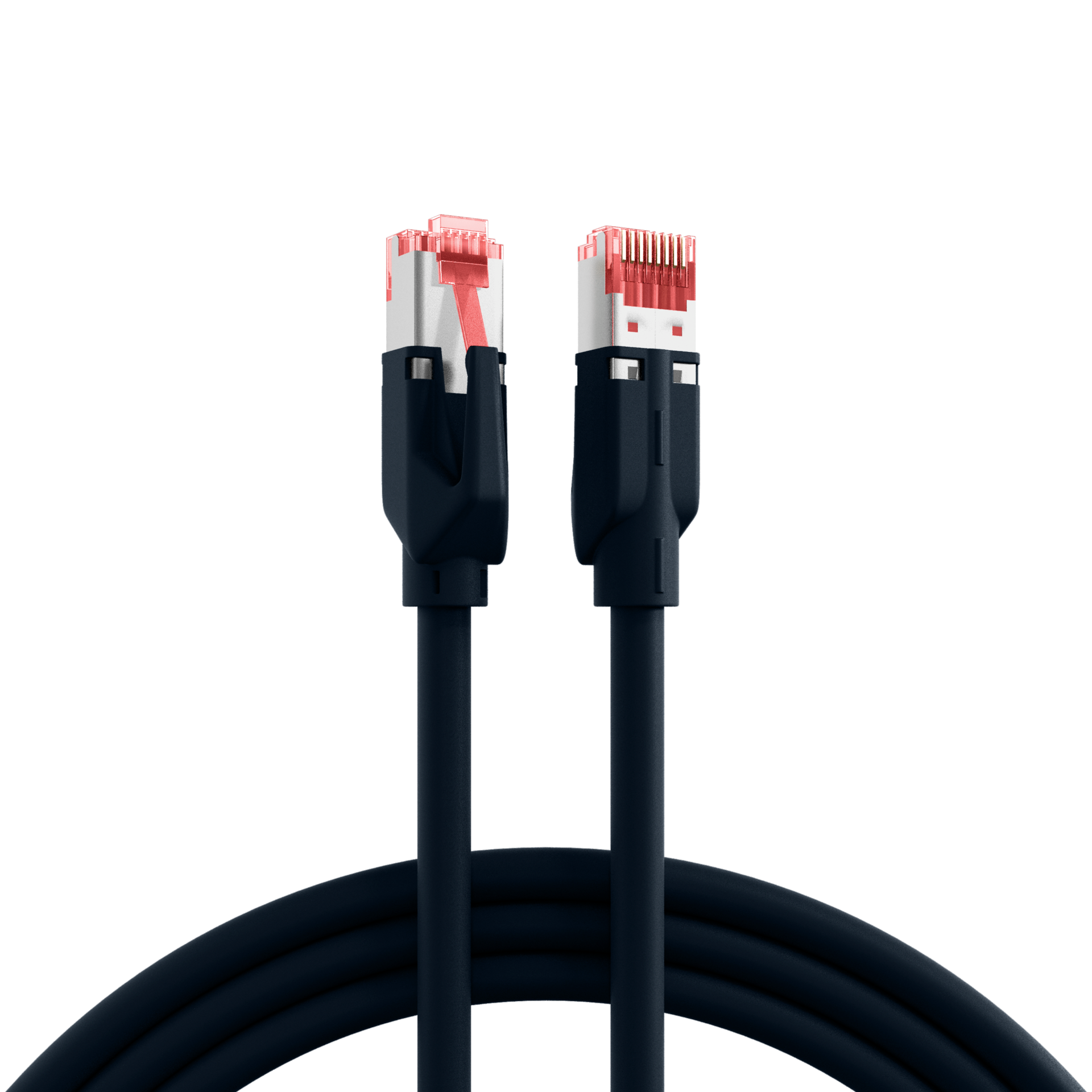

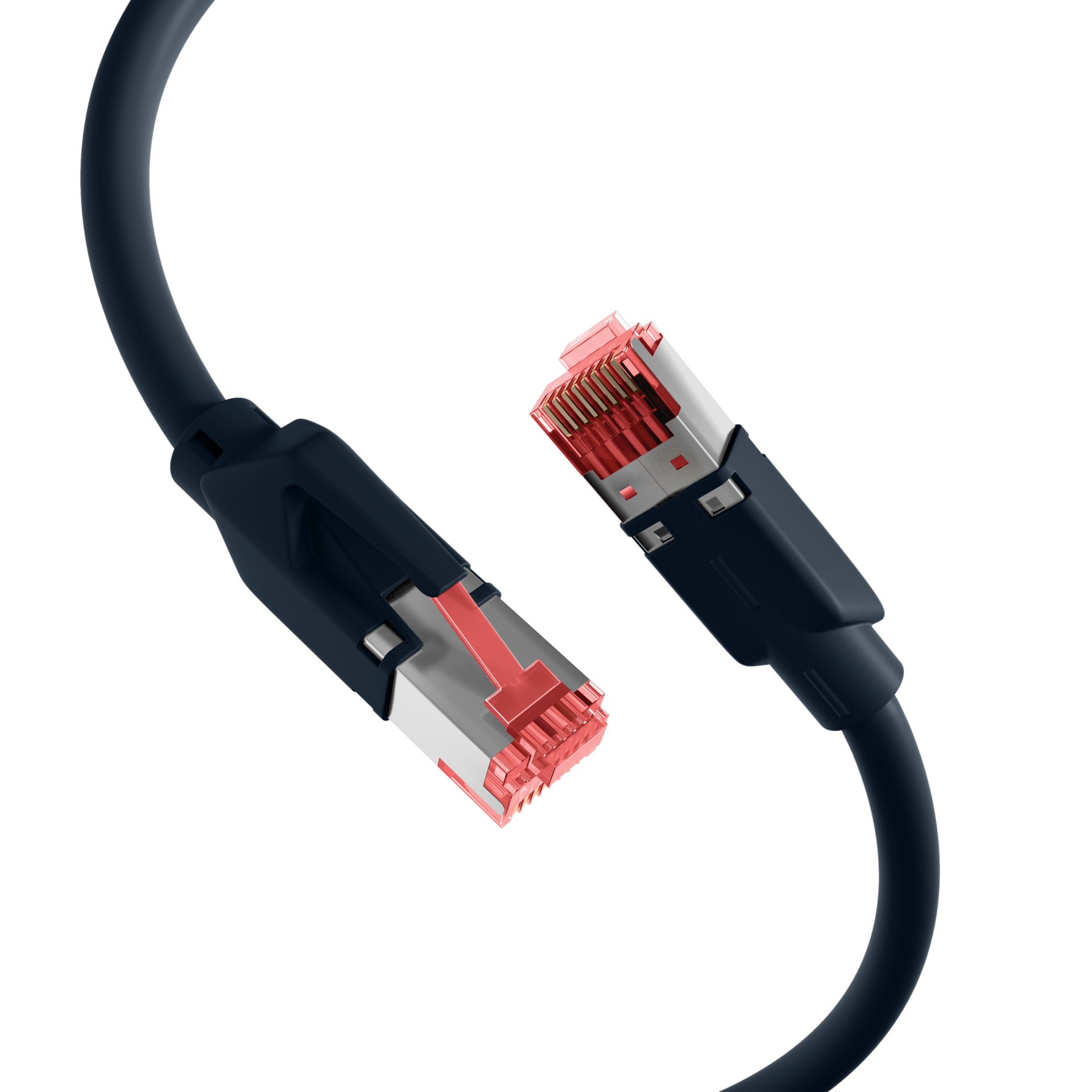

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black
RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 2m
Item number:
K8050.2
EAN no.:
4049759012847
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 2m
RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM21
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is according to TIA/EIA 568B and is 1 :1.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 500 MHz.
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat .6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With Locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is according to TIA/EIA 568B and is 1 :1.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 500 MHz.
Technical properties
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Euro class: | Eca |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±25 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 79 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Total screening: | ca. 45 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8050.0,15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 0,15m | 0.15 m | ±5 % | |
| K8050.0,25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 0,25m | 0.25 m | ±5 % | |
| K8050.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 0,5m | 0.5 m | ±5 % | |
| K8050.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 1m | 1.0 m | ±5 % | |
| K8050.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 1,5m | 1.5 m | ±5 % | |
| K8050.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 2m | 2.0 m | ±5 % | |
| K8050.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 3m | 3.0 m | ±5 % | |
| K8050.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 5m | 5.0 m | ±5 % | |
| K8050.7,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 7,5m | 7.5 m | ±5 % | |
| K8050.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 10m | 10.0 m | ±5 % | |
| K8050.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 15m | 15.0 m | ±5 % | |
| K8050.20 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 20m | 20.0 m | ±5 % | |
| K8050.25 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 25m | 25.0 m | ±5 % | |
| K8050.30 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 30m | 30.0 m | ±5 % | |
| K8050.40 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 40m | 40.0 m | ±5 % | |
| K8050.50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 black 50m | 50.0 m | ±5 % |
