RJ45 Patchkabel Cat.6A U/UTP LSZH RJ45 Patchkabel Cat.6A U/UTP LSZH
RJ45 Patch Cord Cat.6A U/UTP LSZHPremium 500MHz grey 10m
Item number:
K8103GR.10
EAN no.:
4049759034405
Product information for RJ45 Patch Cord Cat.6A U/UTP LSZHPremium 500MHz grey 10m

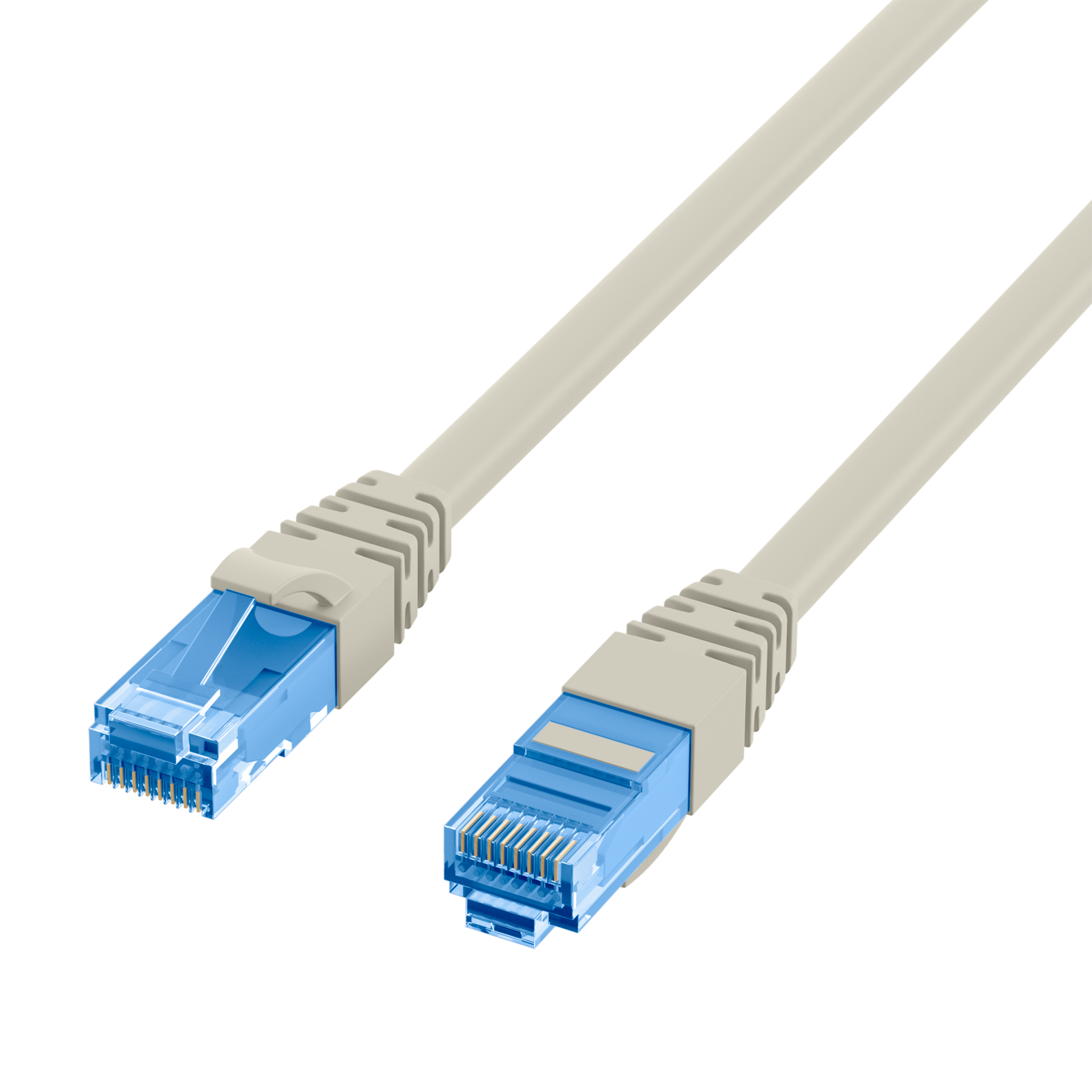

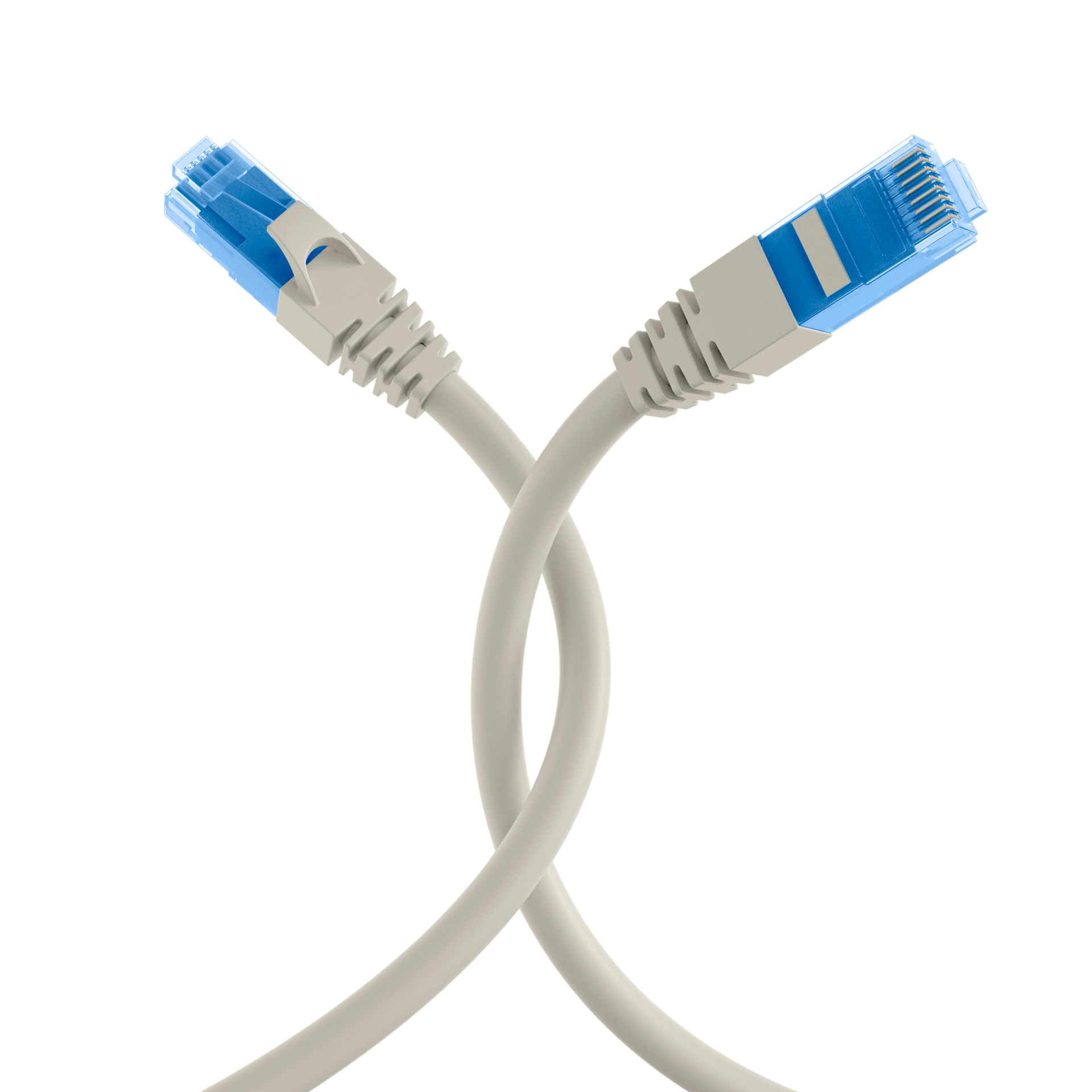

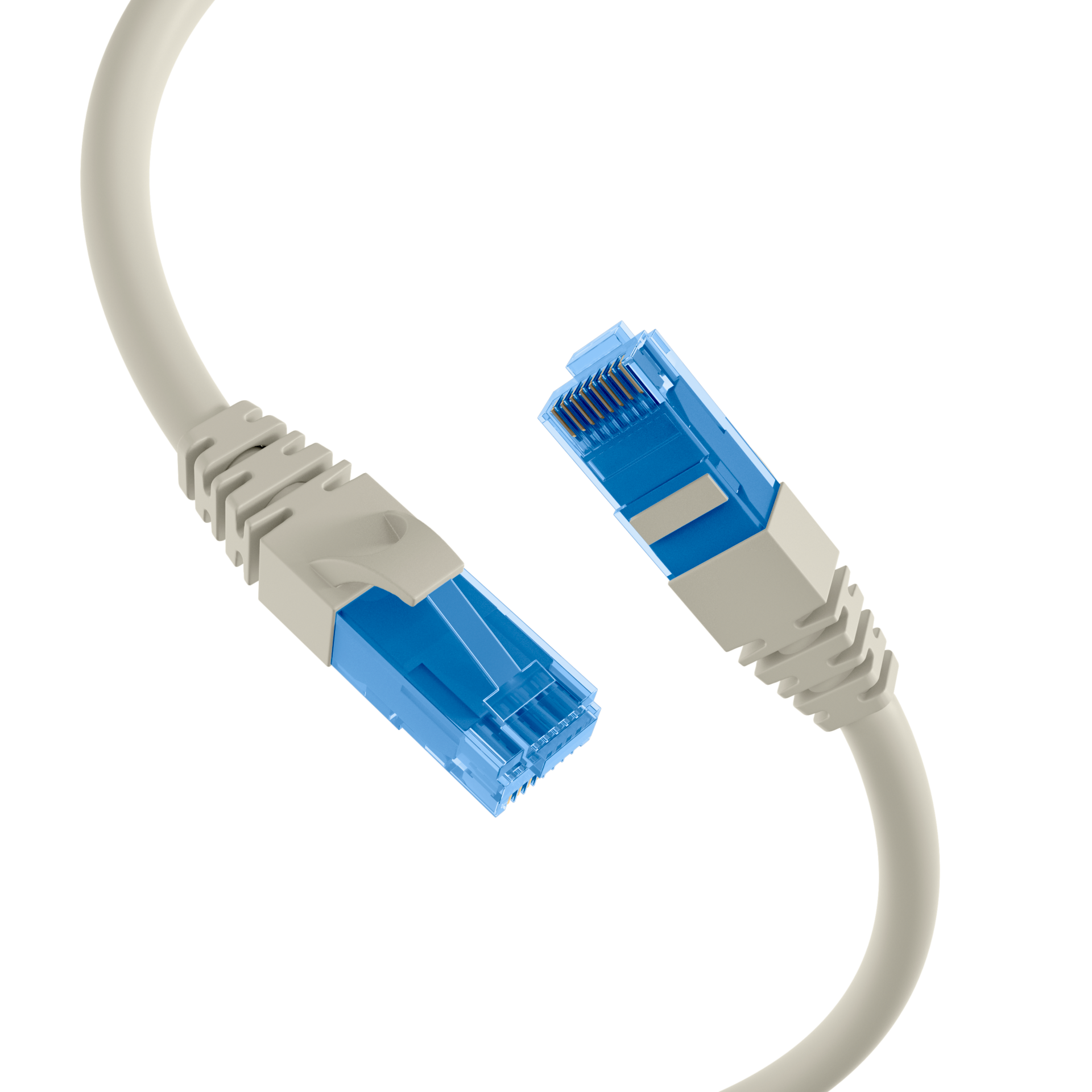

RJ45 patch cable Cat.6A U/UTP LSZH Premium 500MHz
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat. 6A (TIA)
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is 1:1 and follows TIA/ EIA 568B. Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling and in data centers. This achieves a bandwidth of up to 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product properties
• Cat. 6A (TIA)
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is 1:1 and follows TIA/ EIA 568B. Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling and in data centers. This achieves a bandwidth of up to 500 MHz.
Technical properties
| (Halogenfree): | True |
|---|---|
| AWG-size: | 24/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | 30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-41 |
| Connector type: | RJ45 Standard blue |
| Contacts: | 50 µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Jacket Material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Unshielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.0 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet*** |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | 0 – 60 °C |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8103GR.10 | RJ45 Patch Cord Cat.6A U/UTP LSZHPremium 500MHz grey 10m | 10.0 m | ±5 % | |
| K8103GR.15 | RJ45 Patch Cord Cat.6A U/UTP LSZHPremium 500MHz grey 15m | 15.0 m | - | |
| K8103GR.7,5 | RJ45 Patch Cord Cat.6A U/UTP LSZHPremium 500MHz grey 7,5m | 7.5 m | ±5 % |
